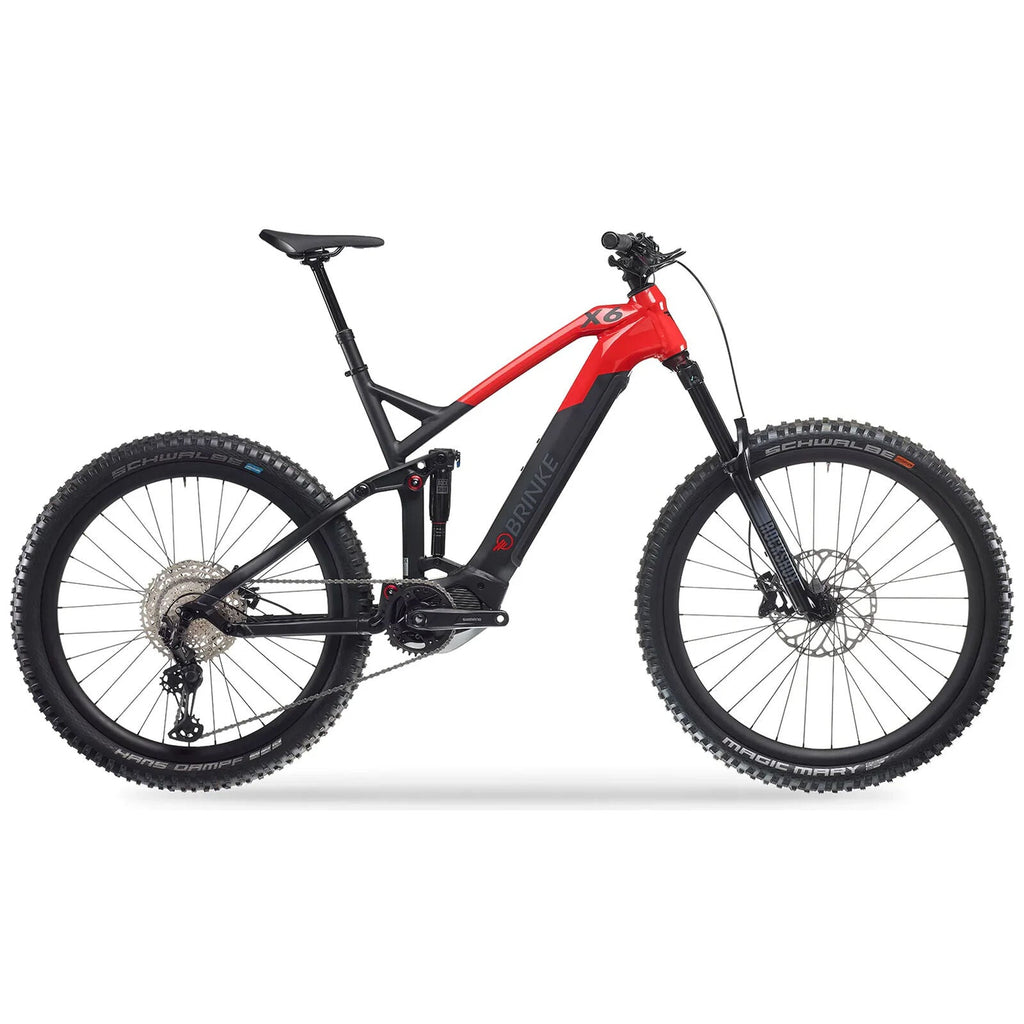

Brinke X6R EP801

The down tube designed around the latest generation Shimano BT-EN806 battery maintains the smallest possible footprint and gives the EMTB an attractive, minimalist look. The frame is designed to accommodate 27.5‘ rear and 29’ front diameter mullet wheels for maximum grip.

Features

• Shimano BT-EN806 battery
• Attractive and minimalist aesthetics
• Mullet wheels

Tech spec

Frame

• Frame: ALUMINUM FRAME - Rear travel 150mm - Motor mount for Shimano EP801 - Rear wheel 27.5'', Front wheel 29'' - Internal cable routing - 148mm Boost rear thru-axle

System

• Motor: Shimano EP801-250Watt-85Nm
• Battery: Shimano BT-EN806 630Wh
• Display: Shimano SC-EN600

Suspensions

• Rear shock absorber: Rock Shox Deluxe Select+ 205x65mm
• Fork: Rock Shox 35 Gold RL 29” Solo Air 160mm, 15X110 Tapered Head tube

Cockpit

• Handlebar Stem: 3D Forged AL6061 with CNC machining - Barbore 35mm, extension 45mm
• Handlebar: Diameter 34.9 - Width 780mm - 28mm rise
• Seatpost: Telescopic seatpost 30.9mm - 100mm travel for size S - 130mm travel for sizes M and L
• Saddle: Fizik Terra Alpaca

Brakes

• Front Brake: Shimano BR-M6120 4 Pistons
• Rear Brake: Shimano BR-M6120 4 Pistons
• Rotors: 220mm Front and 203mm Rear

Transmission

• Rear Derailleur: Shimano XT RD-M8100 SGS 12-speed
• Shifter: Shimano SL-M6100-R 12-speed
• Cassette: Shimano CS-M6100-12 speed 10-51D
• Chain: Shimano CN-M6100-12 speed with quicklink
• Crankset: Shimano FC-EM600 160MM
• Chainring: Shimano SM-CRE70-12-B 36T

Wheels

• Front Hub: Shimano XT HB-MT410-B - 15X110 - Center lock
• Rear Hub: Shimano XT FH-MT410-B - 12X148 - 12-speed Microspline - Center lock
• Front Rim: KOM Trail i30 TCS 2.0 29'' rim - Inner width 30mm
• Rear Rim: KOM Trail i35 TCS 2.0 27.5'' rim - Inner width 35mm
• Front Tire: Schwalbe Magic Mary Evo 29x2.6
• Rear Tire: Schwalbe Hans Evo Dampf 27.5x2.8

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
