Cannondale Mavaro 4 Low Stepthru 2025

This comfortable, capable e-bike is crafted to make moving through the city fast, easy, and fun. It features our light and durable SmartForm C2 Alloy frame construction, in a convenient low step-thru design. It’s powered by Bosch’s proven Active Line Plus motor and a 500Wh battery, providing solid power, ample range, and reasonable weight. A Gates carbon belt drive and Shimano’s Nexus 5-speed internal gear hub deliver smooth, clean and quiet shifting. Everything you need for errands, commutes, and joyrides.

Premium Electric Experience

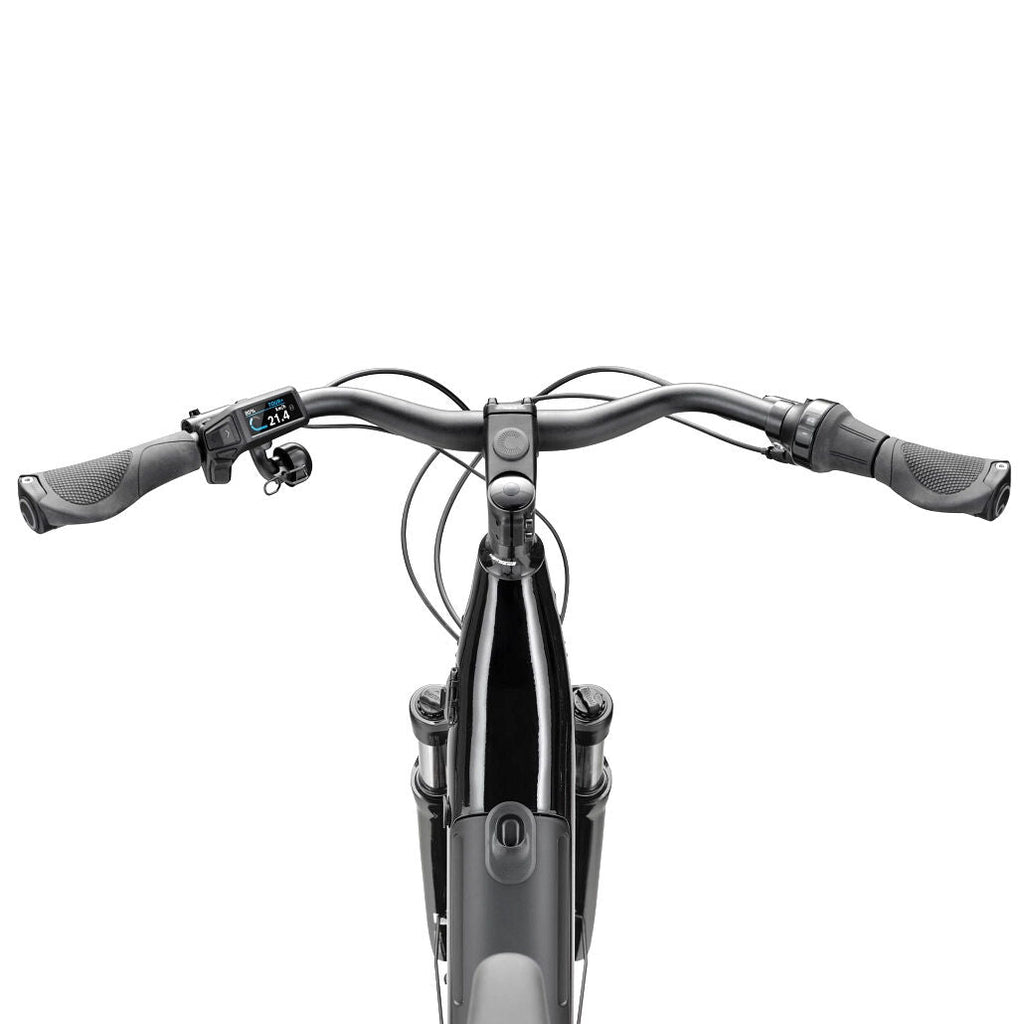

Mavaro 4 is powered by the new Bosch Active Line Plus drive unit, packing a 500Wh battery, boosting your power up to 340%, with a colourful and compact Purion 200 display on the handlebar. Effortless acceleration, compelling versatility, and a range of up to 110km on a single charge.

Roll Smoothly

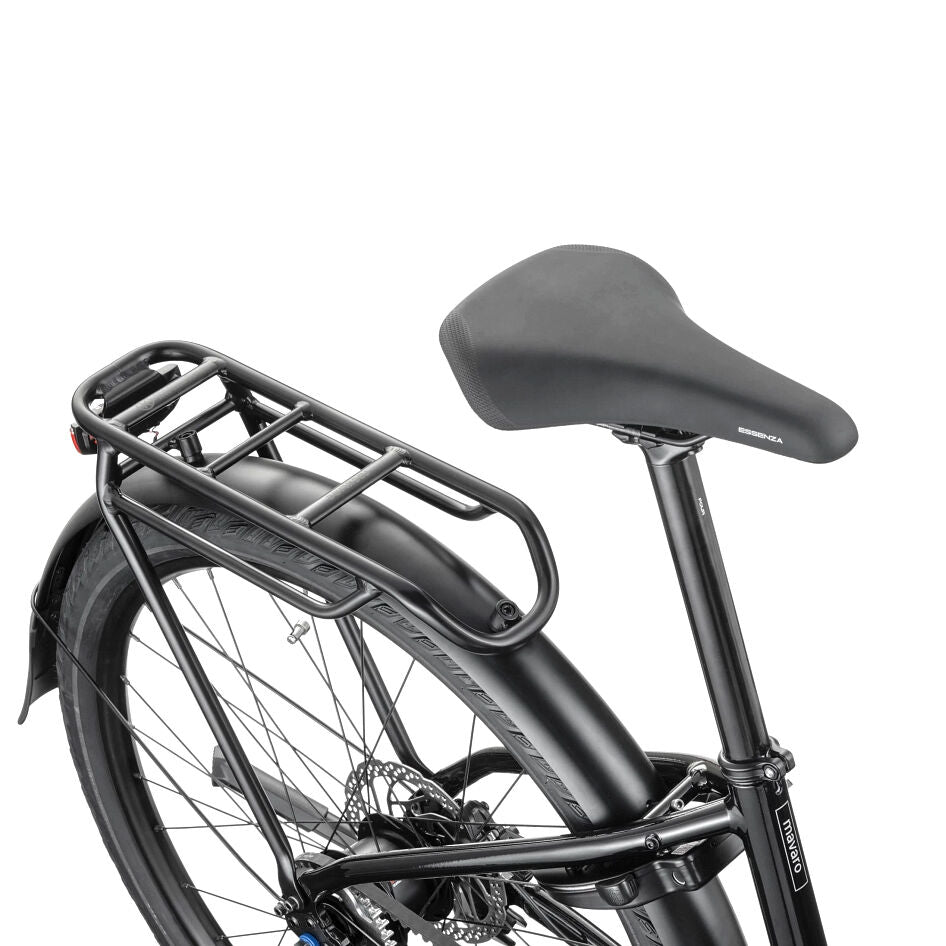

With its smooth 63mm travel fork, alloy fenders, high-capacity rear rack (Racktime ready), bright front and rear lights, comfort handlebars and low gearing – the new Mavaro 4 is your perfect commuting partner.

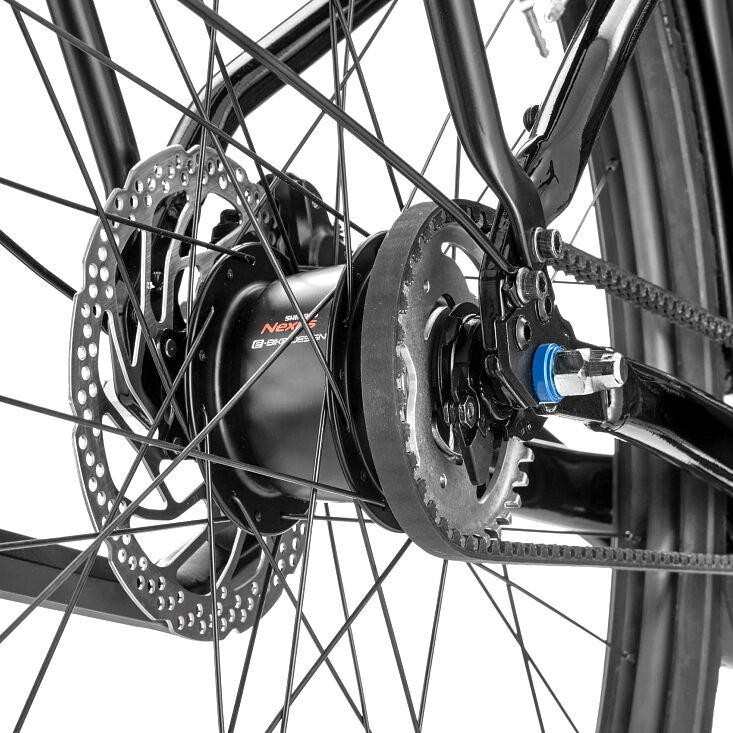

Clean, Quiet and Easy
The combination of the Gates belt system with a Shimano internal gear hub makes an ideal urban drivetrain. No dirty chains, no noisy derailleurs; just smooth, simple, reliable shifting always.

Two Frame Options
Available as either a convenient low step-thru design or with the classic look of a top tube. Either way, our expert aluminum craftsmanship delivers a robust, beautiful, and confidence-inspiring ride.

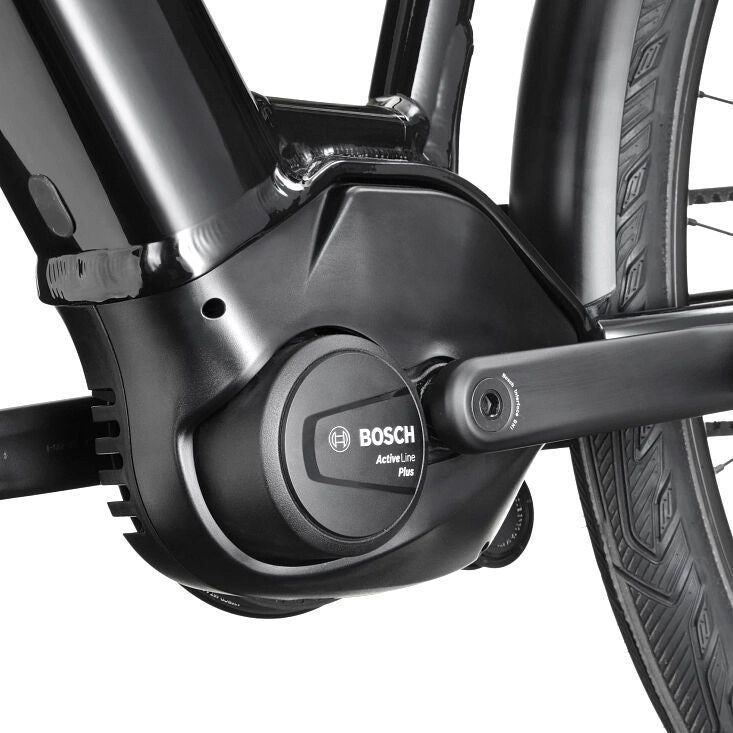

Bosch Active Line Plus Motor
Bosch’s new Active Line Plus drive unit delivers silent, natural-feeling power. With up to 50Nm of torque, it can boost your power by up to 340%. Effortless acceleration and compelling versatility.

Convenient Charging
Mavaro 4's charge port is high on the frame - easy to find and easy to reach with a charge cable. Or, if you want to take the battery off and charge it inside, it pops out of the frame, and back in, with an easy click.

Be Seen
To make you more visible in all light conditions, Mavaro 4 features an integrated reflector into the front of the frame, plus a powerful Axa headlight and a bright taillight. The combination lets you be seen up to 50 meters from behind, up to 3 kilometers from the front, and will light the road up to 55 meters ahead of you at night.

Tech spec

Frameset

• Frame: Mavaro Low Step-Thru, SmartForm C2 Alloy, removable 500Wh downtube battery, integrated headtube reflector, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection
• Fork: SR Suntour Mobie A32, 63mm travel, coil with preload adjuster, lockout, crown light mount, 44mm offset
• Headset: Semi-Integrated, Tapered; 1-1/8"-1-1/2"

E-System

• Drive Unit: Bosch Active Line Plus, Smart System
• Battery: Bosch PowerTube, 500Wh
• Charger: Bosch 2A
• Display: Bosch Purion 200

Drivetrain

• Rear Derailleur: Shimano Nexus Inter-5E, 5-speed internal gear hub
• Shifters: Shimano Nexus Revoshift, 5-speed twist shifter
• Chain: Gates CDC carbon drive belt
• Crank: Gates Bosch E-bike, w/ 46T sprocket
• Rear Cogs: Gates CDC, 34T

Brakes

• Brakes: Shimano MT200 hydraulic disc, 180/160mm RT30 rotors
• Brake Levers: Shimano MT200 hydraulic disc

Wheels

• Rims: Alloy, double wall, 32 hole, 25mm internal width, disc-specific
• Spokes: Stainless Steel, 14g
• Tire Size: 2.2
• Wheel Size: 27.5/29
• Hubs: (F) Shimano TC500, 15x110mm thru-axle / (R) Shimano Nexus Inter-5E, 5-speed internal gear hub
• Tires: Continental eContact Plus w/ reflective sidewalls, 29x2.2" 55-622 (M,L,XL), 27.5x2.2" 55-584 (S)

Components

• Handlebar: Cannondale Urban Ergo Bar, 6061 Alloy, 25mm rise, 35° sweep, 0° rise, 680mm
• Stem: Cannondale 3 w/ Intellimount, Alloy, 31.8mm clamp, 70mm, +6°, w/ SP Connect SPC+ Stem Mount
• Grips: Ergon GC10
• Saddle: Selle Royal Nuvola
• Seatpost:Cannondale 4, 6061 Alloy, 31.6, 300 (SM), 350mm (MD), 400mm (XL)

Extra: Axa Compactline 35E front light, Axa Blueline rear light, Abus framelock (key-matched with battery lock), Tubus rear rack (25kg, Racktime compatible), full-coverage fenders

Manufacturer's notes: depending on component availability, specifications are subject to change without notice.
