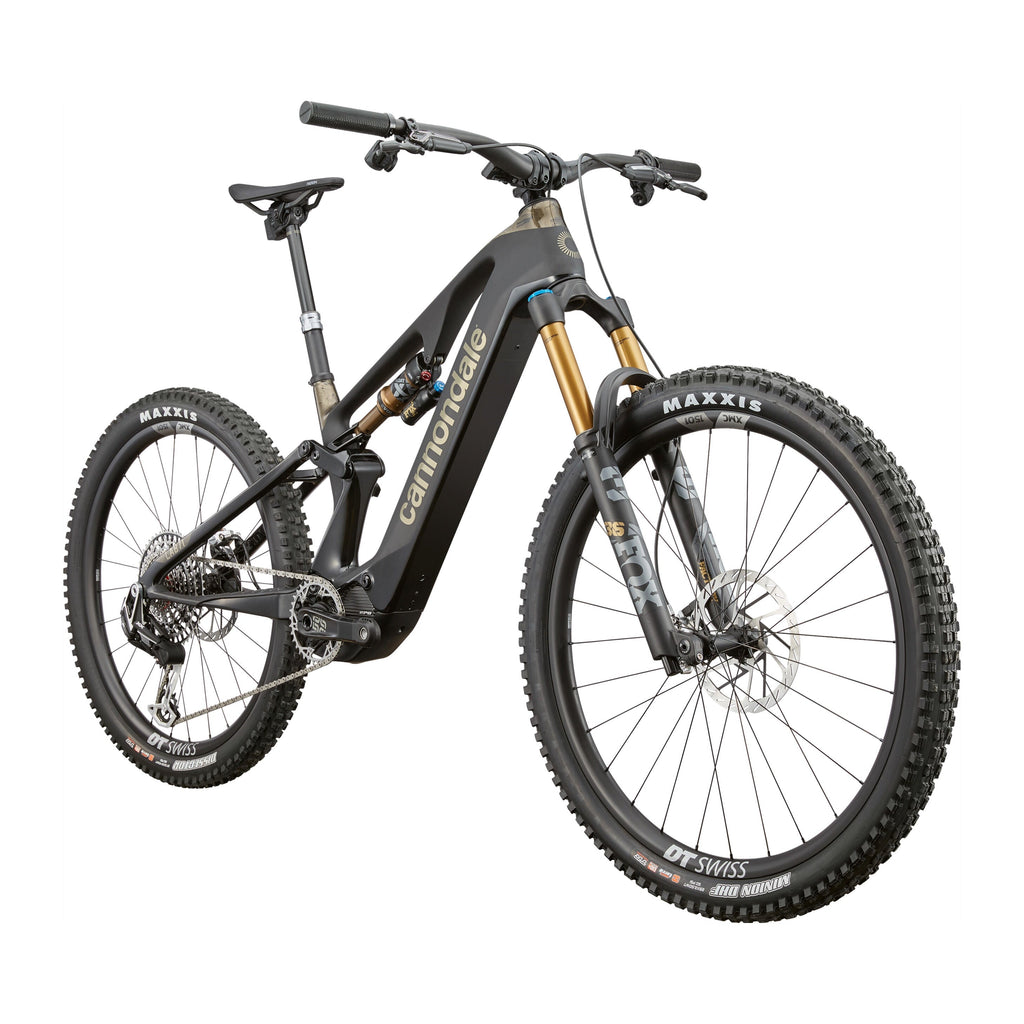

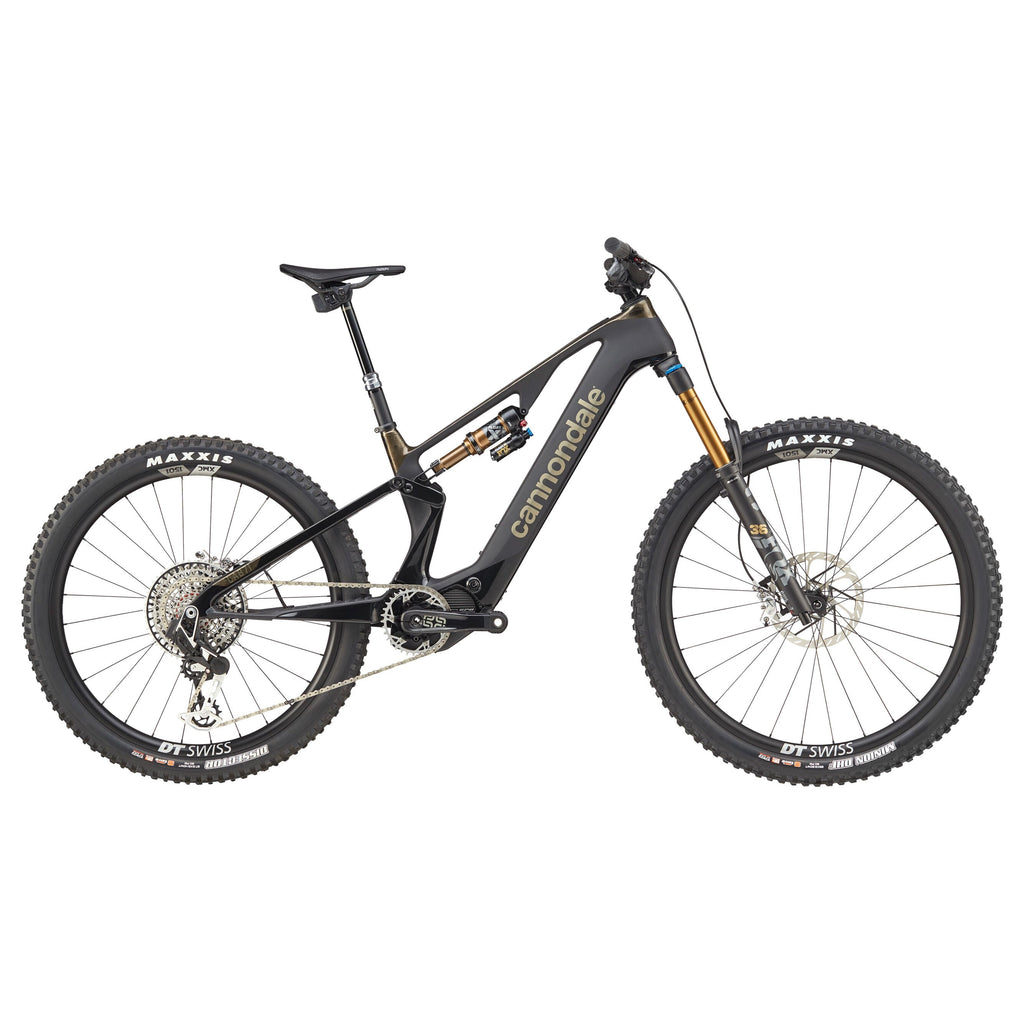

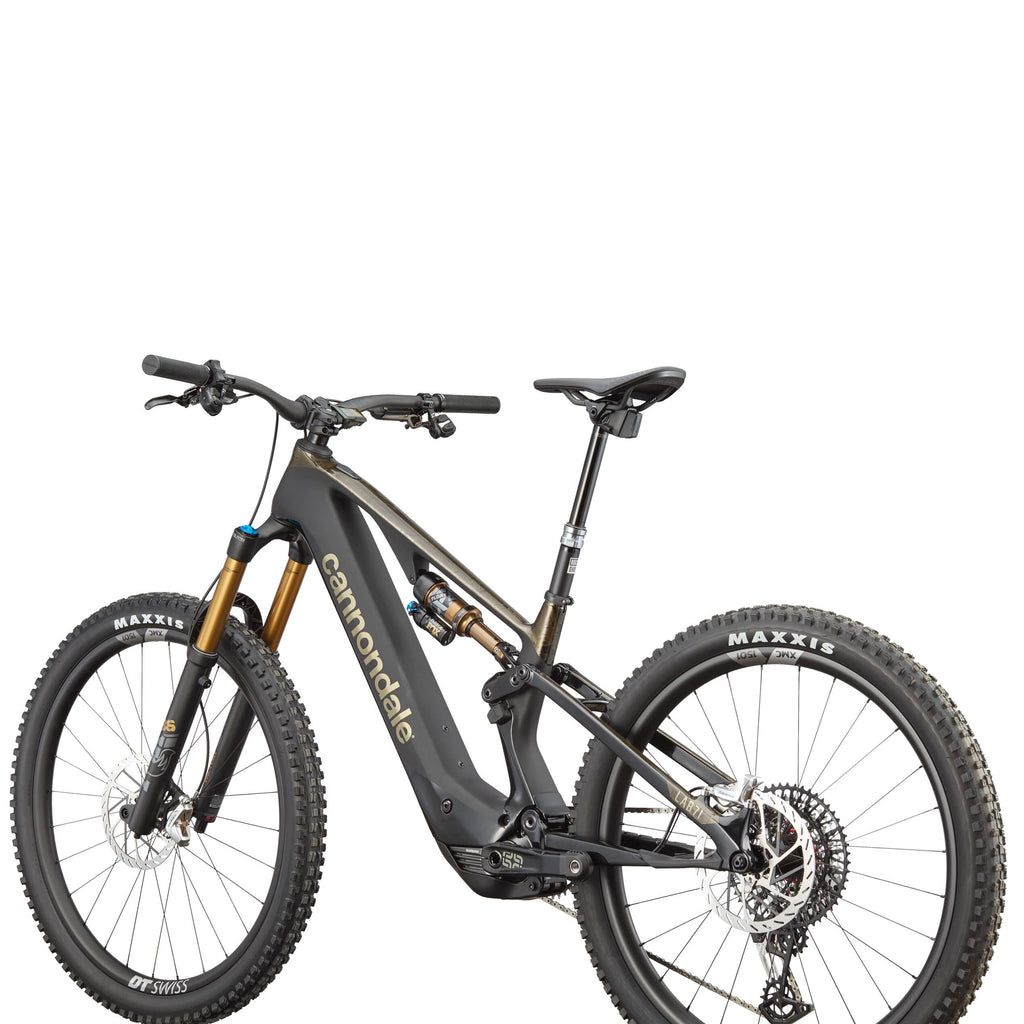

Cannondale Moterra SL Lab71

In It to Pin It

Just call it the “sweet spot” – the best of both worlds. Big-bike power and ride time, with lightweight-bike agility and handling. In other words, exactly what e-mtb riders everywhere have been waiting for. Moterra SL might just be the most fun mountain bike we’ve ever made. Full-power thrills meet lightweight agility in this category-defining electric mountain bike. Featuring lightest, full-power e-mtb chassis, with a top-of-the-line Fox Factory fork and shock, DT Swiss XM 1700 wheels, the flawless shifting of SRAM’s wireless, electronic X0 T-Type Transmission, and the confident stopping power of Magura MT7 disc brakes.

High on Power, Low on Weight
Electric mountain bikes with this much power on tap have never been this light. The lightweight carbon fiber frame features our weight-saving FlexPivot technology, and houses a custom battery that packs more watts per kilo than any other on the market. That unmatched power-to-weight ratio makes for one hell of a fun ride.

Full Boost
Power comes from a custom-tuned version of Shimano’s EP801 drive unit – the lightest motor capable of the big power we were looking for. With 85Nm of torque and 600+ watts of max output, it brings big-time boost to the lightweight party.

Power a la Mode
We developed custom ride modes for Moterra SL, specially tuned for the kind of high-speed sessions this rig encourages. Four different levels of boost, easily adjustable on the fly, help you choose between maximum range, monstrous power, or your ideal blend of both. Whether mild or wild, your ride will be whatever you want it to be, no more and no less.

Heavenly Handling

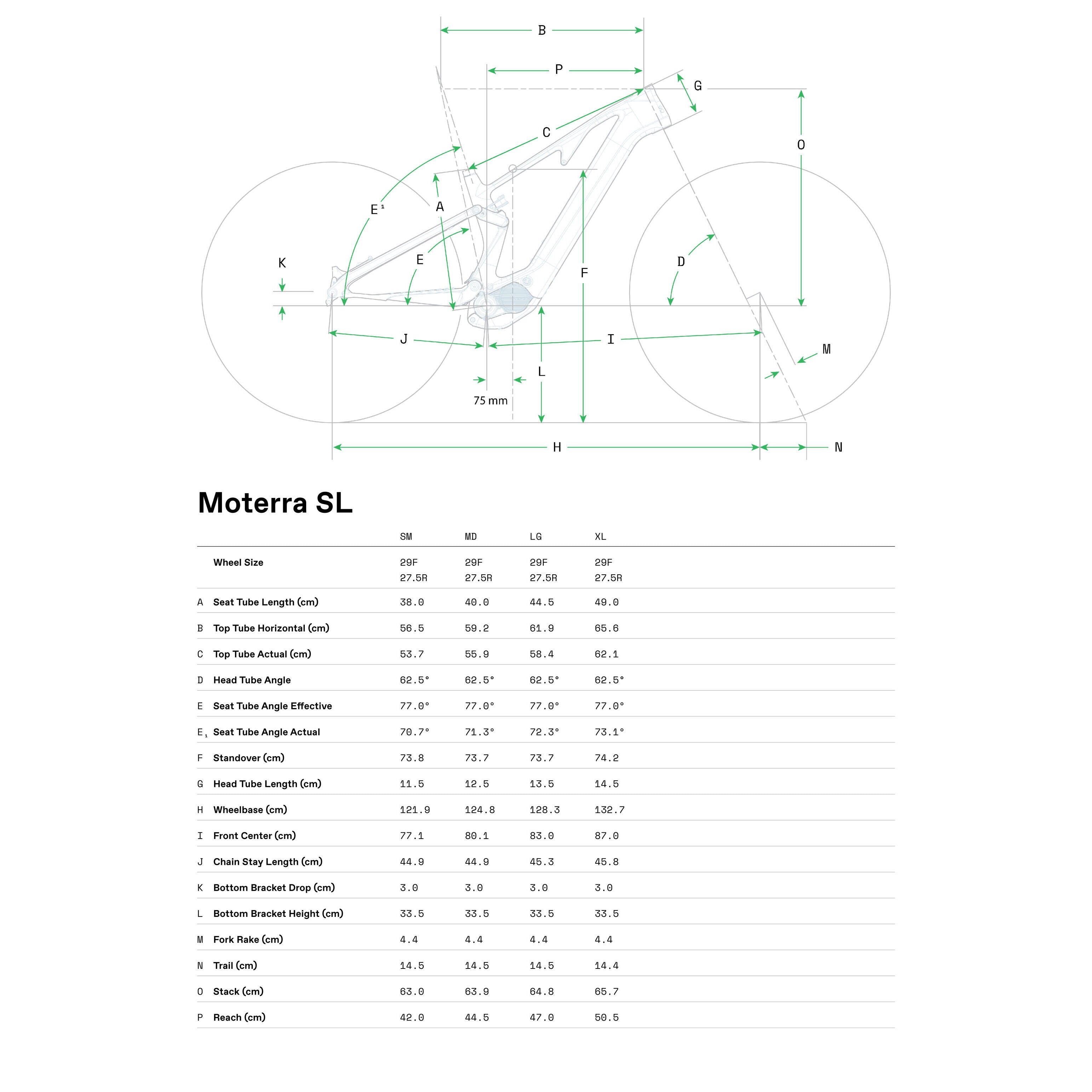

At a glance, it looks kinda crazy – an adjustable head angle slack enough for a DH bike, the long reach and steep seat angle of a modern trail bike, suspension layout and geometry fully customized by size – but when it all comes together, it absolutely rips.

Animated Suspension
More than just weight-savers, our burly FlexPivot stays are also at the heart of our suspension design. By acting as a Horst pivot, it creates a true four-bar system, allowing our engineers to dial in the perfect suspension response for every input. The result? Incredible traction, confident braking, and a playful feel that just begs to be pushed harder.

FlexPivot
These carbon flex points are something we pioneered years ago, and they’re like a cheat code in frame engineering. They reduce weight, eliminate maintenance, and they allow us to use a sophisticated four-bar suspension design, increasing your traction and control on the trail.

Designed for You
With our Proportional Response design, everything from the suspension layout to the geometry — even the length of the chain stays — is completely customized for each bike’s size. It’s performance, built just for you.

Flip It Your Way
The Flip Chip means you can choose between keeping Moterra Neo SL as a “mullet” bike, with the 29-inch-front/27.5-inch-rear wheel setup for agility and playfulness, or ir switching to 29-inchers at both ends, for maximum traction and rolling efficiency.

Get Your Head Set
Adjustable headset cups give you a 1.2-degree range of angle adjustment at the front. Dial it back if you want more stability at speed, set it steeper if you want more agility on technical terrain.

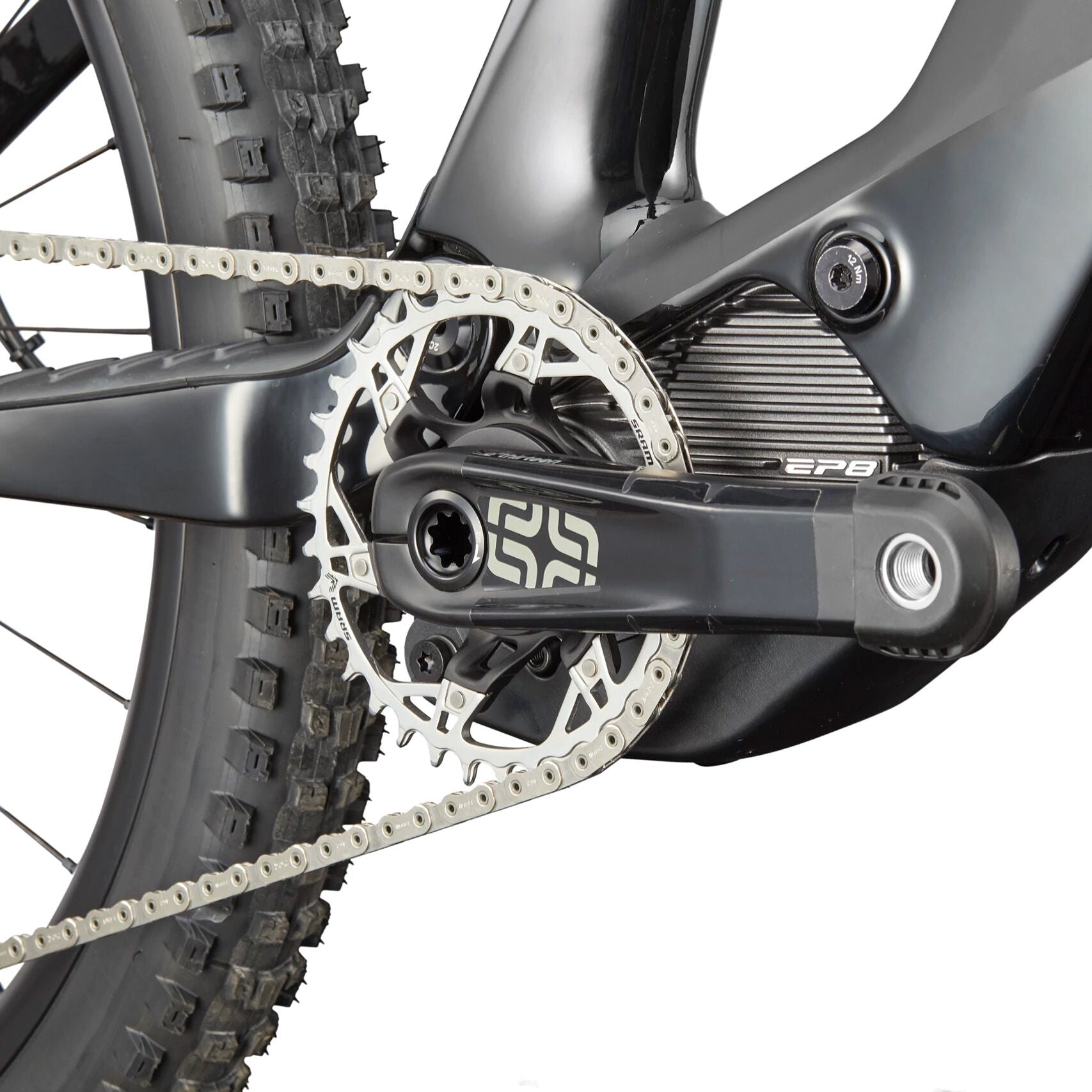

Shimano EP801 Drive Unit
Shimano’s top-shelf e-MTB system: lightweight, reliable, and powerful. 85Nm of torque and 600+ watts of max power, delivered via custom-engineered ride modes for full-power fun.

Custom-tuned Ride Modes
Specially designed assist modes for the perfect ride : ECO - max range for all-day exploits. TRAIL 1 – mid-power, great for riding with friends on lightweight e-bikes. TRAIL 2 - ramps up the assist for ripping with full-power e-bikes. And BOOST – full power, all the time. Have it your way.

Custom 601Wh Battery
Using special cells that store more power per kilo than ever before, we created an incredibly compact battery that packs a full 601 watt-hours into just 3.1 kg (including wiring harness!). All of the power, less of the weight.

Route it Right
You can run internal cables straight through the headset, to keep things looking clean and out of harm’s way, or through ports in the frame, for simplicity and ease of service.

Don't Be Bashful
Like a helmet for your motor, an integrated bashguard protects it from harsh impacts on the trail. You may not need it much, but when you do, you’re happy it’s there.

Features

• Light and durable, full carbon, 150mm travel FlexPivot frame with Proportional Response suspension kinematics
• Top-of-the-line Fox Factory suspension – 160mm Factory Float 36 fork & Factory Float X rear shock
• Light and tough, DT Swiss XM 1700 Spline, tubeless-ready all-mountain wheelset
• SRAM’s penultimate e-MTB group - XO AXS wireless 12-speed shifting, plus e*thirteen Race Carbon cranks & Magura MT7 hydraulic disc brakes
• Cannondale’s DownLow dropper post & Hollowgram SAVE vibration-reducing carbon handlebar
• Cannondale-tuned Shimano EP801 motor & custom, high-energy-density 601Wh internal battery

Tech spec

• Frame: Moterra SL Carbon, 150mm travel, Proportional Response Tuned Suspension, FlexPivot Chainstay, direct mount internal battery, engineered plastic skid plate, 55mm chainline, internal cable routing, 29” FlipChip, 148x12mm Maxle thru-axle, UDH hanger, 200mm native post mount brake, angle adjust headset
• Fork: Fox Float Factory 36, 160mm travel, Grip2 Damper, Kashima coating, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset
• Headset: Acros Adjustable Angle (1.2°)

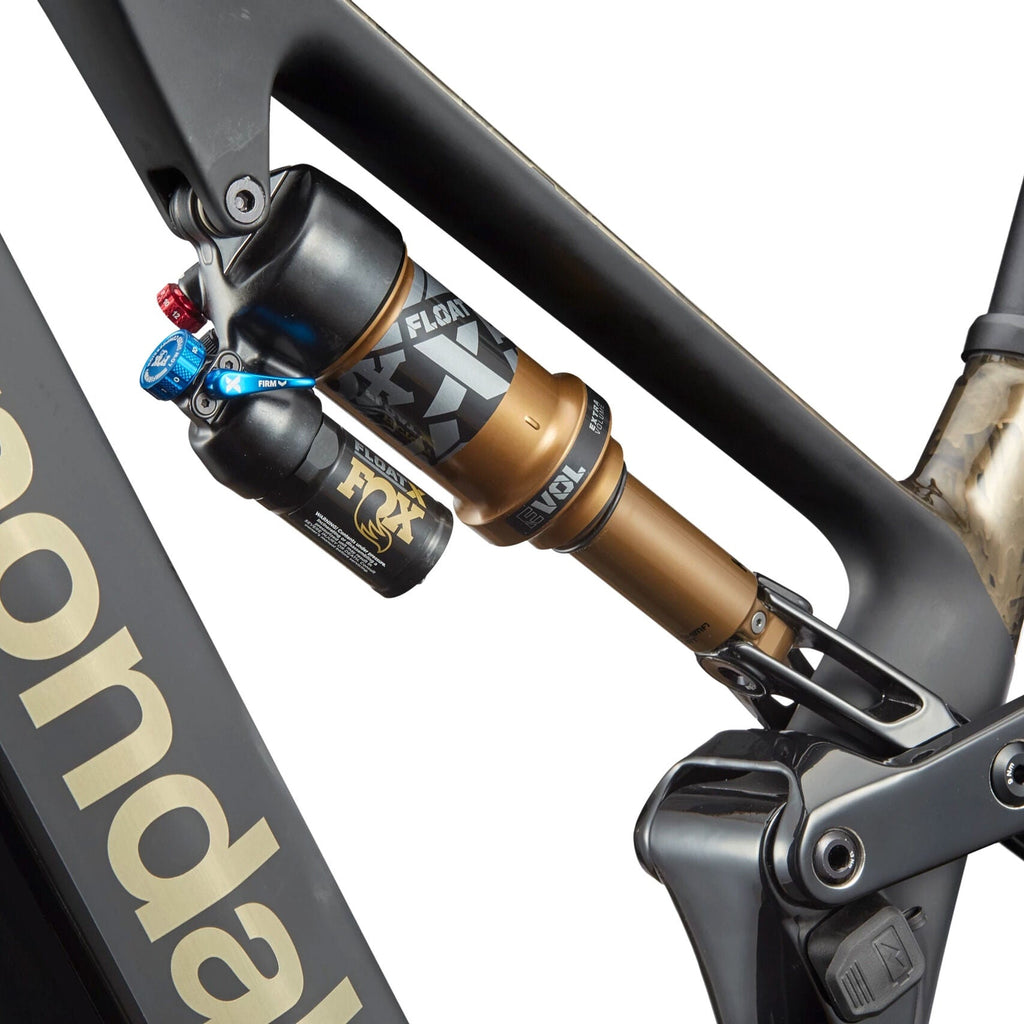

• Rear Shock: Fox Float X Factory, 2 pos adj, EVOL LV, 210x55mm
• Drive Unit: Shimano EP801, 85Nm, Custom Tuned, Eco, Trail 1, Trail 2, Boost Modes
• Battery: Custom 601Wh battery
• Charger: Custom 4A
• Display: Shimano SC-EM800 Cycle Computer, Bluetooth LE Compatible
• Certifications: UL2849

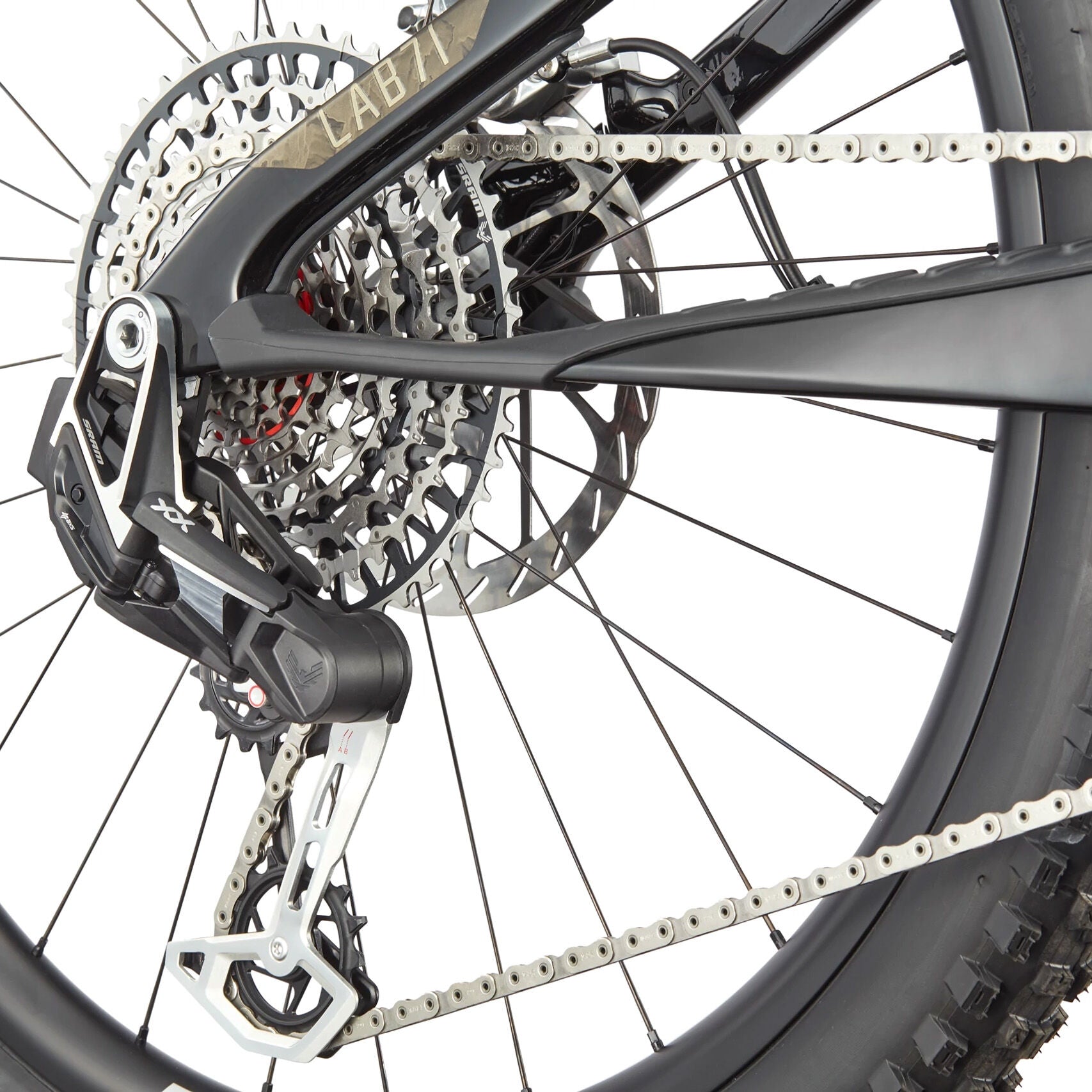

• Rear Derailleur: SRAM XO Eagle AXS, T-Type
• Shifters: SRAM AXS T-Type POD Controller
• Chain: SRAM XO Eagle, T-Type, Flattop
• Crank: e*thirteen e*spec Race Carbon - Gen 4, 165mm, 34T
• Rear Cogs: SRAM XO Eagle, 10-52, T-Type
• Brakes: Magura MT7 4-piston hydraulic disc w/ Storm HC 203mm, 6-bolt rotors
• Brake Levers: Magura MT7 HCW hydraulic disc
• Rims: DT Swiss XM 1700 Spline, 30mm inner width, TC tubeless ready
• Spokes: DT Swiss Competition, straight pull
• Tire Size: 2.5
• Wheel Size: 29
• Hubs: (F) DT Swiss 350, 15x110mm / (R) DT Swiss 350 Ratchet System 36 SL, 12x148mm
• Tires: (F) Maxxis DHF, 29x2.5 ", 3C, EXO+, tubeless ready / (R) Maxxis Dissector , 27.5x2.4", 3C, EXO+, tubeless ready

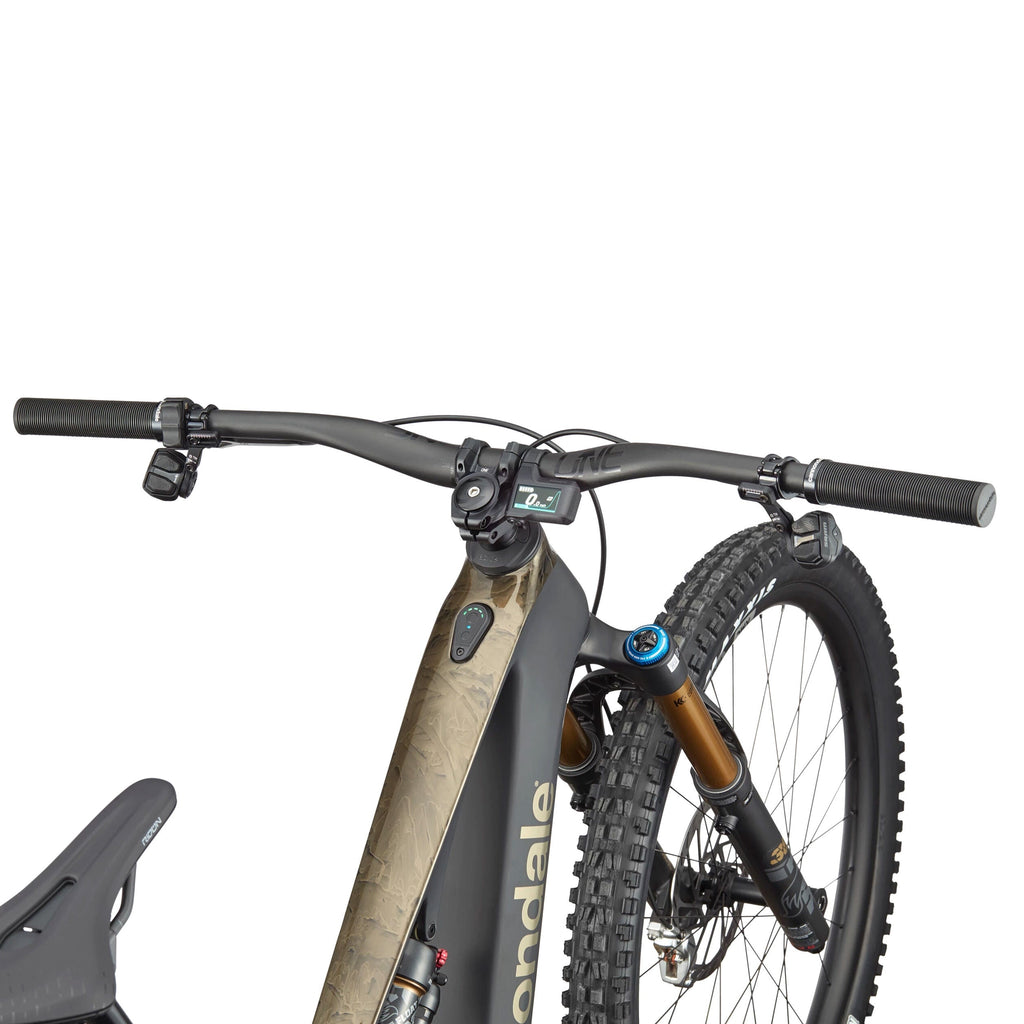

• Handlebar: HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm
• Stem: Cannondale 1, 7075 Alloy, 1-1/8", 35mm, 0°
• Grips: Cannondale TaperRidge
• Saddle: Fizik Terra Ridon X3, 145mm, Wingflex, K:ium Mobius rail 7x7mm
• Seatpost: Cannondale DownLow Dropper, internal routing, 31.6, 150mm (S), 170mm (M-XL)

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only. Anything not specified in the description is not included.
