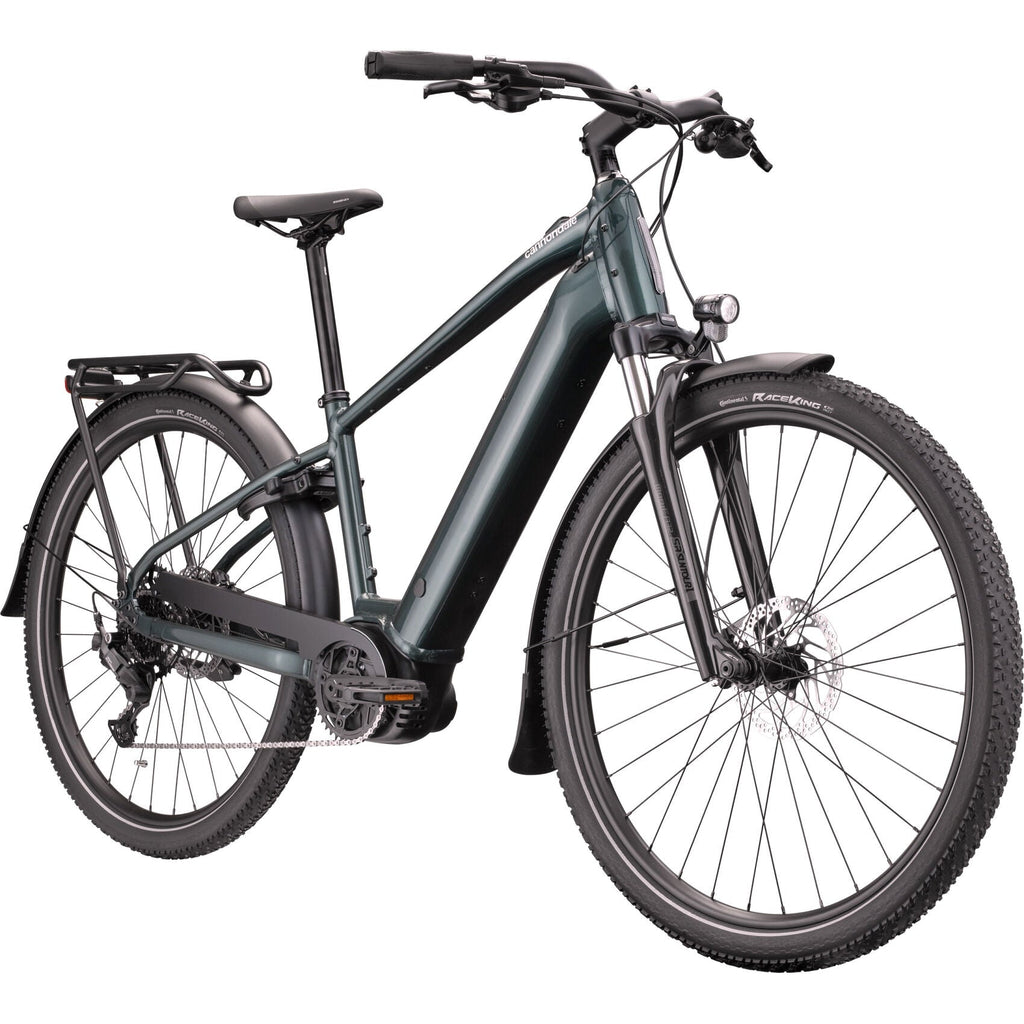

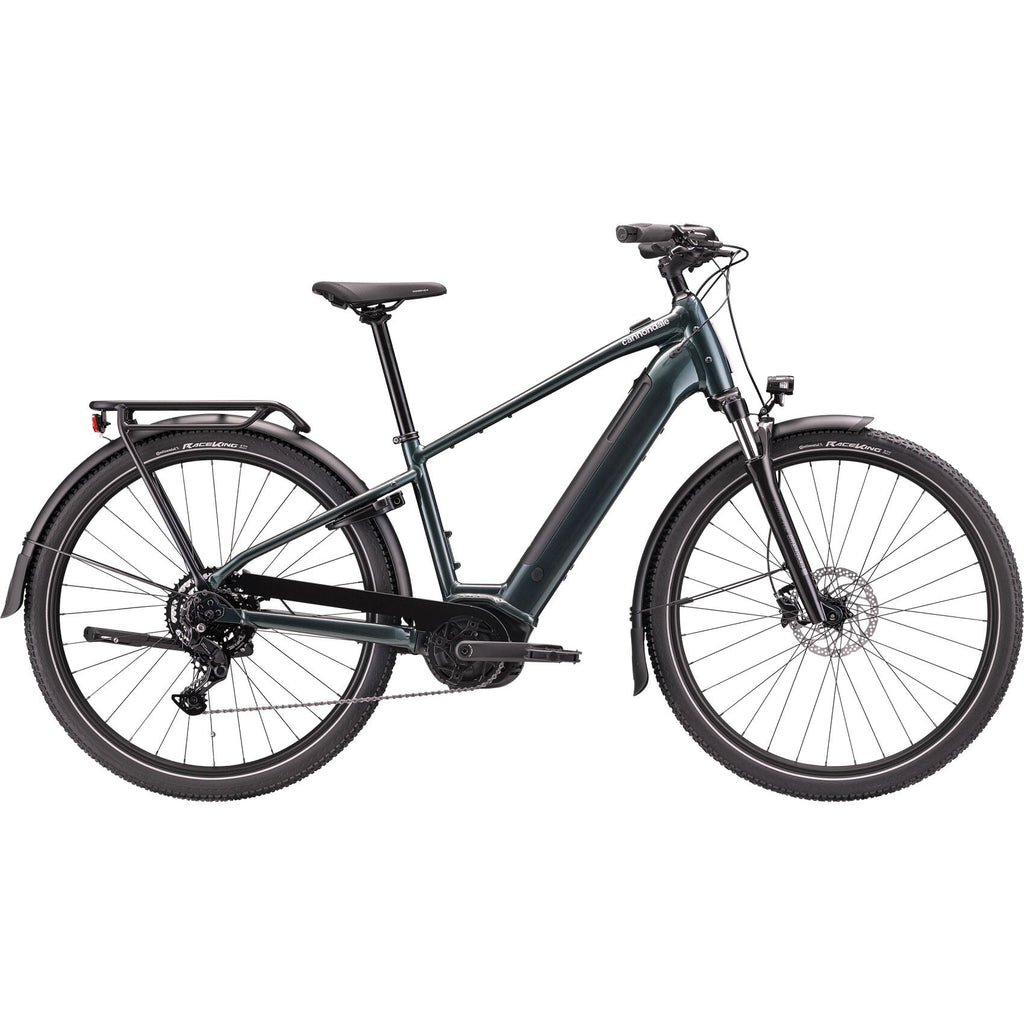

Cannondale Tesoro 3+

Just a few pedal strokes away

At the heart of this sporty e-bike for everyday use beats the explorer's wild instincts. With its remarkable range, durable components, and all-terrain tires, Tesoro is the perfect bike for both weekday and weekend use. The Tesoro 3+ is made for movement. Clean speed and ample range. The SmartForm C2 aluminum frame houses a 625 Wh Bosch battery to deliver power to those who keep the throttle wide open. Shimano's 9-speed CUES drivetrain provides fast, precise shifts, while hydraulic disc brakes ensure total control. Continental Race King tires have the perfect grip for both asphalt and trails, giving you the freedom to change routes on the fly. Equipped with integrated lights, full-length fenders and rear rack, this e-bike is ready for quick commutes, weekend rides and everything in between.

Power
The new Bosch Smart System Active Line Plus motor and 500 Wh battery provide effortless power.

Speed
This drive system provides pedal assist up to a maximum speed of 25 km/h. Beyond that, it's up to you.

Autonomy
Up to 113 km of assisted range means you can ride to and from anywhere.

Always ready for the off-road
Fork with 63 mm travel, high-capacity luggage rack, mudguards, bright front and rear lights, wide handlebars and adequate gears: the new Tesoro X is ready to go and conquer any road... everywhere.

City roads
Potholes? Gravel? Tram tracks? No fear. All the features that make the Tesoro X perfect for off-road riding make it an incredibly comfortable and safe bike on asphalt.

Fast and fun
The sporty but comfortable riding position, together with the precise steering, make this e-bike great fun to ride, whether in city traffic or on secondary trails or hills outside the city.

Practical charging port
The charging port on the down tube allows you to charge the battery on the bike, or you can easily remove it for charging indoors.

Bosch Smart System
The Bosch Smart System can be controlled and adjusted via the eBike Flow App, and is frequently updated for maximum customisation.

Be seen
To make you more visible in all light conditions, the Tesoro X 3 is equipped with an integrated running light in the front of the frame, as well as a powerful Axa front light and a bright rear light. This combination allows you to be seen up to 50 metres from behind, up to 3km in front of you and will illuminate the road up to 50 metres ahead of you at night.

To each his own wheel
For maximum speed, comfort and adaptability, the larger sizes of the Tesoro X use 29‘ wheels (622), while the smaller sizes have 27.5’ wheels (584).

Intellimount stem
You can easily and securely attach your phone to the stem with the SP-Connect adapter.

Technical specifications

• Frame: Tesoro, SmartForm C2 Alloy, removable 625Wh downtube battery, integrated front running light, tapered headtube, internal cable routing, 135mm QR hub spacing, IS disc mount, motor protection
• Fork: SR Suntour Mobie A32, 63mm travel, coil with preload adjuster, lockout, crown light mount, 44mm offset
• Rims: Alloy, double wall, 32 hole, 25mm internal width, disc-specific
• Hubs: (F) Shimano TC500, 15x100mm thru-axle / (R) Shimano R600 centerlock, 32H, QR
• Front Hub: Shimano TC500, 15x100mm thru-axle
• Rear Hub: Shimano R600 centerlock, 32H, QR
• Spokes: Stainless Steel, 14g
• Tires: Continental Race King, 27.5x2.2" 55-584 (SM), 29x2.2" 55-622 (MD-LG)
• Pedals: Cannondale Urban Platform
• Crank: FSA Bosch E-bike
• Chain: KMC e500
• Rear Cogs: Shimano CUES LG300, 11-46, 9-speed
• Rear Derailleur: Shimano CUES U4000
• Shifters: Shimano CUES U6000, trigger style, 9-speed
• Handlebar: Cannondale Urban Ergo Bar, 6061 Alloy, 25mm rise, 35° sweep, 0° rise, 680mm
• Grips: Ergon GC10
• Stem: Cannondale 3 w/ Intellimount, Alloy, 31.8mm clamp, 70mm, +6°, w/ SP Connect SPC+ Stem Mount
• Headset: Semi-Integrated, Tapered; 1-1/8"-1-1/2"
• Brakes: Shimano MT200 hydraulic disc, 180/180mm RT10 rotors
• Brake Levers: Shimano MT200 hydraulic disc
• E-Bike Display: Bosch Purion 200
• E-Bike Battery: Bosch PowerTube, 625Wh
• E-Bike Charger: Bosch 2A
• E-Bike Drive Unit: Bosch Performance Line, Smart System
• Saddle: Selle Royal Essenza
• Seatpost: Cannondale 4, 6061 Alloy, 31.6, 300 (SM), 350mm (MD), 400mm (XL)
• Speeds: 10
• Extras: Integrated headtube running light, Axa Compactline 35E front light, Axa Blueline rear light, Abus framelock (key-matched with battery lock), Tubus rear rack (25kg, Racktime compatible), full-coverage fenders

Manufacturer's notes: depending on component availability, specifications are subject to change without notice.
