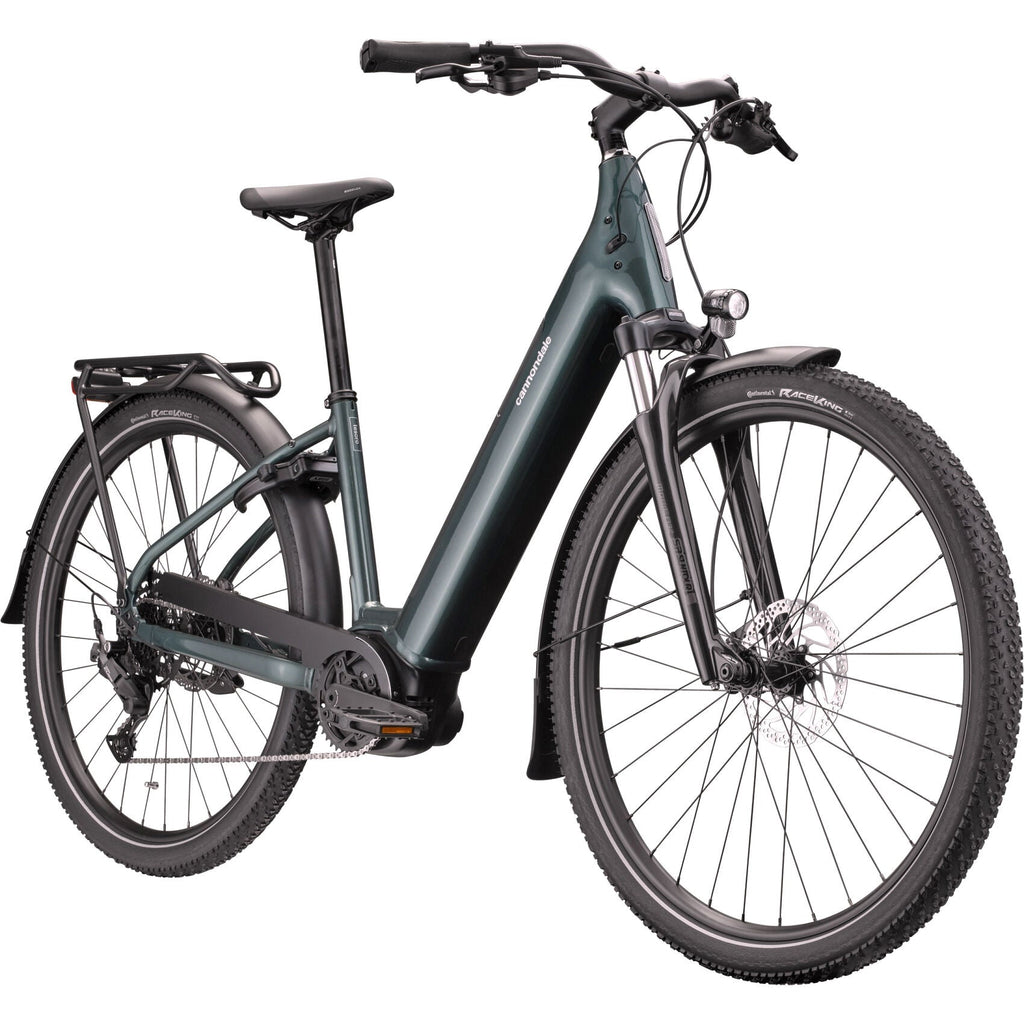

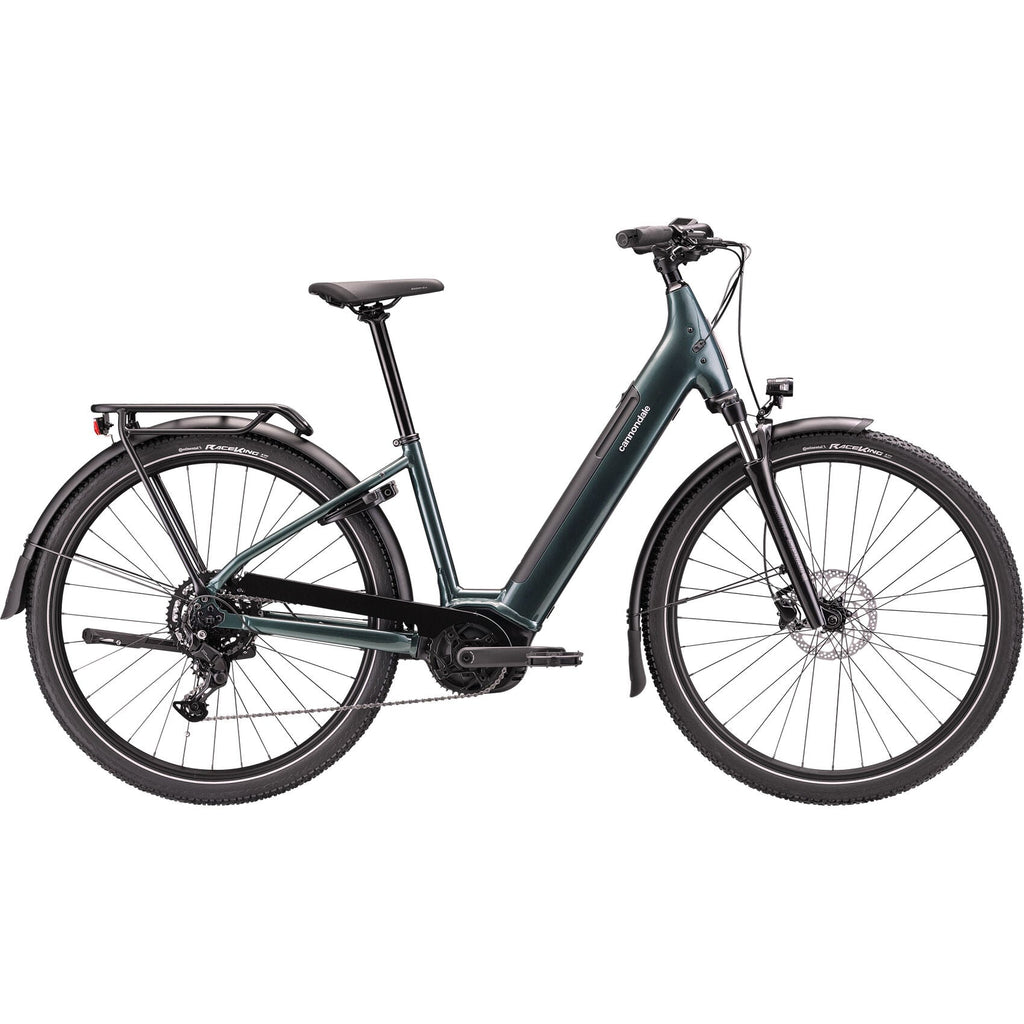

Cannondale Tesoro 3+ Low Stepthru

Just a few pedal strokes away

At the heart of this sporty e-bike for everyday use beats the wild instinct of the explorer. With its remarkable range, durable components and all-terrain tyres, the Tesoro is the perfect bike for both weekday and weekend use. The Tesoro 3+ Low Step-Thru is designed for fast and agile rides. The SmartForm C2 aluminium frame with practical step-through design makes it easy to get in and out of the saddle, while the 625 Wh Bosch battery provides the energy needed for long rides, steep climbs, and fast escapes. Shimano's 9-speed CUES drivetrain ensures precise and reliable shifting, while Shimano's MT200 hydraulic disc brakes offer just the right amount of power and modulability. Continental Race King tyres have the perfect grip for both tarmac and trails, giving you the freedom to change routes on the fly. Equipped with integrated lights, full-length mudguards and rear rack, this e-bike is ready for whatever outing you have in mind.

Power
The new Bosch Smart System Active Line Plus motor and 500 Wh battery provide effortless power.

Speed
This drive system provides pedal assistance up to a maximum speed of 25 km/h. Beyond that, it's up to you.

Autonomy
Up to 113 km of assisted range means you can ride to and from anywhere.

Always ready for the off-road
Fork with 63 mm travel, high-capacity luggage rack, mudguards, bright front and rear lights, wide handlebars and adequate gears: the new Tesoro X is ready to go and conquer any road... everywhere.

City roads
Potholes? Gravel? Tram tracks? No fear. All the features that make the Tesoro X perfect for off-road riding make it an incredibly comfortable and safe bike on asphalt.

Fast and fun
The sporty but comfortable riding position, together with the precise steering, make this e-bike great fun to ride, whether in city traffic or on secondary trails or hills outside the city.

Practical charging port
The charging port on the down tube allows you to charge the battery on the bike, or you can easily remove it for charging indoors.

Bosch Smart System
The Bosch Smart System can be controlled and adjusted via the eBike Flow App, and is frequently updated for maximum customisation.

Be seen
To make you more visible in all light conditions, the Tesoro X 3 is equipped with an integrated running light in the front of the frame, as well as a powerful Axa front light and a bright rear light. This combination allows you to be seen up to 50 metres from behind, up to 3km in front of you and will illuminate the road up to 50 metres ahead of you at night.

To each his own wheel
For maximum speed, comfort and adaptability, the larger sizes of the Tesoro X use 29‘ wheels (622), while the smaller sizes have 27.5’ wheels (584).

Intellimount stem
You can easily and securely attach your phone to the stem with the SP-Connect adapter.

Features

• The SmartForm C2 low-step aluminium frame is light yet strong, and features a reflector integrated in the head tube.
• Quiet and powerful Bosch Performance Line motor unit with up to 75 Nm torque and 340% maximum support
• The Bosch PowerTube 625 Wh battery provides ample autonomy in a compact package
• Ergonomic Purion 200 colour display. All the information and controls you need at your fingertips.
• Shimano CUES 9-speed rear derailleur with wide gear range, smooth and reliable

Technical specifications

• Frame: Tesoro, SmartForm C2 alloy, 625Wh removable battery on down tube, integrated front light, tapered head tube, internal cable routing, QR 135 mm hub spacing, IS disc mount, motor protection
• Fork: SR Suntour Mobie A32, 63 mm travel, coil with preload adjuster, lockout, crown light mount, 44 mm offset
• Rims: Alloy, double-wall, 32 holes, 25 mm inner width, disc-specific
• Hubs: (F) Shimano TC500, 15x100 mm thru axle / (R) Shimano R600 centrelock, 32H, QR
• Front hub: Shimano TC500, 15x100 mm thru axle
• Rear hub: Shimano R600 centrelock, 32H, QR
• Spokes: Stainless steel, 14g
• Tyres: Continental Race King, 27.5x2.2‘ 55-584 (SM), 29x2.2’ 55-622 (MD-LG)
• Pedals: Cannondale Urban Platform
• Crank: FSA Bosch E-bike
• Chain: KMC e500
• Rear sprockets: Shimano CUES LG300, 11-46, 9-speed
• Rear derailleur: Shimano CUES U4000
• Rear derailleur: Shimano CUES U6000, trigger style, 9-speed
• Handlebar: Cannondale Urban Ergo Bar, 6061 alloy, 25 mm rise, 35° wide, 0° rise, 680 mm
• Knobs: Ergon GC10
• Stem: Cannondale 3 with Intellimount, alloy, 31.8 mm clamp, 70 mm, +6°, with SP Connect SPC+ stem
• Headset: Semi-Integrated, tapered; 1-1/8"-1-1/2’
• Brakes: Shimano MT200 hydraulic disc, 180/180 mm RT10 rotors
• Brake Levers: Shimano MT200 hydraulic disc
• E-Bike Display: Bosch Purion 200
• E-Bike Battery: Bosch PowerTube, 625Wh
• Battery chargers for electric bicycles: Bosch 2A
• Drive units for e-bikes: Bosch Performance Line, Smart System
• Saddle: Selle Royal Essenza
• Seatpost: Cannondale 4, 6061 alloy, 31.6, 300 (SM), 350 mm (MD), 400 mm (XL)
• Speed: 10
• Extras: Head tube integrated running light, Axa Compactline 35E front light, Axa Blueline rear light, Abus lock (matched to battery key), Tubus rear rack (25 kg, Racktime compatible), full-coverage mudguards

Manufacturer's notes: depending on component availability, specifications are subject to change without notice.
