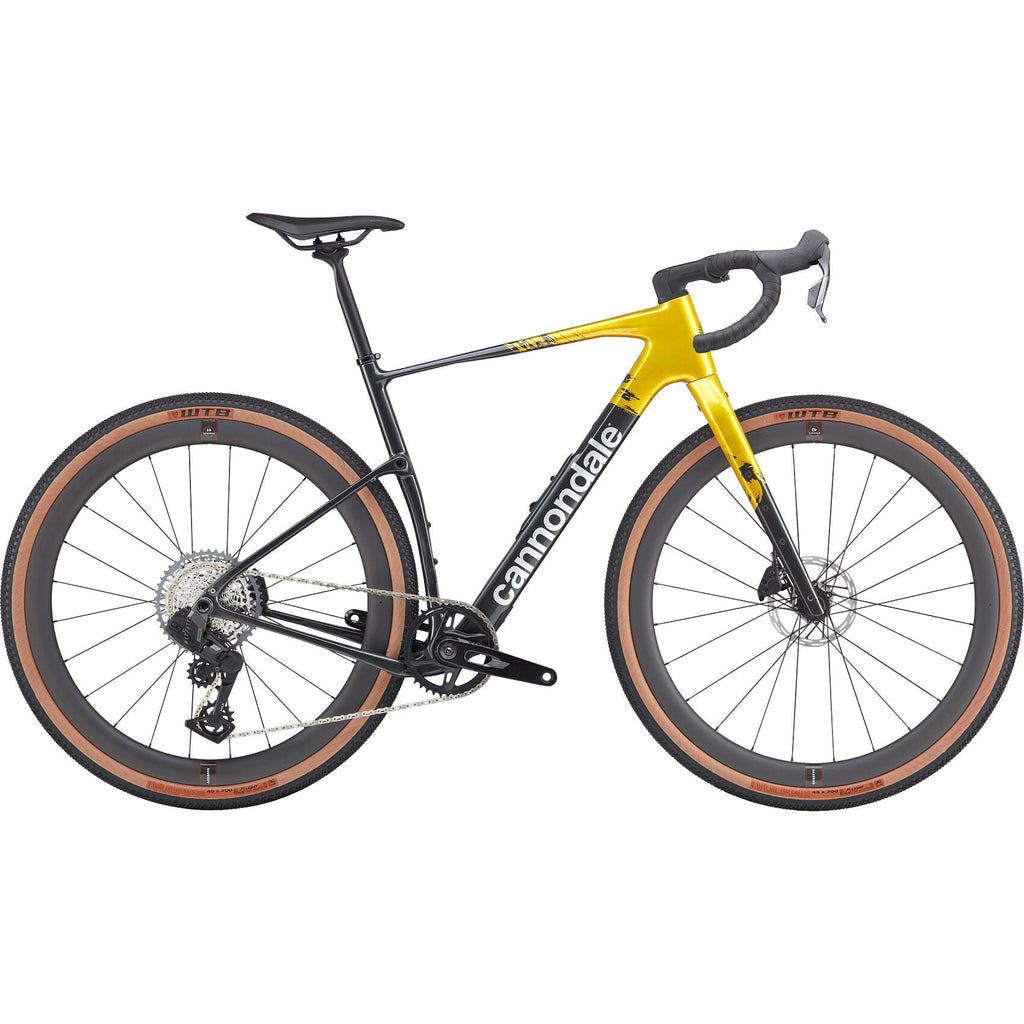

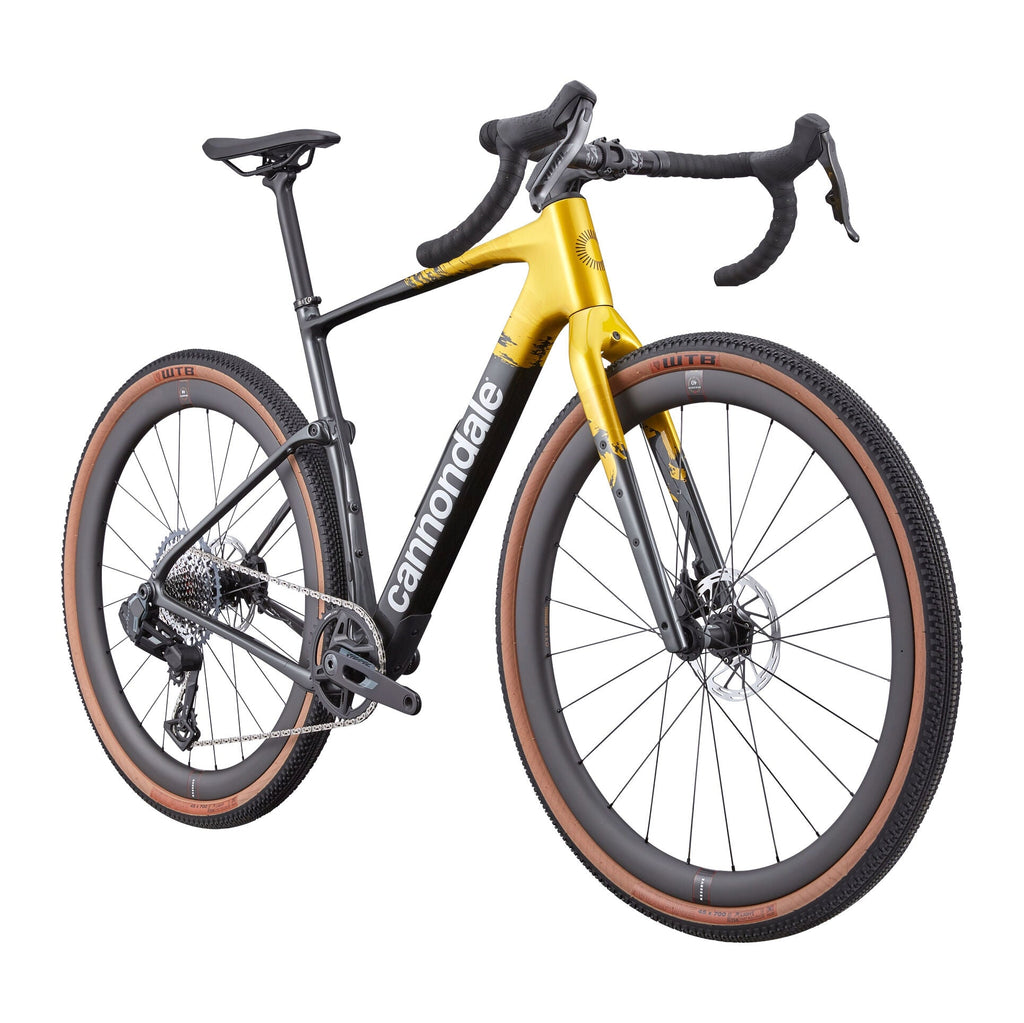

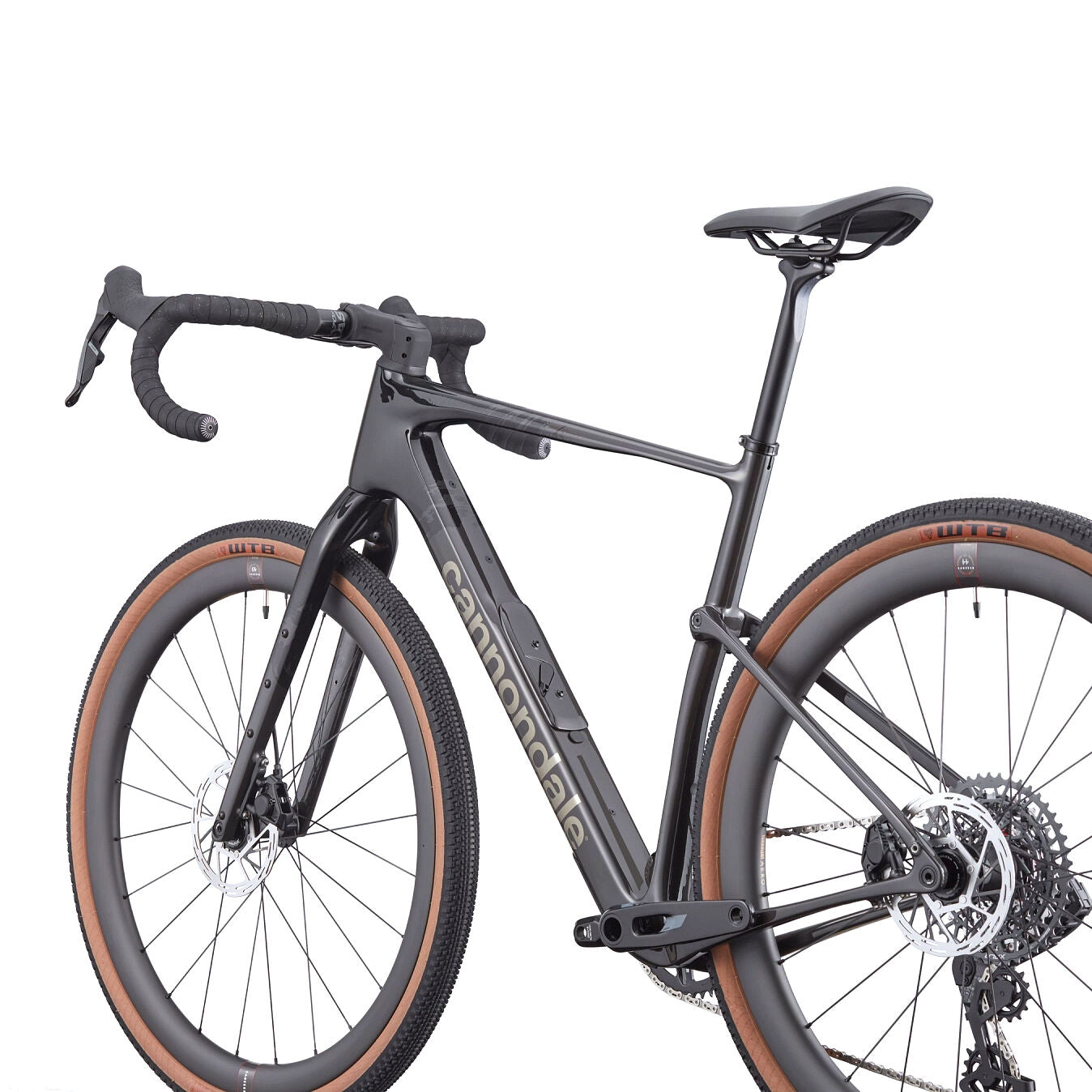

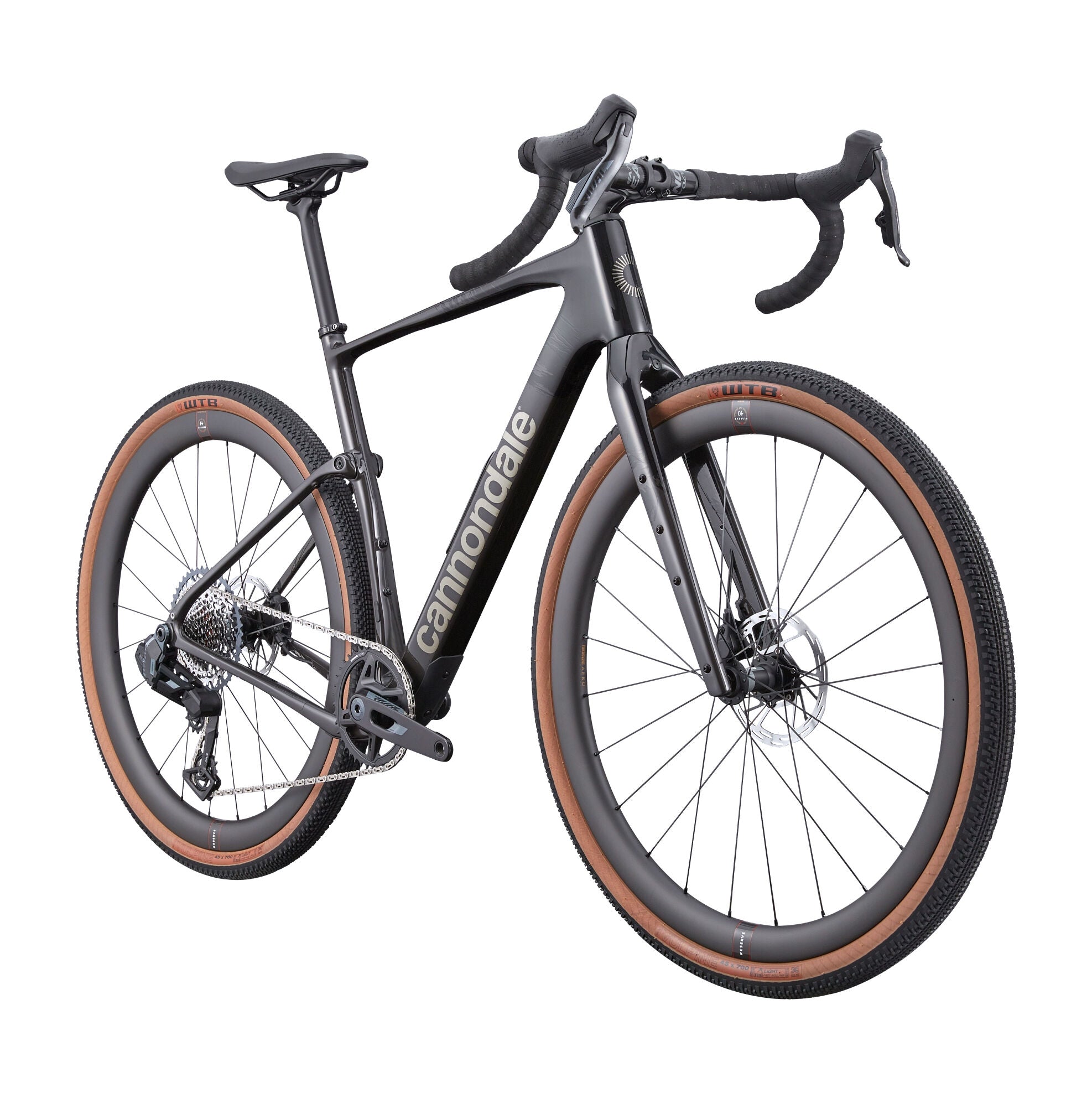

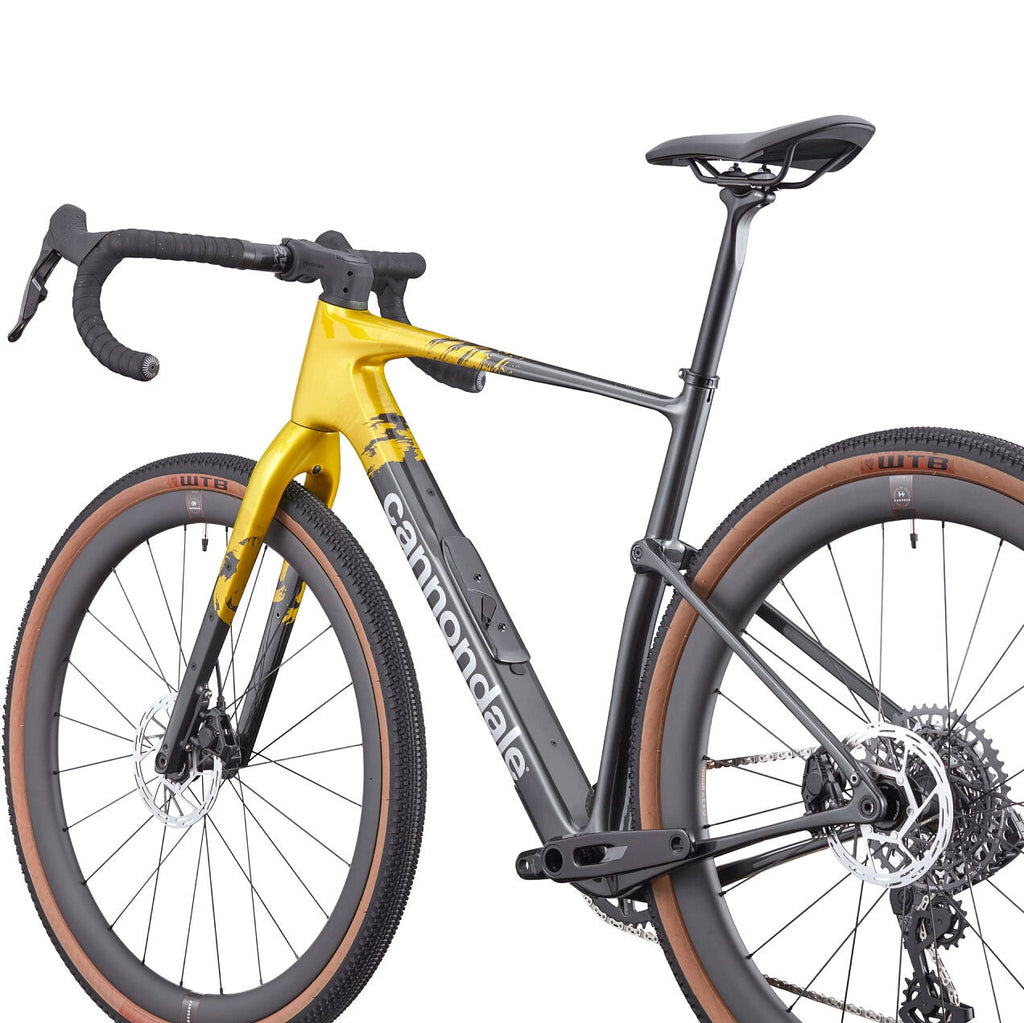

Cannondale Topstone Carbon 1 AXS

Always Game

Take on the ultimate all-round gravel bike. Go anywhere, bring everything and then keep on going. Forget shortcuts—this bike even makes detours fun. The Topstone Carbon 1 AXS is packing SRAM's Rival AXS XPLR 13-speed wireless shifting and KingPin suspension to keep you rolling over roots, rocks, and whatever else the trail throws your way. Reserve 40|44 carbon wheels don’t just keep up; they thrive on thrashing. Adventure never looked so good.

Smiles for Miles
Kingpin is lightweight, go-for-longer rear suspension. Maintenance-free and complexity-free, it gives the Topstone frame legit rear-wheel travel without compromising stiffness for the sprint. Kingpin provides a smoother ride, more traction to push harder, and more give to take on the rough stuff. You’ll hardly know it’s there, but you’ll be very glad you’ve got it.

Bring It All
All-new StashPort storage system in the downtube is designed to be concealed yet convenient. Paired with the special StashBag, you can bring your essentials along for the ride and know that they’ll be kept safe, whatever you get up to out there. Meanwhile, multiple mounting points on the frame, mean more gear and more adventures.

Tuned Ride
A dialed-in ride, just for you. AKA: Proportional Response Construction. Everything from the carbon layup to the geometry on Topstone is individually tuned by frame size. So that the bike – including KingPin suspension – works in harmony to give you the best ride for you and your dimensions.

KingPin
Innovative gravel rear suspension is light, simple, and effective. A thru-axle pivot in the seat tube allows the rear triangle and seatpost of the bike to flex vertically, delivering up to 30mm of bump-smoothing travel.

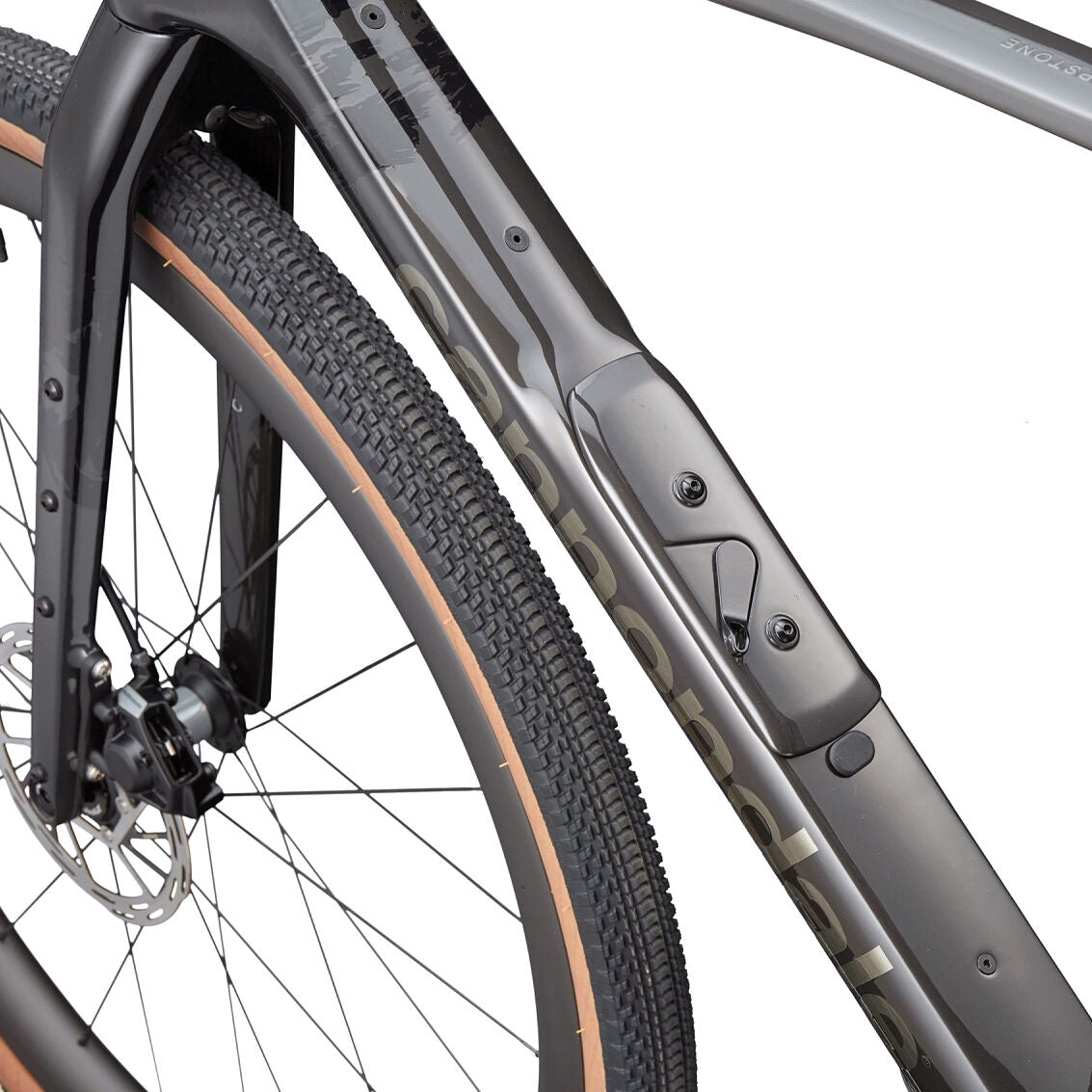

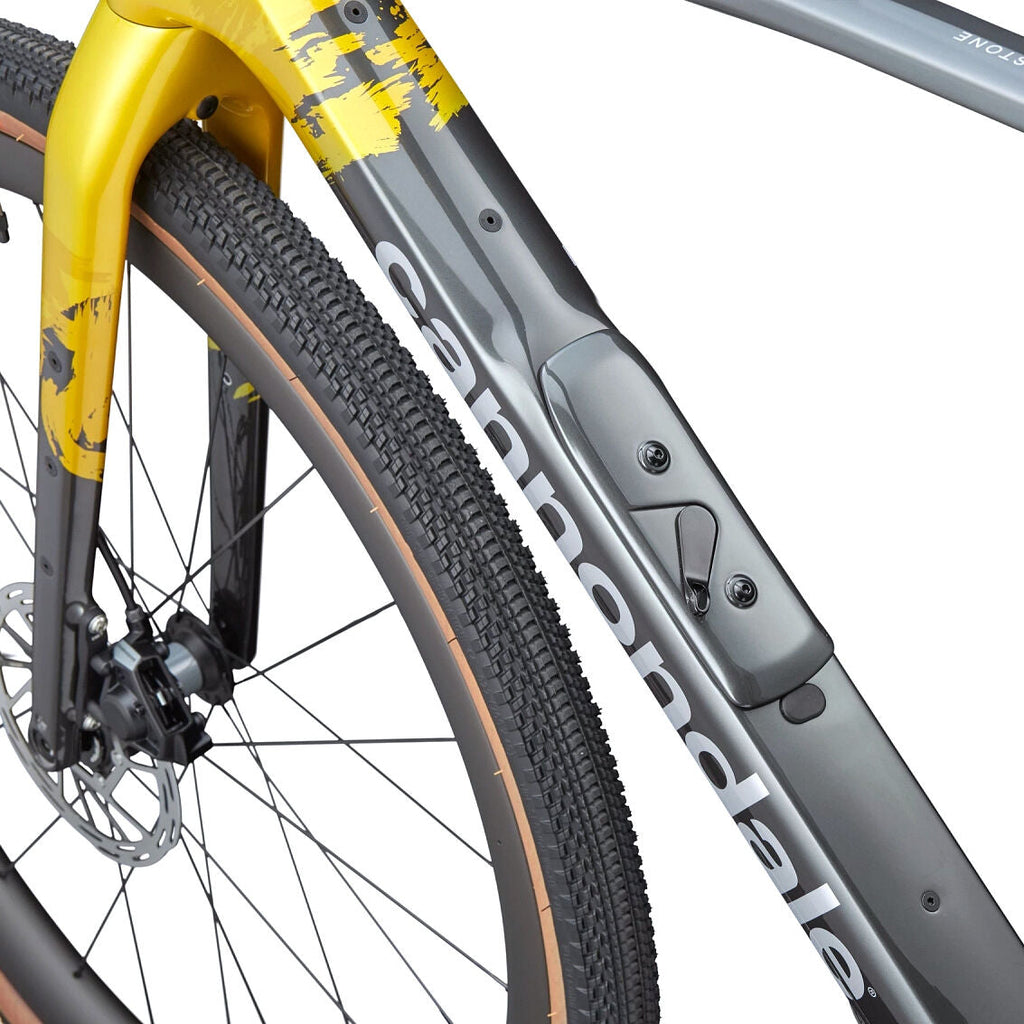

StashPort + StashBag
StashPort is our take on a downtube storage system, accessed beneath the water bottle cage. Every bike includes StashBag, a specially designed bag for your essentials.

Tire Clearance
Topstone Carbon fits tires with a maximum measured width of up to 52mm for the frame and 56mm for the rigid fork. Lefty Oliver's tire clearance is optimized for a 700x47mm tire, with height being the primary limiting factor.

Dropper Ready
Built to accept an internally-routed 27.2mm dropper seatpost, which shouldn´t be a surprise on a bike this capable.

Proportional Response
Tuned for the rider, our size-specific construction creates optimal stiffness and compliance for each frame size. So, every rider benefits from the ideal ride feel and comfort of KingPin.

OutFront Steering Geometry
Confident stability meets nimble agility. An extra long fork offset paired with a slack head angle keeps the steering light and lively, yet delivers unreal confidence at speed and in the rough stuff.

Tidy does it
Internal cable routing throughout the frame, combined with Conceal Stem, delivers a tidy, integrated look.

Features

• Lightweight full carbon frameset with Kingpin rear suspension, Proportional Response size-specific construction, and StashPort downtube storage
• Smooth, effortless shifting from SRAM’s versatile Rival XPLR AXS wireless electronic gravel group
• Light, durable, and aero 40 I 44 GR carbon gravel wheels from Reserve, with DT-Swiss 350 hubs, and WTB Vulpine 45c tires
• Comfort-enhancing Cannondale SAVE carbon seatpost, and Easton EA70 AX flared handlebars
• Cannondale Wheel Sensor delivers hyper-accurate speed, distance and route info, service reminders, and more via the Cannondale App

Tech spec

Frameset

• Frame: Topstone Carbon, Kingpin suspension system, Proportional Response construction, downtube Stashport, internal cable routing, 12x142mm thru-axle, 27.2 dropper post ready, UDH, BSA 68mm threaded BB, flat mount disc, removable fender bridge, multiple gear/bottle mounts
• Fork: Topstone Carbon, 1-1/8" to 1.5" steerer, 55mm OutFront offset, flat mount disc, internal routing, 12x100 thru-axle, triple bottle/gear mounts, fender mounts
• Headset: Acros IS52/40 ICR

Drivetrain

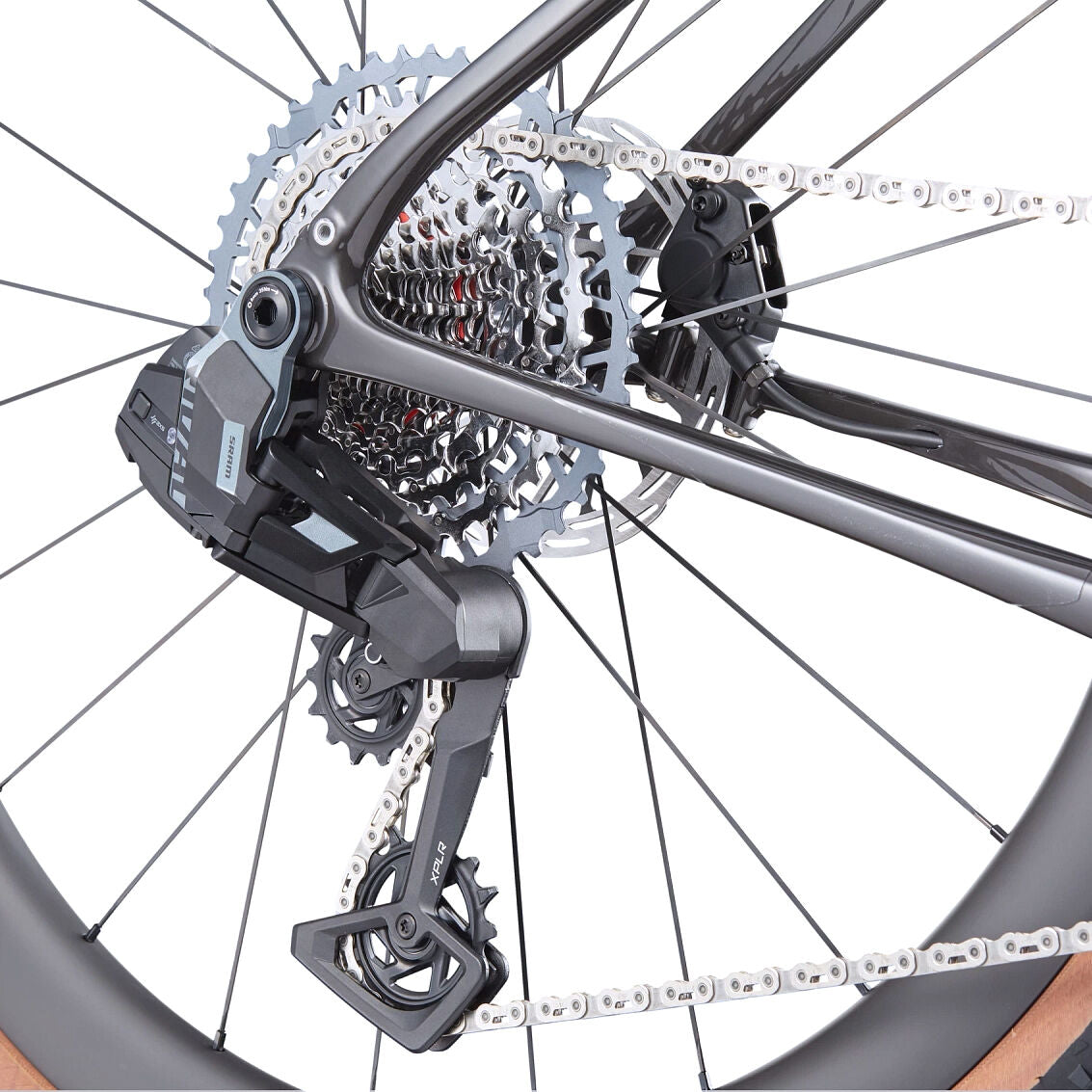

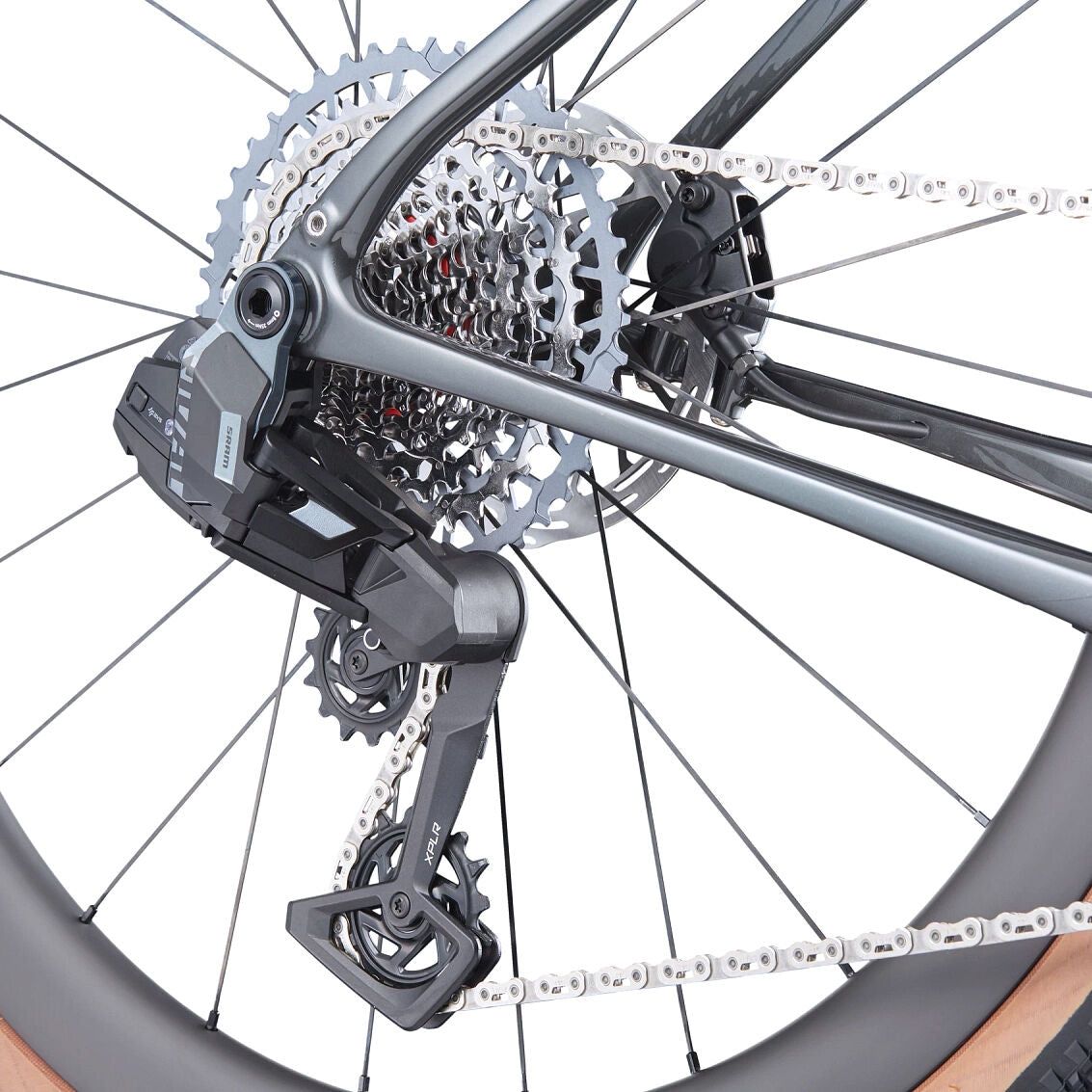

• Rear Derailleur: SRAM Rival AXS XPLR
• Shifters: SRAM Rival AXS
• Chain: SRAM Rival

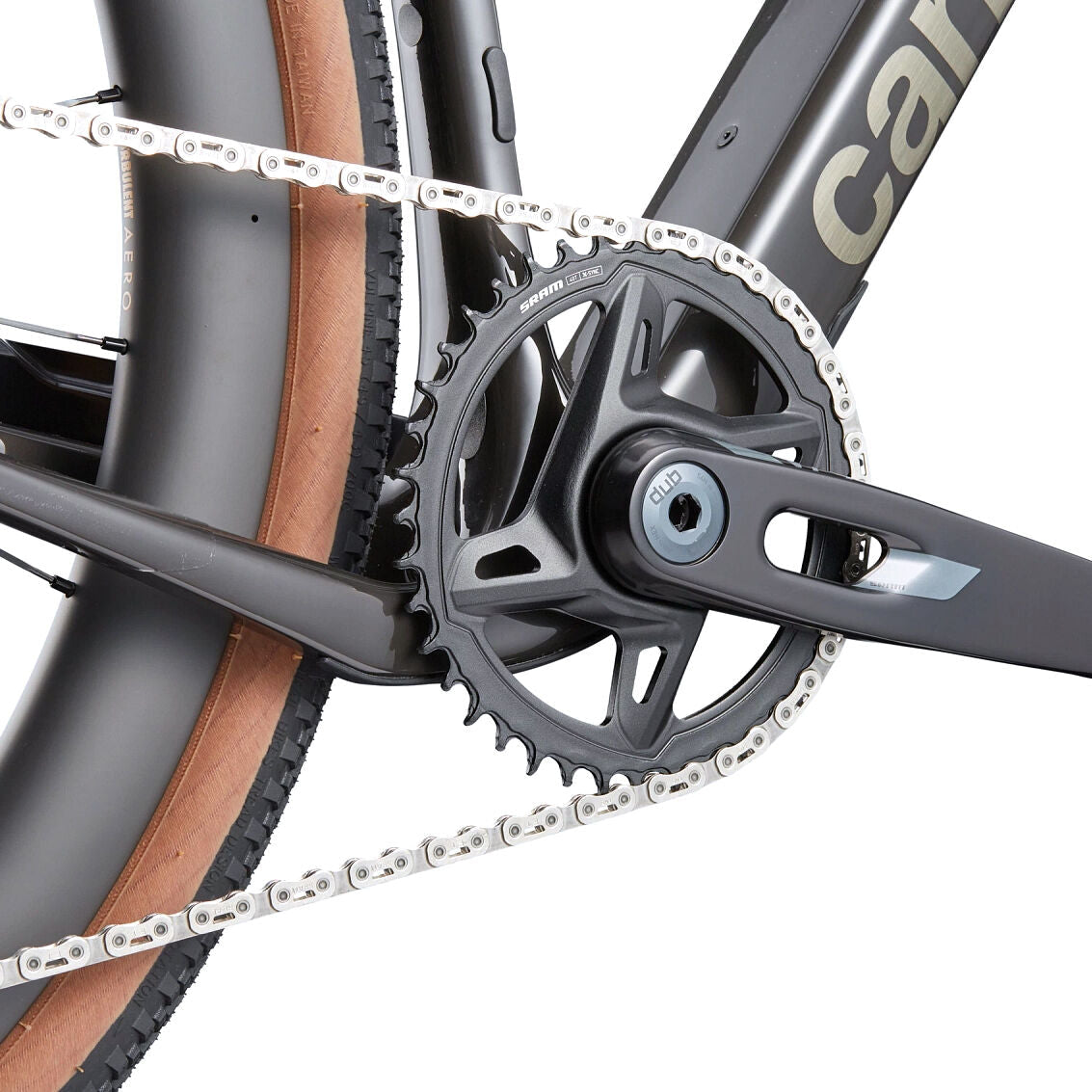

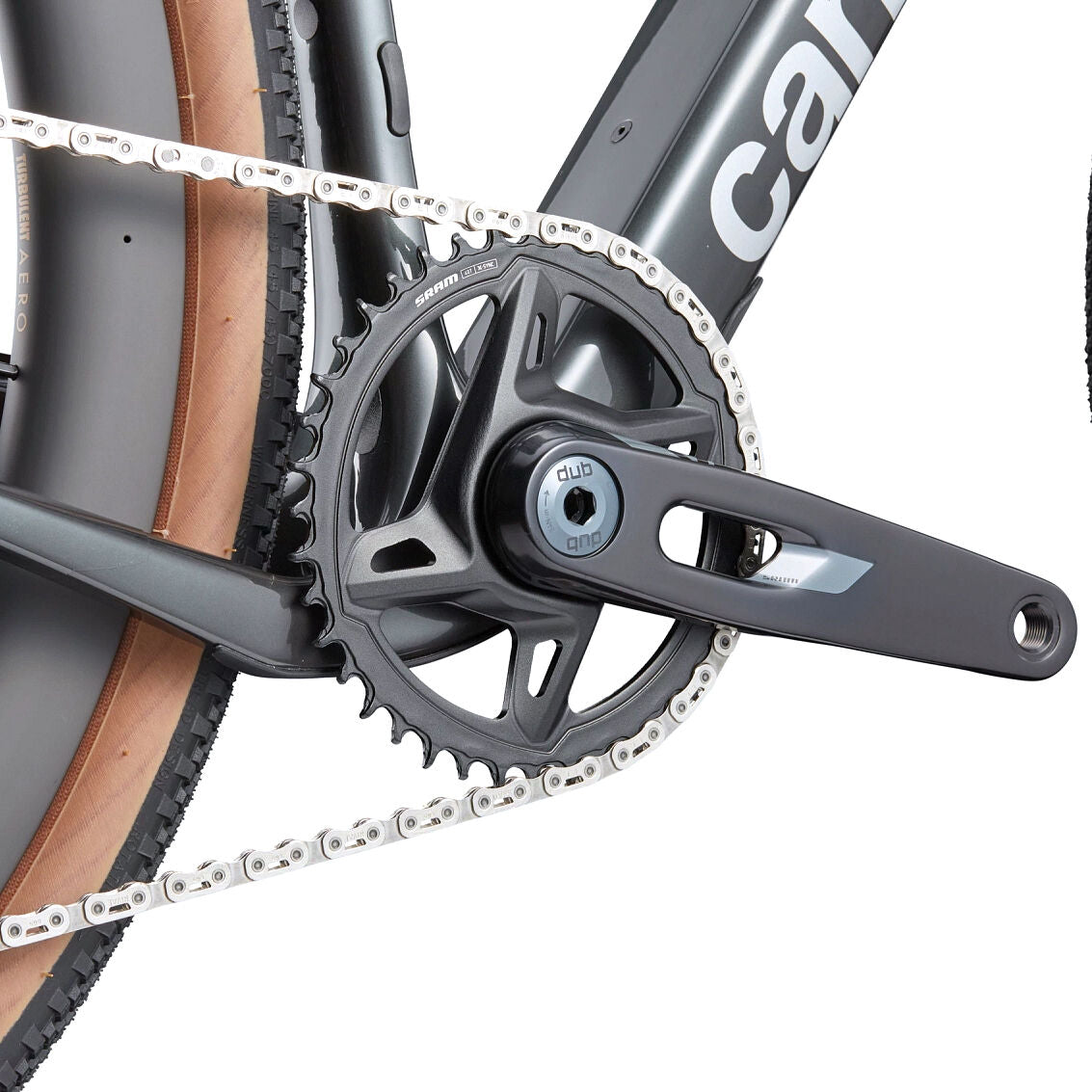

• Crank: SRAM Rival DUB Wide, 40T
• Rear Cogs: SRAM Rival XPLR
• Bottom Bracket: SRAM DUB BSA Road 68 Wide

Brakes

• Brakes: SRAM Rival hydraulic disc, 160/160mm Paceline centerlock rotors
• Brake Levers: SRAM Rival AXS hydraulic disc
• Wheels: DT Swiss 370, 12x100mm centerlock, DT Swiss 370, 12x142mm centerlock
• Rims: Reserve 40 I 44 GR Carbon, Turbulent Aero Tech, 24h, tubeless ready
• Spokes: Sapim CX-Ray Aero, straight-pull
• Tire Size: 40
• Wheel Size:700c
• Tires: WTB Vulpine TCS Light, 700x45c, tubeless ready
• Front Tire: WTB Vulpine TCS Light, 700x45c, tubeless ready
• Rear Tire: WTB Vulpine TCS Light, 700x45c, tubeless ready

Components

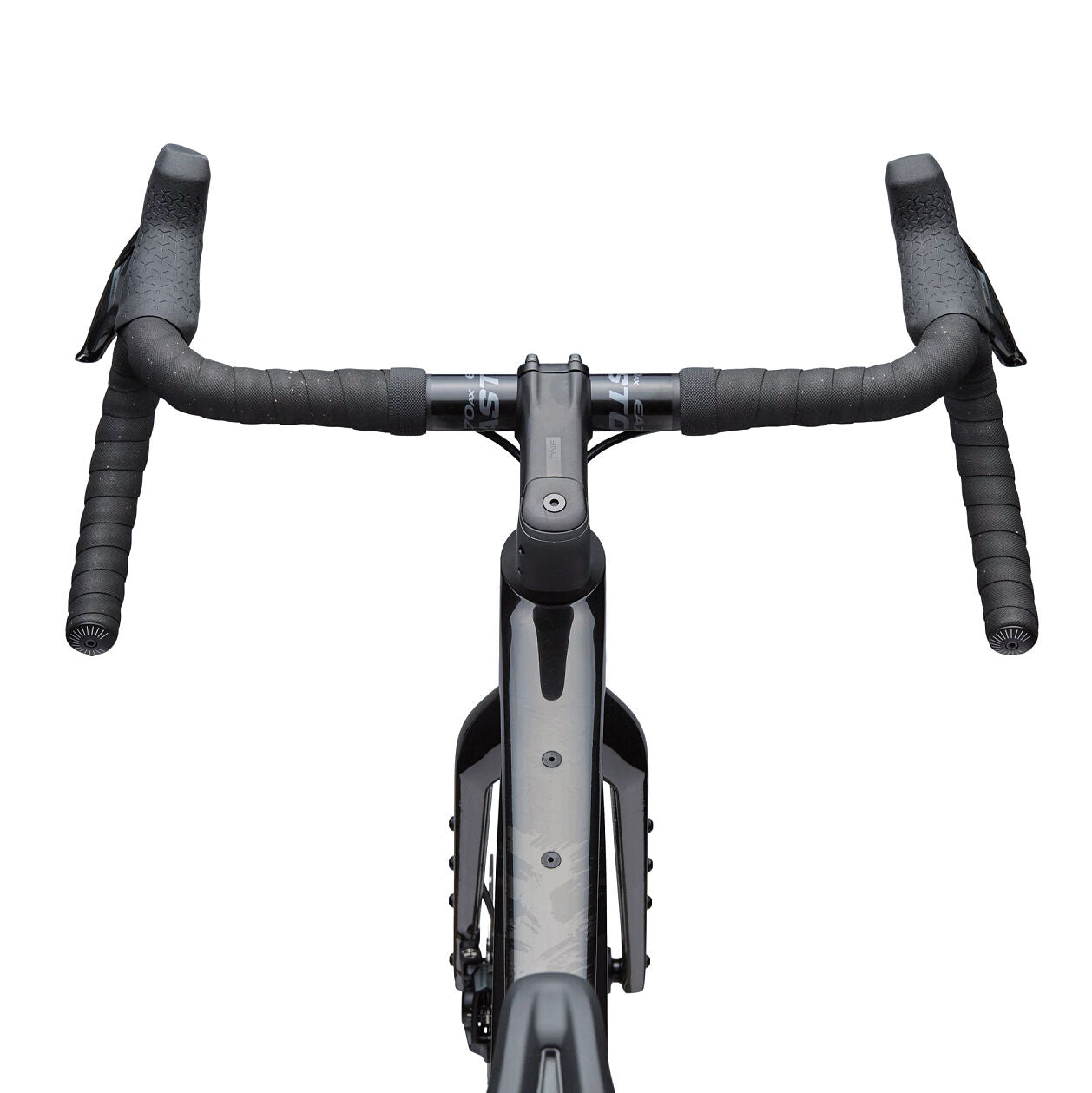

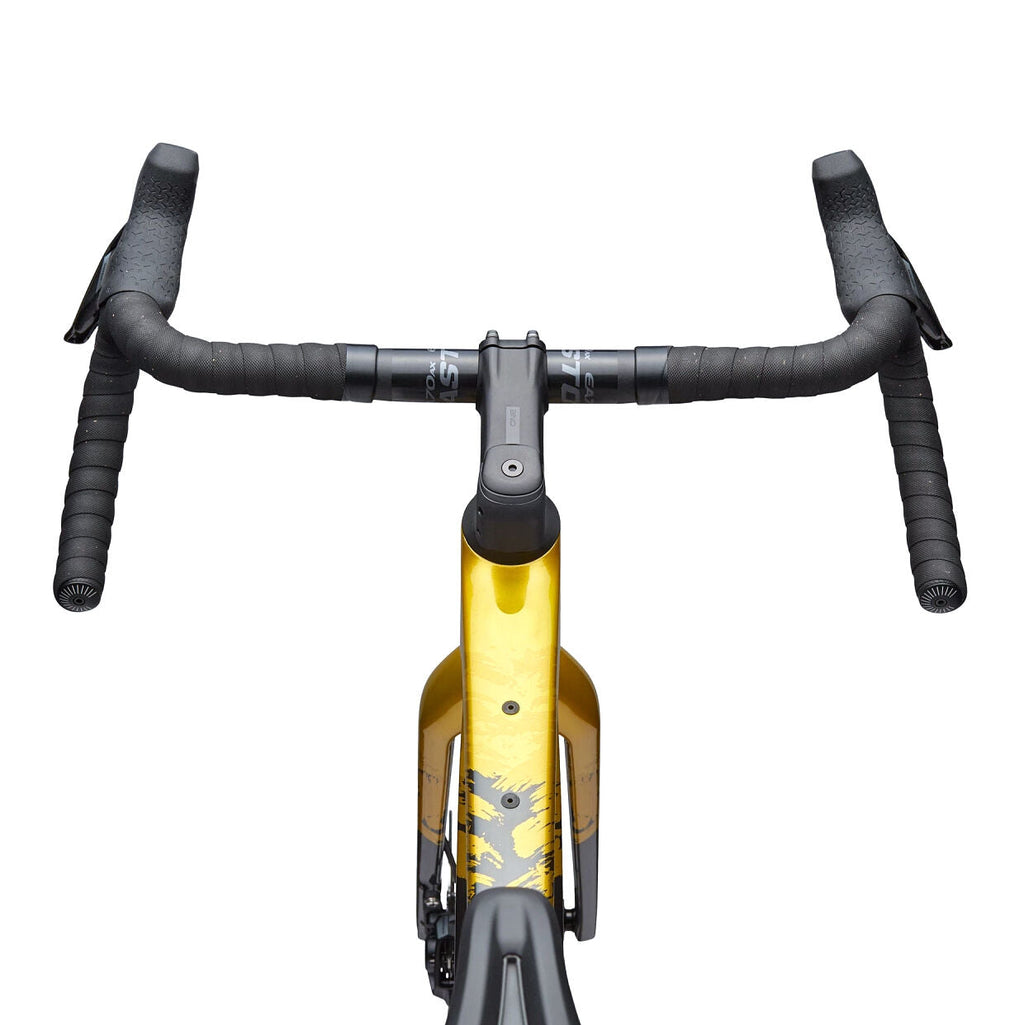

• Handlebar: Easton EA70 AX
• Stem: Cannondale C1 Conceal, Alloy, 31.8, -6°
• Grips: Cannondale KnurlCork, 2.7mm
• Saddle: Fizik Terra Argo X5, S-Alloy rails
• Seatpost: Cannondale SAVE Carbon, 27.2x350mm (47-58), 400mm (61)

Extra

Large StashBag downtube storage bag, Reserve Fillmore tubeless valve stems, SRAM AXS charger

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
