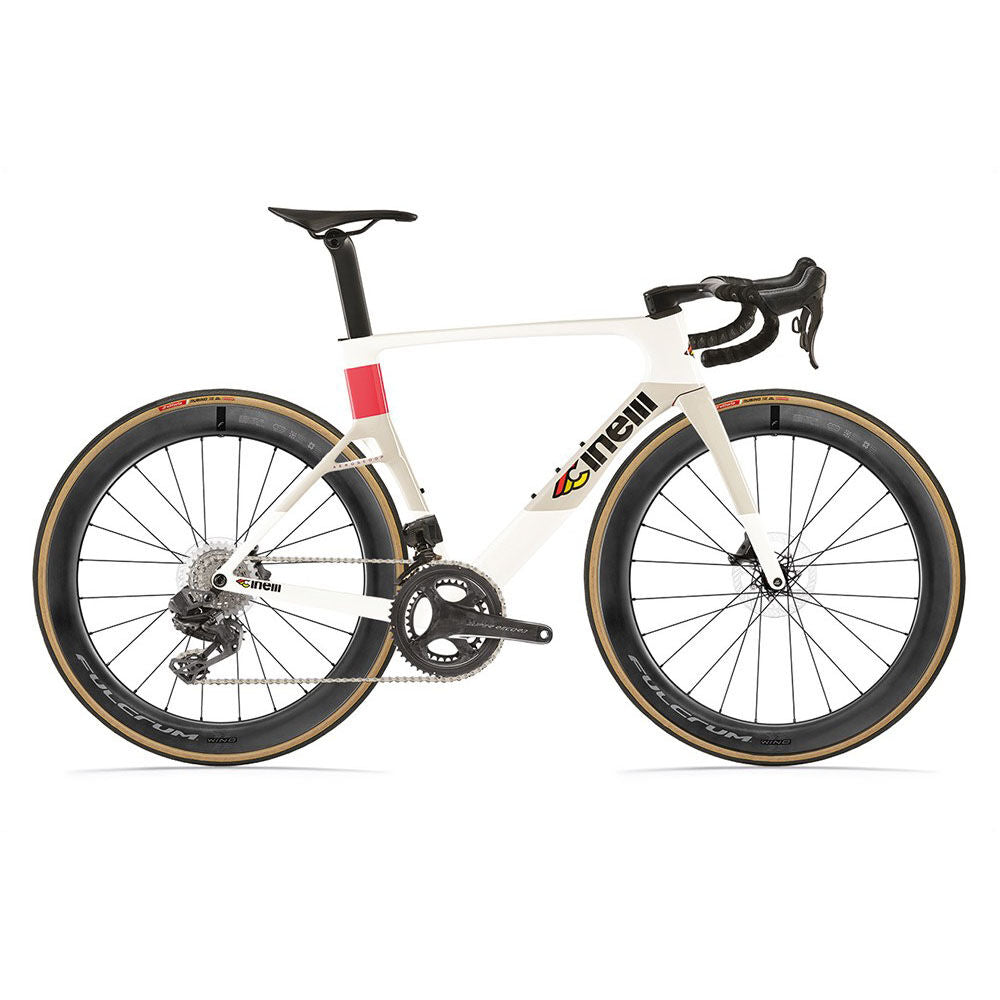

Maximum aerodynamics

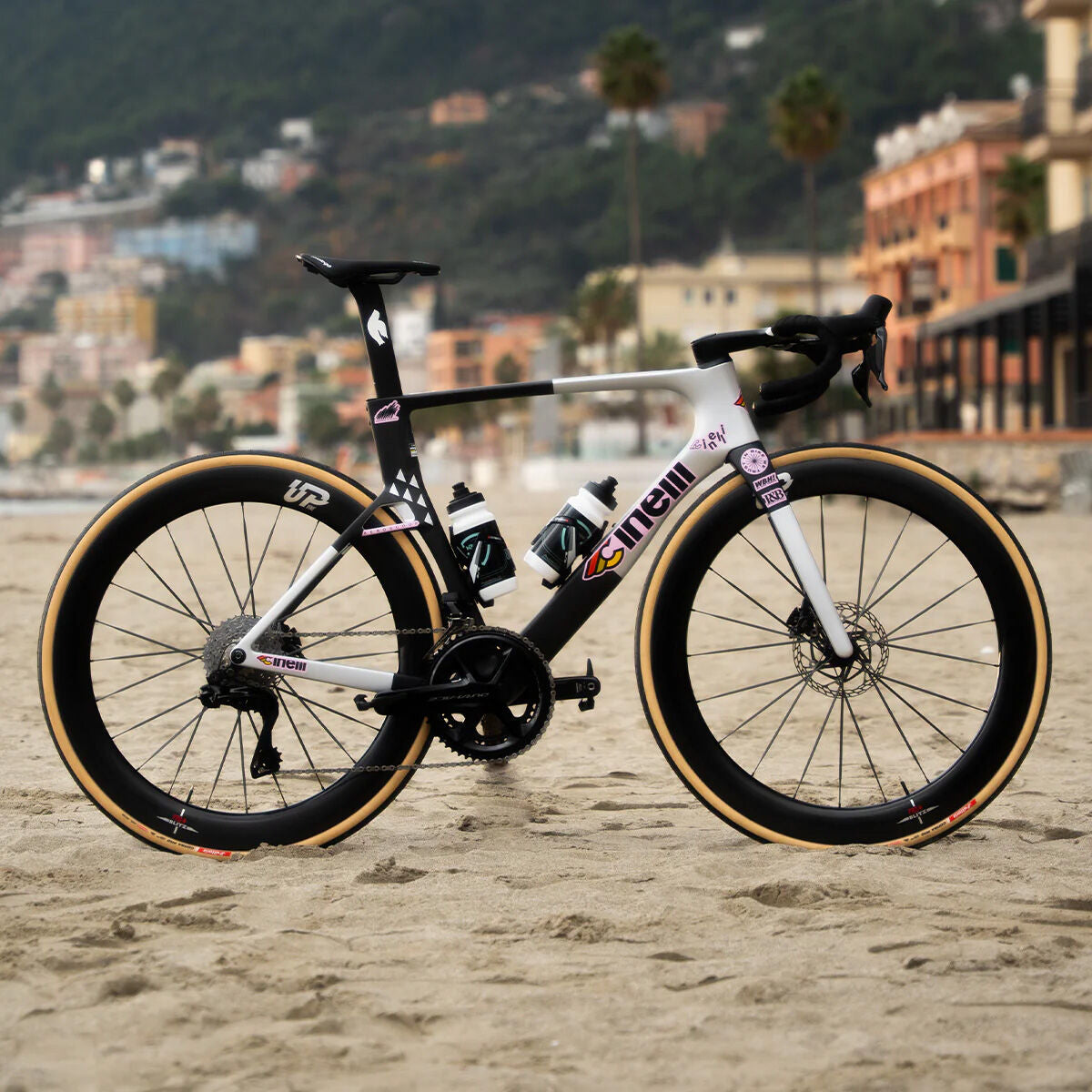

Aeroscoop represents Cinelli's latest evolution in aerodynamic road bike design, engineered for pure performance and shaped by advanced wind tunnel research. Every detail is optimized to reduce air resistance, improve control, and maximize speed in race conditions.

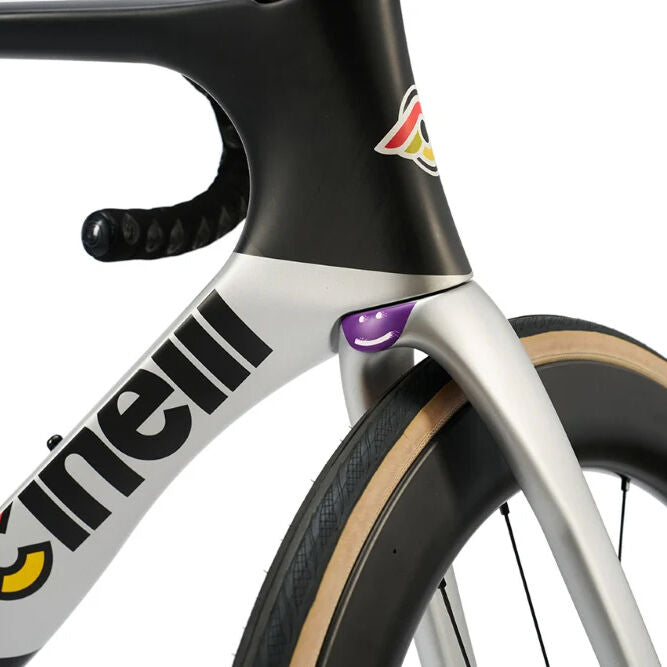

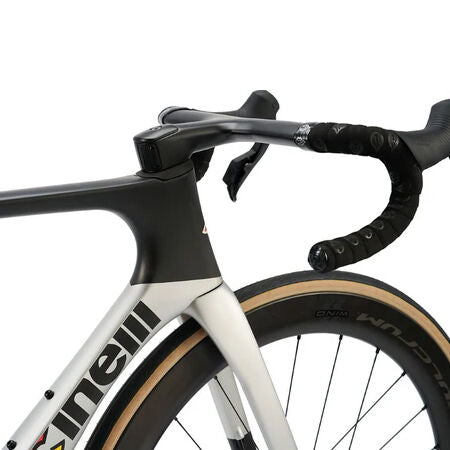

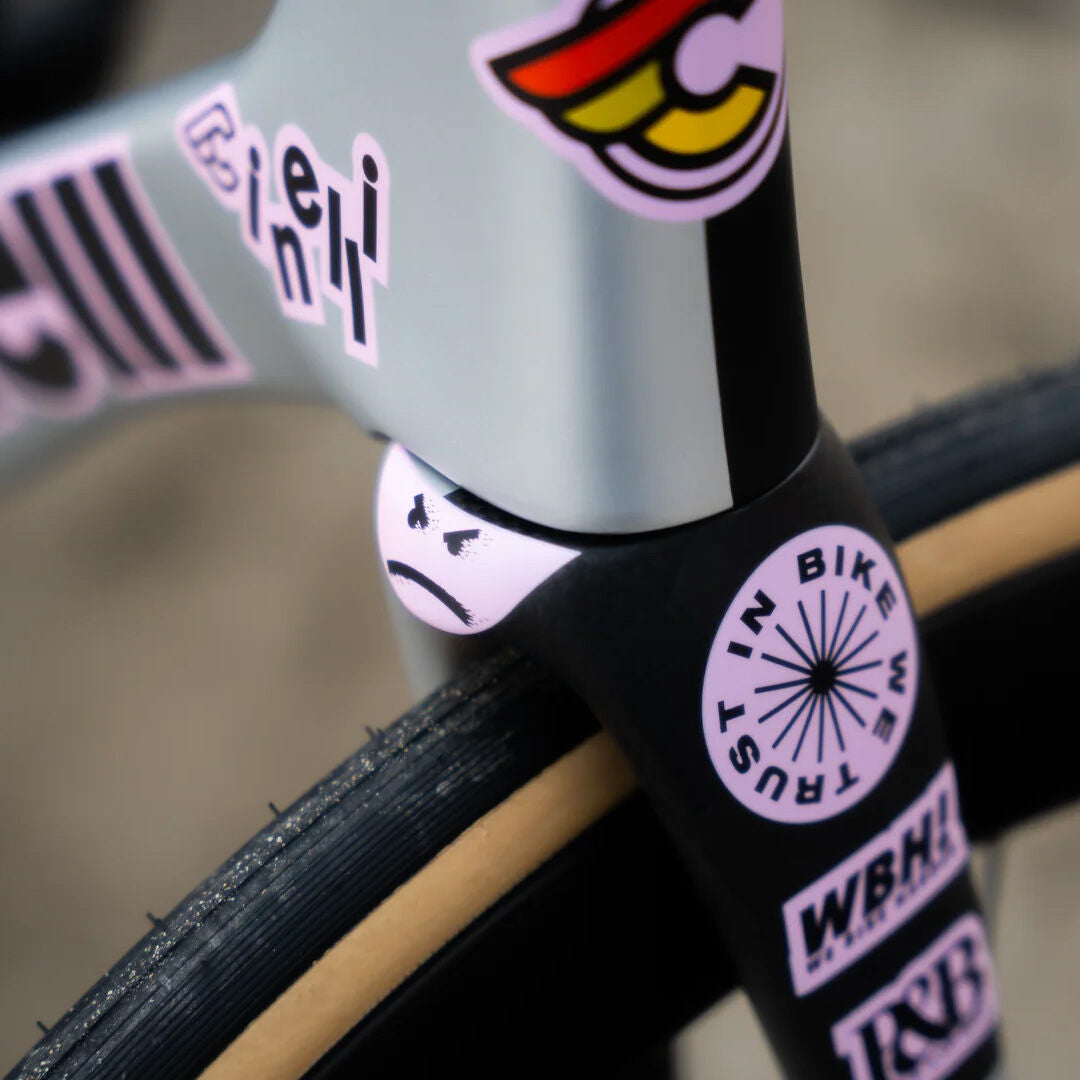

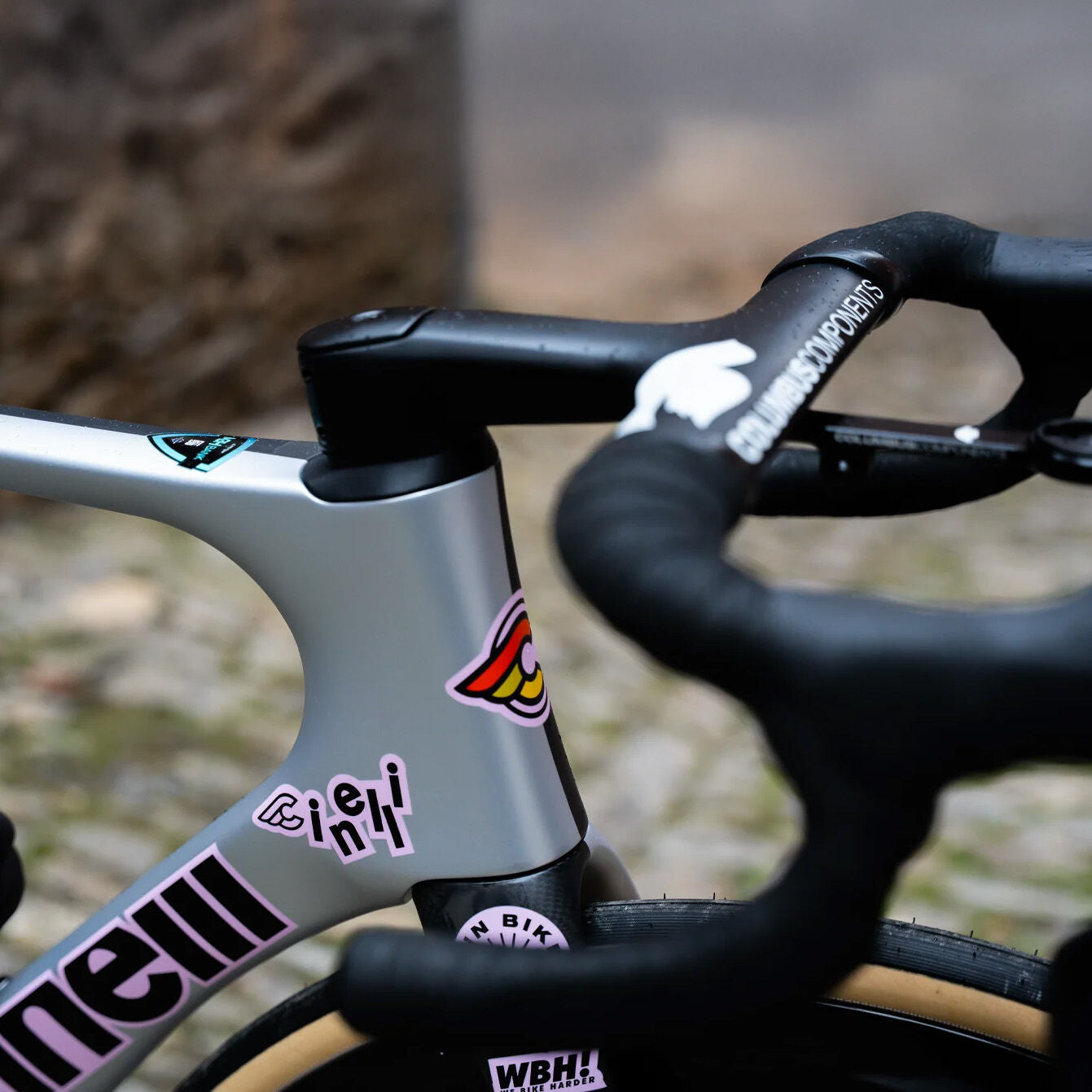

The new wing-profile head tube
It has a reduced frontal area and has been lengthened to decrease aerodynamic drag. The transition between the head tube and the handlebar has been optimized through an exclusive, specially designed headset cover.

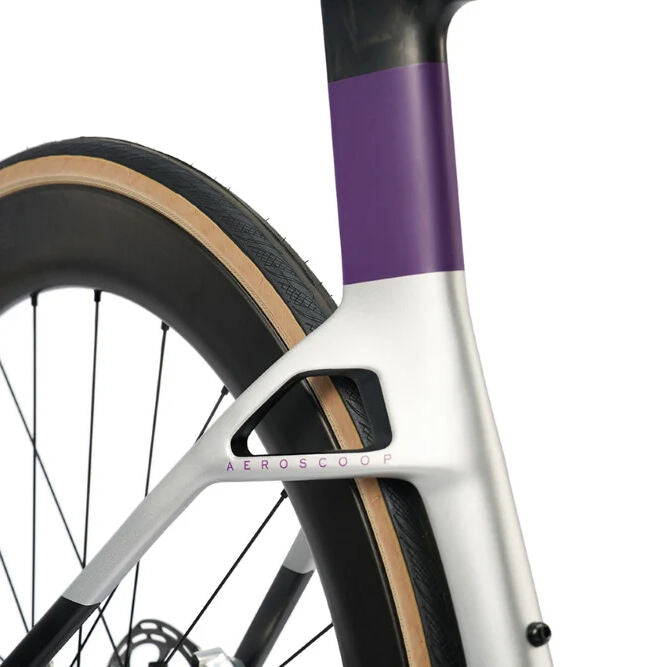

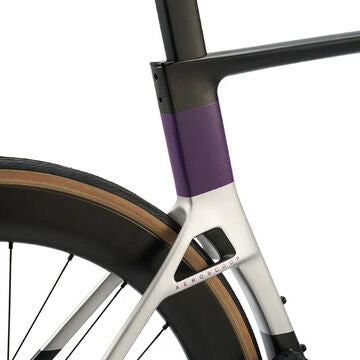

New innovative chainstays
They offer significant aerodynamic advantages thanks to a double-arm design with a central channel. Like the wings of an airplane, the separate chainstays guide airflow around the frame, pushing the rider towards maximum efficiency.

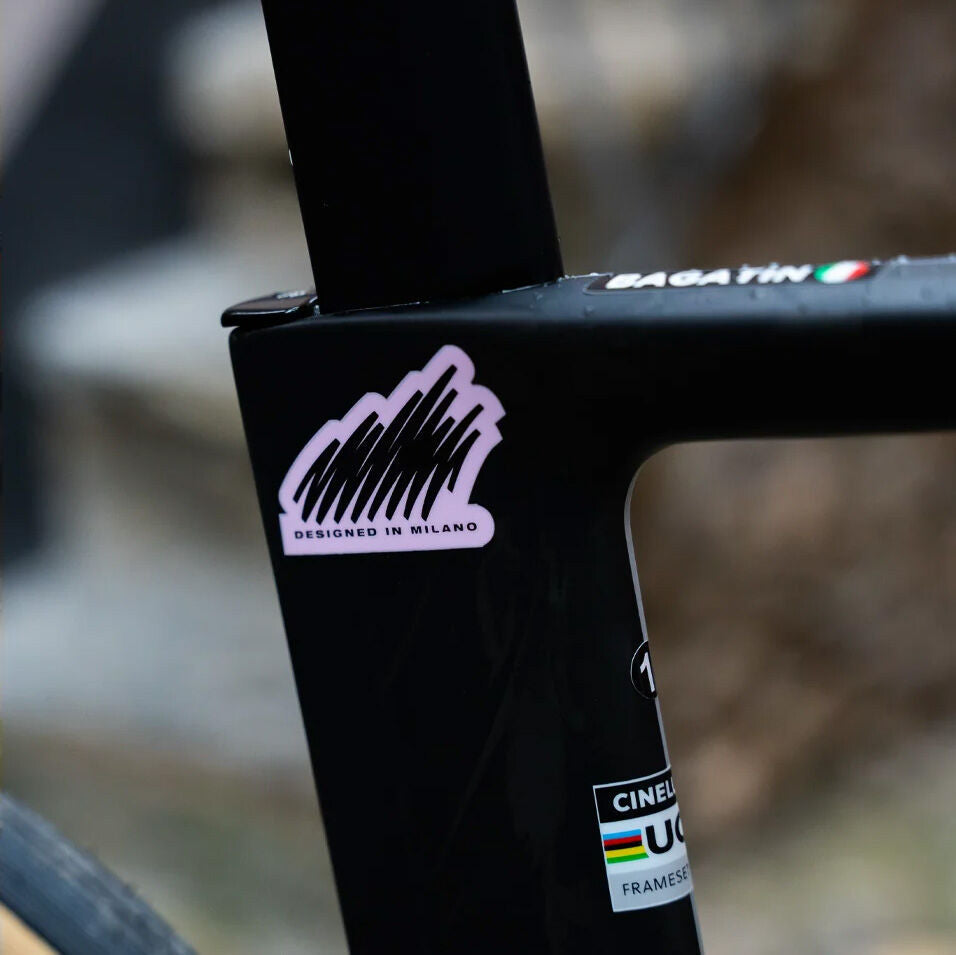

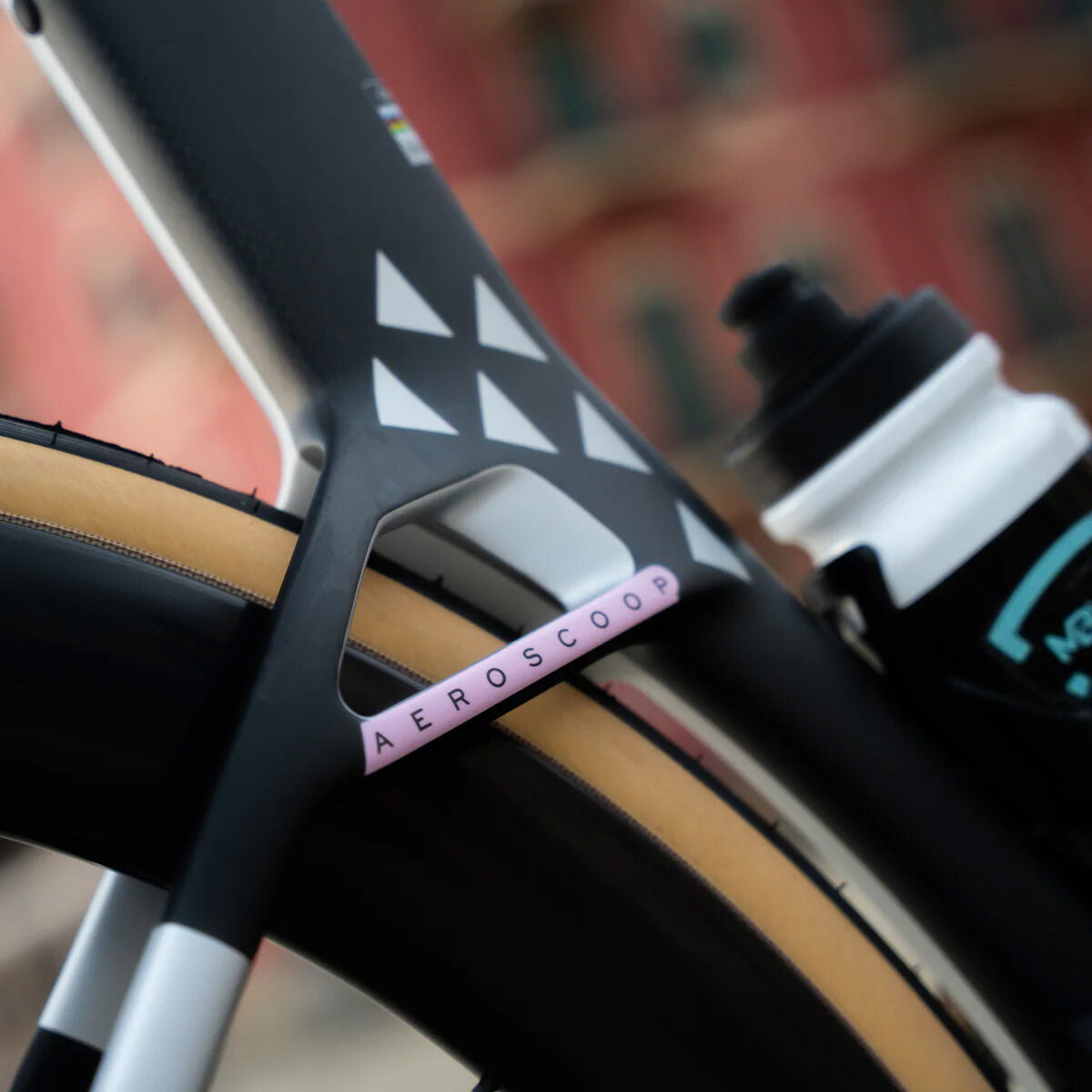

Split geometry seat tube: division in two directions
This optimizes the flow of forces between the bottom bracket area and the saddle node, improving pedaling efficiency and contributing to vertical comfort without compromising power transmission. The completely redesigned seatpost clamping system promotes a more harmonious transition between the top tube and seat tube and the possibility of a 0/10 mm offset.
Features

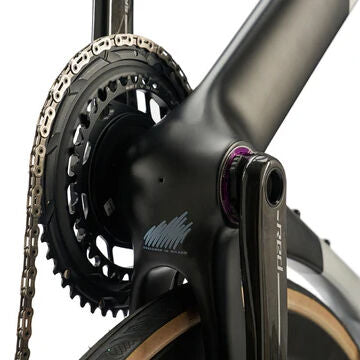

- T47 threaded bottom bracket (86 mm) for increased stiffness and ease of maintenance.

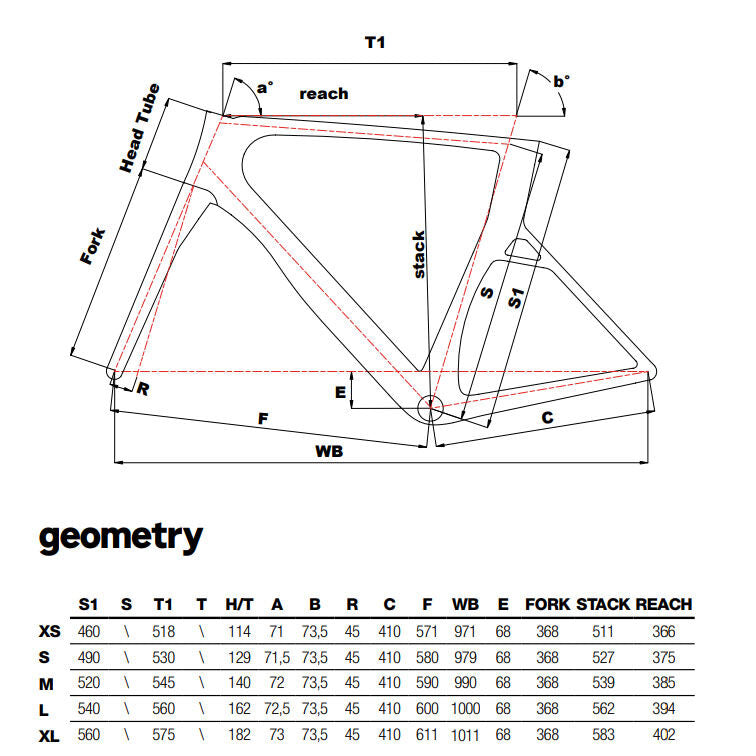

- Pure racing geometry available in 5 sizes (XS-S-M-L-XL). Average stack/reach ratio 1.41/1.

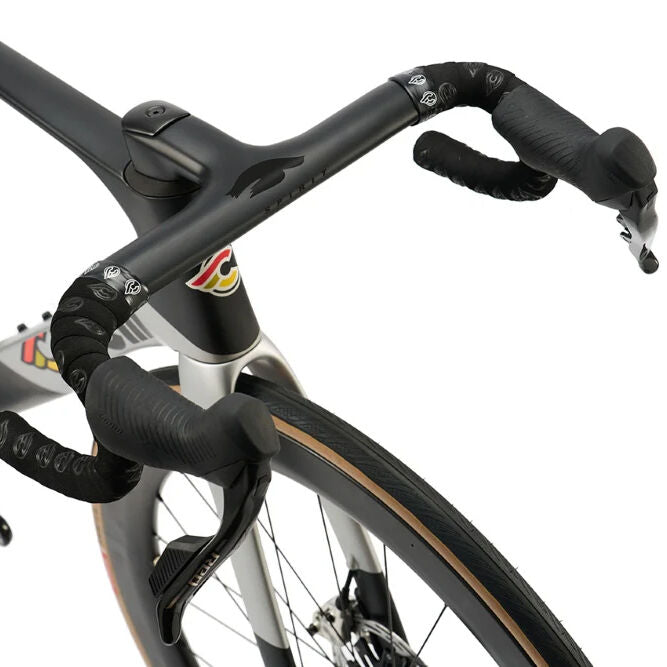

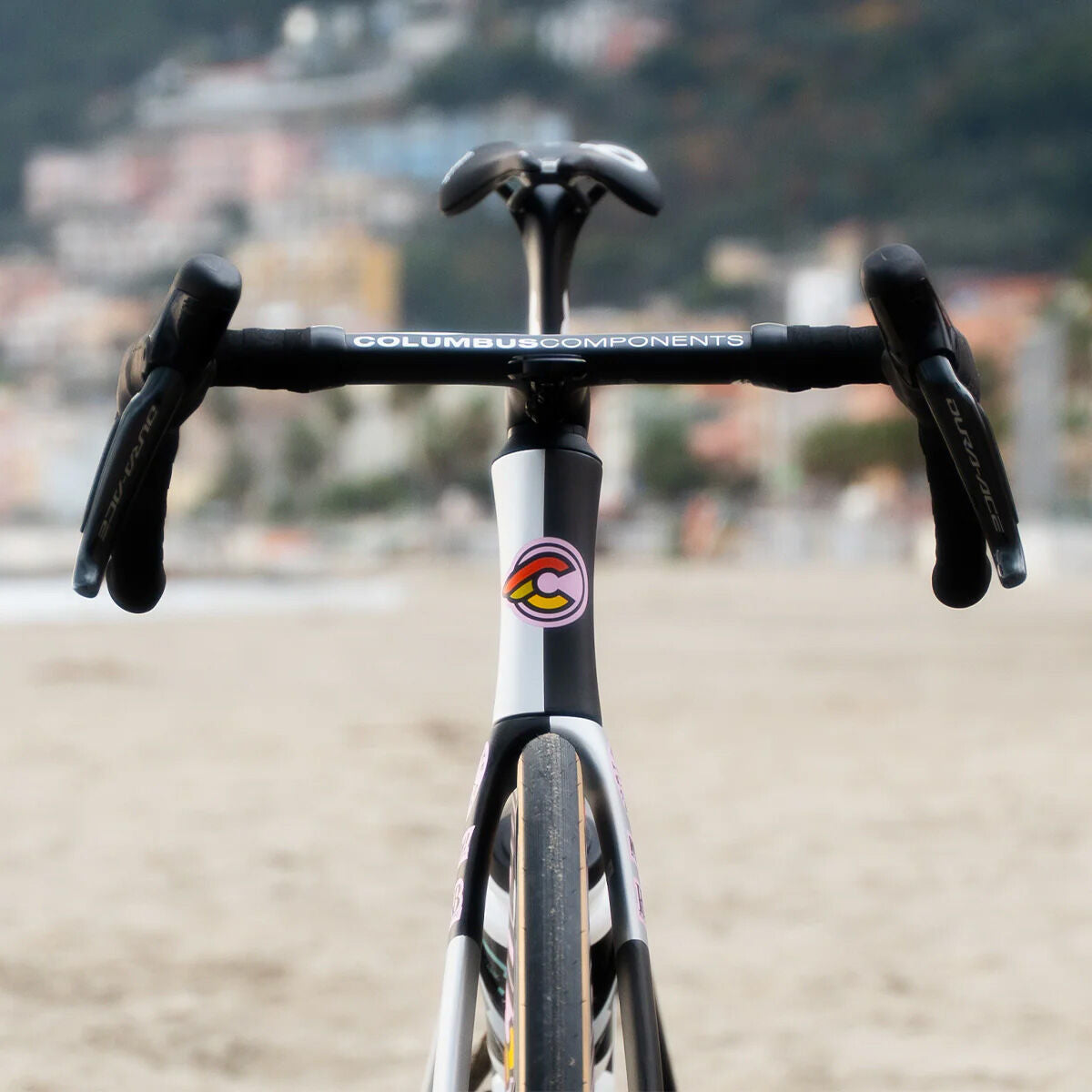

- Integrated Columbus Components Spirit handlebar.
- Fully integrated cable routing (for electronic drivetrains only).
- Max tire compatibility: 34 mm.
- UCI-approved frame.
- UDH (Universal Derailleur Hanger) rear dropouts.
- Producer's weight: 950 g.
- Producer's fork weight: 370 g.
- Invisible rear seat clamp.
- Seatpost offset 0/10 mm.
Tech spec
- Sizes: XS (46) - S (49) - M (52) - L (54) - XL (56)
- Cockpit: XS 90x380 - S 100x380 - M 100x380 - L 110x380 - XL 120x400 (included)
- Material: Columbus Carbon Monocoque T1000
- Headset: IS 52/28.6 | IS 52/40 (included)
- Seatpost: Full Carbon Aero (included), offset 0/10 mm, Carbon Rail Comp
- Seat clamp: hidden (included)
- Bottom bracket shell: T47/86 threaded with ceramic bearings included
- Front derailleur: welded
- Cable routing: fully internal - electronic group only
- Color: coral white / purple fiber
- Tires: up to 34 mm (measured)

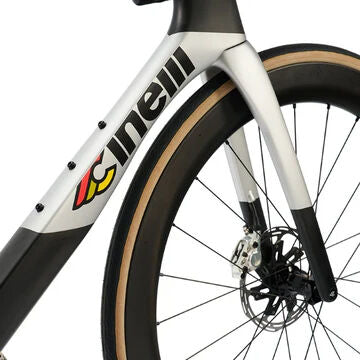

- Fork: full carbon monocoque 1-1/8“ - 1-1/2” Fully internal cable routing
- Brake: Flat Mount disc brake, rotor size up to 160 mm
- ST dropouts: rear TA Ø 12x142 mm - M12x175 / front TA Ø 12x100 mm - M12x120
- Main features: UDH Extra dropout / Ft.-Re. axles
- Drivetrain: Campagnolo Super Record WRL
- Handlebar: CC Spirit Integrated Handlebar
- Seatpost: Integrated Carbon
- Shifters: Campagnolo Super Record WRL
- Brakes: Campagnolo Super Record WRL
- Rotors: Campagnolo 160 - 140 mm
- Front derailleur: Campagnolo Super Record WRL
- Rear derailleur: Campagnolo Super Record WRL
- Crankset: Campagnolo Super Record WRL 52/36t
- Cassette: Campagnolo Super Record WRL 13sp 11/32t
- Chain: Campagnolo Super Record 13sp
- Wheelset: Fulcrum Wind 57
- Tires: Vittoria Rubino 700x28
- Saddle: Fi’zi:k Antares R7
Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
