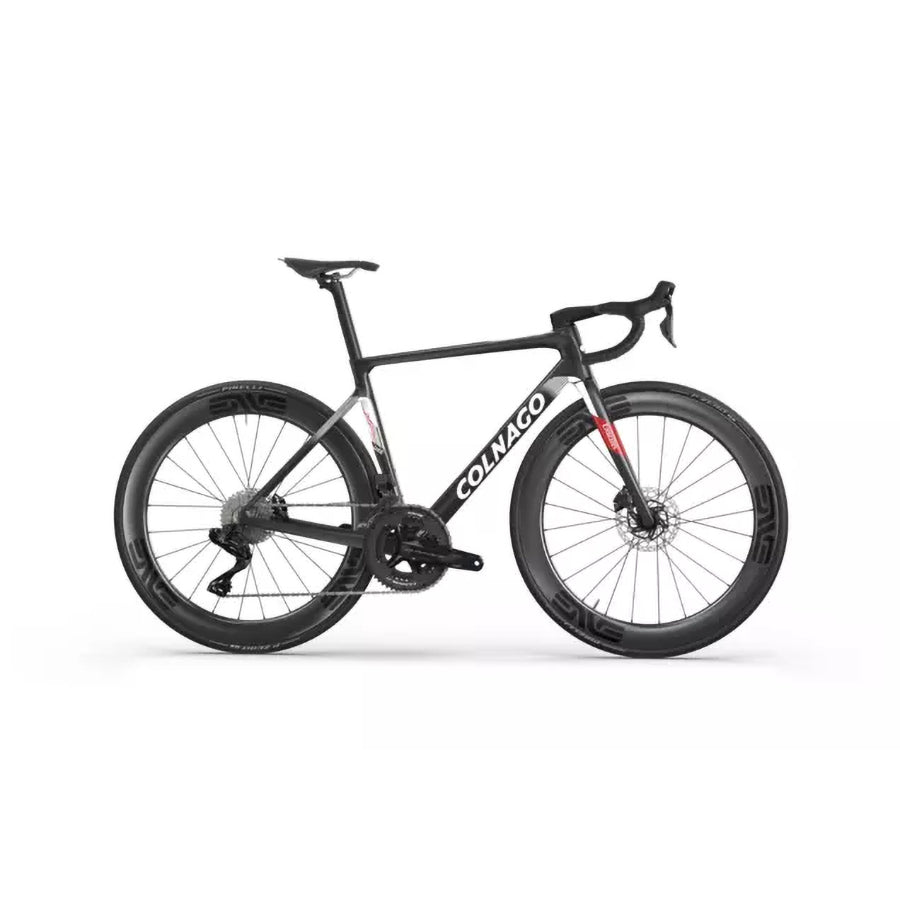

Colnago V4Rs Sram Force eTap AXS

Please note: The bikes are assembled according to the manufacturer's specifications with default features according to size. For any assembly requests or specifications other than the basic ones, please contact our costumer service directly before purchase.

V4Rs - Built to do just one thing: to win

The V Series Colnago means just one thing: a bicycle made for winning races. Every detail is curated and optimized to let Pro riders dominate the most important races WorldWide, such as Monuments and Tour de France.

Features

The new CC.01
Colnago Cockpit CC.01 has a drag surface reduced by up to 16% compared to the cockpits mounted on V3Rs, and at the same time the shape has been designed as a NACA-derived profile in order to have the minimum impact on the air flow, which is laminar and clean while impacting the components. This aerodynamic evolution was carried out without reducing the cockpit’s overall stiffness, which is as important as aerodynamics in sprint and acceleration.

Aerodynamic data
The performances of V4Rs are those of an aero bike. Compared to the V3Rs, in a real race setup (tested in the wind tunnel with an athlete pedalling at 50kph with 1 bottle and one empty bottle cage) Colnago measured an aerodynamic saving of 3%, corresponding to approx. 13.2 watt. With an advanced aero setup (aero wheels and aero Colnago Computer support) the bike had an aerodynamic saving of 6% (approx. 27.7 watts saved)

Headtube geometry
Its shape has been revised and perfectly integrated with the new lightweight fork (designed to allow an effective tire clearance up to 32mm) and with the new cockpit. Although the head set upper bearings are bigger than those of the V3Rs, allowing the cables to run inside without the need of the D-Shaped steerer column and enhancing the overall front-end stability, the overall shape has a better drag.

Accurate measuring
Colnago created internal methodologies to replicate the loading forces of standing-on-pedals and seated positions, and check the overall frame deformation and stiffness. Colnago was able then to define what it called RDS (Real-Dynamic Stiffness), and characterize them in combined multi-load conditions.

Robustness
The new V4Rs significantly improves the crash worth of the most exposed parts which may be subjected to impact in racing conditions. An example is given by the completely new designed seat stays, which, besides their more aerodynamic shape, also significantly improve the flexural and impact resistance. The robustness of this design also minimizes the need of maintenance.

Better handling
The weight distribution has changed from the V3Rs. The front fork is now lighter and the overall weight of the frame kit + handlebar setup has been decreased of 56 grams. The result is a better handling in corners and more safety and precision when going downhill.

Technical Specifications

Frame

• Frame (material) Colnago V4Rs Monocoque carbon frame
• Fork (material, notes section): Carbon fork for disc brakes, integrated cables, 1"1/8 section
• Headset: ID:35 OD:47 36°/45° CeramicSpeed SLT Treated Bearings
• Seatpost: Carbon seatpost, 0.15 offset, ‘D-Shape’ section
• Through-bolt: Diameter: 12 mm. length 100 mm (front) - 142 mm (rear)

Transmission

• Rear Derailleur: Sram FORCE eTap AXS Disc
• Front Derailleur: Sram FORCE eTap AXS - FD-FRC-E-D1
• Rear Derailleur: Sram FORCE eTap AXS - RD-FRC-E-D1
• Chain: FORCE Chain - CN-FRC-D1
• Crankset: 48-35T
• Sprocket set: 10-28T (12v) option 1 (Default); 10-30T (12v) option 2
• Bottom Bracket: T47 Sram DUB
• Crankset length: 170 mm option 1 (Standard for sizes 420 - 485); 172.5 mm option 2 (Standard for sizes 510 - 530); 175 mm option 3 (Standard for sizes 550 - 570)

Brakes

• Brakes: SRAM Force eTap AXS HRD SHIFT-BRAKE SYSTEM - CenterLine XR Rotor
• Size 160 mm Front/ 140 mm Rear - Paceline rotors RT-PLN-A1
• Brake lever: SRAM Force eTap AXS HRD SHIFT-BRAKE SYSTEM
• Brake Caliper: SRAM Force eTap AXS HRD SHIFT-BRAKE SYSTEM

Wheels

• Rims: Vision SC45
• Material: Carbon (FF80)
• Rim height: 42 mm
• Inner rim width: 23 mm
• Hubs: Aluminum, Low flanges. Sealed bearing, Adjustable
• Through-bolt: Front: HH12-100 - Rear: HH12-142
• Tyres: Pirelli PZero Race 700x28
• Max. tyre size: 30 mm (nominal width)

Components

• Saddle: Prologo Scratch M5 Tirox, Selle Italia Novus Boost EVO TI316 Superflow (subject to stock availability)
• Handlebar: Colnago CC.01 integrated Cockpit - regular geometry
• Handlebar stem: CC01 integrated cockpit
• Handlebar Tape: Colnago Grip Black or Colnago WT23 (for WT24 colour scheme only)
• Bottle cage: Colnago Matt Black (1x)
• Other accessories: Cockpit integrated multitool

Default components

Size 420

• Default crank length: 170 mm
• Default stem length: 90 mm
• Default handlebar width: 390 mm

Size 455

• Default crank length: 170 mm
• Default stem length: 100 mm
• Default handlebar width: 390 mm

Size 485

• Default crank length: 170 mm
• Default stem length: 110 mm
• Default handlebar width: 390 mm

Size 510

• Default crank length: 172.5 mm
• Default stem length: 110 mm
• Default handlebar width: 410 mm

Size 530

• Default crank length: 172.5 mm
• Default stem length: 120 mm
• Default handlebar width: 410 mm

Size 550

• Default crank length: 175 mm
• Default handlebar stem length: 120 mm
• Default handlebar width: 430 mm

Size 570

• Default crank length: 175 mm
• Default stem length: 130 mm
• Default handlebar width: 430 mm
