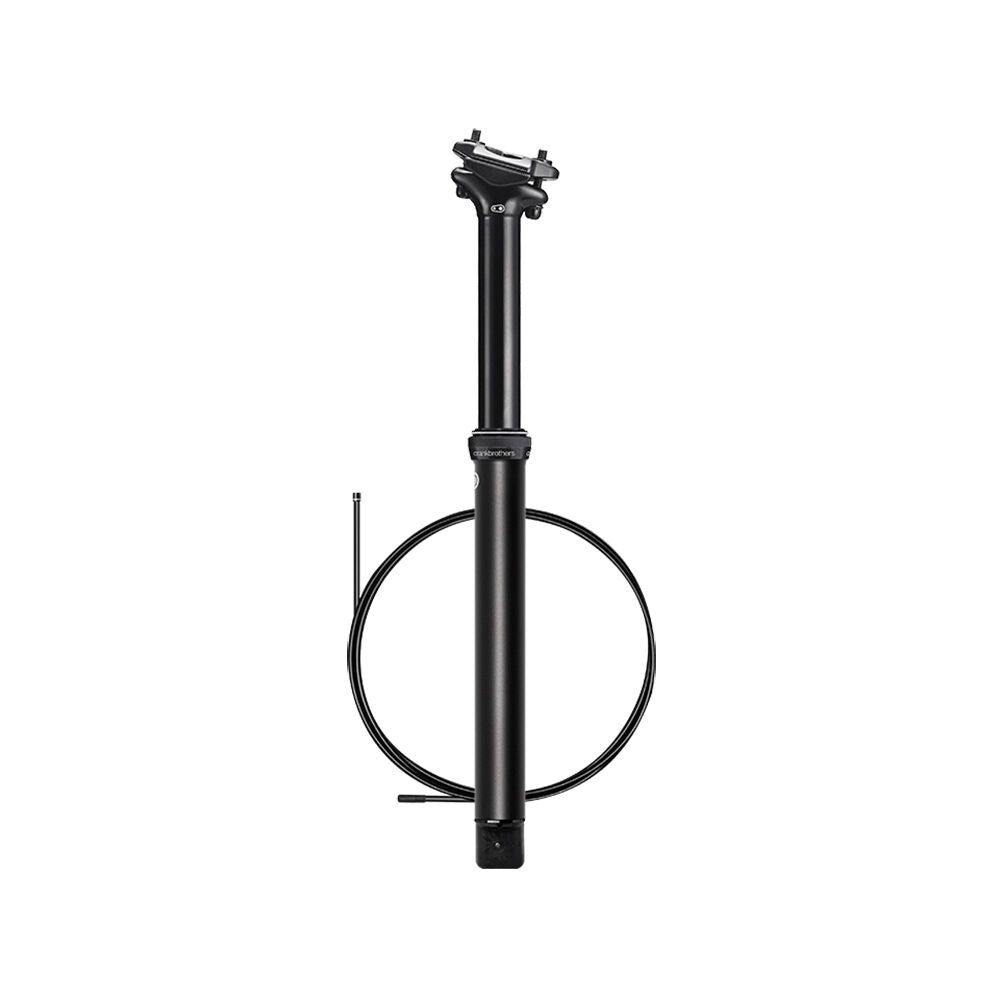

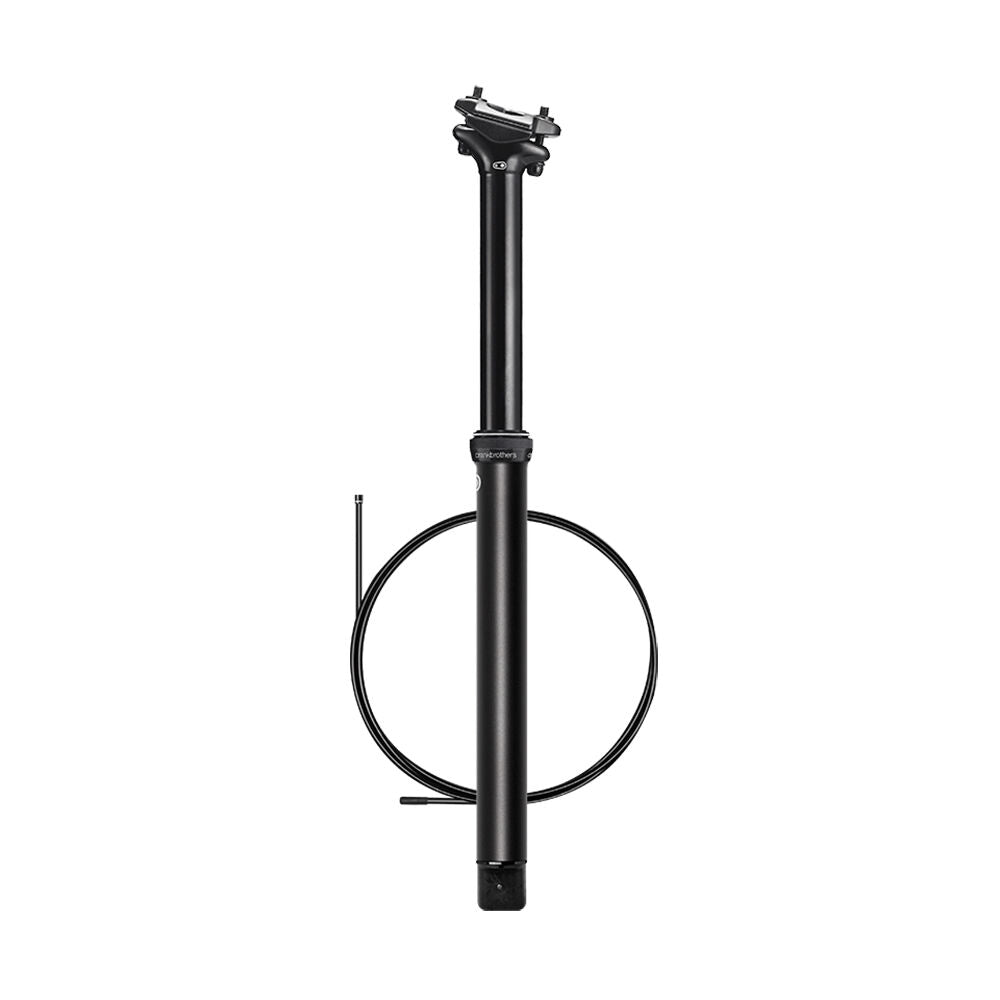

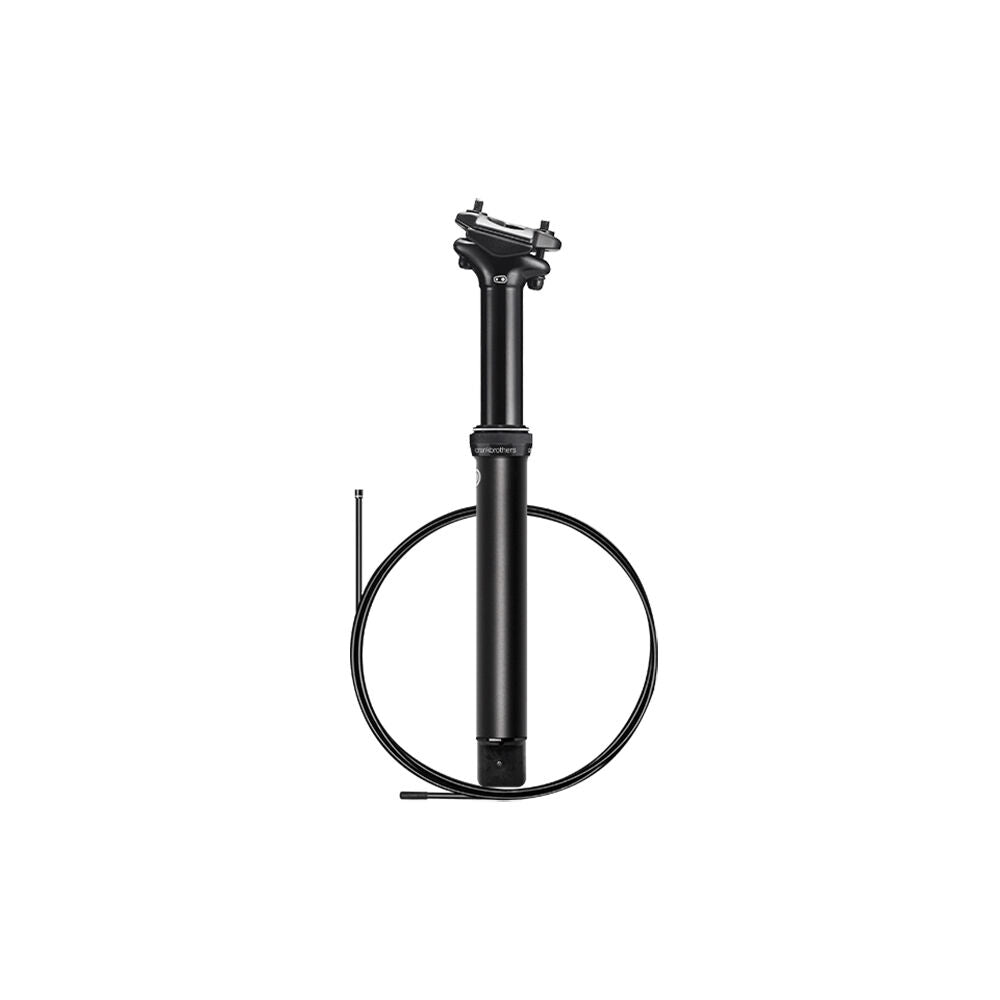

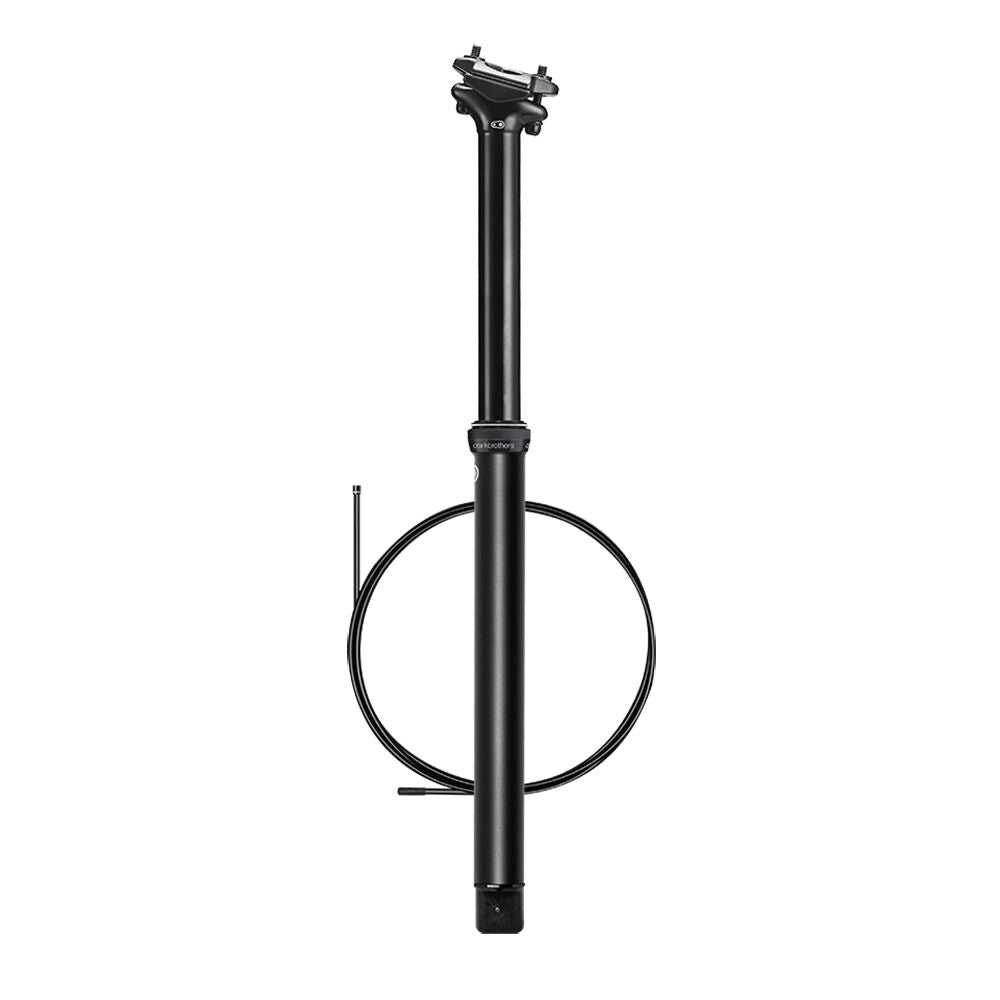

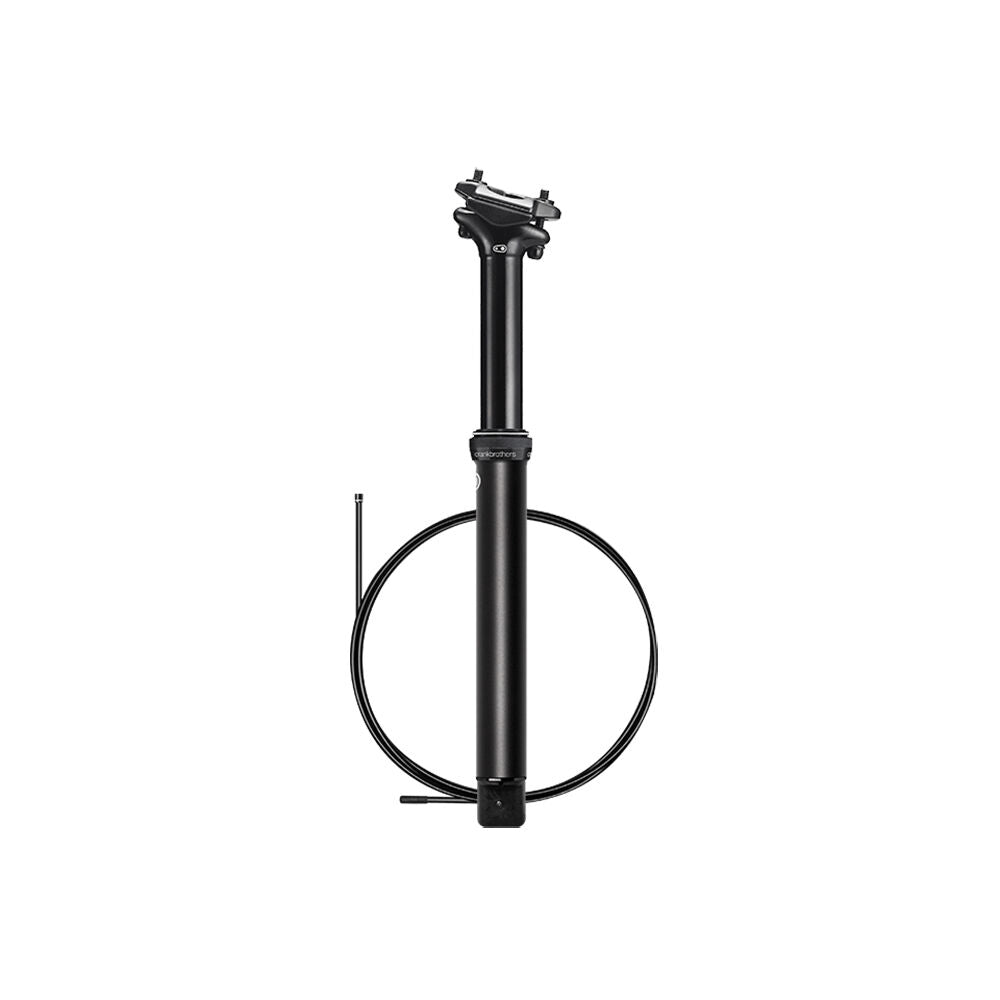

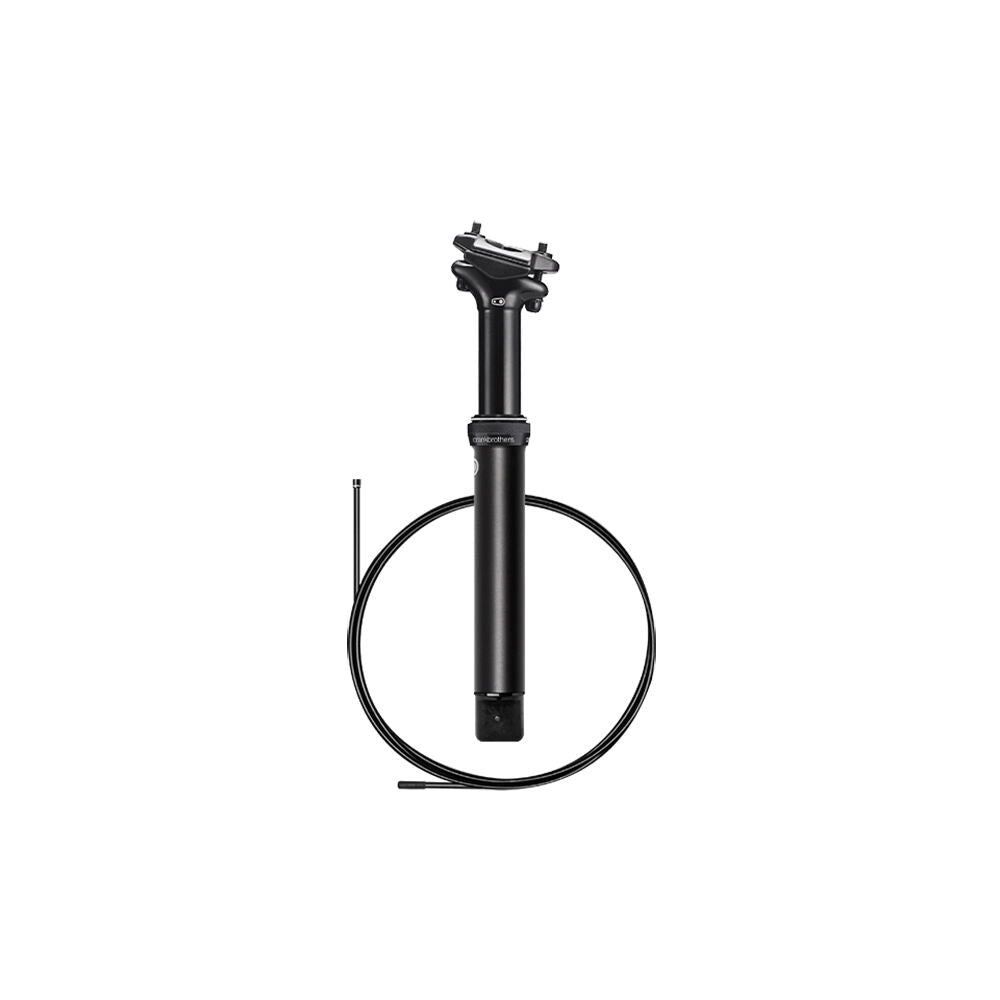

Crank Brothers Highline 3 dropper seatpost

Highline 3 Dropper - the all-new Highline delivers infinite adjustment, smooth feel, and easy installation for any bike.

Features

• Shorter insertion length to fit more bikes.
• Premium Trelleborg® sealing.
• Exclusive Igus® LL-glide bearings and keys.
• Jagwire® cable and housing included.
• Self-contained hydraulic cartridge.
• Internal routing.
• Quick connect mechanism for ease of cable installation.
• Linear actuator for quick return speed.
• 2-bolt quick-connect head.
• Remote shifter sold separately.
• Material: 7075-T6 aluminum.
• Max extended length: 241 mm (version 100 mm), 290 mm (version 125 mm), 337 mm (version 150 mm), 378 mm (version 170 mm).
• Max insertion length: 220 mm (version 100 mm), 245 mm (version 125 mm), 270 mm (version 150 mm), 285 mm (version 170 mm).
• Minimum stack height: 47 mm.
• Setback: 0 mm.
• Total post length: 370 mm (version 100 mm), 421 mm (version 125 mm), 469 mm (version 150 mm), 505 mm (version 170 mm).

Length 421 mm / Seatpost diameter 30.9 mm / Travel 125 mm

Seatpost diameter 31.6 mm / Length 421 mm / Travel 125 mm
