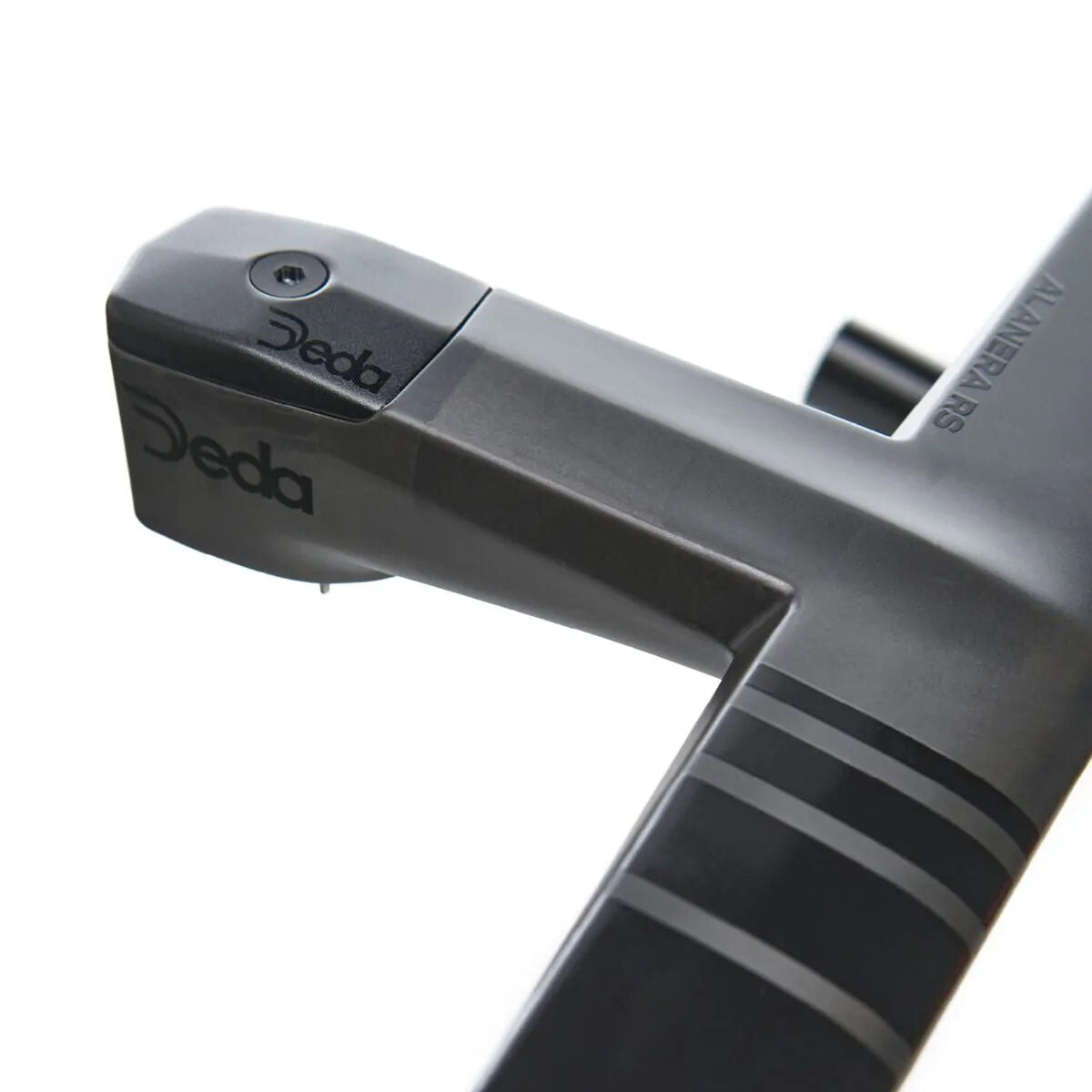

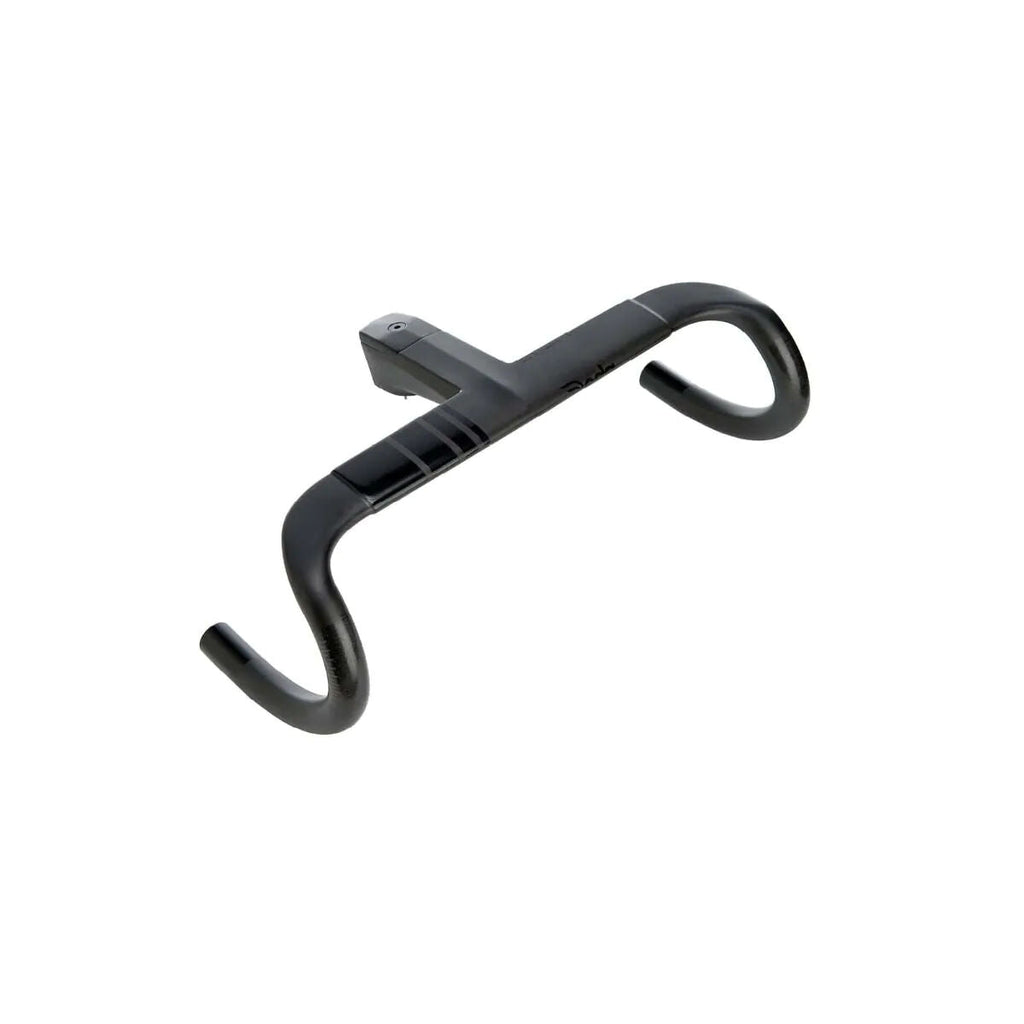

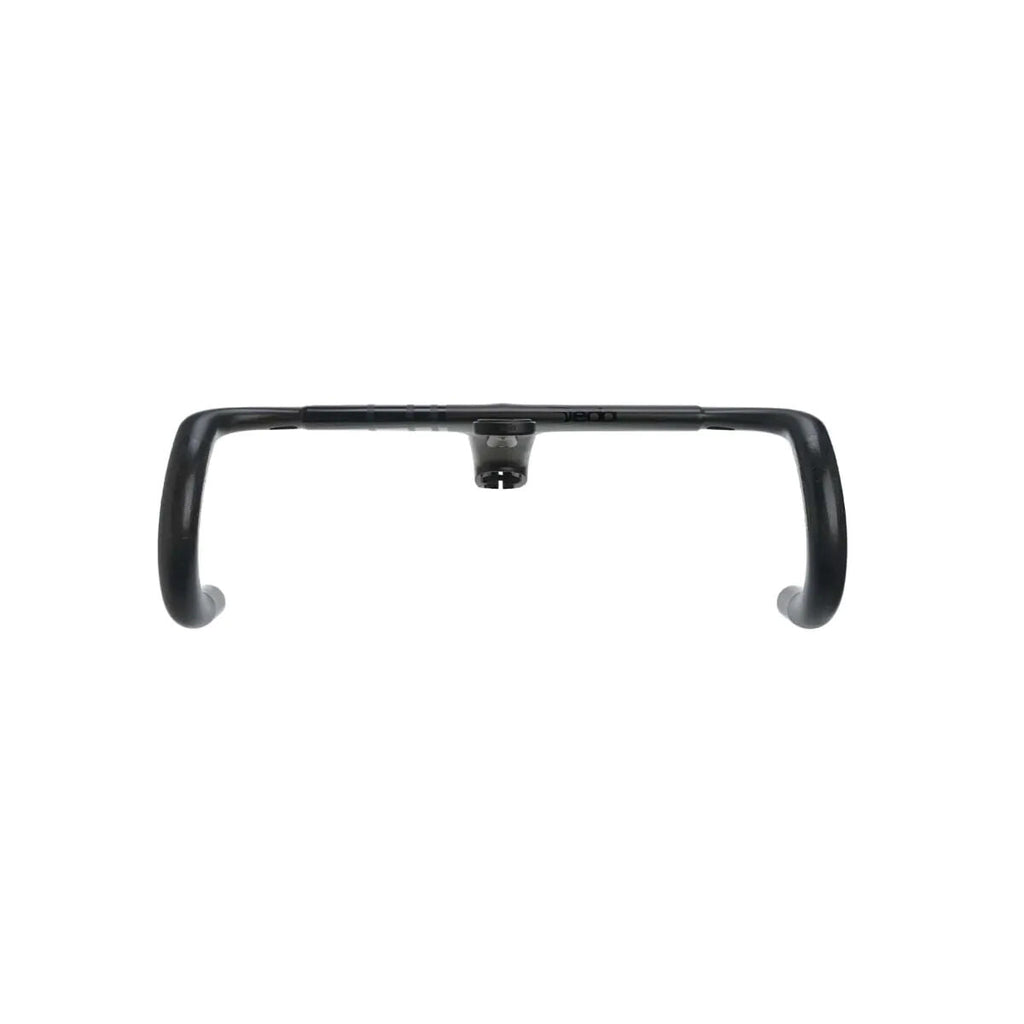

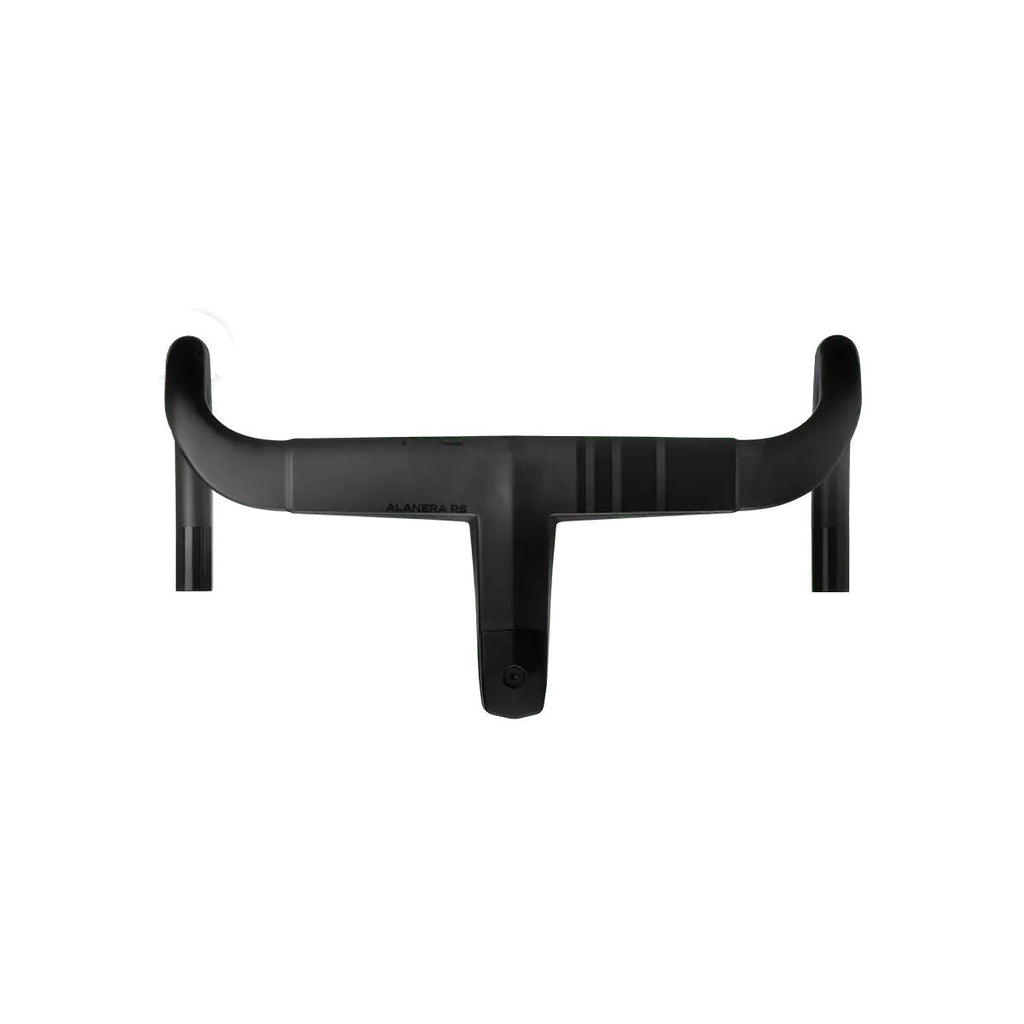

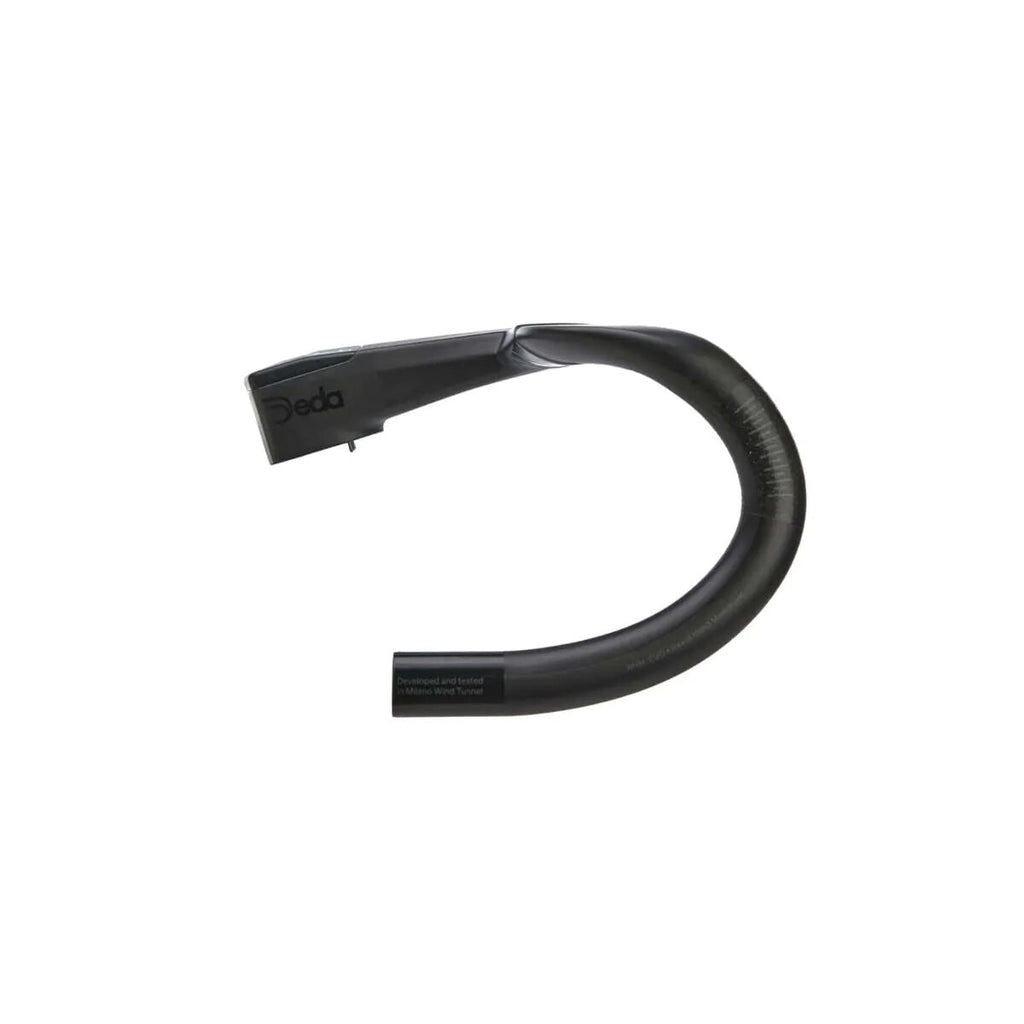

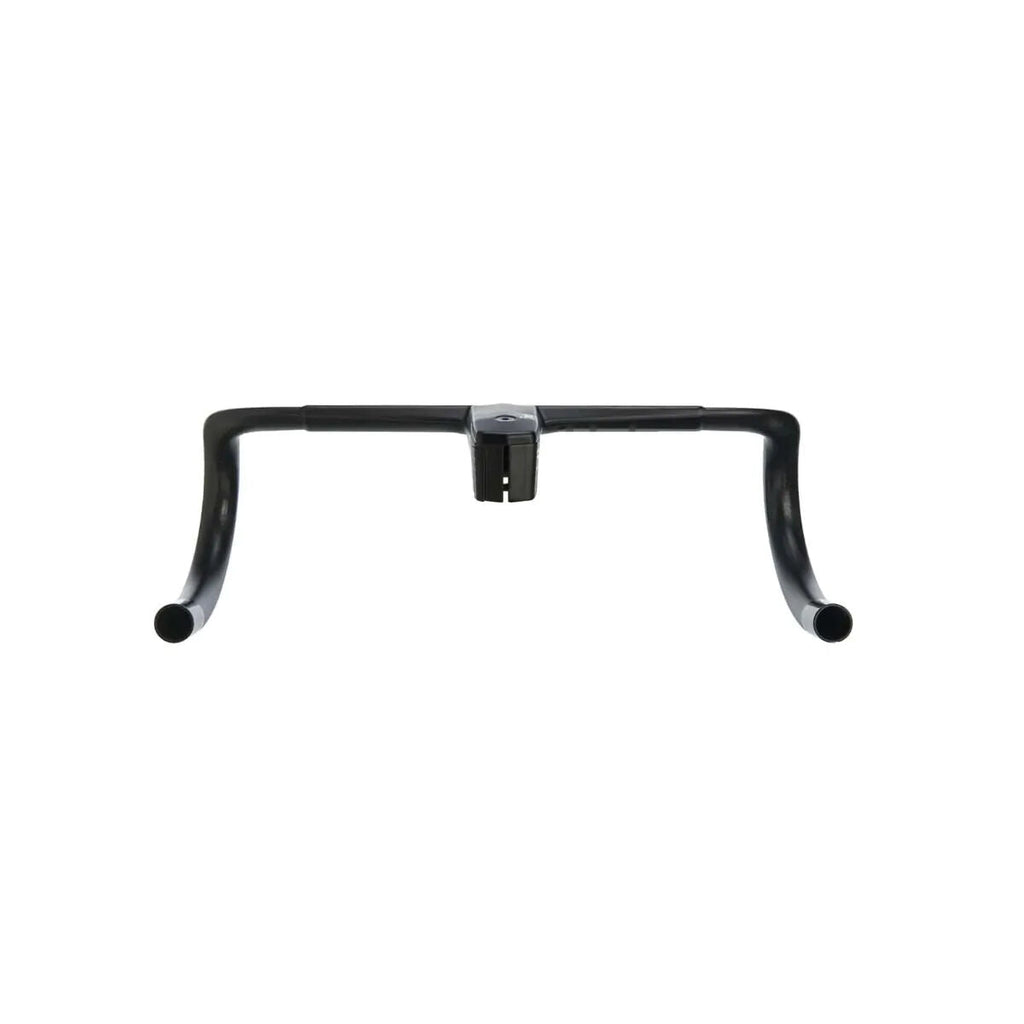

Alanera RS represents a pinnacle in handlebar technology, combining aerodynamics, comfort, adjustability, and compatibility with cutting-edge accessories to meet the demands of professional cyclists and enthusiasts alike. Born from the legacy of the first integrated handlebars to triumph at the Tour de France, the Alanera RS pushes the boundaries even further.
Full internal cable routing
Designed for D-shape forks or DCR compatible frames, the Alanera RS boasts seamless internal cable routing for a clean and aerodynamic profile.
Special headset spacers
The spacers not only facilitate internal cable routing but also offer adjustability without the hassle of cable removal.
RHM-EVO shape
With a 120 mm more compact drop, riders can maintain a low position for longer durations, enhancing comfort and aerodynamics.
6 degree flare
The 6-degree flare design enhances control and comfort while providing ample clearance for the forearms when in the drops.
Special top cap and accessories
Special aero topcap, headsets spacers & top covers, and a high-end alloy computer mount compatible with Garmin® (all series), Go-Pro®, Bryton®, and Wahoo® elevates the handlebars’ functionality and aesthetics.
Wide range of combinations
With 13 sizes available, plus 8 sizes on demand, riders can find the perfect fit for their cycling needs.
Tech Specs
- Shape: RHM EVO
- Material: monocoque construction UD /3K carbon fiber
- Fork steerer: 1 1/8" (28.6mm)
- Clamp hight: 43,5 mm
- Angle: 82°
- Reach: 75mm
- Drop: 120mm
- Flare: 6° (+2,5cm)
- Hardware: titanium, black PVD
- Producer's weight: 340g (110×42)
- Included accessories: Aero topcap, headset spacers and DCR topcover for headtube 56 mm & 46 mm. Computer bike mount for Garmin, Wahoo, Bryton & GoPro.
- Other accessories: Available as accessories the mount for Garmin®1000, Bryton® (Aero60), Polar® (v650&m450), SRM® PC8 and Wahoo.
Note: Compatible only with full internal cable routing (2 brake cables & electric shifting wire). The measurements are external/external
Check HERE the compatibility with your bike.
Producer's note:For the assembly of Deda Alanera and Superbox on some bikes is required specific compression ring: Bottecchia Emme4 (HDRS-COMPR-BOT); Dare VSRu (HDRS-COMPR-DA); Merida Scultura; Standert Kreissäge RS, Kettensäge, Pfadfinder, Triebwerk (HDRS-COMPR-ME); Bianchi Oltre Race, Sprint - Focus Izalco Max - Rose Xlite, Reveal, Backroad (HDRS-COMPR-ACROS). In case of Ridley and Colnago V3 (MY23) for internal cable routing, we recommend to purchase separately the Alanera RS top cap for D-Shape forks (cod. HDRS-TP-DX).
