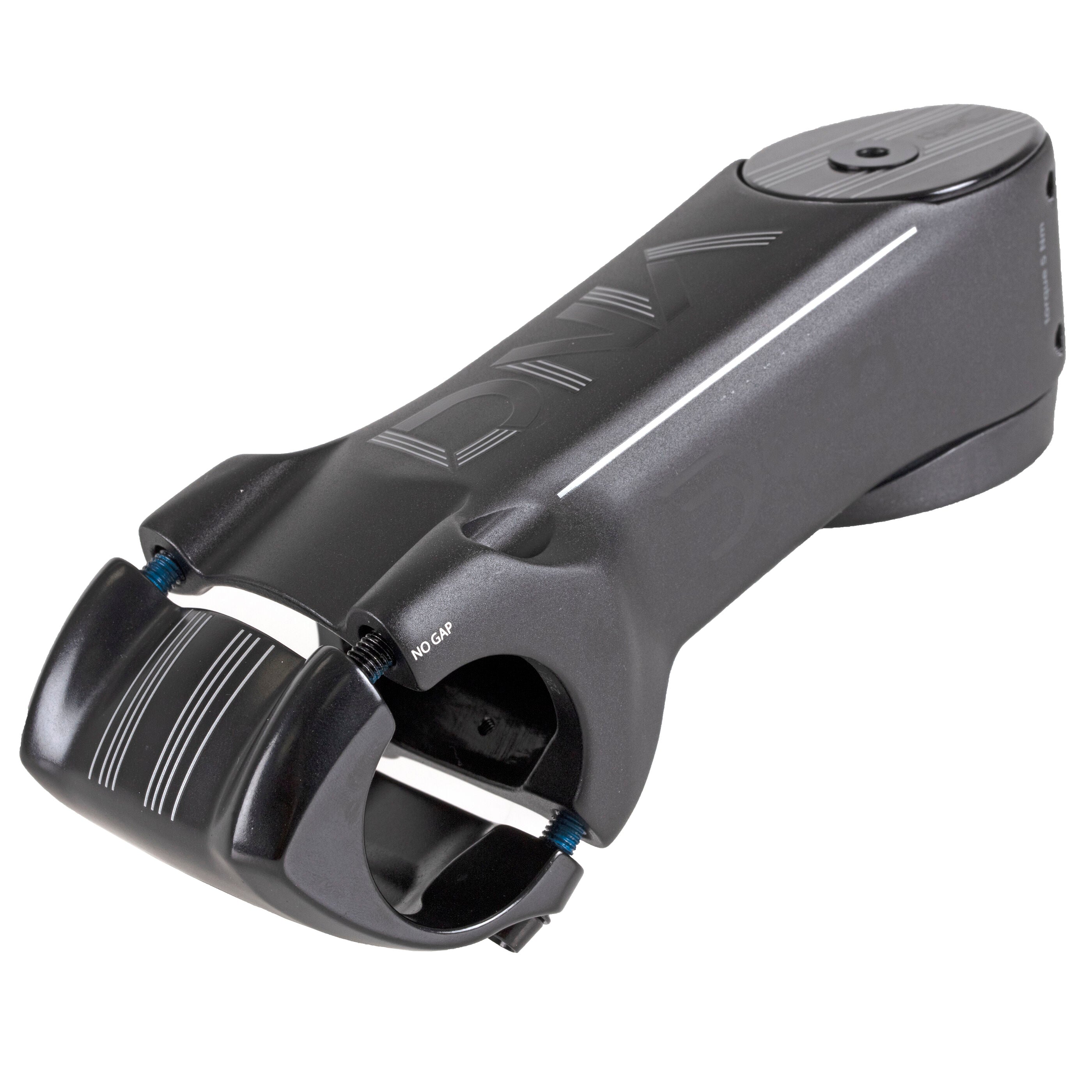

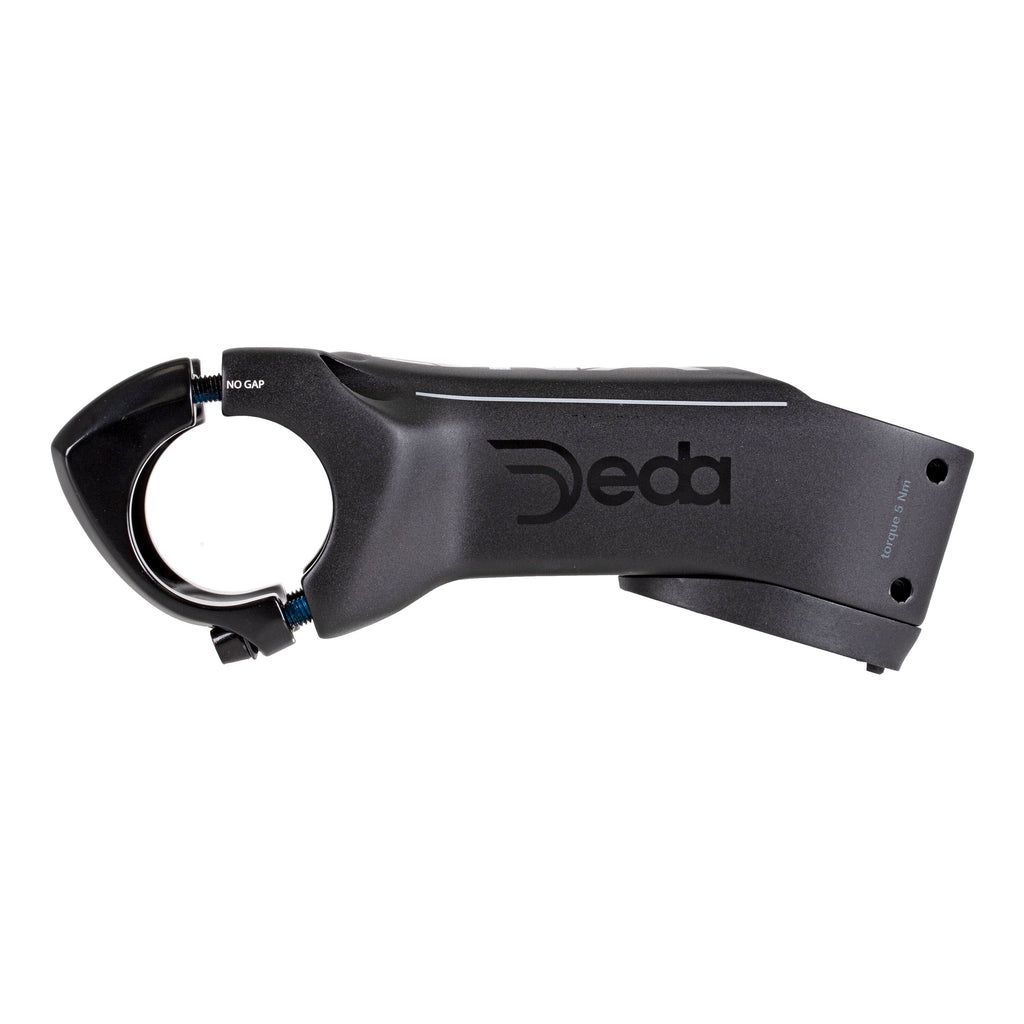

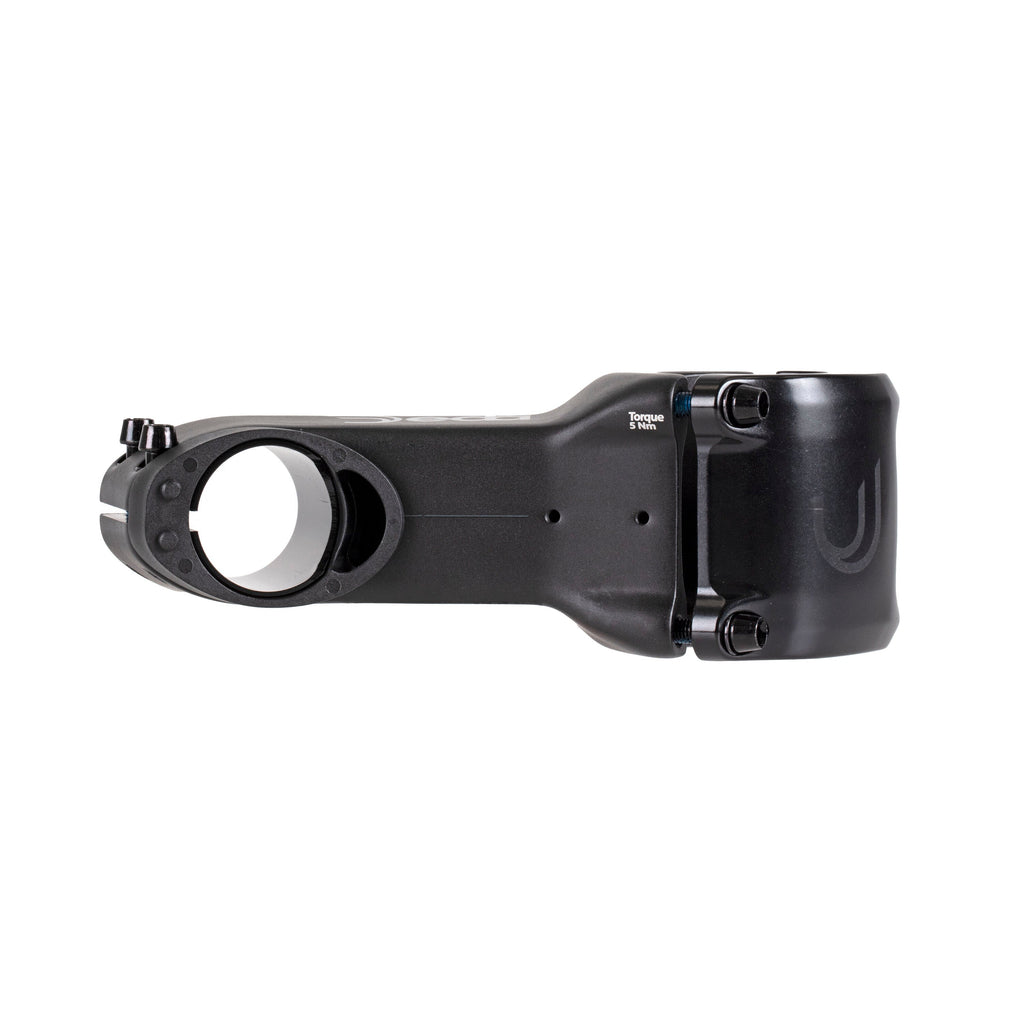

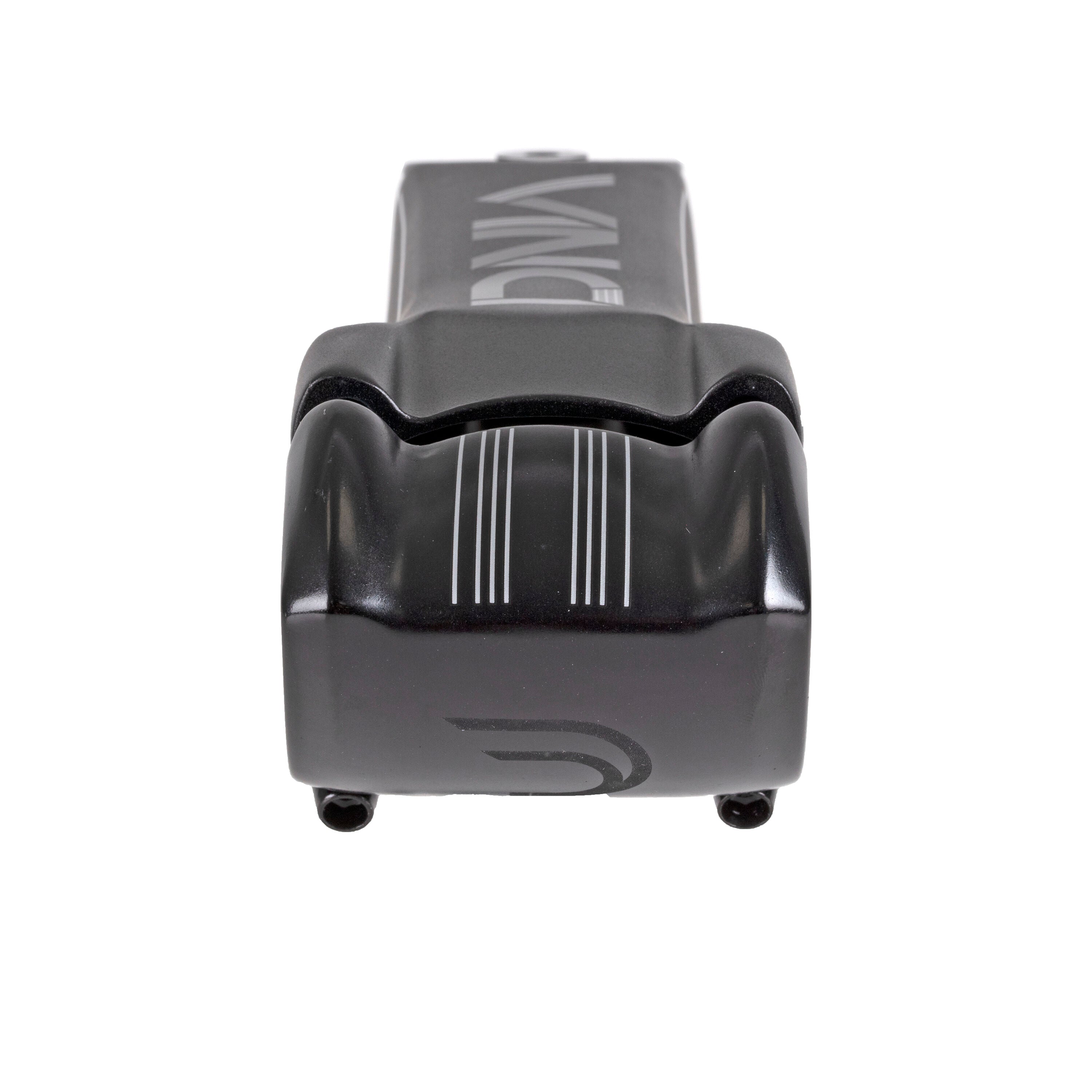

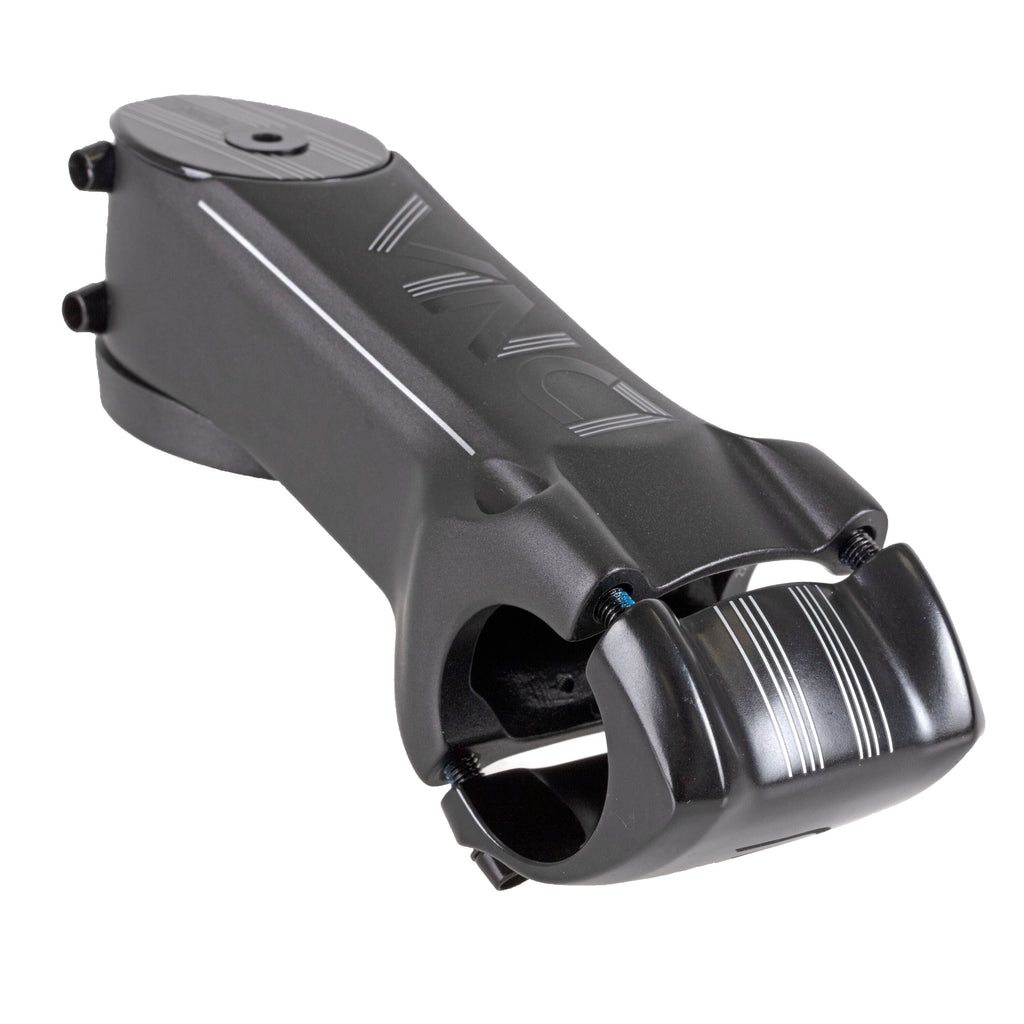

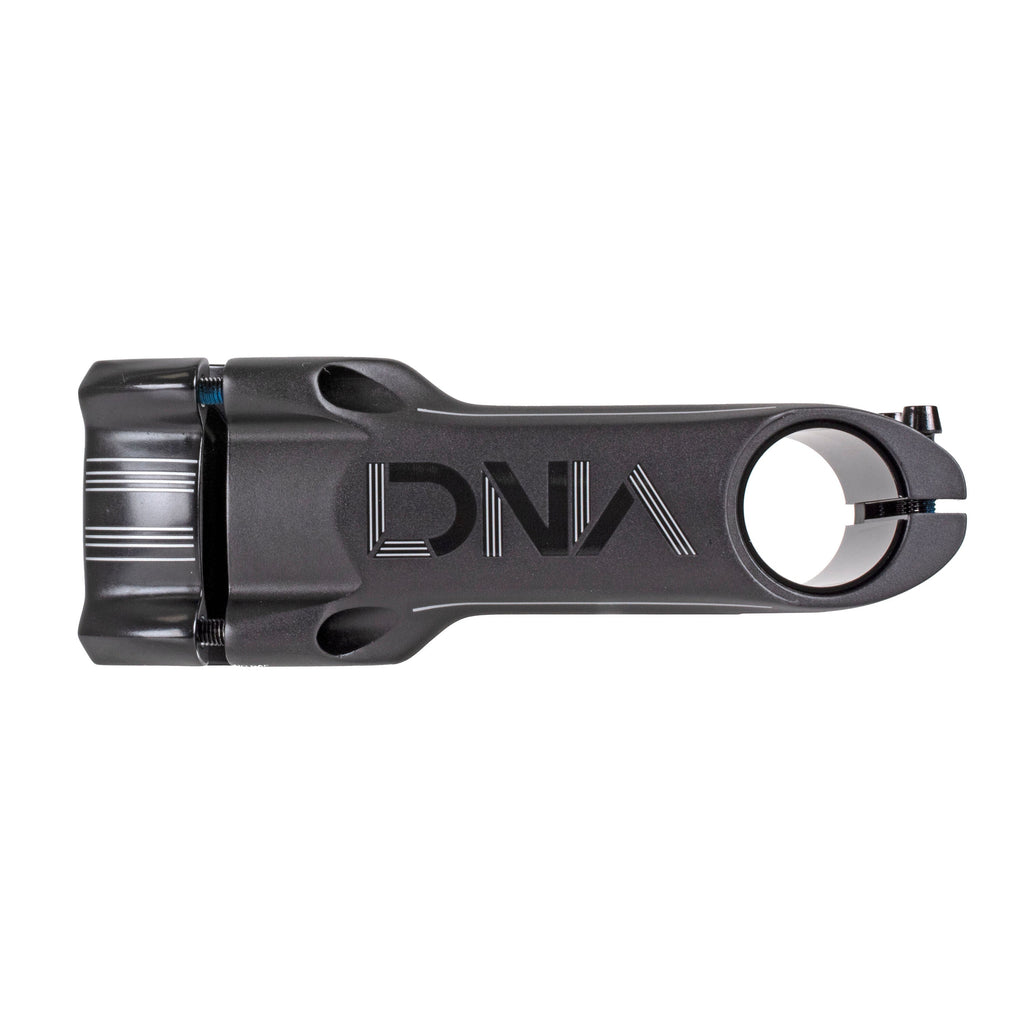

Deda Vinci stem
Deda Vinci stem

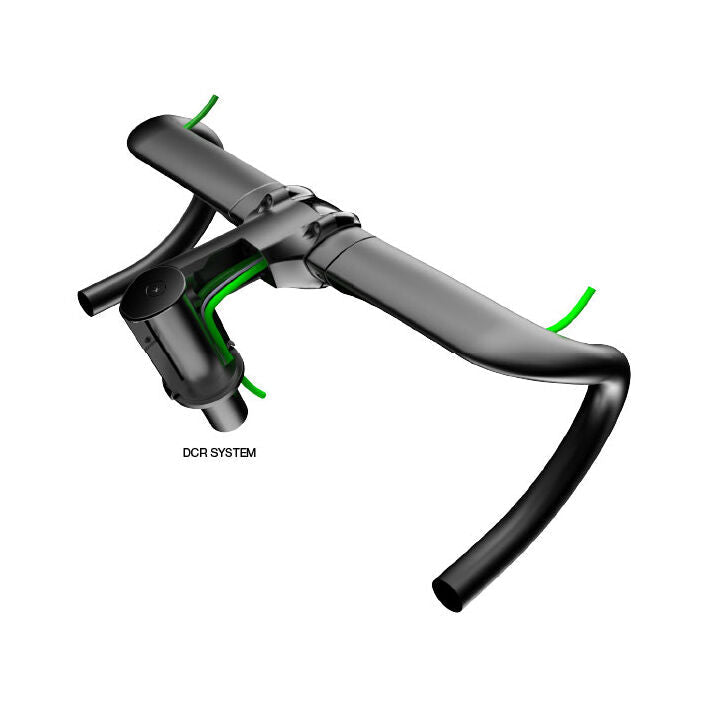

The first Deda stem designed to allow a fully integrated cable routing when assembled with Deda handlebars featuring the new DCR system (Deda Internal Cable Routing).
Vinci is the most polyvalent stem on the market being compatible with traditional 1-1/8" fork steerer as well as 1-1/4".
The DCR system works with a standard tapered steerer with 1-1/8" upper diameter, but requires a 52 mm upper headset bearing od.

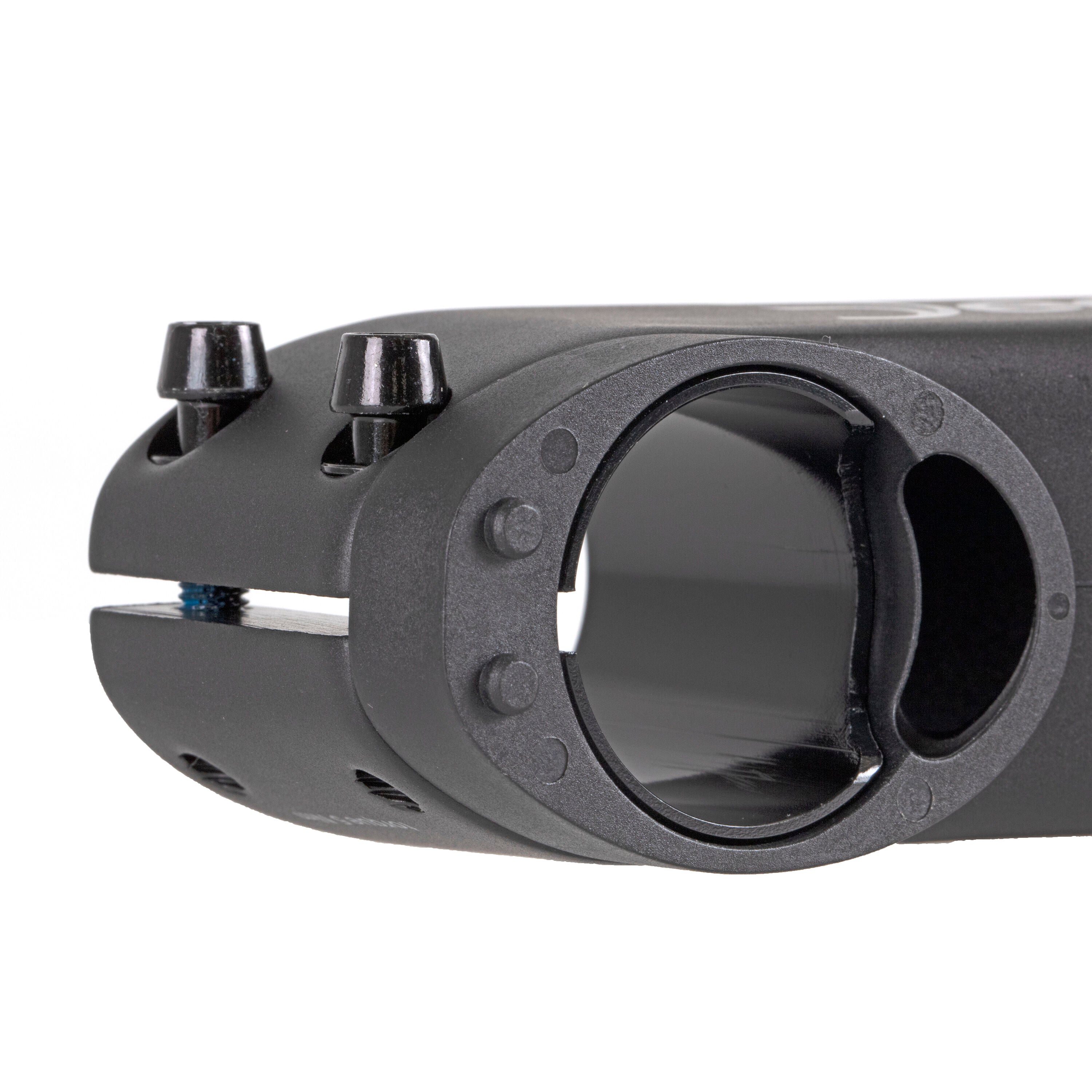

The stem leaves room at the back for the cables to fit the gap in between the headset bearing and the fork.
The Vinci stem system features special spacers that provide the channels for the housing cables. Spacers are designed with slits that let them pull open, they can be added or removed to get the fit right without having to remove all cables.

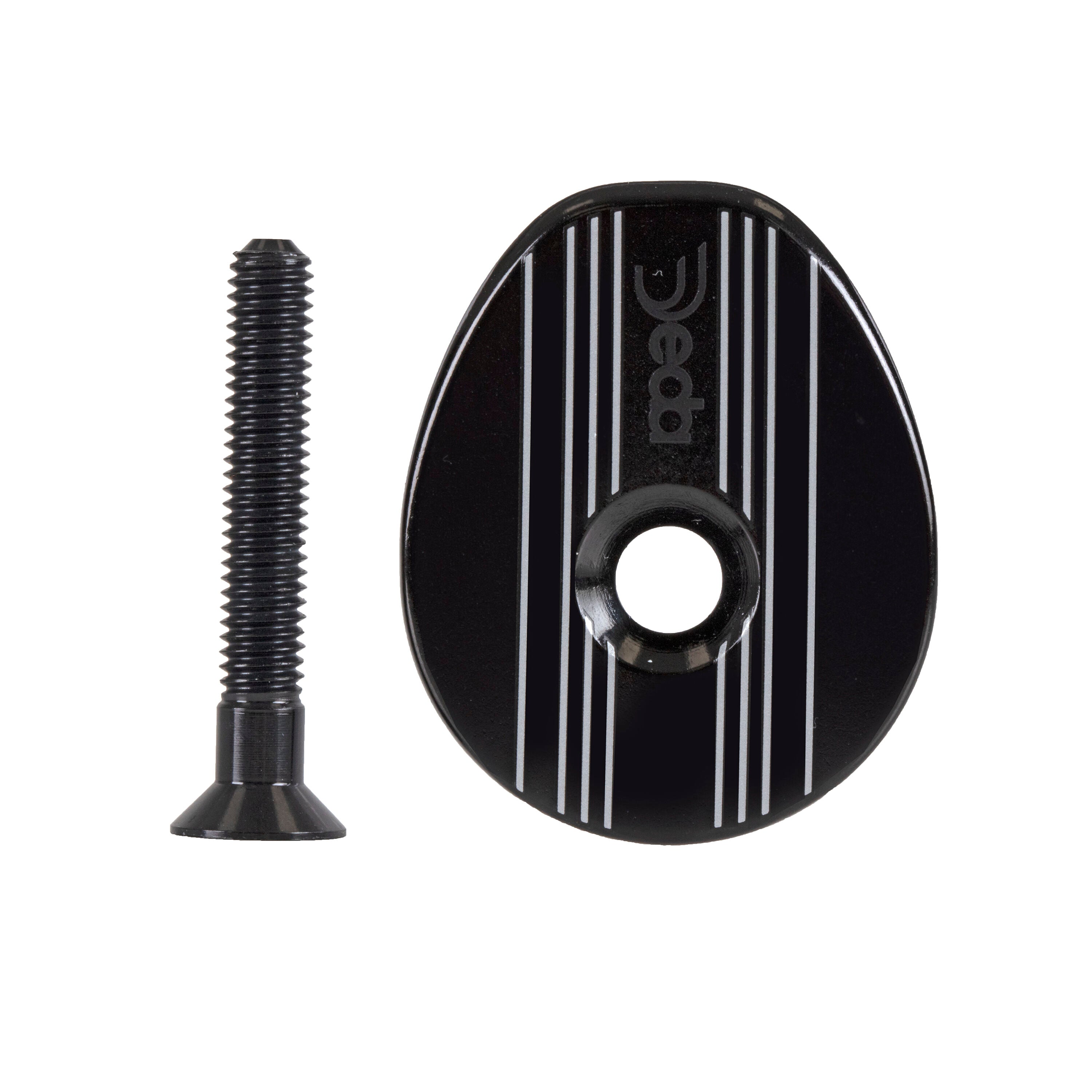

The innovative 3D forging technology and the flat design result in a better aero performance. The aero integrated topcap, headset spacers and alloy sleeve adapter for 1-1/8" fork steerer complete the line of accessories included.
Available in Polish on black finish (Pob).
Note: Compatible with full internal cables routing (Up to 4 cables).
Real weight (120 mm): 257 g.
Length 90 mm / Color Polish on black
| Material | 3d forged, alloy 2014 |
| Clamp height | 40 mm |
| Steerer tube diameter | 1\" 1/8 (28,6 mm), 1 1/4\" (31,75 mm) |
| Faceplate bolts | 4 |

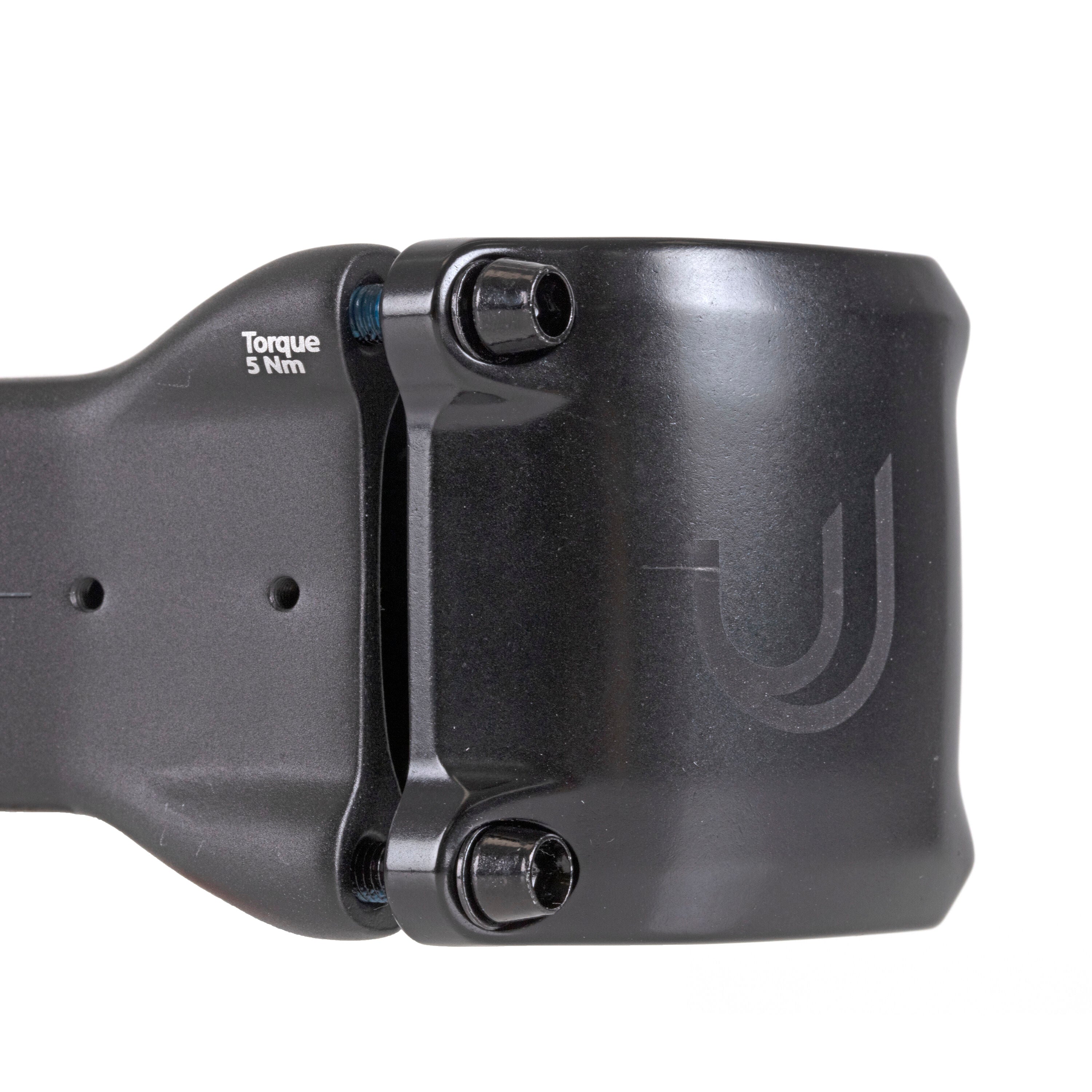

| Torque max | 6 Nm |
| Diameter | 31.7 mm |
| Stem angle | 73° |
Length 100 mm / Color Polish on black
| Steerer tube diameter | 1 1/4\" (31,75 mm), 1\" 1/8 (28,6 mm) |
| Material | 3d forged, alloy 2014 |
| Clamp height | 40 mm |
| Faceplate bolts | 4 |
| Torque max | 6 Nm |
| Diameter | 31.7 mm |
| Stem angle | 73° |
Length 110 mm / Color Polish on black
| Steerer tube diameter | 1 1/4\" (31,75 mm), 1\" 1/8 (28,6 mm) |
| Material | 3d forged, alloy 2014 |
| Clamp height | 40 mm |
| Faceplate bolts | 4 |
| Torque max | 6 Nm |
| Diameter | 31.7 mm |
| Stem angle | 73° |
Length 120 mm / Color Polish on black
| Steerer tube diameter | 1 1/4\" (31,75 mm), 1\" 1/8 (28,6 mm) |
| Material | 3d forged, alloy 2014 |
| Clamp height | 40 mm |
| Faceplate bolts | 4 |
| Torque max | 6 Nm |
| Diameter | 31.7 mm |
| Stem angle | 73° |
Length 130 mm / Color Polish on black
| Steerer tube diameter | 1 1/4\" (31,75 mm), 1\" 1/8 (28,6 mm) |
| Material | 3d forged, alloy 2014 |
| Clamp height | 40 mm |
| Faceplate bolts | 4 |
| Torque max | 6 Nm |
| Diameter | 31.7 mm |
| Stem angle | 73° |
Length 140 mm / Color Polish on black
| Steerer tube diameter | 1 1/4\" (31,75 mm), 1\" 1/8 (28,6 mm) |
| Material | 3d forged, alloy 2014 |
| Clamp height | 40 mm |
| Faceplate bolts | 4 |
| Torque max | 6 Nm |
| Diameter | 31.7 mm |
| Stem angle | 73° |
