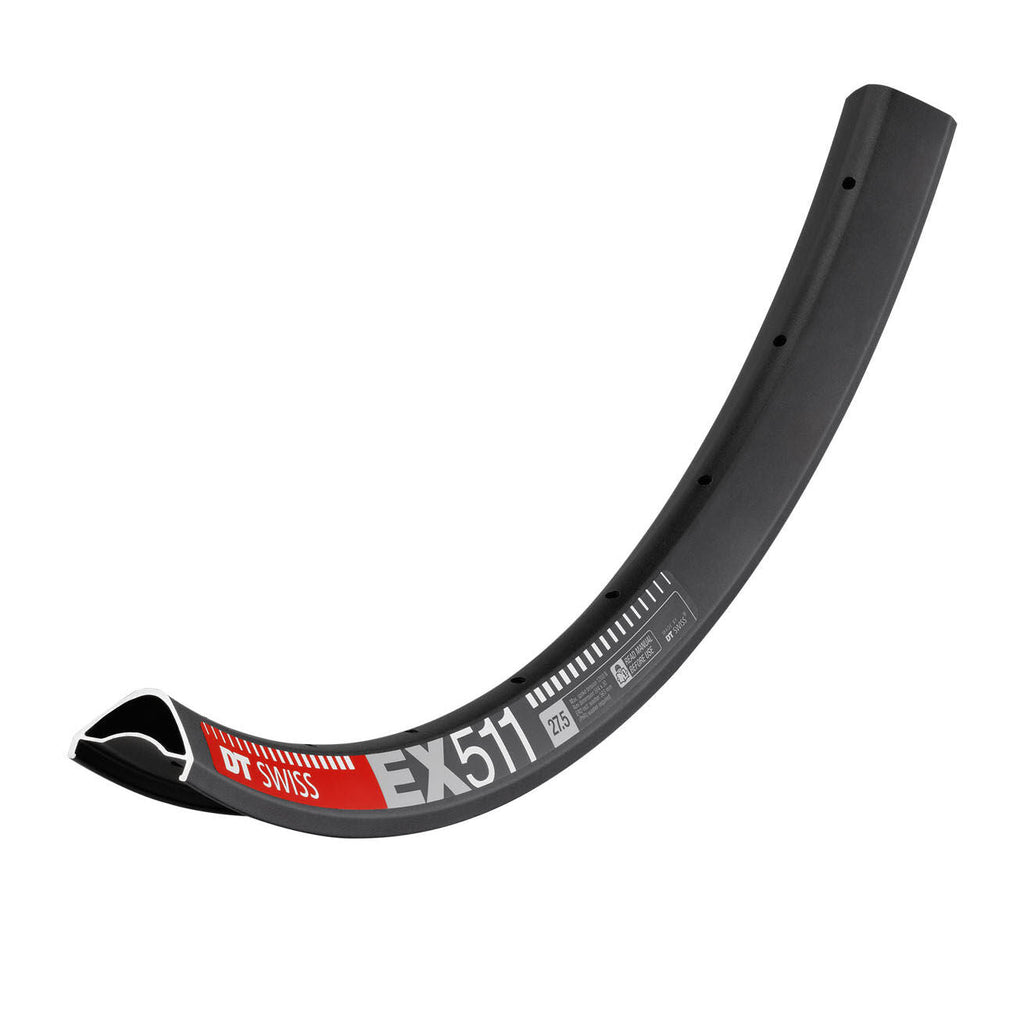

DT Swiss EX 511 27,5" rim 30 mm

Developed for the fastest EWS rider, the 30 mm welded Enduro rim

Enduro may be young as a discipline, but at its core is the intrinsic need of riders to ride burlier terrain faster and faster. Something that MTB was all about since the beginning. The EX 511 rim is the perfect tool for this quest: It comes with all the technology that has delivered many EWS wins and packs it in a 30 mm wide profile. Ready to go burlier, faster.

Tech Specs

Material & brake interface

• Material: aluminium
• Rim joint: Welded
• Tire interface: Hooked / Crotchet tubeless TC
• Brake interface: Disc

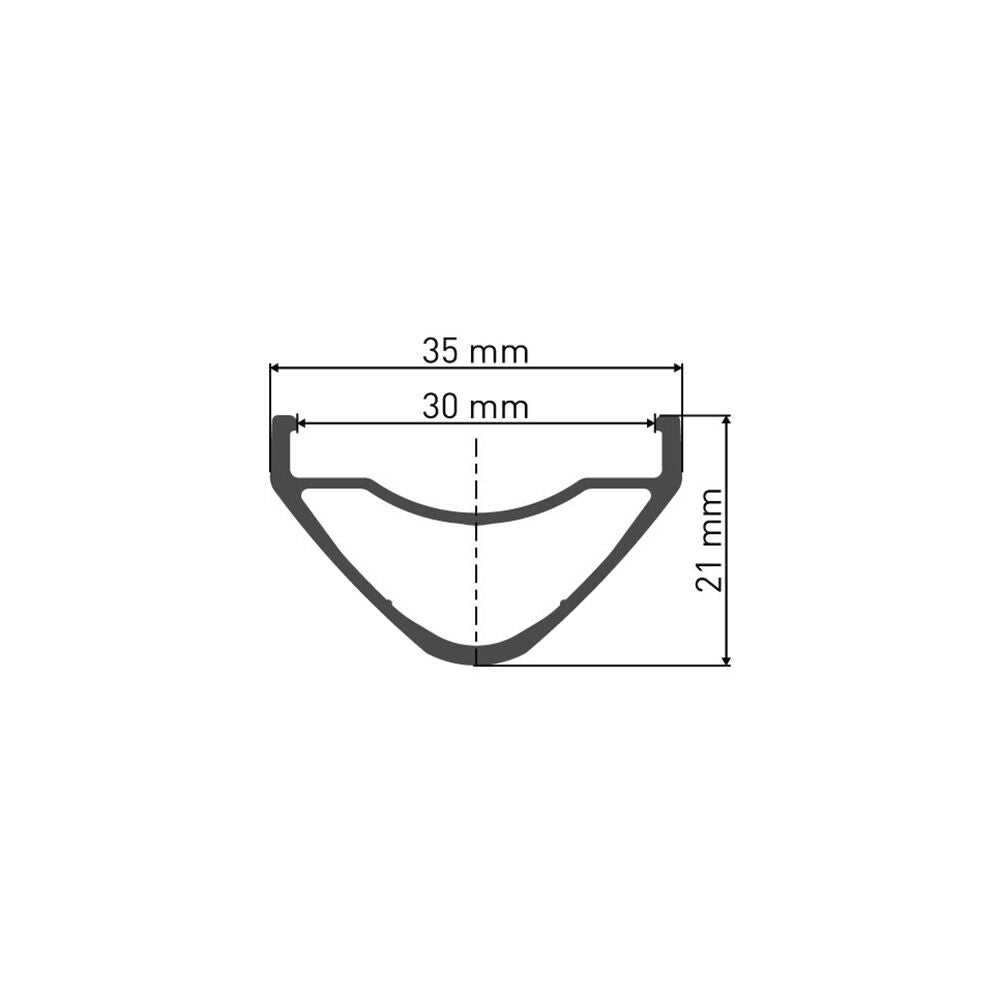

Dimensions

• Rim diameter: 27.5" / 650B
• Reference diameter ERD: 563 mm
• Inner width: 30 mm
• Outer width: 35 mm
• Rim height: 21 mm
• Real weight: 581 g (32 holes)

Holes

• Number of holes: 32 or 28
• Spoke bore rim: Non eyelet PHR
• Valve hole: Presta

Included

• Nipples and washers

hole drill 28 hole

hole drill 32 hole
