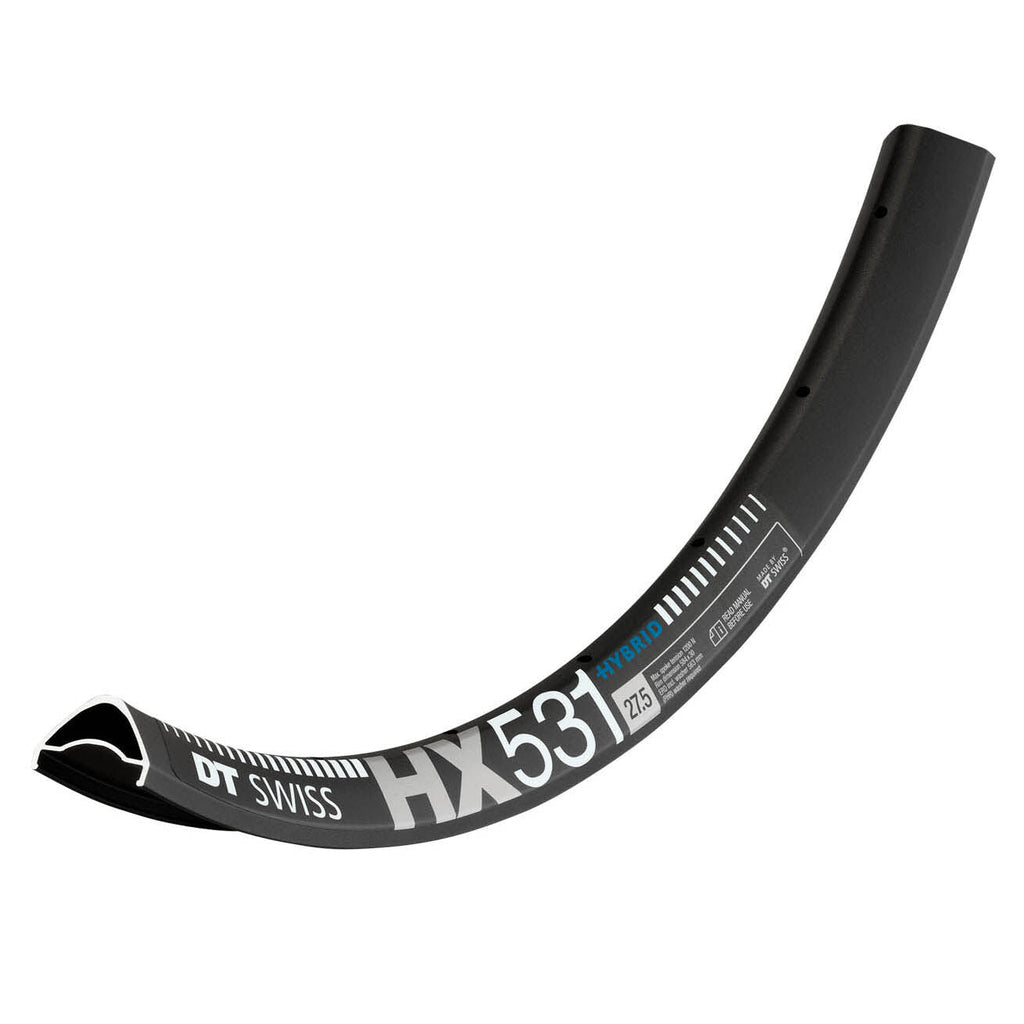

DT Swiss HX531 DB 27,5" 30mm rim

Welded 30 mm wide E-MTB rim - the ideal allrounder.

When you head into the unknown, whether on a 29er or a 27.5er, the HX 531 with its 30 mm internal width is the perfect choice. With an ideal position in the middle of the strength, to weight, to width range, it works with many tire sizes and is the ideal choice for all eMTB's meant to be ridden on proper MTB terrain.

Technical specifications

• Manufacturer weight: 610g.
• Material: aluminium.
• Rim joint: Welded.
• Tyre interface: hooked / crotchet tubeless tc.
• Brake interface: disc.

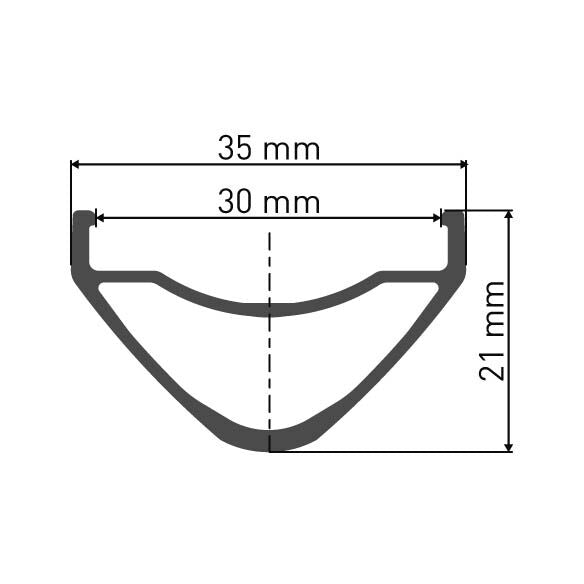

Dimensions

• Rim diameter: 27.5’ / 650B.
• Erd reference diameter: 563 mm.
• Inner width: 30 mm.
• Outer width: 35 mm.
• Profile height: 21 mm.

Holes

• Number of holes: 28/32.
• Rim spoke holes: Silver eyelet.
• Valve hole: Presta.

Includes

• DT Pro Lock Squorx alu silver.
• Washer PHR.

hole drill 28 hole

hole drill 32 hole
