DT Swiss M502 29" 30mm rim
28 hole
$71.74
Sale price
$71.74
Regular price
$89.72
Skip to product information
DT Swiss M502 29" 30mm rim
$71.74
Sale price
$71.74
Regular price
$89.72
Sleeved AM rim, supporting modern tires with its 30 mm inner width.
Just wide enough, just light enough. At 30 mm internal rim width the M 502 works for tires ranging from slightly wide to quite wide, allowing it to attack the hardest of terrains. DT Swiss' benchmark rim material is combined with an economic sleeve-junction to offer the best ratio between low weight, big width and a low price.
Technical specifications
- Manufacturer weight: 570g.
- Material: aluminium.
- Rim joint: Sleeve joint.
- Tyre interface: hooked / crotchet tubeless tc.
- Brake interface: disc.

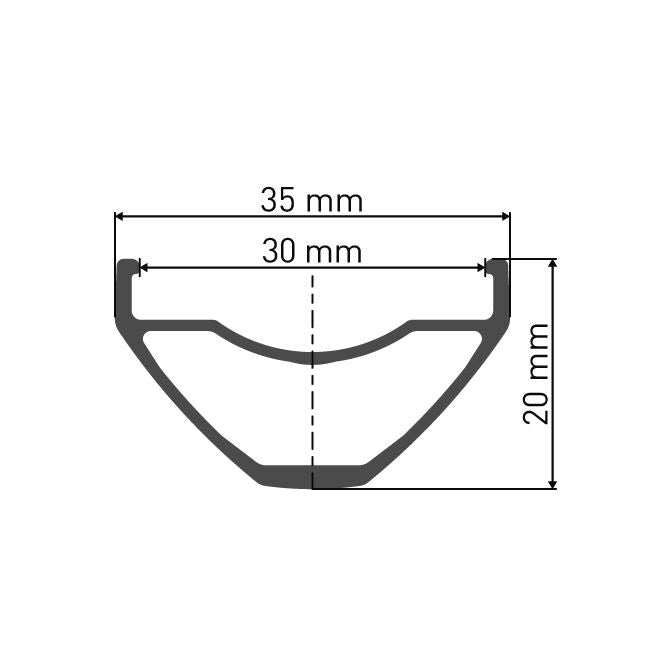

Dimensions
- Rim diameter: 29’ / 700c.
- Erd reference diameter: 602 mm.
- Inner width: 30 mm.
- Outer width: 35 mm.
- Profile height: 20 mm.
Holes
- Number of holes: 28/32.
- Rim spoke holes: Silver eyelet.
- Valve hole: Presta.
hole drill 28 hole
| Valve | Presta |
| Version | Hooked |
| Front wheel spokes | 28 |
| Rim material | Aluminium |
| Rim profile | 20 mm |
| Rim width | 30 mm |
| ASTM | 4 |
| Etrto | 30-622 |
| E-Bike | No |
| Wheel size | 29\ |
hole drill 32 hole
| Valve | Presta |
| Version | Hooked |
| Front wheel spokes | 32 |
| Rim material | Aluminium |
| Rim profile | 20 mm |
| Rim width | 30 mm |
| ASTM | 4 |
| Etrto | 30-622 |
| E-Bike | No |
| Wheel size | 29\ |
