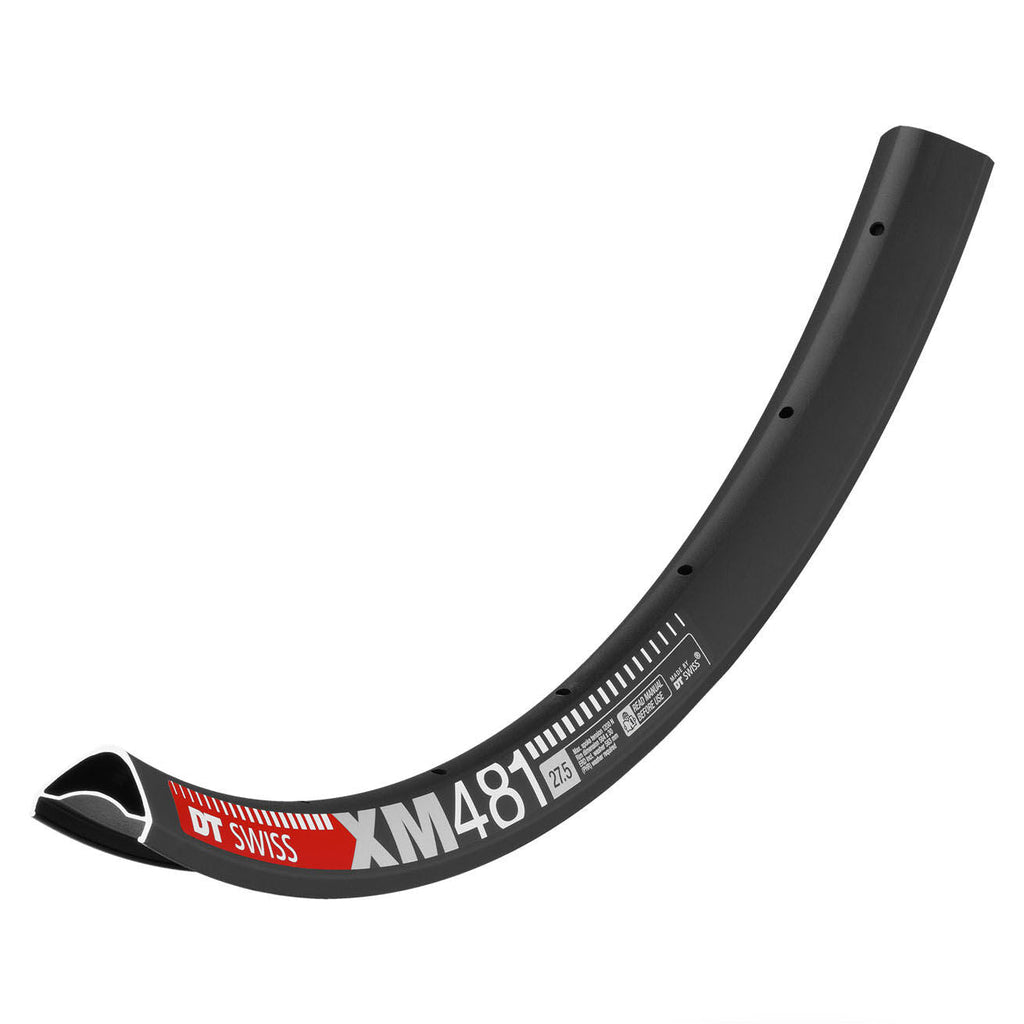

DT Swiss XM 481 27.5" 30mm rim
28 hole
$99.31
Sale price
$99.31
Regular price
$128.23
Skip to product information
DT Swiss XM 481 27.5" 30mm rim
$99.31
Sale price
$99.31
Regular price
$128.23
Strong and lightweight welded AM rim.
Riders who like the idea of giving their tires some extra volume and support will find the ideal partner with the XM 481. Its full 30 mm of inner width together with a minimal hook and perfect tubeless compatibility make it ready to tackle all demanding trails, both up and down the mountain.
Technical specifications
- Manufacturer weight: 510g.
- Material: aluminium.
- Rim joint: welded.
- Tyre interface: hooked / crotchet tubeless tc.
- Brake interface: disc.

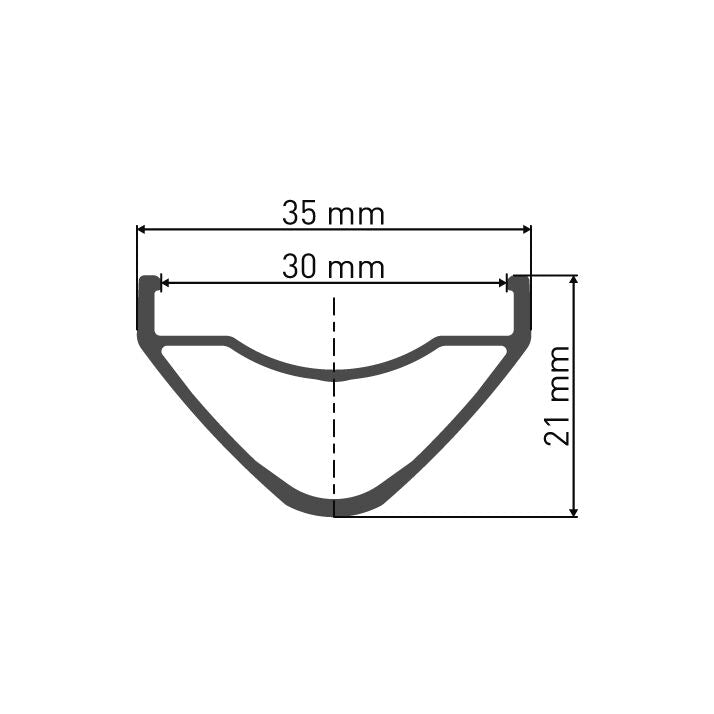

Dimensions
- Rim diameter: 27.5’ / 650c.
- Erd reference diameter: 601 mm.
- Inner width: 30 mm.
- Outer width: 35 mm.
- Profile height: 21 mm.
Holes
- Number of holes: 28/32.
- Rim spoke holes: Non-eyelet PHR.
- Valve hole: Presta.
hole drill 28 hole
| Valve | Presta |
| Version | Hooked |
| Front wheel spokes | 28 |
| Rim material | Aluminium |
| Rim profile | 21 mm |
| Rim width | 30 mm |
| ASTM | 4 |
| Etrto | 30-584 |
| E-Bike | No |
| Wheel size | 27.5\ |
hole drill 32 hole
| Valve | Presta |
| Version | Hooked |
| Front wheel spokes | 32 |
| Rim material | Aluminium |
| Rim profile | 21 mm |
| Rim width | 30 mm |
| ASTM | 4 |
| Etrto | 30-584 |
| E-Bike | No |
| Wheel size | 27.5\ |
