DT Swiss XR 391 29" 25mm rim

Strong and lightweight welded AM rim.

Riders who like the idea of giving their tires some extra volume and support will find the ideal partner with the XM 481. Its full 30 mm of inner width together with a minimal hook and perfect tubeless compatibility make it ready to tackle all demanding trails, both up and down the mountain.

Technical specification

• Productors weight: 440g.
• Material: aluminium.
• Rim joint: welded.
• Tire interface: hooked / crotchet tubeless tc.
• Brake interface: disc.

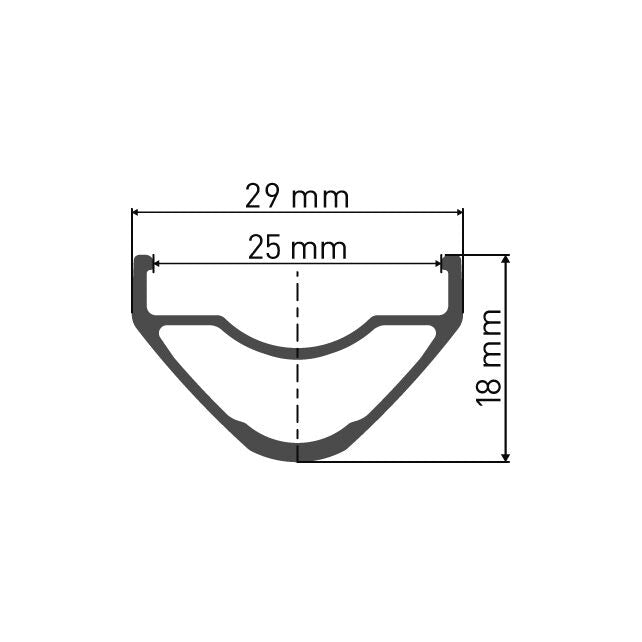

Dimensions

• Rim diameter: 29" / 700c.
• Reference diameter erd: 607 mm.
• Inner width: 25 mm.
• Outer width: 29 mm.
• Rim height: 18 mm.

Holes

• Number of holes: 28/32.
• Spoke bore rim: Non eyelet PHR.
• Valve hole: Presta.

Includes

• Dt pro lock squorx alu silver washer PHR

hole drill 28 hole

hole drill 32 hole
