Enve Mog frame kit

The ideal off-road bike

The MOG meets all the requirements of a modern gravel bike. Versatility through design with plenty of tyre space, fitting tyres up to 700c x 50 mm, plus storage space in the frame with the use of open down tube space by the Cargo Bay. Roof rack mounts on the fork offer additional options for the weekend bike ride without hindering the MOG's performance in any way.
Like the Melee road bike, the MOG is available as a ‘Frame Only’ which includes frame, fork, headset, handlebar, stem and seatpost. Through an ENVE dealer, the handlebar, stem and seatpost are selected à la carte to ensure you get the exact fit specification you need from the start.
The MOG can be built with four handlebar options including the Gravel Bar, SES AR Bar, Compact Road Bar and SES Aero Bar. In addition, the choice of a telescopic or fixed seatpost ensures that the MOG is built to suit your riding needs. Select your choice of ENVE wheels and drivetrain components for the complete build via your local ENVE Ride Centre or dealer.

Cargo Bay
MOG launches ENVE's Cargo Bay, an integrated downtube storage solution that efficiently utilises unused space to store your flat tyre repair kit, windbreaker or whatever else you choose to carry. Under the Cargo Door, two Cargo Bags provide 36 cubic inches/0.6 litres of storage space. It is a quick and easy storage solution that can be appreciated by runners and adventurers alike.

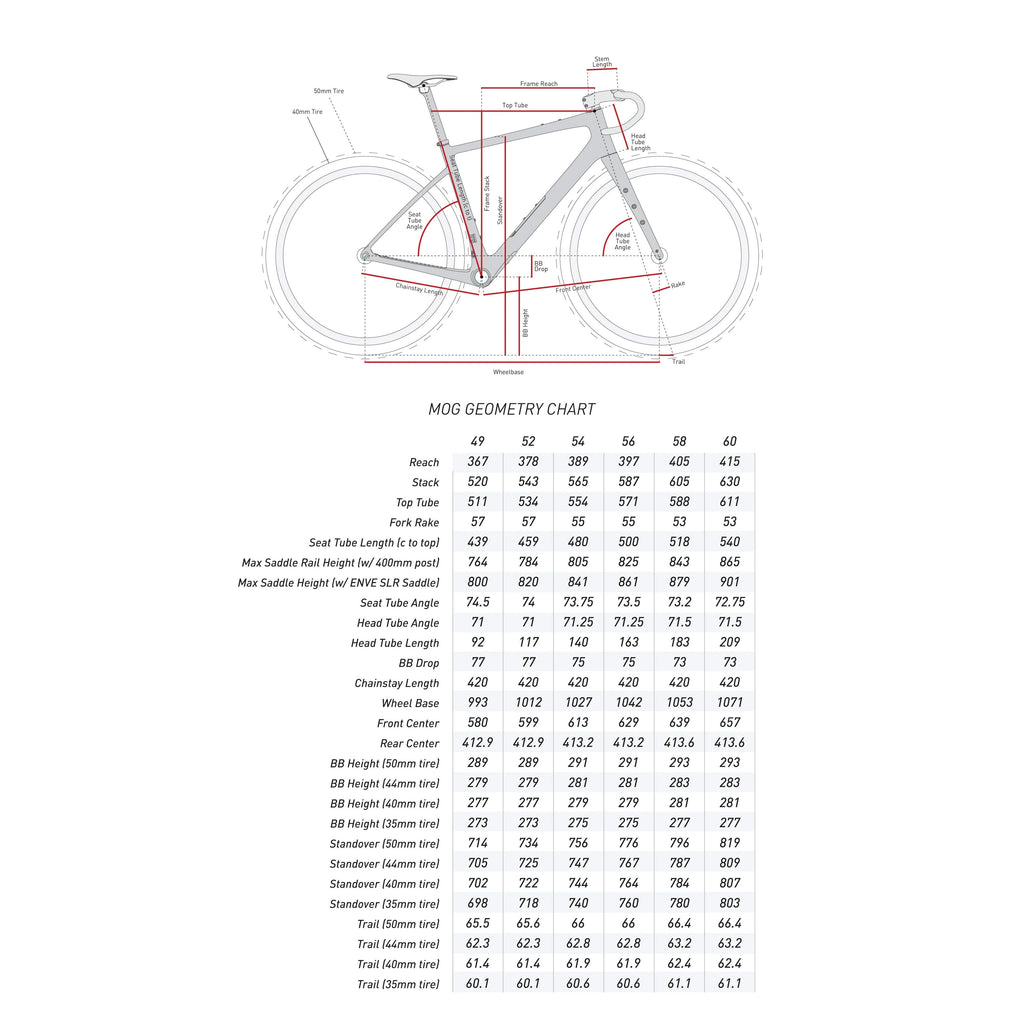

Performance geometry
With six frame sizes and three unique fork rakes, the MOG is designed for optimal handling regardless of frame size. Through design solutions such as a solid right chainstay on the bottom bracket to reduce width, the MOG achieves the geometry required for performance-conscious cyclists without compromising what it can do off the course.

In-Route System
ENVE's IN-Route system is designed to hide tubes and cables from the wind, improving the bike's aerodynamic performance with a practical and intuitive solution. This means no limitations in drivetrain options: the MOG is compatible with most brands, models and drivetrain configurations on the market.

Race, performance or adventure
The MOG is sold as a frame only, which includes frame, fork, headset, stem, handlebar and seatpost. To begin your build, start by selecting your frame size, stem length, handlebar width, handlebar model, and seatpost type based on your riding style and preferences. With four handlebar options and a choice of telescopic seatposts, you can build the exact MOG you want based on the riding experience you're looking for.

Maximum 700c
With clearance up to 700c x 50mm, the MOG eliminates the complexities of flip chips and extra wheel sets, so there's no need to think 650b. You don't have to use the full 50mm, but we promise you'll sleep soundly knowing it's there. With geometry optimised around a 42mm tyre, the MOG's versatility allows for a wide range of tyre sizes from 36mm up to 50mm.

Tech Specs

• Frame material: ENVE MOD Carbon, through-bolt 12x142, Flat-Mount disc, threaded T47 bottom bracket, internal cable routing, compatible with mudguards
• Fork material: ENVE MOD Carbon, through-bolt 12x100, Flat-Mount disc, internal cable routing, compatible with mudguards
• Target application: Gravel Racing/Equestrian/Exploration/Adventure
• Dimensions: 49, 52, 54, 56, 58, 60 cm
• Fork rake: 57, 55, 53
• Fork axis at crown: 395mm
• Frame/fork angle dimensions: 49cm/57, 52cm/57, 54cm/55, 56cm/55, 58cm/53, 60cm/53
• Manufacturer's weight: 950 g (size 56, painted, without hardware)
• Headset: ENVE Integrated IS52/IS52 Internal Drop-In
• Headset bearing: 1.5’ IS52 upper and lower
• Seatpost diameter: 27.2
• BB type: T47 Inner Bearing
• Brake support: Flat mount
• Brake rotor compatibility F: 160/180, R: 140/160 (adapters required)
• Front axle: 12x100 (Total length: 122, TP:1.5, TL:15)
• Rear axle: 12x142 (Total length: 168, TP:1.0, TL:14)
• Minimum tyre size: 700 x 36c
• Optimum tyre dimensions: 700 x 40c-44c
• Maximum indicated tyre clearance: 700 x 50c
• Frame routing: ENVE IN-Route Internal
• Upper tube mounts: YES
• Wing mount compatible: YES

Compatibility

Component compatibility

• Handlebar: Gravel, SES AR, Compact, SES Aero Road
• Stem: ENVE Aero, IN-Route system (80, 90, 100, 110, 120, 130)
• Seat post: ENVE 27.2 300mm/400mm x 0mm Offset/25mm Offset - G-series 27.2 telescopic seatpost
• Transmission compatibility

The frame kit includes

Handlebar (one option of your choice)

• Aero IN-Route (40cm, 42cm, 44cm, 46cm);
• Compact Road IN-Route (38cm, 40cm, 42cm, 44cm, 46cm);
• Gravel IN-Route (42cm, 44cm, 46cm, 48cm);
• SES AR Road IN-Route (38cm, 40cm, 42cm, 44cm, 46cm).

Stem

• IN-Route Aero Road (80, 90, 100, 110, 120, 130).

Seatpost (one option of your choice)

• ENVE 27.2 mm /0 mm – 400 mm;
• ENVE 27.2 mm/ 25 mm – 400 mm.

Before proceeding with your purchase, please contact us to check the availability of your size and let us know the model and size of your handlebar/handlebar stem and seatpost.
