Fox 40 Float Factory Grip X2 20tax110 Boost 29‘ fork Rake 52 mm 1 1/8’ 203 mm

Downhill legend

Target locked on the top step of the podium and developed in the crucible of World Cup competition, the 40 is the definitive DH race fork. The GRIP X2 damper now offers more tunability and traction than ever before, ensuring the 40 stays planted in the hot seat.

Grip x2
Ultimate descending performance with greater traction and even more control at speed. The most tunable, supportive and smoothest descent-focused damper created by FOX.

Floating axle
The 40’s floating thru axle allows perfect chassis alignment, reducing friction between the upper and lower fork legs, providing much smoother suspension movement.

Lower leg bleeders and bypass channels
Push-button pressure equalization (bleeders) and increased volume to alleviate pressure ramping (bypass channels) allow improved small bump sensitivity and responsiveness.

Features

• Chassis: Standard
• Wheel size: 29
• Travel: 203mm
• Damper: Grip X2
• Damper controls: HSC - LSC - HSR - LSR
• Axle: 20TAx110
• Rake: 52mm
• Steerer: 1.125 Tapered
• Upper tube finish: Kashima
• Air channels: Yes
• Bleeders: Yes
• Floating axle: Yes
• Rotor size: 203 direct Post Mount, Up to 230 compatible
• Mud guard mount: Optional FOX 40 Mud Guard with sturdy 4-point direct-mount attachment
• Air spring
• Float evol
• Real weight: 2867g (40, 29, F-S, 200, Grip X2, Kabolt)

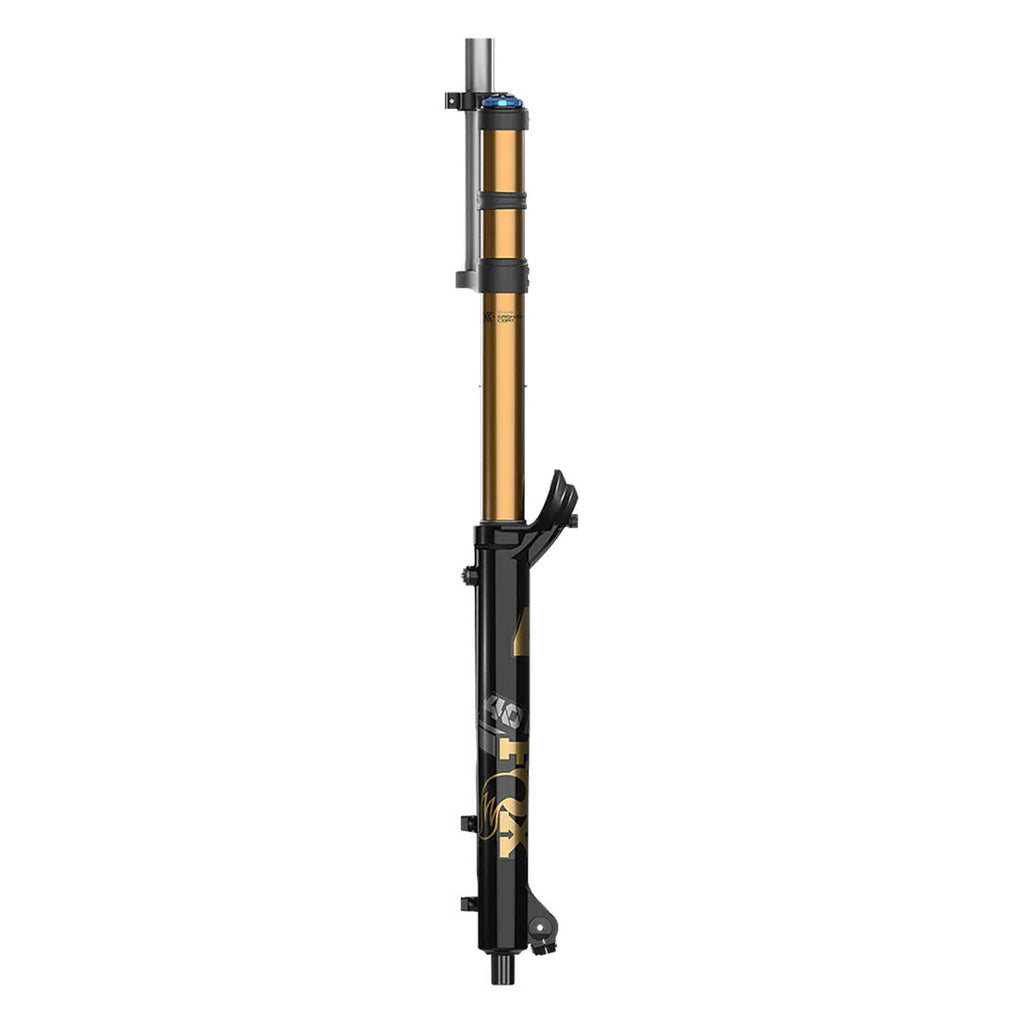

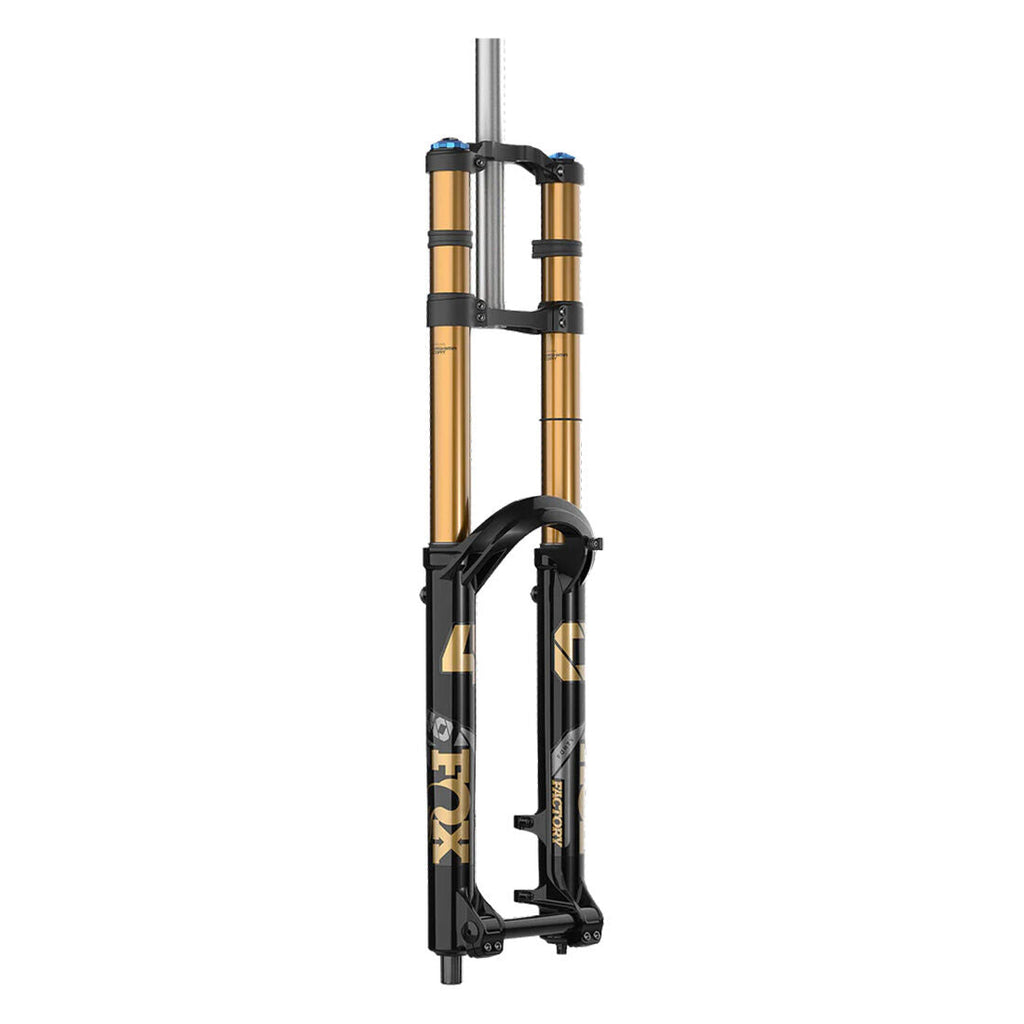

Travel 203 mm / Colour Black

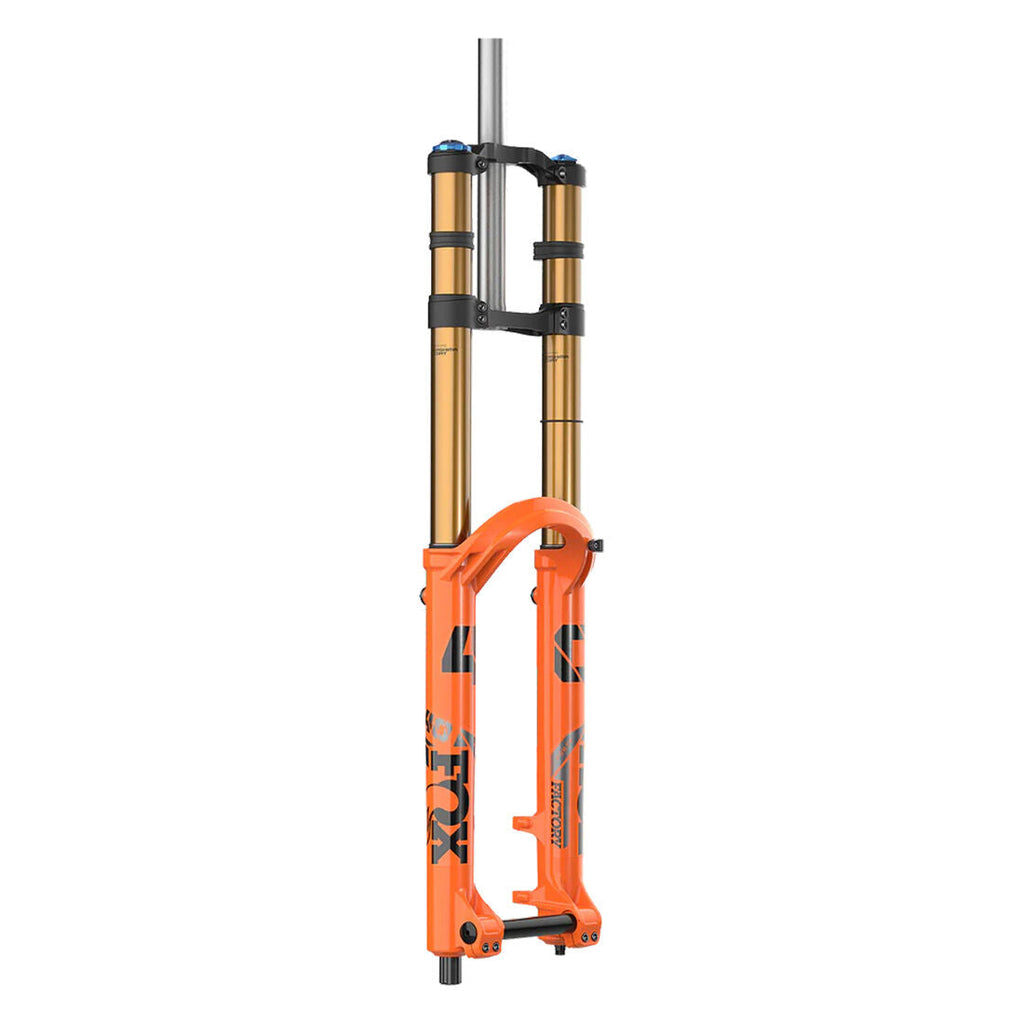

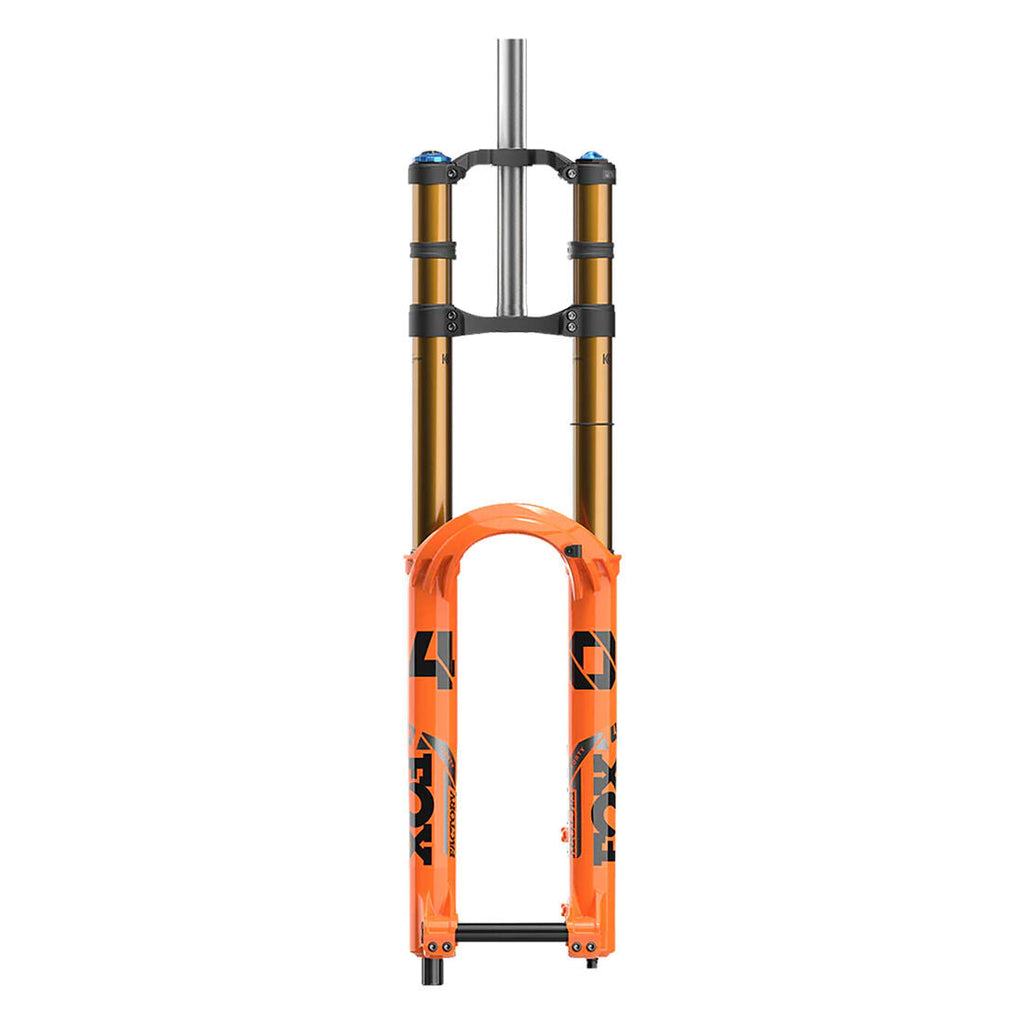

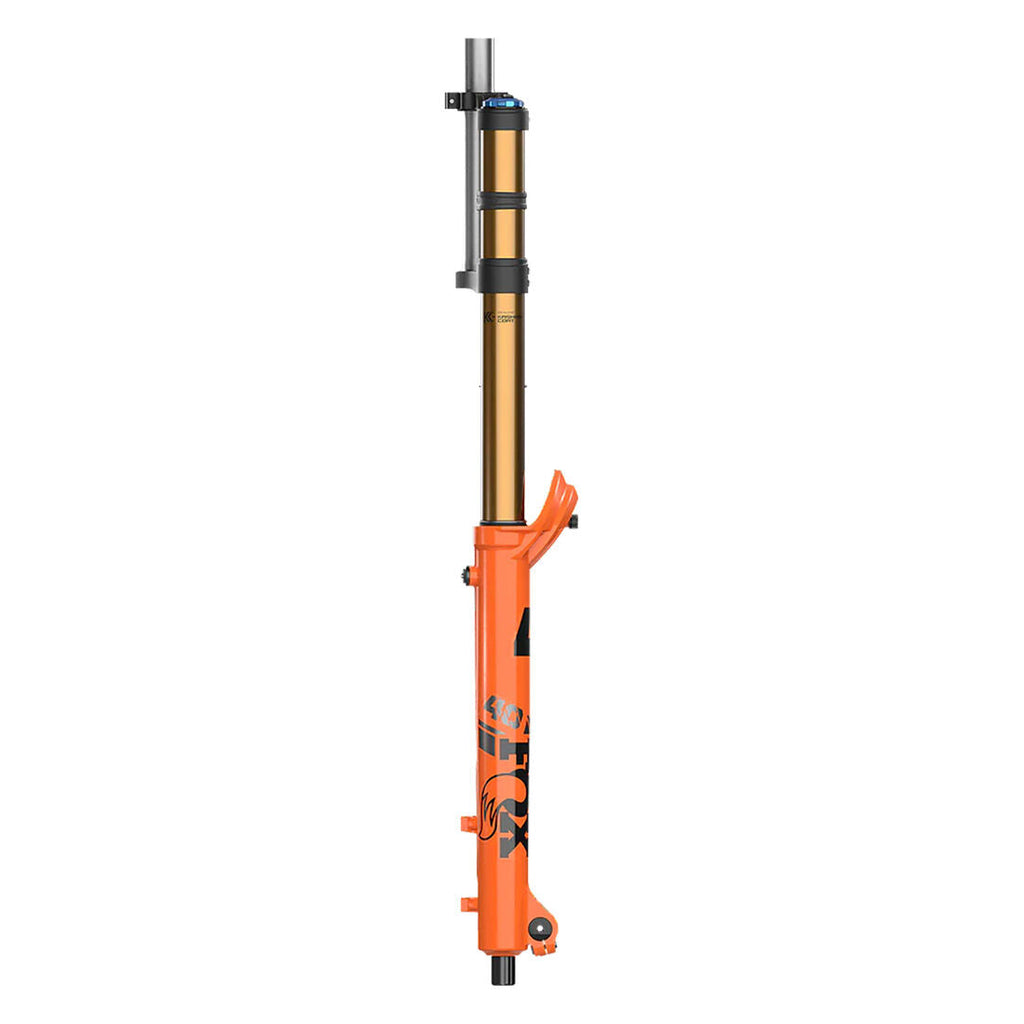

Travel 203 mm / Colour Orange
