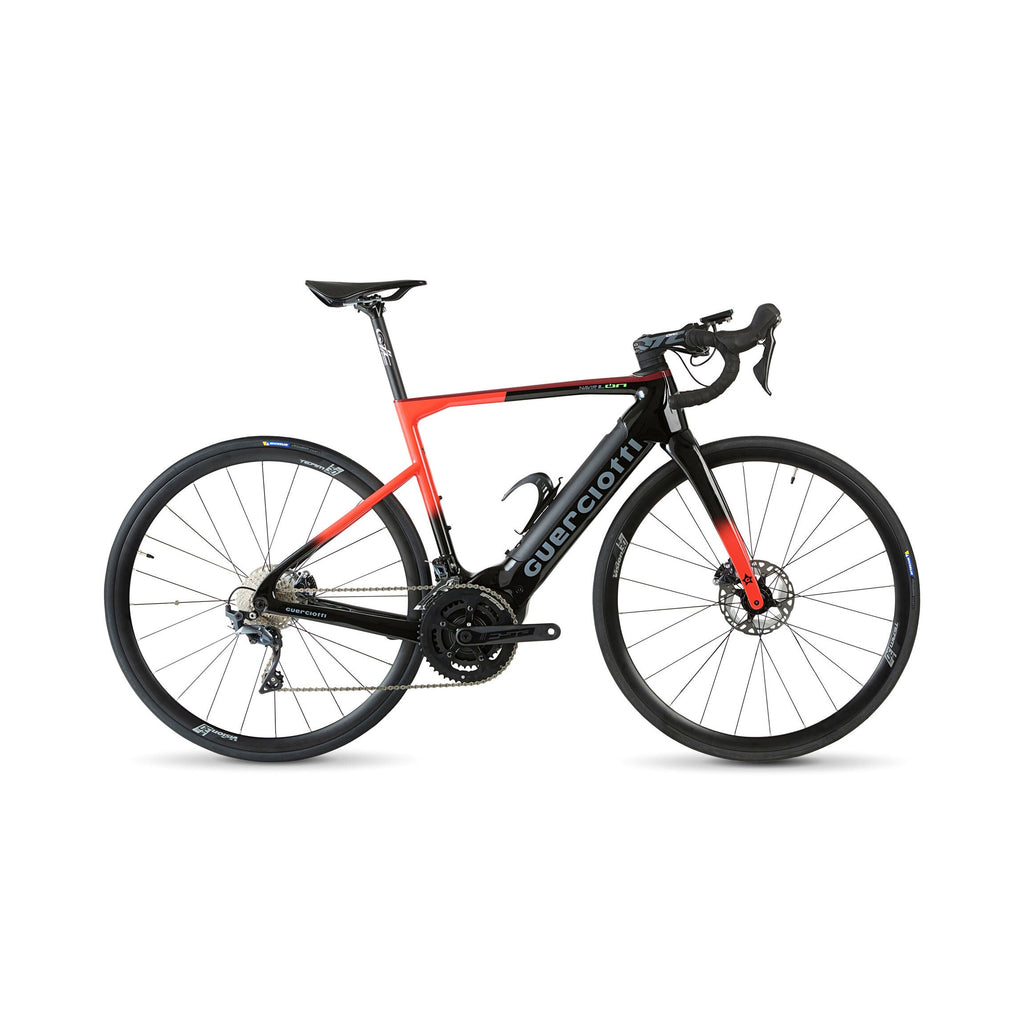

Guerciotti Navir Shimano Ultegra 8170 12v Di2

Passion without limits

There are several reasons to choose an electric racing bike like Navir I.ON. It can help you recover your condition after an injury. It allows you to go out with more trained companions. It opens the way to previously unimaginable goals. Why put limits on passion?

Frame
Carbon frame produced in a unique mold using a mix of top quality Japanese fibres. Reinforced in the most stressed points and kept as rigid as possible.

E-P3+ electric motor
Polini electric motor. Powerful motor (70Nm with 500W peak), light (only 2850g) and compact. Equipped with an aeration filter, it allows access for lubrication of the gears and also provides the possibility of mounting the double crown. Speed, torque and pedaling frequency sensors, provision for cut-off and programming port.
The integrated lithium-ion battery gives you an incredible range of 220 km in standard conditions. This is made possible by its 500 Wh and the advanced software that delivers the torque intelligently.

Handlebar
The cables are hidden inside the stem and handlebar. This improves aerodynamics, while giving you an aesthetically stunning frame.

Features

• Carbon monocoque racing frame with integrated battery pack
• 500 watt Polini E-P3+ electric motor, with maximum torque of 75 N/m
• 500 wh battery with autonomy in assisted mode of up to 220 km
• 5 selectable assistance levels and assisted walking mode
• Cables integrated inside the stem and handlebar

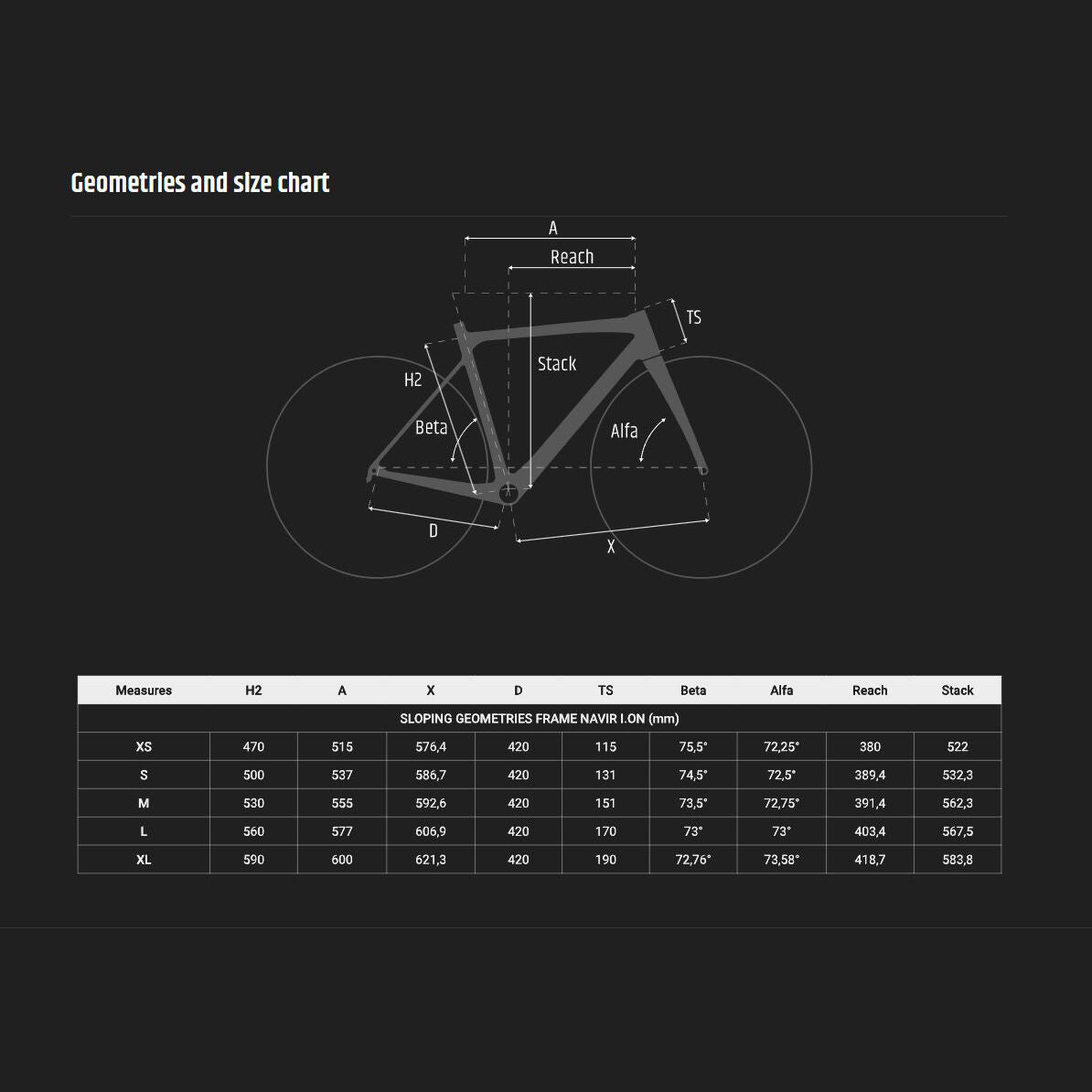

Tech spec

Frame

• Fork: Monocoque
• Headset: oversize (1-1/8 – 1-1/2)
• Seatpost: 27.2
• Thru axles: √
• Flat mount: √
• Electronic groups preparation: √

Components

• Pedals: Not included
• Saddle: Selle Italia Model X
• Seatpost: QTC Energy
• Stem: QTC Carbon
• Handlebar: QTC Energy
• Tires: Michelin Power Cup
• Groupset: Ultegra 8170 12v Di2
• Wheels: Vision Team 30 AGX i23 / Vision SC40 Carbon

Motor

• Power: 250 watt / 500 watt peak
• Max torque: 70 nm
• Producer's weight: 2,85 kg
• Assisted mode up to: 25 km/h
• Assistance levels: 5

BATTERY

• Power: 500 wh
• Battery range up to: 220 km
• Producer's weight: 2,62 kg

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only. Anything not specified in the description is not included.
