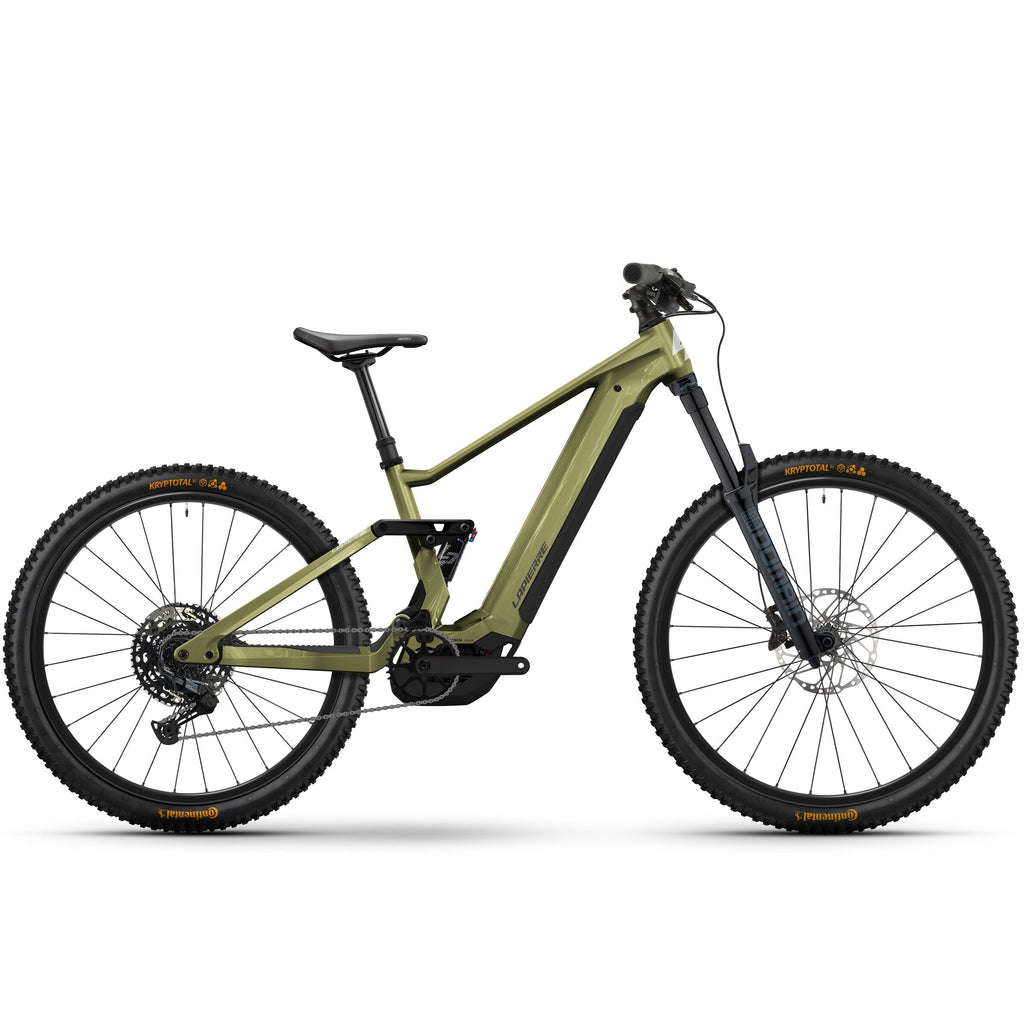

Lapierre Overvolt AM 5.8 2026

OVERVOLT AM 5.8

Leave your troubles at home. Set off for a ride on the Overvolt AM 5.8 Performance Line CX. This electrically-assisted all-mountain bike is the ultimate machine for discovering, loving and adopting the mountains. Thanks to its solid heritage, it is immune to the constraints of the bumpy trails found in mountain resorts. At high altitude, its kinematics and handling border on enduro, with unique manoeuvrability and responsiveness.
The Mullet design (27.5-inch rear wheel / 29-inch front wheel) adds another dimension to mountain adventures. It complements the 170 mm of travel provided by the RockShox Domain Gold fork, known for its reliability in every situation. By guaranteeing optimised grip on the rear triangle while retaining clearance on the front, this geometry contributes greatly to overall performance.

New generation, new size
Bosch, an haute couture motor. This is how the new generation of super-powerful Bosch motors could be described. The Made in Germany label that is synonymous with quality has evolved in perfect symbiosis with the Overvolt AM. On the list of improvements included in this new generation motor, we note a more compact and lightweight system and improved connectivity. The motor block includes a new cell format for unprecedented responsiveness and durability! As a bonus, the ecosystem includes an 800wh battery for maximum autonomy.

Tech spec

• Brake Lever: Shimano M4100 4 pistons
• Brakes Front: Shimano SM-RT30 203mm centerlock
• Chain: Shimano CUES LG500 9/10/11s
• Crankset: E13 Helix Core 160mm + E13 Helix Core steel chainring 34T 55CL
• E-Bike: Yes
• Fork: RockShox Domain GOLD ISOLATOR R 29’’ 15x110 170mm 44mm offset
• Frame: Suprême 5 alloy
• Front Wheel Hub: Shimano TC500, boost 15x110, 32H Centerlock
• Grips: Lapierre Grips S/M: Small Diameter L/XL: Large Diameter
• Handlebar: Lapierre Thirty Five Alloy 6061 DB, Width: 800mm, Rise: 30mm, Backsweep: 8°, Upsweep: 6°, Ø: 35mm
• Headset: Acros Integrated ZS56/ZS56 Block Lock
• Motor: Bosch Performance line CX “25kph” BDU384 / Powertube Horizontal 800Wh / Kiox 300
• Pedals: XLC by VP
• Rear Derailleur: Shimano CUES U6000 10s
• Rear Wheel Hub: Shimano TC500, boost 12x148, 32H Centerlock, HG
• Rim: Ryde Disc30 32H, 30-622 Black Anod. front / Disc35 32H, 35-684 Black Anod. Rear
• Saddle: Selle Royal Vivo Men
• Seat Post: Lapierre dropper by JD YSP18, Ø: 31.6mm, travel 130mm (S,M), 150mm (L), 170mm (XL) + Shimano lever
• Shift Lever: Shimano CUES U6000 11s
• Shock Absorber: Lapierre Shock 205x60mm Trunnion/30x8mm
• Sprocket: Shimano CUES LG400 11-50T 11s
• Stem: Lapierre Thirty Five alloy 0°, Ø: 35mm, L: 35mm (S/M), 45mm (L/XL)
• Tyres: Front : Continental Kryptotal F Enduro Super soft 60-622 Rear : Continental Kryptotal R Enduro Soft 60-584
• Accessories: Bosch Charger 4A + Lapierre Thru axle and bottle opener lever + Tubeless valves Connect module + range extender compatible

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
