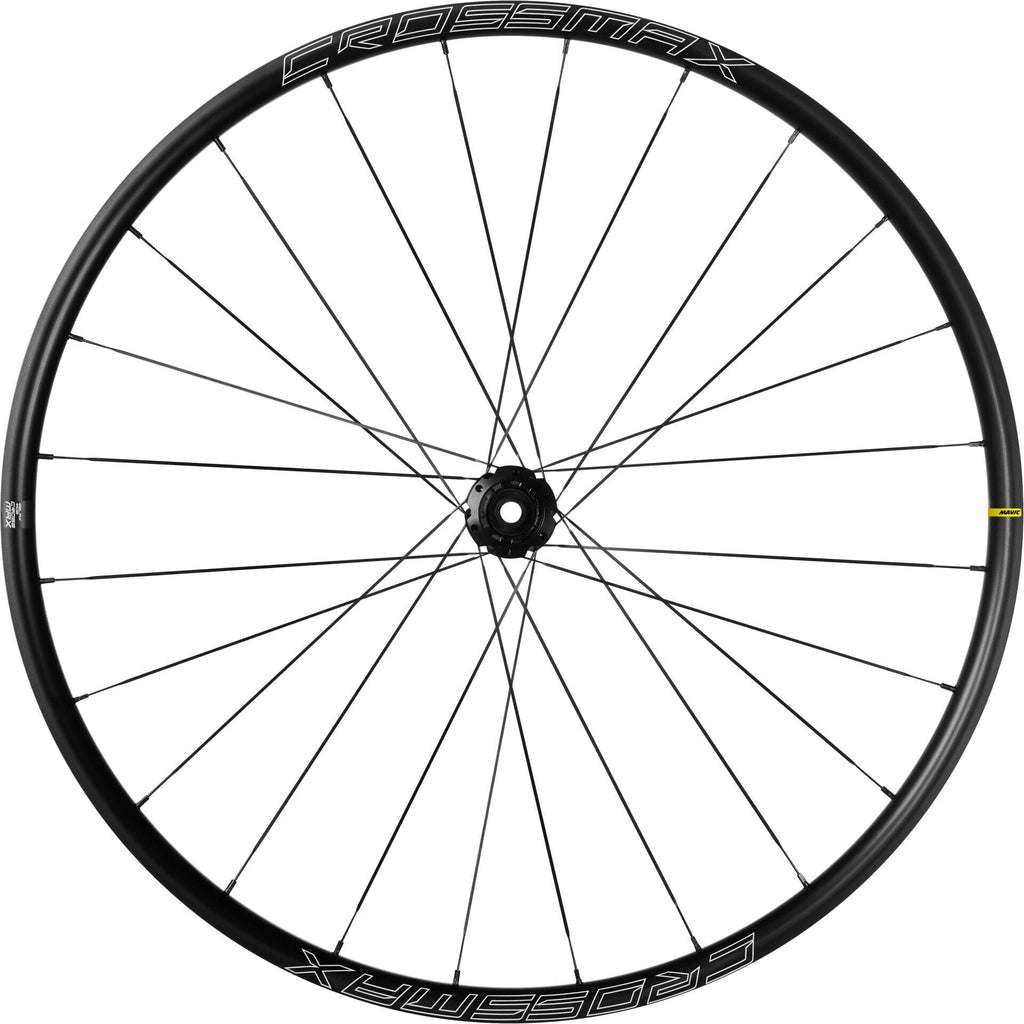

Mavic Crossmax 29" Boost 6 bolts rear wheel

The Crossmax name has a long tradition in the world of cross-country, and this new set of wheels confirms its prestige, with many features and technologies typical of pro-level racing models, but at a more affordable price. One of its key features is UST technology, which allows easy fitting of tubeless ready tyres, with all the advantages that come with it, such as optimal traction and control, smoother pedalling and reduced risk of punctures. The rim is welded for greater reliability and boasts an internal width of 25 mm and a hookless profile.The lighter design of the Infinity hub optimises lateral stiffness and spoke tension. The Instant Drive 360 freewheel with a double ratchet system guarantees fast engagement and high reliability. The rear hub is compatible with Shimano HG9, Micro Spline and SRAM XD drive bodies. The wheel is supplied with valves, spare spokes and accessories.

Features

• Welded rim construction for a lighter and stronger profile and a perfectly sealed rim.
• 24 double-thickness spokes
• Infinity hubs
• Freewheel system with ID360 double ratchet
• Real weight: 985 g

Technical specifications

Rims

• Material: Maxtal
• SUP welding technology
• Valve hole diameter: 6.5 mm
• Inner width: 25 mm
• ETRTO size 29: 622x25TSS
• For use with Mavic tubeless flap
• Asymmetric rim design
• UST Tubeless Ready

Spokes

• Material: steel
• Shape: straight-head, flat, double-butted
• Nipples: Steel, ABS
• Number: 24 rear
• Spoking: rear cross in 2°

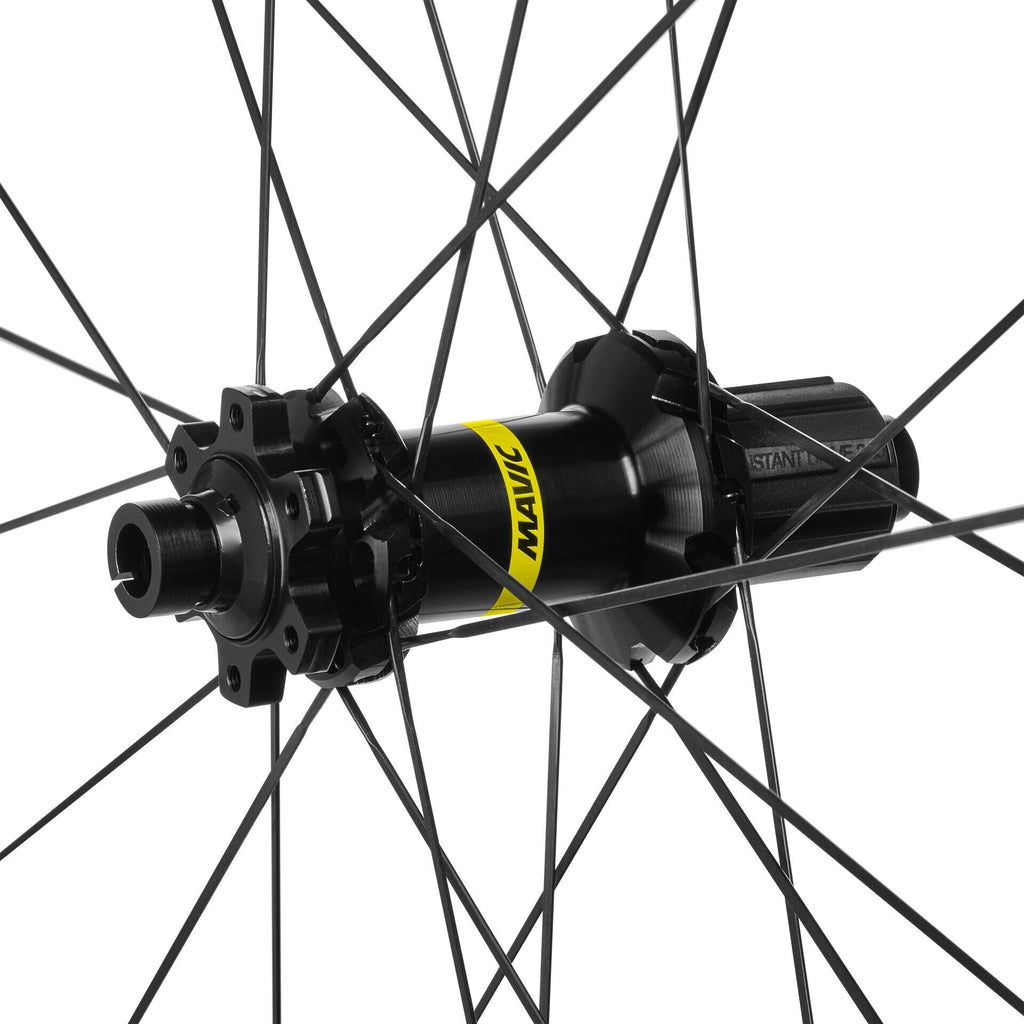

Hubs

• Infinity hubs
• Instant Drive 360 freewheel technology
• QRM Auto bearing preload technology
• Axles: Rear 12x148 (Boost)

Versions

• Disc standard: 6 bolts
• Hub width: Boost (front 110, rear 148)
• Freewheel: SRAM XD

Compatibility

• Rear axle: 12 mm thru axle, convertible to quick-release system via adapters

Compatible adapters and freewheel bodies

• Boost: Torque Caps (V2374401)
• Rear axle adaptors 12x142 (V2510701)
• Non-Boost: Rear 12 to 9 mm quick-release adaptor (V2510801)
• Non-Boost: Rear axle adaptors 12x135 (V2510901)

Intended use

• ASTM Category 3: Cross Country
• For longer wheel life, Mavic recommends that the total weight carried by the bike wheels should not exceed 150 kg, including the bike
• Maximum tyre pressure: 4.1bar/59PSI with a 28mm tyre - 2.45bar/36PSI with a 64mm tyre
• Recommended tyre size: 28-64 mm (1.1-2.5)

Specified weight information

• Wheel weight is expected to be +/-5%, in XD/XD-R and Center Lock versions, without quick release, valve or flap

Technology

Tubeless-Ready
A tubeless rim profile and flap make tubeless tyres easy to use, for comfort and control.

Tubeless UST
Universal Standard Traction and Control for Tubeless. Ready-to-ride tubeless system. The UST concept improves traction, control and comfort while reducing inertia and vibration.

Instant Drive 360 freewheel
The new Instant Drive 360 freewheel system is super light and efficient. A large, non-contact rubber seal ensures low friction, while a wide range of terminals makes it extremely versatile.

QRM Auto bearing preload
Qualité de Roulements Mavic Auto the latest innovation. The cartridge bearings are of course double sealed with C3 internal clearance. Their preload is automatically adjusted to ensure perfect spin without play over long distances.

SUP welding
Stronger, smoother joint Soudé Usiné process. After bending, the rim joint is arc-welded. The welded joint is then milled to achieve a smooth finish.

Includes

• Accessories and UST valve
• Pre-installed tubeless flap
• 2 spare spokes.
