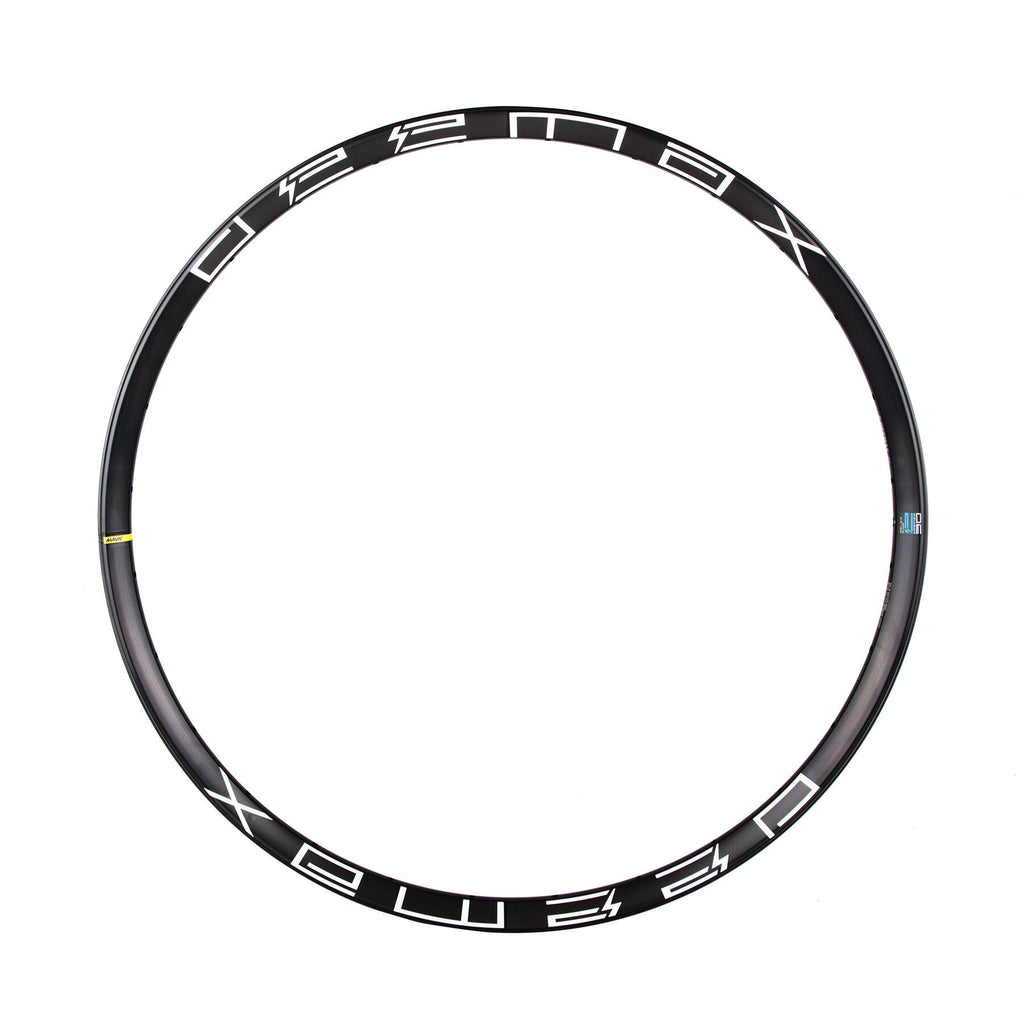

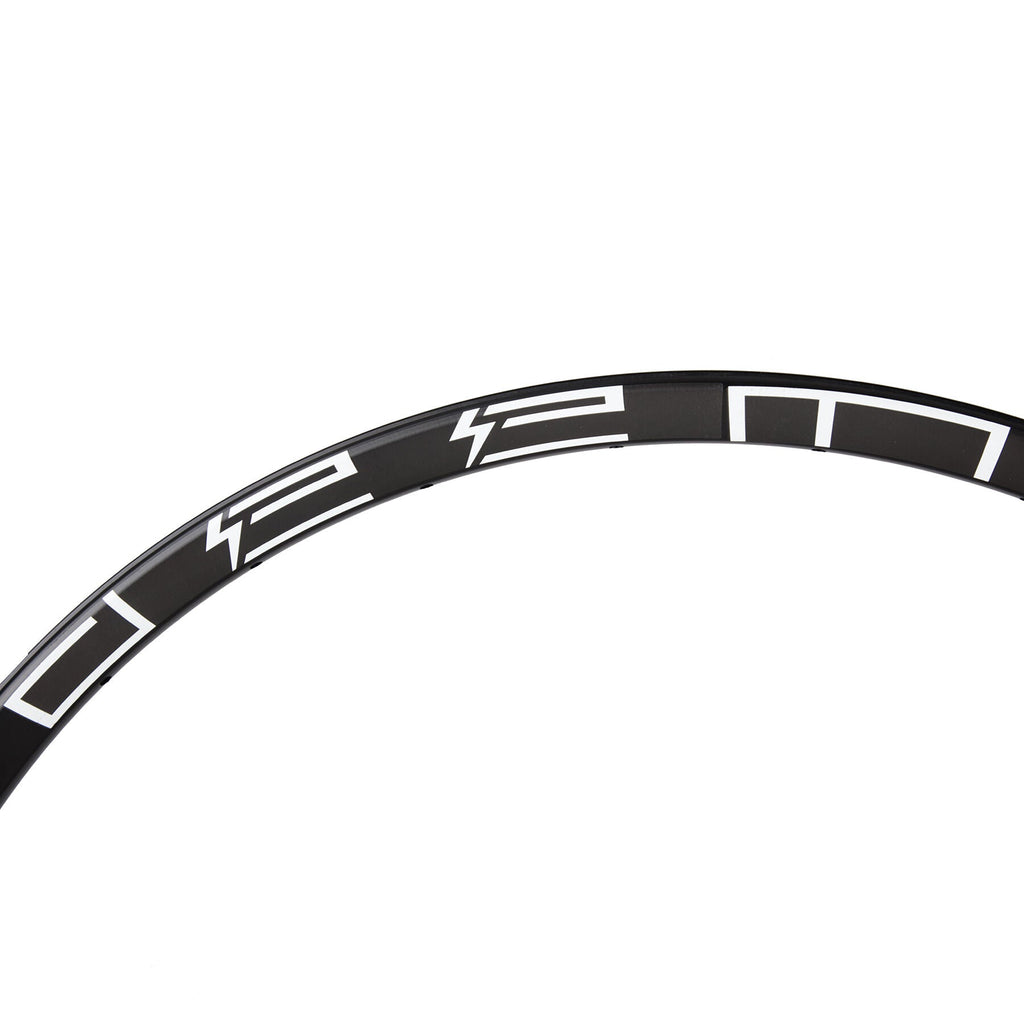

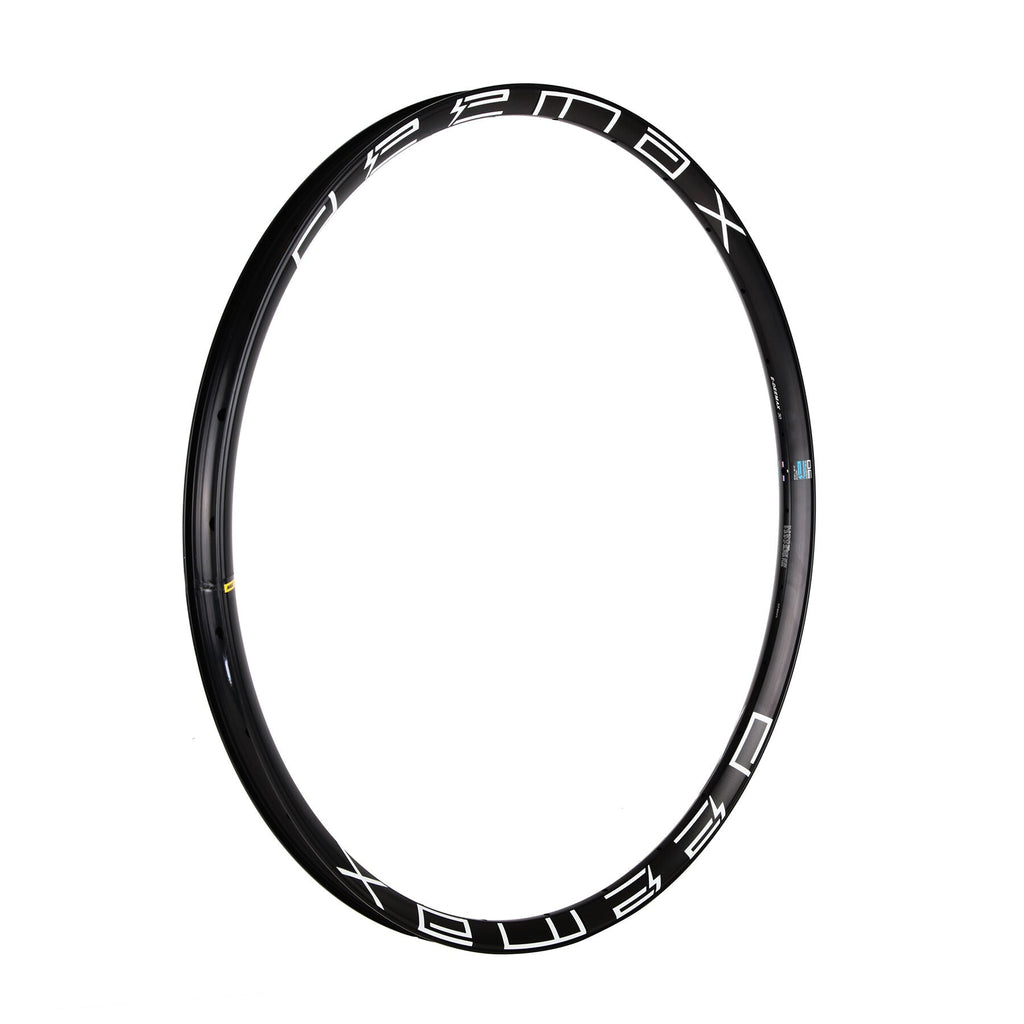

Mavic E-Deemax rim

Solid, reliable and durable, with a new profile

The name E-Deemax has become a benchmark for e-bike users. This new E-Deemax rim lives up to its name, with many of the same features and technologies as the top-of-the-range model, but at a much more affordable price. A completely new rim profile has been designed for this new version. With a wider rim base, fitting the strongest and most rigid tyres has never been easier.
The unique Pinch Flat Protection (PFP) technology offers a larger contact area at the top of the sidewall, significantly reducing the risk of cuts and punctures. Thanks to PFP technology, the tyre can withstand 20% more impacts before being cut. The rim is welded for reliability and features a 30 mm inner width with Tubeless Ready compatibility, which allows a lower tyre pressure to be used for better traction and control. Like all E-Deemax rims, this new option has been validated in the lab and in the field for a maximum total weight of 180 kg.

Features

• Welded rim with anti-puncture protection (PFP) to reduce the risk of punctures
• Extra-strong rim profile
• Maximum rim load: 180 kg
• Wider rim base to facilitate mounting of reinforced tyres
• Tubeless rim profile facilitates the use of tubeless tyres for greater traction and reduced risk of punctures

Technical specifications

Rims

• Material: Maxtal
• Height: 22 mm
• Joint: SUP welding technology
• Inner width: 30 mm
• Drilling: traditional (28 holes front/rear)
• Braking: disc
• Profile: asymmetrical
• ETRTO dimension: 622x30TC
• Real weight: 671 g

Technologies

Maxtal aluminium alloy
Lightweight and resistant. Exclusive to Mavic, this specific aluminium alloy offers a better strength-to-weight ratio than conventional 6106 alloy.

UST tubeless technology
Traction and control. Universal Tubeless Standard. Ready-to-ride tubeless system. UST improves traction, control and comfort, reducing inertia and the risk of punctures.

Pinch Flat Protection sidewalls (minimise the risk of cuts and punctures)
The risk of punctures is reduced by 20% thanks to the PFP system. An innovation specifically for e-bikes, which significantly reduces the risk of punctures and tears.

SUP welding technology
Welded process, a stronger and smoother connection. After strapping, the rim joint is arc-welded. The welded joint is then machined to a smooth finish.

Compatibility

Freewheel body: convertible SHIMANO HG MTB aluminium (kit V3780101 sold separately)
Freewheel body: convertible SHIMANO HG MTB steel (kit V3790101 sold separately)
Front axle adaptors: 15x110 convertible to 9x110 (kit 99694101 sold separately)
Front axle adaptors: convertible to 15x31 mm with Torque Cap (kit V2374401 sold separately)
Rear axle adaptors: 12x148 convertible to 9x141 (kit V2510801 sold separately)

hole drill 28 hole
