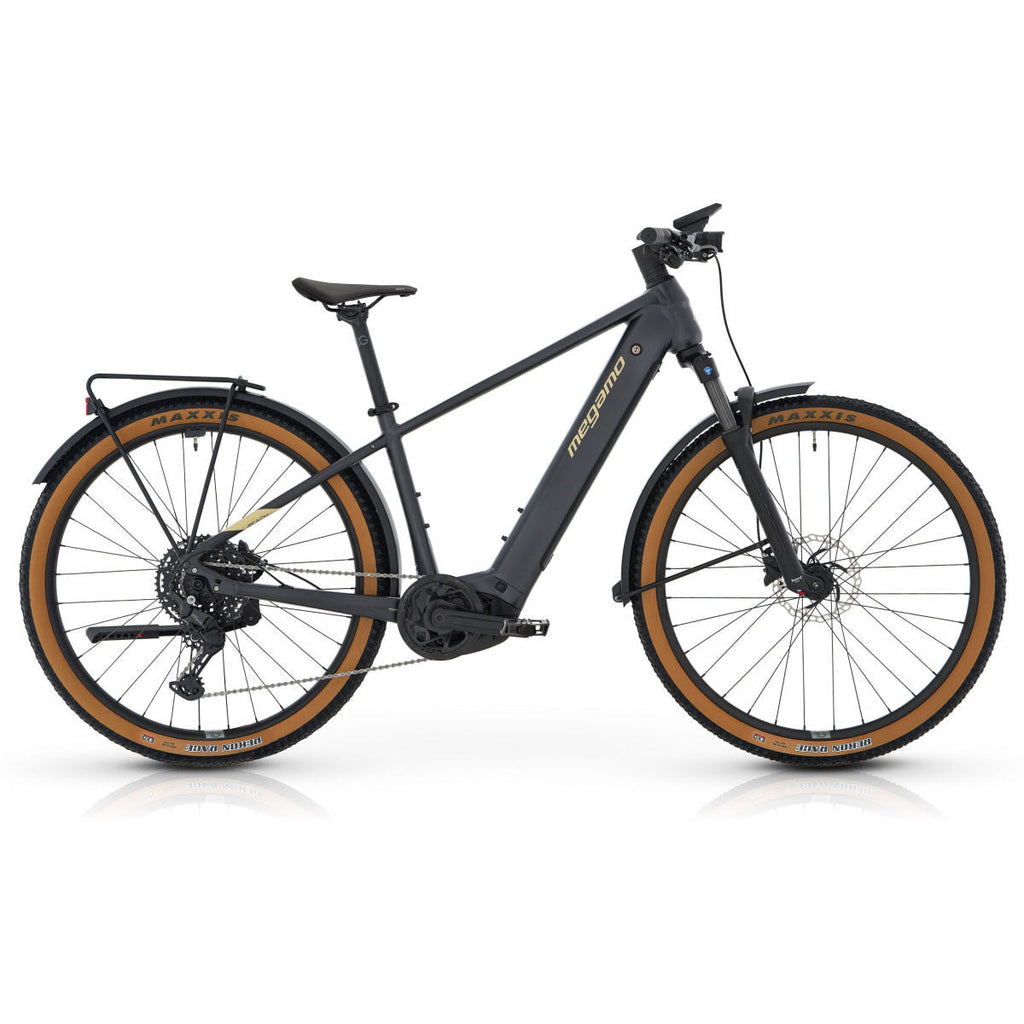

Megamo Reach HT 05 Equipped

Limitless Adventures, Everyday Comfort

The REACH is much more than an electric bike: it is the perfect solution for those seeking comfort in their daily urban commutes, enjoyment on leisurely rides and optimal performance during their workouts. Equipped with the advanced 85Nm BOSCH Performance Line CX38 motor and integrated 600Wh - 800Wh battery, this model combines power, range and style to allow you to enjoy every ride without limits.

Stability and Advanced Technology
With a robust design and optimised geometry, the REACH HT offers stability and confidence with every pedal stroke, allowing you to tackle challenging slopes and reach your top speed on flat terrain. Its structure ensures total control and a comfortable ride on all types of surfaces.
Equipped with advanced technologies such as Bosch's Smart system, it provides an intuitive and simple experience where all elements of the assistance system work in an integrated and synergistic way.

Power and Performance
REACH HT is the electric bike designed for cyclists looking for the perfect balance between power, control and performance.
Ideal for those who want to take on new challenges, this e-bike is equipped with the powerful 85Nm BOSCH Performance Line CX motor and an integrated battery that guarantees long distances without worrying about range.

Features

• Bosch Performance Line CX Motor
• Bosch 800 Wh integrated battery

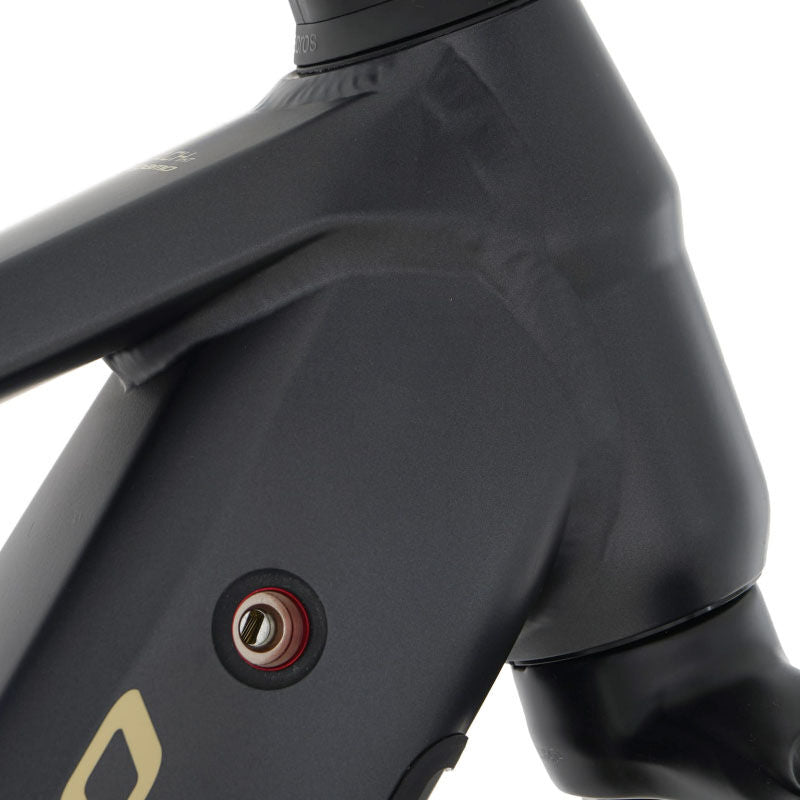

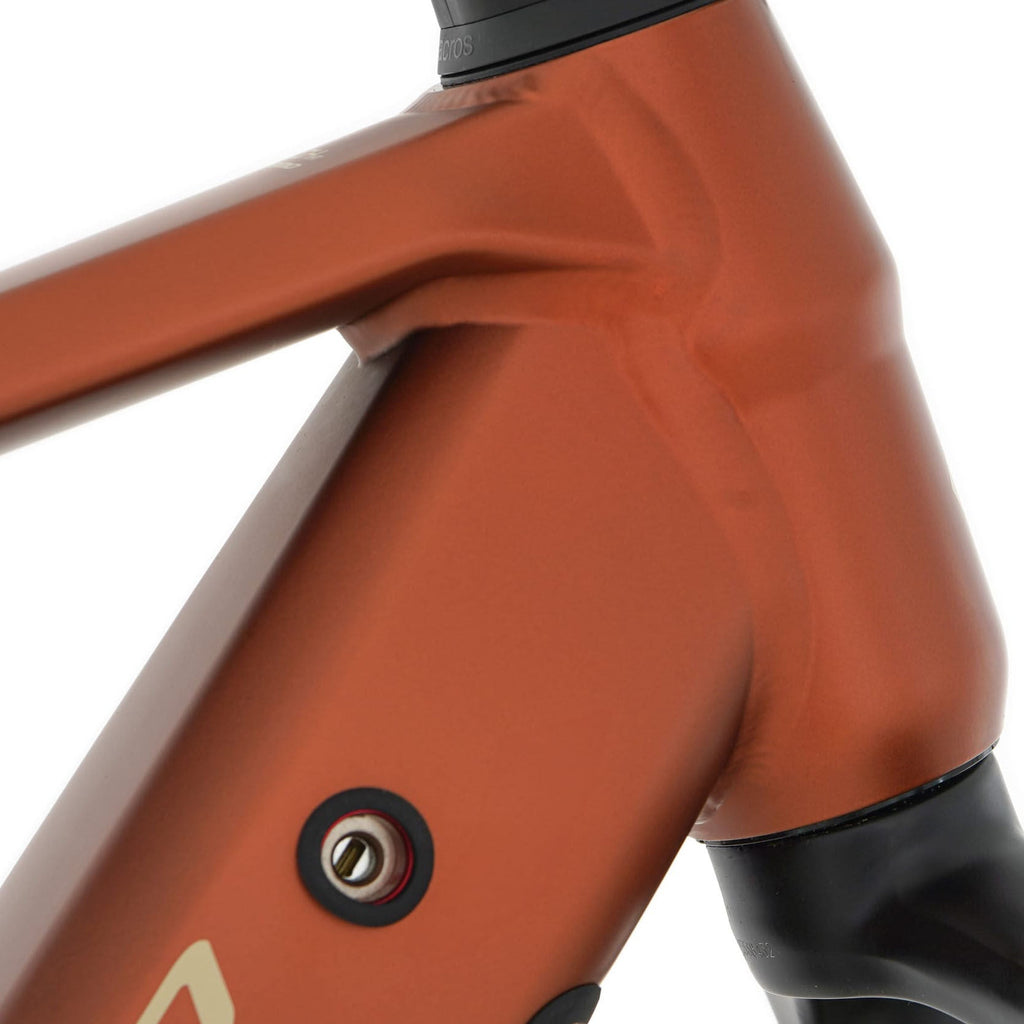

• Reach HT aluminum frame specific for e-Bike, fully integrated battery and central motor
• SR Suntour XCR 34 LOR Air fork
• Shimano CUES 11-speed transmission
• Shimano MT200 hydraulic disc brakes

Tech spec

Frameset

• Frame: Aluminium E-Bike Specific Frame, Full Integratted Battery, Central motor, Hydroformed Technology, Integrated Cable Routing, 12 x 148 BOOST
• Fork: SUNTOUR XCR 34, AIR, LOR, 100mm Travel, 15 x 110 mm BOOST
• Headset: Acros AZX-525 ZS56 blockblock 120º

Electronic components

• Motor: Bosch Performance Line CX, 5gen BDU384Y, Smart System / 100Nm 750W
• Battery: Bosch PowerTube 800

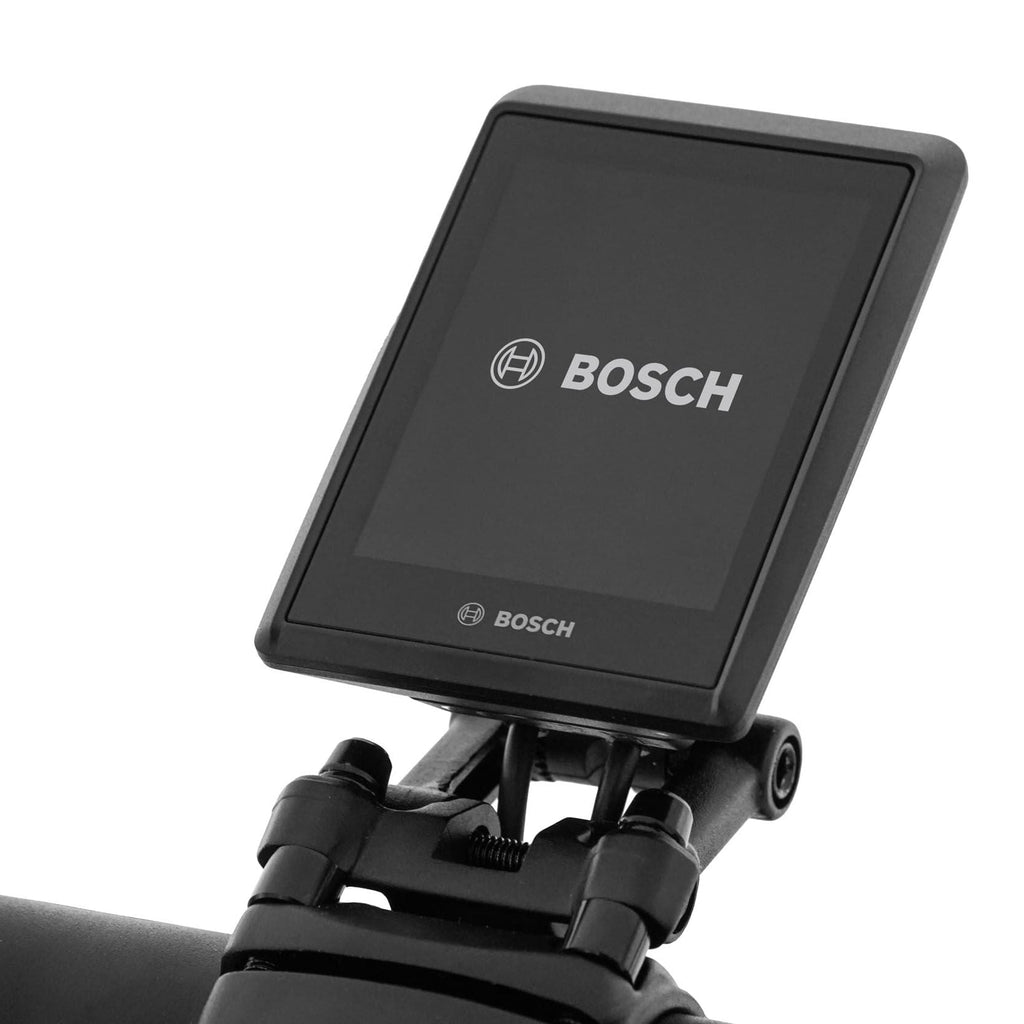

• Display: Bosch Kiox 500 + LED Remote

Drivetrain

• Rear Derailleur: Shimano CUES TD-U6000-GS, ShadowPlus 10/11-Speed
• Shifters: Shimano CUES U6000 Rapidfire Plus 11-Speed
• Crankset: FSA Bosch Direct Mount Chainring & Chainguard 38t CL55 11-Speed , Crankset 320 165mm
• Cassette: Shimano CUES LG400 11-50T

Brakes

• Brakes: Shimano MT200 Hydraulic Disc, 180mm

Wheels

• Tires: MAXXIS 29 x 2.25 Rekon Race
• Hubs: Megamo Hubs, Front axle 15 x 110 mm, Rear axle 12 x 148 mm BOOST EBIKE+
• Wheels: Megamo 29 SL 27 ASY - SUV, 27mm Tubeless ready Aluminium Rim

Components

• Handlebar: Megamo Alloy 31,8 x 680 mm, 9º Back Sweep
• Stem: Satori Viper 3D Forged 31,8, ±7º Rise, S size 70 mm / M size 70 mm / L size 90 mm / XL size 90 mm
• Seatpost: Megamo alloy Ø 30.9 mm / S size 350 mm / M size 350 mm / L size 400 mm / XL size 400 mm
• Seat: Selle Royal SRX Open

Lights

• Front light: Spaninnga AXENDO 80 Front Light + RW09 Front Reflector
• Rear light: SKS Infinity Rear Light and reflector + Spaninnga RR02 Z Type Rear Reflector

Fender and grille

• Rack: SKS GT4 PLUS Rack Carrier
• Fender: SKS PET A 75 mm R Mudguard

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.

Size S / Colour Black

Size S / Colour Brown

Size M / Colour Black

Size M / Colour Brown

Size L / Colour Black

Size L / Colour Brown

Size XL / Colour Black

Size XL / Colour Brown
