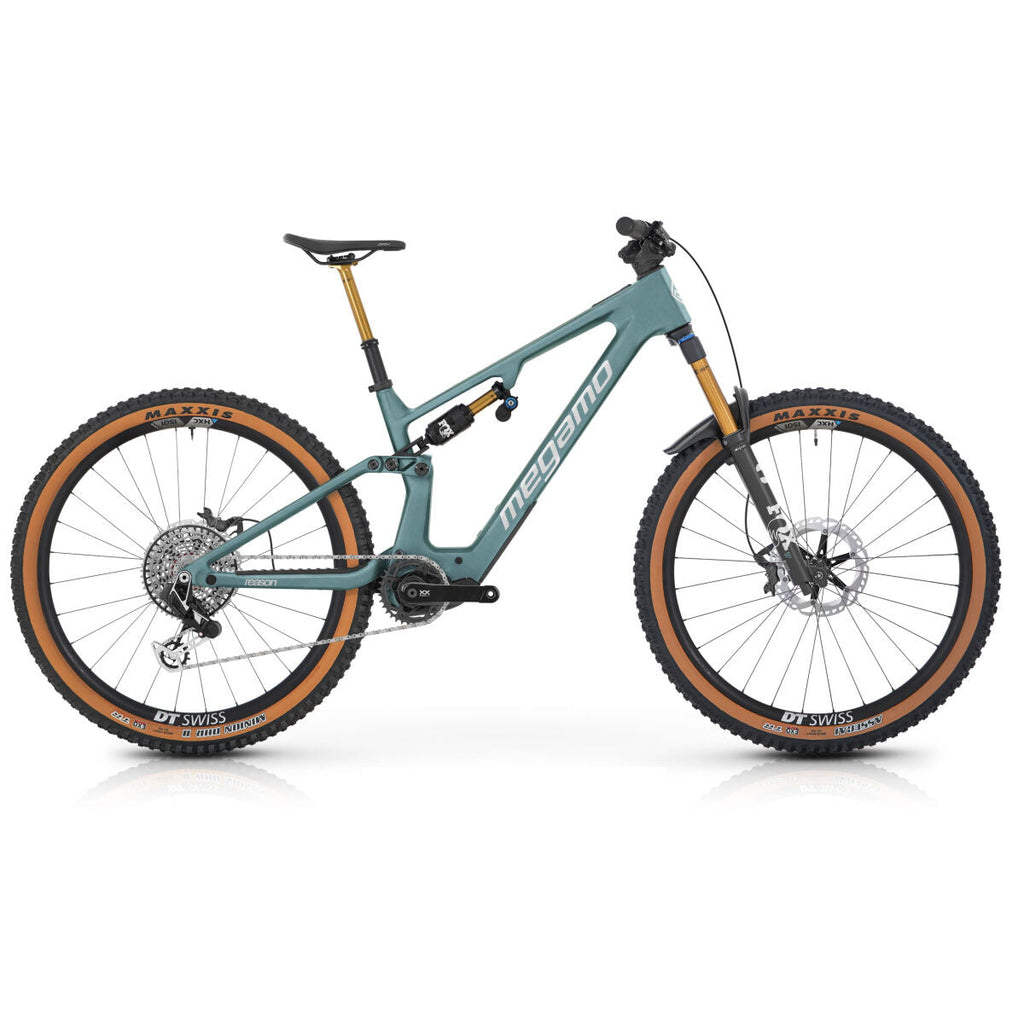

Megamo Reason Carbon 01 e-bike 2026

Lightness that adapts to your style

Designed to offer the perfect balance between low weight and high performance. Choose between the solidity of aluminum or the responsive lightness of carbon. Adjustable geometry and optimized kinematics ensure agility, control, and efficiency on all types of terrain. Thanks to DJI's Avinox system, you can count on powerful and smooth assistance, ideal for both challenging climbs and technical descents. A lightweight, precise e-bike suitable for every cyclist.

Precise design and kinematics
The REASON revolutionizes the world of e-bikes with a high-performance, lightweight frame with exceptional kinematics. It absorbs vibrations without losing responsiveness and offers agility, control, and precision at all times. Its integrated, clean, and streamlined design looks like a muscle bike: no one would guess it's electric, even up close.

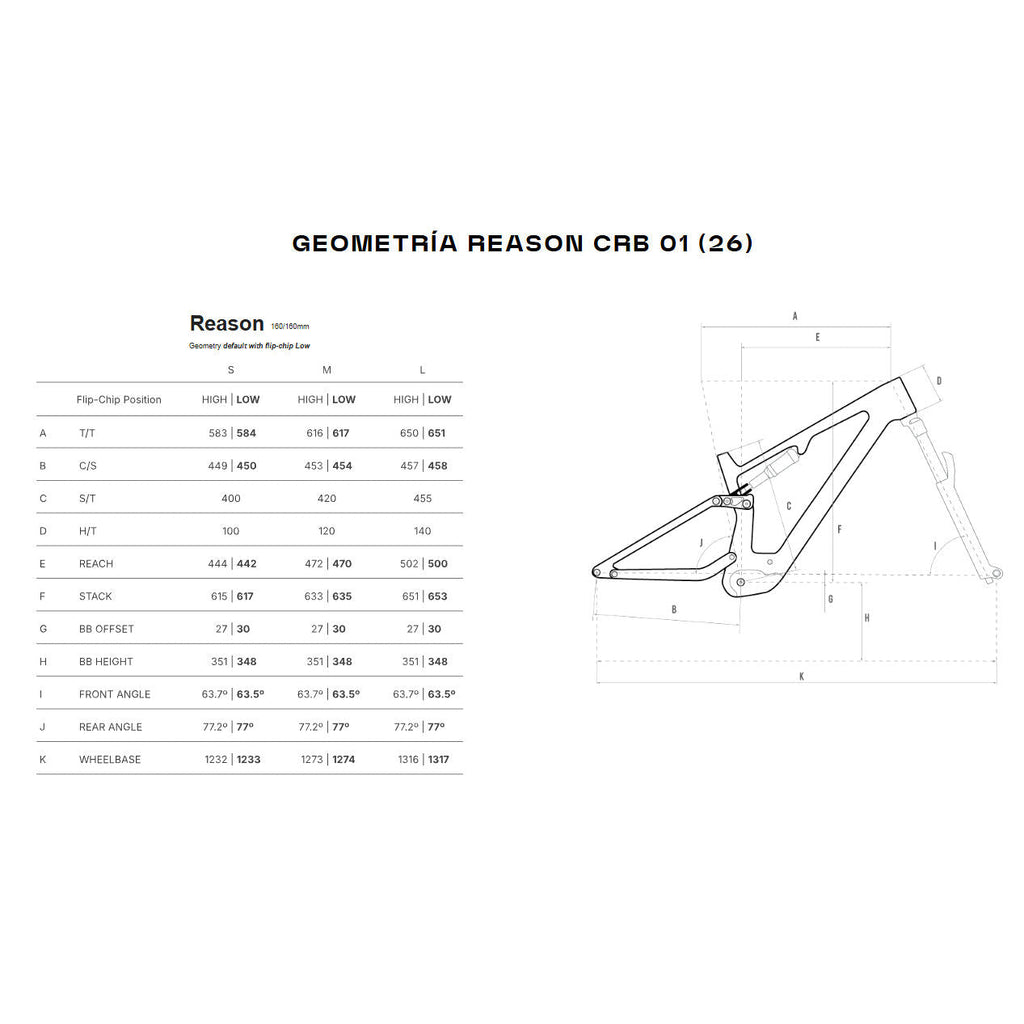

Adjustable geometry
A Flip Chip system allows you to quickly and easily adjust the frame geometry. Change the steering and rear triangle angles to adapt the bike to your riding style or the type of route. One frame, four possible configurations. Maximum versatility for riders who want it all.

Smart touchscreen
The REASON features the DJI Avinox system's 2" OLED touchscreen, fully integrated into the frame. This advanced interface allows you to manage the drive unit and connect to the app. With automatic brightness up to 800 nits, it is readable in all conditions and resistant to water, dust, and wet fingers.

Features

• DJI Avinox M1 motor - 120 Nm 1000 W (Boost mode) / 105 Nm 850 W
• Integrated 800 Wh LI-ION battery
• Reason Full Carbon frame, Boost, 160 mm travel
• Fox 36 Factory Kashima fork with 160 mm travel
• Fox Float X2 Factory Kashima shock absorber
• Sram XX AXS T-Type 12-speed transmission
• Shimano XT 4-piston hydraulic disc brakes

Tech spec

Kit Frame

• Frame: Reason Full Carbon Frame, Alloy shock extension, Full Integrated Battery, 12 x 148 Boost, Megamo ASP, Wheel travel: 160 mm
• Fork: Fox 36 Factory Kashima, Float, 29in, 160mm, Grip X2, Rake: 44mm
• Shock absorber: Fox Float X2 Factory, 210x55mm, Evol Transverse Reservoir + 2 Position
• Headset: Acros AZX-589 ZS56 blocklock 150º

Electronic components

• Motor: DJI Avinox M1,120Nm 1000W (Boost mode) / 105Nm 850W, 5 assistance modes, 150rpm
• Battery: DJI Avinox 800 Wh, 35.9V, IP56
• Display: DJI Avinox DP100, 2-inch full-color OLED touchscreen, 800 nits, 326 ppi

Transmission

• Rear derailleur: Sram XX Eagle AXS T-Type 12s
• Shifters: Sram XX AXS controller
• Crankset: 34T BCD 104mm with chainring bolt / Forged AL6061/T6 165mm beat blasted anodized black
• Cassette: Sram XX Eagle T-type 10-52T

Brakes

• Brakes: Shimano XT BR-M8220, hydraulic disc 4-Piston, 203/203mm

Wheels

• Tires: Maxxis Front: 29 x 2.5 Assegai, Rear: 29 x 2.4 Minion DHR II
• Wheels: DT Swiss 1501 HXC 30 Carbon, Tubeless ready

Components

• Handlebar: Carbon Race Face ERA 35x800, Rise 20mm
• Stem: Satori New Ursa 35mm
• Seatpost: Fox Transfer Kashima 31.6mm telescopic seat post, remote adjustment S size 125 mm Drop / M size 150 mm Drop / L size 175 mm Drop
• Saddle: Fizik Terra Aidon X5

Producer's notes: Specifications are subject to change without notice depending on component availability. Images are for illustrative purposes only.
