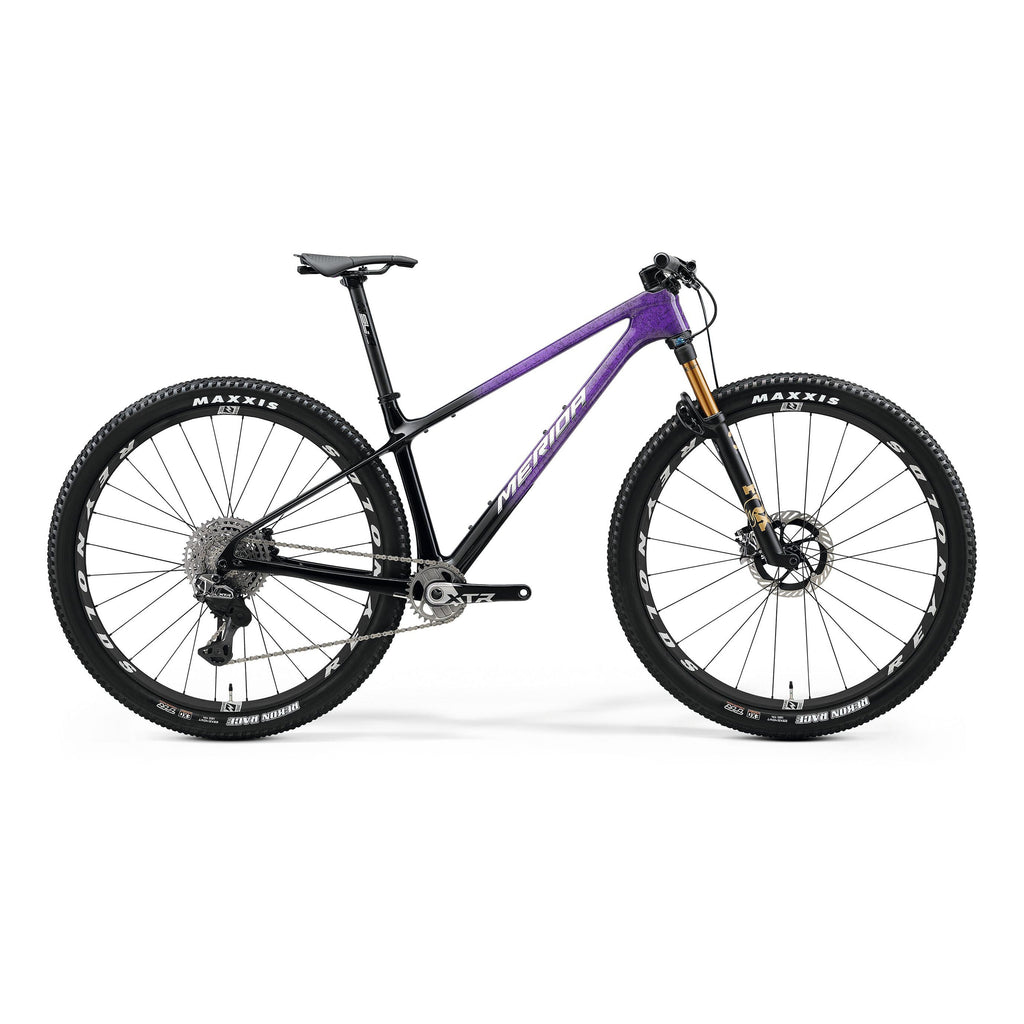

Merida Big Nine 10k 2026

Hail to the king

The latest Shimano XTR Di2 featuring BIG.NINE 10K is utterly modern take on a cross-country race hardtail, ready to take on the most challenging tracks with confidence thanks to the completely revised frame design. With progressive geometry and AGILOMETER sizing, it delivers ruthlessly efficient uphill performance with more descending ability than ever before, plus more fatigue reducing compliance. Lightest CF5 carbon fibre frame is fitted with the best cross-country race components money can buy; Fox 32 SC Factory fork, the latest wireless Shimano XTR Di2 drivetrain, a FSA NS SIC one-piece carbon cockpit and Reynold Blacklabel 309 carbon wheels.
When it comes to the demanding world of cross-country mountain biking, the classic hardtail remains one of the purest tools for the job. 29er wheel equipped BIG.NINE range comes with the choice of carbon or two different aluminium frames to deliver a ride for all budgets. The latest CF carbon and LITE aluminium framed BIG.NINE offer truly modern geometry with increased standover clearance and handling stability to better deal with the tough race tracks of today. They also have downcountry ready TR options that boost fork travel and add in aggressive tyres and dropper posts. For riders starting out, the updated BIG.NINE TFS offers more relaxed geometry and builds that deliver great value and versatility on or off the trail, with BIG.SEVEN TFS models using 27.5" wheels to deliver a fit for for shorter riders. Classic XC hardtails are the backbone of range and showcase the enormous wealth of experience and knowledge Merida has gained in over half a century of bike production and manufacturing. The BIG.NINE range represents the symbiosis between modern frame technology, attention to detail and craftsmanship that 'Made in Taiwan' stands for.

Features

• Lightest CF5 carbon fibre frame with 2.4" tyre clearance

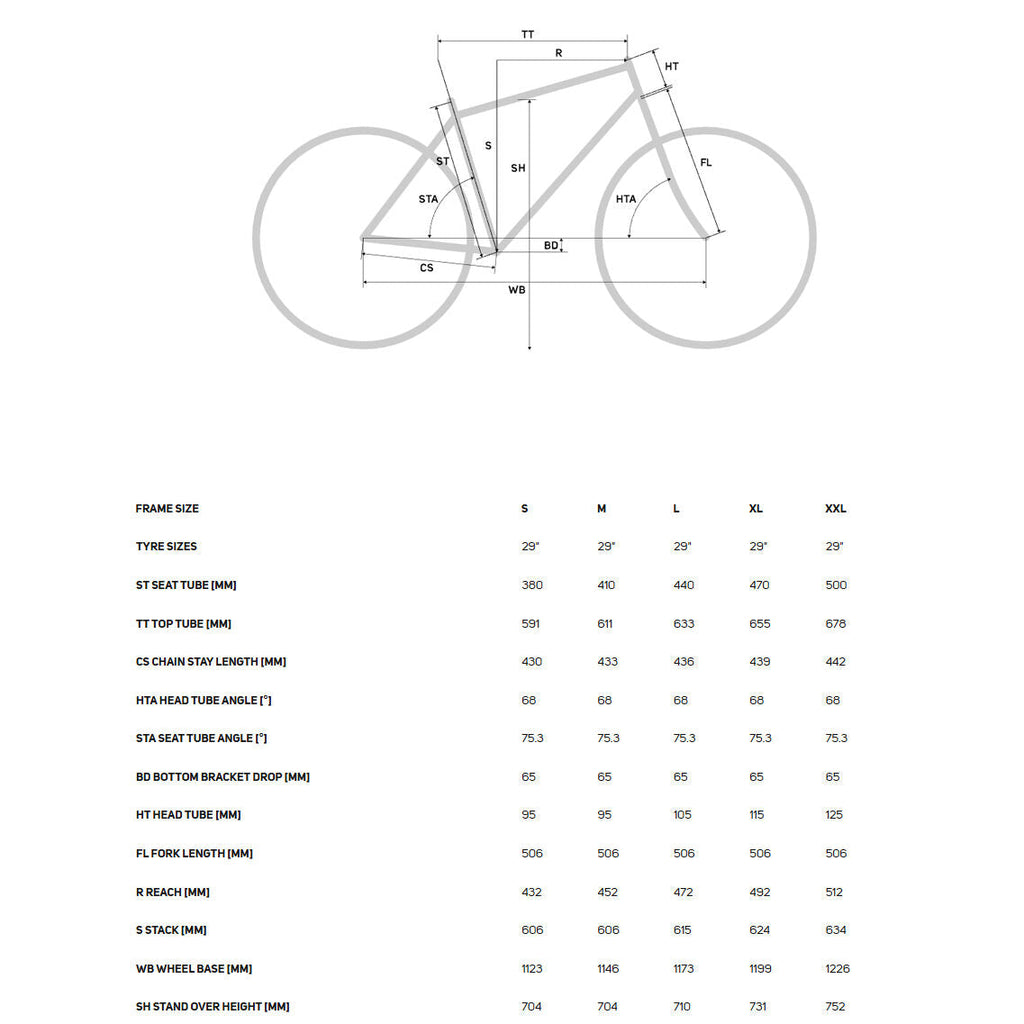

• Progressive geometry with AGILOMETER sizing for confident handling
• Fox 32 SC Factory fork with 100 mm travel and remote lockout
• Latest wireless Shimano XTR Di2 12-speed drivetrain
• Lightweight Reynolds wheelset with carbon fibre rims
• One-piece FSA NS SIC carbon cockpit

Tech spec

• Frame BIG.NINE CF5 III, material: carbon, 29x2.4" max. wheelsize, 148x12mm axle standard, BSA bottom bracket standard
• Frame size: S, M, L, XL, XXL
• Fork: Fox 32 SC Factory, Air 100mm suspension travel, Tapered 2 Position Remote lockout, 44mm fork offset, 29x2.4" max. wheelsize
• Brakes: Shimano XTR M9220, 2 Pistons
• Rotors: Shimano RT-CL900, 180 mm
• Headset: Acros ICR MERIDA INTEGRATED neck, Upper and lower IPS sealing
• Handlebar: FSA SIC CF 1-piece cockpit, material: carbon, 760mm width, -7°, S/M/L:60 mm, XL: 80 mm
• Grip: MERIDA TEAM CC
• Derailleur: Shimano XTR M9250, wireless, Shadow+ GS
• Shifters: Shimano XTR M9250, wireless
• Seat post: FSA SL-K, material: carbon, 30.9mm diameter, 0mm setback
• Seat clamp: MERIDA EXPERT
• Saddle: Prologo Scratch M5 PAS Nack, V-mount adapter
• Chain Shimano: XTR M9100
• Crank Shimano: XTR M9200, 30 teeth, S/M: 170 mm, L/XL/XXL: 175 mm
• Freewheel: Shimano XTR M9200, 9-45t
• Bottom bracket: Shimano SM-BB93, BSA, 24mm axle
• Wheelset: Reynolds Blacklabel 309 XC Pro, 110x15mm width front hub, 148x12mm width rear hub, 30mm inner width, Centerlock, Shimano MS 12 Speed, material: carbon, Tubeless ready
• Tyre front: Maxxis Rekon Race, 29x2.4" WT, tubeless ready, 3C MaxxTerra EXO
• Tyre rear: Maxxis Rekon Race, 29x2.4" WT, tubeless ready, 3C MaxxTerra EXO
• Axles: MERIDA EXPERT TR, including removeable lever, 6/4mm allen key
• Producer's weight: 9.1 kg (size M)

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
