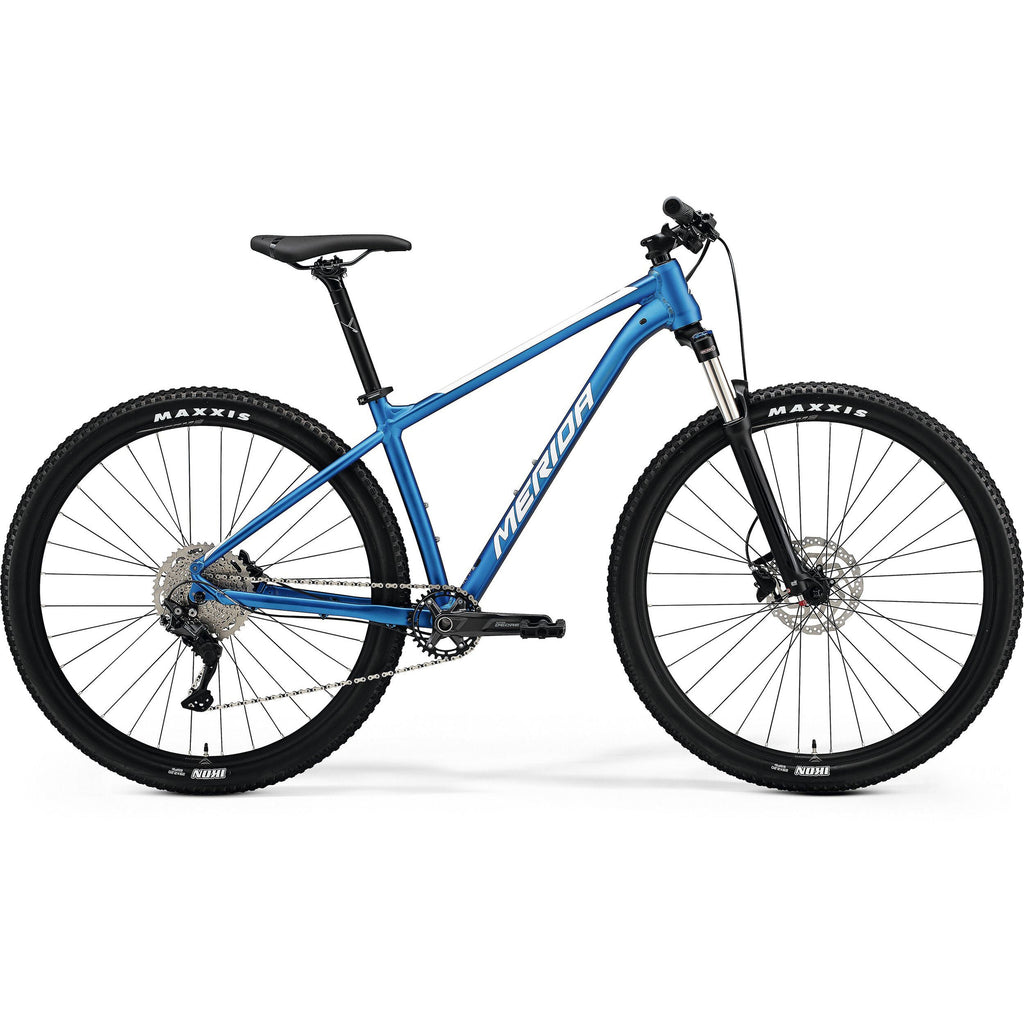

Merida Big Nine 200

Perfect for your next mountain bike trip

Dual-thickness aluminium frame with an air suspension fork and a reliable Shimano 10-speed single-wheel drive for the perfect combination of comfort and control. The slightly more upright driving position compared to our bolder models puts less strain on the lower back and also improves visibility of what lies ahead. Mountain biking is one of the most varied cycling disciplines and probably the most demanding in terms of equipment. While full suspension bikes offer amazing riding characteristics, the classic hardtail remains one of the purest tools for pedalling.

Features

• Aluminium frame with double helix and 29er wheels
• Less aggressive and more vertical geometry for maximum control and comfort
• Pneumatic fork 100 mm with Suntour slide lock
• 10-speed Shimano Deore transmission
• Hydraulic disc brakes
• Internal cables

Technical specifications

• Frame: BIG.NINE TFS III; material: aluminum, 29x2.25" max. wheelsize, 135x9mm standard axle, BSA bottom bracket standard
• Fork: SR Suntour XCR32 LOR, Air, 100mm suspension travel, Remote Lockout, 46mm offset fork
• Brakes: Tektro M275; 2 pistons
• Discs: Shimano RT10; 180 mm, 160 mm
• Steering system: MERIDA M2345
• Handlebar bend: MERIDA EXPERT CC; material: aluminium, 720mm width, 10mm rise
• Handlebar: MERIDA COMP CC; material: aluminium, 31.8mm diameter, 7° stem angle, XXL-110 mm
• Knobs: MERIDA COMP EC
• Gearbox: Shimano Deore M5120 Shadow+; SGS
• Controls: Shimano Deore M4100
• Crankset: Shimano Deore M5100; 32 teeth, 175 mm-M up
• Seat post: MERIDA COMP CC; material: aluminium, 30.9mm diameter, 0mm setback
• Mors. seat post: MERIDA COMP QR
• Saddle merida: COMP SL; V-mount
• Pedals: VP VPE-891
• Chain: KMC X10
• Set of sprockets: Shimano Deore M4100; 11-46 teeth, 10 speed
• Rims: MERIDA COMP CC 20mm inner width;material: aluminium
• Hubs: Shimano TX505; 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 32 spoke holes, Centerlock
• Spokes: Black stainless
• Tyres: Maxxis Ikon; 29x2.2", wire

Technologies

X-TAPER HEADTUBE
The X-Tapered steering tube offers space for a conical fork. Conical forks offer exceptional rigidity and precision, and provide a steering that inspires confidence.

SMOOTH WELDING
Sometimes called "double-pass welding", a second pass on the weld gives the frame a clean and organic look. At first glance, you’ll be convinced it’s carbon.

INTERNAL CABLE ROUTING
The cables are routed through the frame, entering and exiting through smooth sockets. The bike looks clean, while the cables are protected from moisture and dirt.

DOWN TUBE EXIT
Ensures that cables and internally routed cables cannot move freely and remain easily accessible for maintenance.

RACELITE 61 ALUMINIUM
We use 6061 aluminium. The advantage is that you can make lighter and more advanced frames. We use additional heat treatment and double thickness wall thicknesses to produce light and rigid frames.

TFS - TECHNO FORMING SYSTEM
The technical forming process is a mechanical forming process, which gives shape to tubes using negative moulds, sometimes combined with an internal metal core.

F-MOUNT
Bikes equipped with F-Mount have integrated mudguard fittings (some bikes require model-specific mudguards), making assembly quick and easy.

K-MOUNT
Integrated support on the horizontal sheath to mount a MERIDA tripod (or any commercial tripod).

C-MOUNT
Bikes equipped with "C-Mount" have the attachment points for an already integrated rear rack (some bikes require a specific rear rack for the model), making assembly quick, easy and reliable
