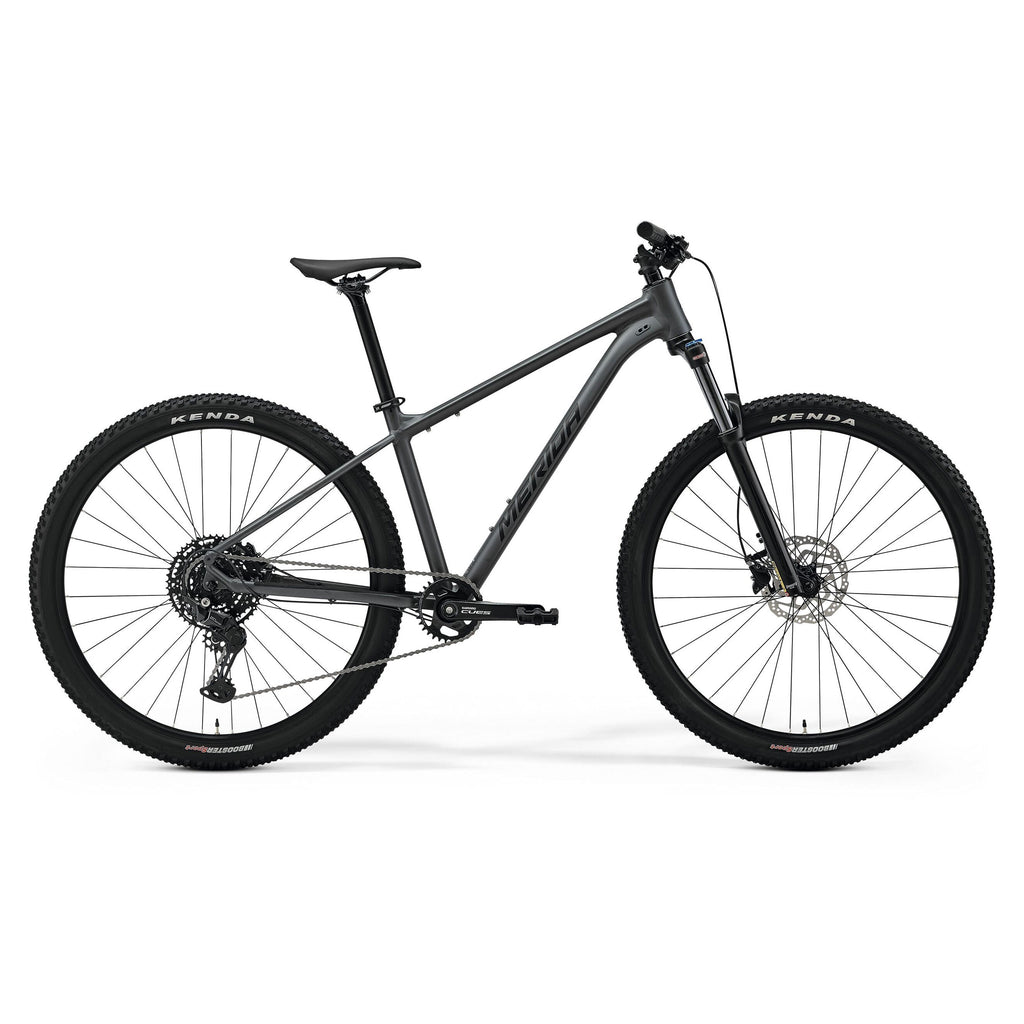

Merida Big Nine 200 2026

Everything you need to tackle the trails

The BIG.NINE 200 uses the updated TFS aluminium frame, with confidence-inspiring geometry, fast 29" wheels and a 120 mm air fork to tackle the rough stuff. Shimano hydraulic disc brakes provide powerful stopping power, while the wide-range Shimano CUES 1x10 drivetrain is easy to use and will get you to the top of any climb.
In the demanding world of cross country, the classic hardtail remains one of the purest tools for tackling races. The BIG.NINE range with 29" wheels includes carbon frames and two aluminium versions, offering an experience to suit every budget. The latest CF carbon and LITE aluminium frames feature modern geometry with increased ground clearance and riding stability, ideal for the most demanding race courses. There are also ‘downcountry’ versions with longer forks, aggressive tyres and dropper seatposts. For beginners, the updated BIG.NINE TFS offers a more relaxed geometry and versatile, affordable components, also available in the BIG.SEVEN TFS version with 27.5" wheels, designed for riders with a smaller frame. Classic XC hardtails are the backbone of the range and represent the experience and excellence that distinguish the brand, the result of over half a century of Taiwanese production.

Features

• Updated TFS aluminium frame with clearance for 2.4" tyres
• Updated geometry for confident off-road handling
• Air-sprung Suntour suspension fork with 120 mm travel
• Shimano hydraulic disc brakes and CUES 1x10-speed wide-range drivetrain
• MERIDA COMP CC 29‘ II tubeless-ready wheelset and 2.4’ tyres
• MERIDA finishing kit including size-tuned handlebars

Tech spec

• Frame: BIG.NINE TFS V, material: aluminium, 29 wheel size, 135x9mm axle standard, BSA bottom bracket standard, smooth welding
• Frame size: S, M, L, XL
• Fork: SR Suntour XCR32 Boost LOR, Air, 120mm suspension travel, 29x2.4" max. wheel size, Lockout, 46mm fork offset
• Brakes: Shimano MT200, 2 pistons
• Discs: Shimano RT10, 180mm, 160mm
• Handlebar: MERIDA EXPERT CC, material: aluminium, 10mm rise, S: 720mm width, M/L: 740mm width, XL/XXL: 760mm width
• Stem: MERIDA COMP CC, material: aluminium, 31.8mm diameter, 7° stem angle, S: 50mm, M-L: 60mm, XL-XXL: 70mm
• Grips: MERIDA COMP TR
• Gear system: Shimano CUES U6000, GS
• Shifters: Shimano CUES U6000
• Seatpost: MERIDA COMP CC, material: aluminium, 30.9mm diameter, 0mm setback
• Seatpost clamp: MERIDA COMP QR
• Saddle: Merida COMP SL, V-mount
• Chain: KMC xGlide
• Cassette: Shimano LG300, 11-48 teeth, 10 speed
• Crankset: Shimano CUES U4000, 32 teeth, 170mm for all sizes
• Bottom bracket: Shimano BB-UN101 LL123
• Rims: MERIDA COMP CC II, 25mm inner width, material: aluminium, tubeless ready
• Hubs: Shimano TC500-B / Shimano QC300-HM, 110x15mm width front hub, 32 spoke holes, Centre lock, 135x9mm width rear hub, 32 spoke holes, Centre lock
• Spokes: Black stainless
• Tyres: Kenda Booster, 29x2.4, wired

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
