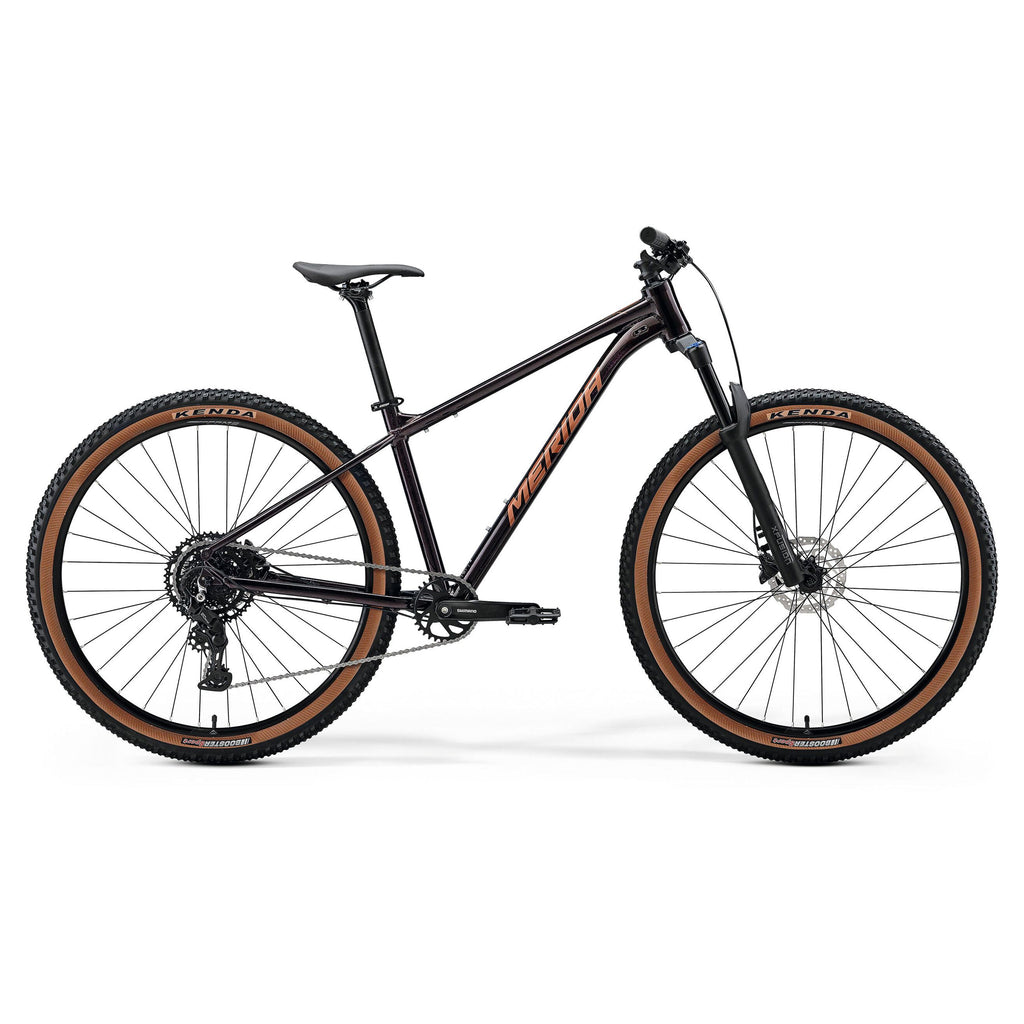

Merida Big Nine 40 2026

Start your MTB adventure

The BIG.NINE 40 uses the latest robust yet lightweight aluminium frame as the basis for a high-performance, great-value build. With updated geometry and a 120mm air fork, it's a confident off-road bike that's also versatile enough for everyday use. The Shimano CUES 1x9 drivetrain and hydraulic disc brakes are simple yet effective.
In the demanding world of cross country, the classic hardtail remains one of the purest tools for tackling races. The BIG.NINE range with 29" wheels includes carbon frames and two aluminium versions, offering an experience to suit every budget. The latest CF carbon and LITE aluminium frames feature modern geometries with increased ground clearance and riding stability, ideal for the most demanding race courses. There are also ‘downcountry’ versions with longer forks, aggressive tyres and dropper seatposts. For beginners, the updated BIG.NINE TFS offers a more relaxed geometry and versatile, affordable components, also available in the BIG.SEVEN TFS version with 27.5" wheels, designed for riders with a smaller frame. Classic XC hardtails are the backbone of the range and represent the experience and excellence that distinguish the brand, the result of over half a century of Taiwanese production.

Features

• Updated TFS aluminium frame with space for 2.4" tyres
• Updated geometry for safe off-road riding
• X-Fusion suspension fork with 120 mm travel and lockout
• Shimano hydraulic disc brakes and CUES 1x9 speed drivetrain
• MERIDA COMP CC 29‘ wheelset and 2.4’ tyres
• MERIDA finishing kit with size-adjustable handlebar

Tech spec

• Frame: BIG.NINE TFS V, material: aluminium, 29 wheelsize, 135x9mm axle standard, BSA bottom bracket standard
• Frame size: S, M, L, XL, XXL
• Fork: X-Fusion Migo 32 Air, 120mm suspension travel, lockout, max. 29x2.4" wheelsize
• Brakes: Shimano MT200, hydraulic brake
• Discs: Shimano RT10, 160 mm
• Handlebar: MERIDA CC, material: aluminium, 15mm rise, S: 720mm width, M/L: 740mm width, XL/XXL: 760mm width
• Stem: MERIDA COMP CC, material: aluminium, 31.8 mm diameter, 7° stem angle, S: 50 mm, M/L: 60 mm, XL/XXL: 70 mm
• Grips: MERIDA COMP TR
• Gear shifter: Shimano Cues U4000, GS
• Shifters: Shimano Cues U4000
• Seatpost: MERIDA COMP CC, material: aluminium, 30.9mm diameter, 0mm setback
• Seatpost clamp: MERIDA COMP QR
• Saddle: MERIDA COMP SL
• Chain: KMC xGlide
• Cassette: SunRace U980 9AZ, 11-46 teeth, 9 speed
• Crankset: Shimano Cues UT400-1, 32 teeth, MAT Aluminium, S: 165mm, M/L/XL/XXL: 170mm
• Headset: Shimano UN101 LL123
• Rims: MERIDA COMP CC, 20mm inner width, material: aluminium
• Hubs: Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centre lock, 135x9mm width rear hub, 32 spoke holes, Centre lock
• Spokes: Black steel
• Tyres: Kenda Booster, 29x2.4"

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
