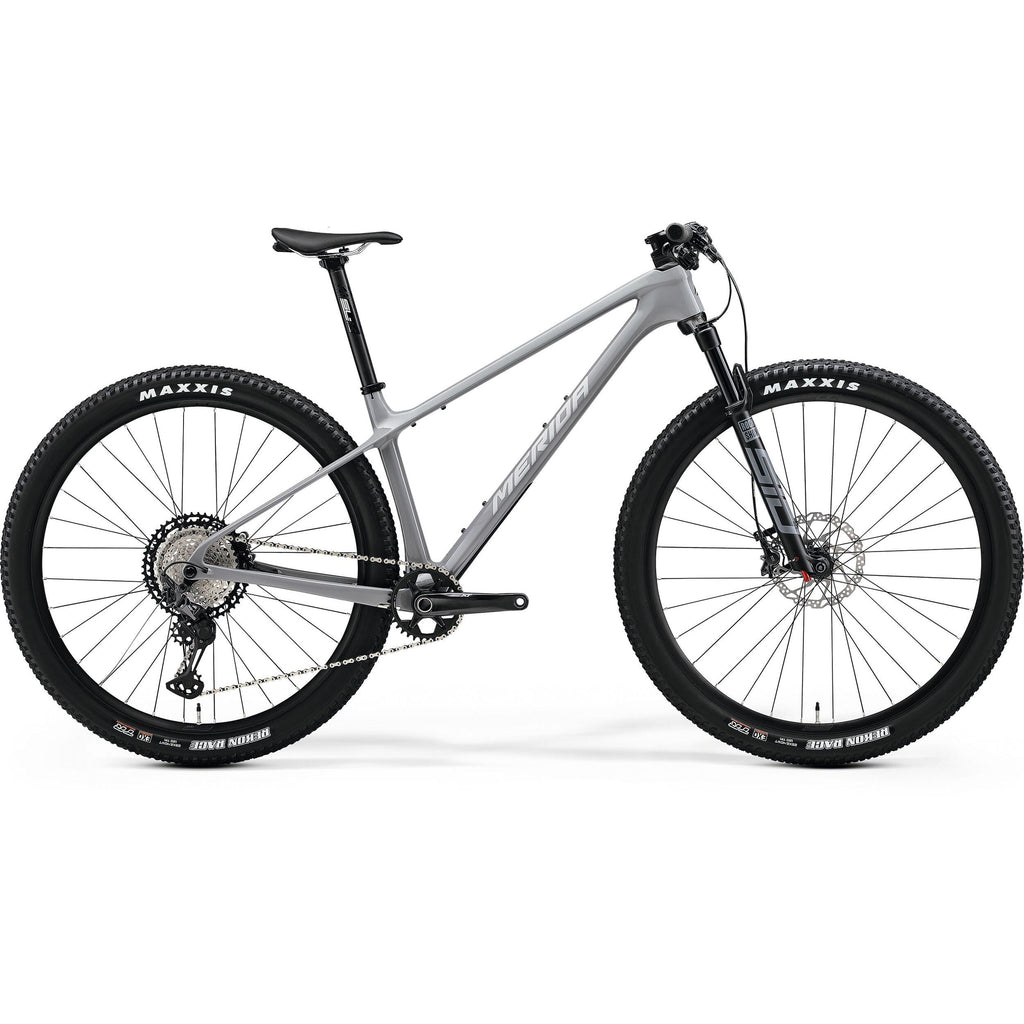

Merida Big Nine XT III1

Modern cross-country trails are more challenging than ever, which is why Merida has also made the latest BIG.NINE XT more capable than ever. The lightweight CF3 carbon frame has room for 2.4" tyres combined with progressive geometry and AGILOMETER sizing offering extra comfort and control while maintaining the uphill speed riders need. The RockShox SID fork offers 100mm of well-controlled travel with a handlebar-mounted lockout, while the benchmark 12-speed Shimano XT drivetrain offers extremely precise gear changes. Mountain biking is one of the most varied cycling disciplines and probably the most demanding in terms of equipment. While semi-mountain bikes offer amazing riding characteristics, the classic hardtail remains one of the purest tools for the job. The BIG.NINE range equipped with 29" wheels is available in carbon and aluminium and features multiple geometry options. The upgraded BIG.NINE carbon CF and aluminium LITE frames offer truly modern geometry with more room to manoeuvre and stability to better cope with today's tough race tracks, with downcountry-ready TR options that increase fork travel and add aggressive tyres and telescopic seatposts. The more relaxed geometry of the BIG.NINE TFS and SPEED offers a more comfortable and upright riding position. The classic hardtails are the backbone of the range and show the enormous wealth of experience and knowledge that we have been able to acquire over almost half a century of producing and manufacturing bicycles. The BIG.NINE range symbolises the symbiosis of modern frame technology, attention to detail and 'Made in Taiwan' craftsmanship.

Technical specifications

Frame

• BIG.NINE CF3 III
• Material: carbon
• 29x2.4" max. wheelsize
• 148x12 mm axle standard
• BSA bottom bracket standard

Fork

• Rock Shox SID SL
• Air
• 100 mm suspension travel
• Tapered
• 2 position remote lockout
• 29x2.4" max. wheelsize
• 44 mm fork offset

Brakes

• Shimano XT M8100 / Shimano XT M8110
• 2 piston
• DISCS Shimano RT54
• 180 mm
• 160 mm

Headset

• Acros ICR MERIDA INTEGRATED
• Upper and lower IPS sealing

Handlebar

• MERIDA EXPERT CC
• Material: aluminium
• 760 mm width
• Flat

Handlebar stem

• MERIDA TEAM CC III
• Material: aluminium
• 31.8 mm diameter
• -6° stem angle
• MERIDA SMART MOUNT
• S, M: 60 mm, L, XL: 70 mm, XXL: 80 mm

Knobs

• MERIDA EXPERT EC

Gearbox

• Shimano XT
• SGS

Shifters

• Shimano XT M8100
• Multi Release

Crankset

• Shimano XT
• 34 teeth
• 170 mm-S, 175 mm-M up

Seatpost

• FSA SL-K
• material: carbon
• 30.9 mm diameter
• 0 mm setback
• size S and M: 400 mm
• size L, XL and XXL: 450 mm

Seatpost clamp

• MERIDA EXPERT

Saddle

• MERIDA EXPERT SL
• V-mount
• incl. MERIDA minitool

Chain

• KMC X12

Sprocket set

• Shimano XT
• 10-51 teeth
• 12 speed

Bottom bracket

• Shimano BB-MT-801
• 24 mm

Rims

• MERIDA EXPERT CC II
• 25 mm inner width
• material: aluminium
• Tubeless ready (tubeless tape and valves not included)

Hubs

• Shimano XT
• 110x15 mm width front hub
• 32 spoke holes
• Centerlock
• 148x12 mm width rear hub, 32 spoke holes

Pins

• MERIDA EXPERT TR
• Including removable lever, 6/4 mm allen key

Spokes

• Double Butted Black stainless

Tyres

• Maxxis Rekon Race
• 29x2.4" WT
• Tubeless ready
• 3C MaxxTerra EXO

Permissible total weight

• 135 kg (Total weight of bike, rider and luggage).

Note: Specifications may vary without notification.
