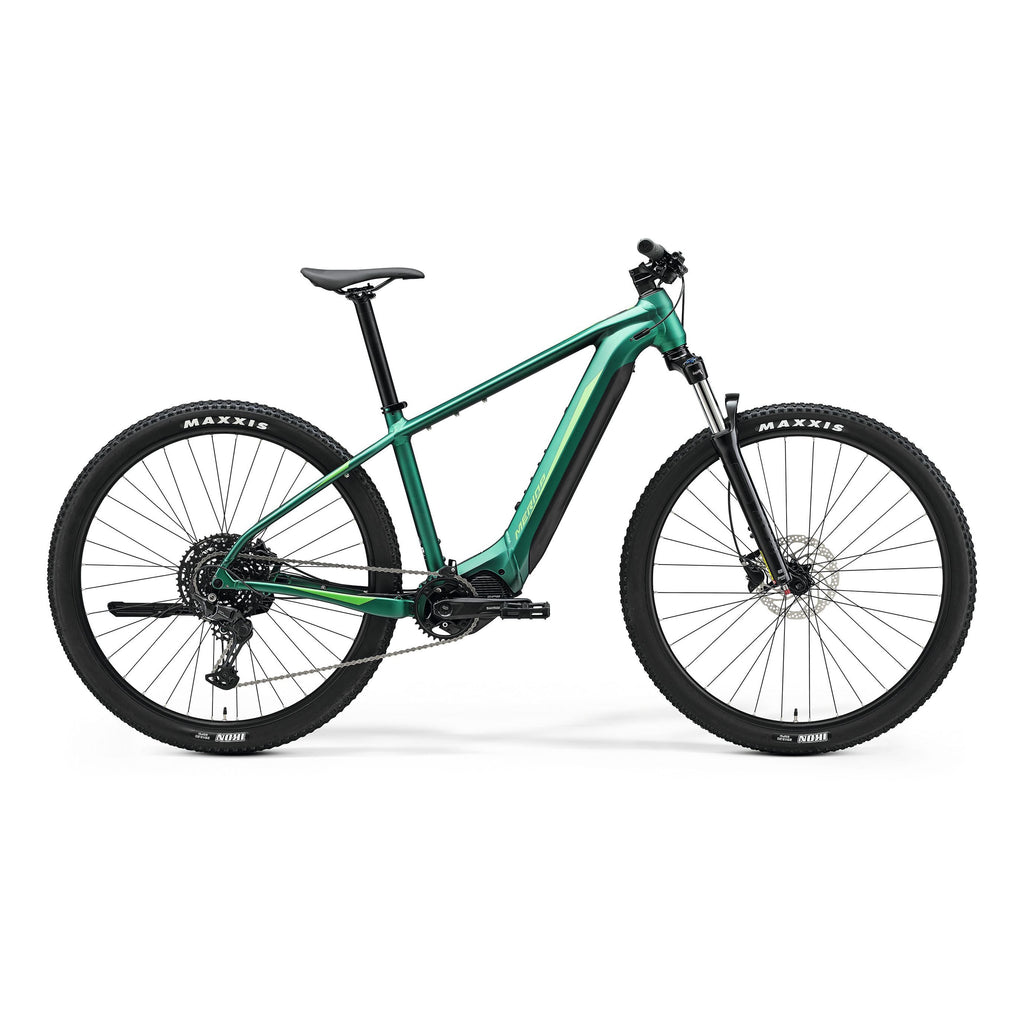

Merida E-Big Nine 400 III2 my25

More fun when riding off-road, with the powerful new Shimano EP6 motor unit to help you uphill. More time on the bike, with a 630 Wh battery that will keep you going for miles. More control, thanks to the SR Suntour suspension fork, big tyres and powerful Shimano brakes. More of everything but superfluous weight, thanks to a high-quality aluminium frame that also has a lifetime warranty.
Arguably the most versatile electric bike in the range, the tried and tested eBIG.NINE embodies the perfect balance between everyday usability and leisure sport. It is a bike that can cope with demanding off-road riding, but can also handle the home-work commute with ease, especially if you want to have some fun on the road. The high-quality aluminium frame elegantly integrates a choice of 630 or 750 Wh batteries into the down tube, with a cheaper frame featuring a semi-integrated 504 Wh battery on some models. All are equipped with powerful and smooth Shimano motor units that will give you power on any climb. Ready to be equipped with mudguards and even a side stand (or available as a fully equipped EQ version), eBIG.NINE will help you make the most of every situation.

Features

• Lightweight aluminium frame with 29er wheels
• Latest powerful Shimano EP6 drivetrain with 85 Nm torque
• Integrated 630 Wh battery
• Confidence-inspiring mountain bike handling
• Versatile enough for trail or commuting
• Suspension fork enhances comfort and control

Tech spec

• FRAME: eBIG.NINE LITE III, material: aluminium, 29x2.35" without wing max./ 29 "x2.25" with wing max. wheelsize, 148x12mm standard axle, intube
• FORK: SR Suntour XCM34-Boost LOR DS, 100mm, Tapered, 51mm offset fork, 29x2. 4" max wheelsize
• BRAKES: Shimano MT200, 2 pistons
• DISKES: Shimano RT30 / Shimano RTEM300, 180mm
• HEADSET: MERIDA-8157
• HANDLEBARS: MERIDA MERIDA EXPERT TR II, 760mm wide, 18mm rise
• HANDLEBARS: MERIDA EXPERT eTRII, material: aluminium, 35 mm diameter, 0° stem angle, GoPro and Supernova stem, 50 mm all sizes
• HANDLEBARS: MERIDA EXPERT EC
• REAR DERAILLEUR: Shimano Cues U4000, GS
• REAR DERAILLEUR: Shimano CUES U6000
• SADDLEBAR: MERIDA EXPERT CC, material: aluminium, 34.9 mm diameter, 0 mm rise
• MORS. SADDLEBOARD: MERIDA EXPERT
• SADDLE: MERIDA COMP SL, 28% recycled material, V-mount
• CHAIN: Shimano LG500
• CRANKSET: Shimano CRE70-B, 34 teeth
• SPROCKET PACK: Shimano LG300, 11-48 teeth, 10-speed
• MERIDA RIMSET: COMP CC II, 25mm inner width, material: aluminium
• HUBS: Shimano TC500-B / Shimano TC500-HM-B, front hub 110x15mm, 32 spoke holes, Centerlock, rear hub 148x12mm, 36 spoke holes, Centerlock
• SPOKES: MERIDA COMP TR, including removable lever, 6/4mm Allen key
• SPOKES: Black stainless
• TYRESHOPS: Maxxis Ikon, 29x2. 2", Kevlar bead
• LIGHTS: CG-119PG-BLACK(1) / CG-404RG-BLK
• PEDALS: VP VPE-537
• MOTOR: Shimano EP6, 85Nm
• BATTERY: Shimano EN806 630 Wh, removable, no compatibility with Range Extender
• DISPLAY: Shimano SC-EN500

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
