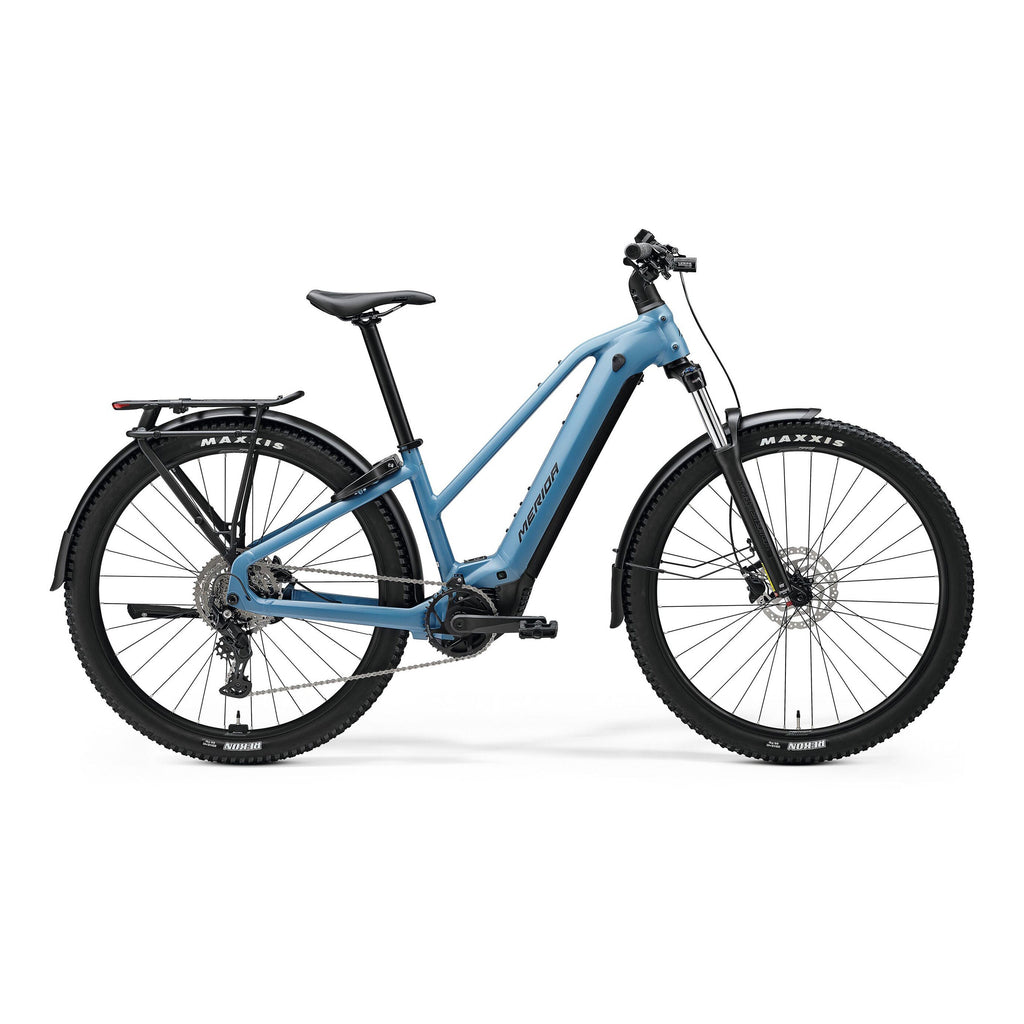

Merida E-Float CC 400 Eq

The eFLOAT CC 400 EQ offers an incredibly versatile e-bike at a great price. Combining robust aluminium frame and a powerful Bosch CX drive unit plus 600 Wh battery with fat 2.4" fast-rolling tyres on 29" wheels and a 120 mm suspension fork means this is an e-bike that's happy to explore off the beaten track. Whether you're in the city or exploring the forest, quality kit from Shimano and Suntour will get you safely there and back.
When life is busy, you need a bike that will help you get the most out of your time. Whether you’re getting to work, taking a cross-town shopping trip or escaping it all to recharge your batteries at the weekend, the MERIDA eFLOAT lineup has a bike for you. An e-bike is an incredibly versatile tool for work or play - but the eFLOAT lineup is more versatile than most thanks to practical and versatile frame designs paired with strong and supportive Bosch drive systems; each will give you more time to do the things that matter. Offering TK trekking, CC SUV-style and HD light cargo options, all bikes come with mudguards, a rear rack, a kickstand, a built-in lock, plus front and rear lights as standard, and each bike has a low step through frame option if you need more clearance. Merida also use sleek WIRE PORT cable routing system as standard, so the bikes look as good as they ride. By combining expertise in aluminium frame design with Bosch’s refined and powerful drive systems, numerous battery options and intuitive display units, created a trio of models that are subtly adapted to suit your needs.

Features

• All aluminium frame with 29" wheels
• Off-road ready with Suntour XCM 120 mm fork
• High-volume Maxxis Metropass 2.4" tyres with fast-rolling tread
• Powerful Bosch CX drive unit and removable 600 Wh battery
• Shimano CUES U4000 9-speed drivetrain
• Fully equipped with lights, guards, lock and kickstand

Tech spec

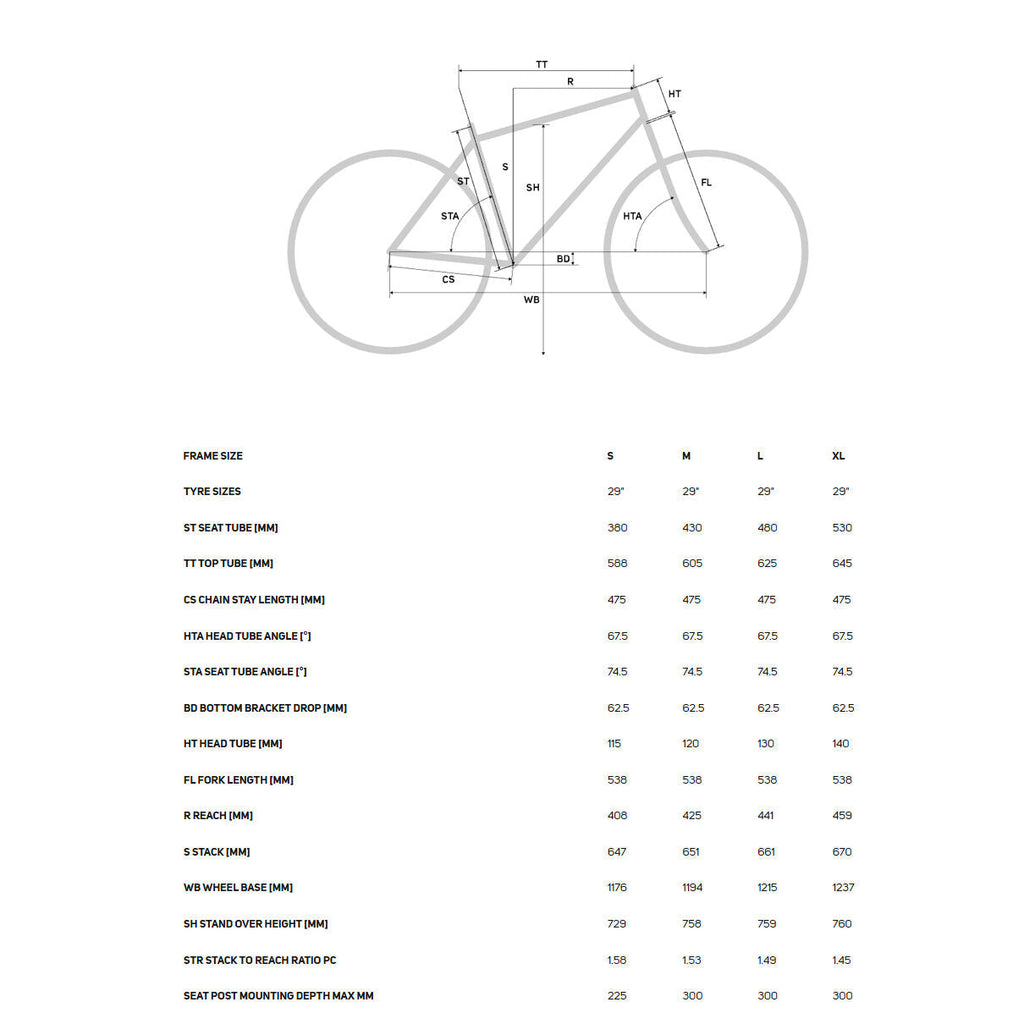

• Frame: eFLOAT CC L LITE II, material: aluminium, 29‘x2.4’ with fender max. wheelsize, 148x12mm axle standard, intube
• Size: FRAME S, M, L
• Fork: SR Suntour XCM34-Boost, Coil, 120mm suspension travel, 29x2.4" max wheelsize
• Brakes: Shimano MT-200, 2 piston
• Discs: Shimano RT10, 180mm
• Headset: Acros ICR MERIDA INTEGRATED neck w/ Blocklock
• Handlebar: MERIDA EXPERT CC, material: aluminium, 720mm width, 10mm rise
• Stem: MERIDA EXPERT TK III, material: aluminium, 31.8mm diameter, S/M/W-S/W-M :70mm, L/XL/W-L/W-XL :90mm
• Rear derailleur: Shimano Cues U4000, GS
• Shifters: Shimano Cues U4000-9
• Seatpost: MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback
• Seatpost clamp: MERIDA EXPERT
• Saddle: MERIDA EXPERT TK II, V-mount
• Crankset: FSA Direct Mount Steel Chainring, 38 teeth
• Cassette: Shimano LG400-9, 11-46 teeth, 9 speed
• Rims: MERIDA COMP TR II, 110x15mm width front hub, 148x12mm width rear hub, 28mm inner width, material: aluminium, Tubeless ready (tubeless tape and valves not included), 29"
• Hubs: Shimano TC500, 15x100mm width front hub, 32 spoke holes, Centre lock, 12x148mm width rear hub, 32 spoke holes, Centre lock
• Axles: MERIDA EXPERT TR, including removable lever, 6/4mm Allen key
• Tyres: Maxxis Metropass AT, 29x2.4", wire
• Lights: Lezyne Hekto StVZO E350+ Reverse / Spanninga Commuter Glow XE integrated in MERIDA MIK HD carrier, reverse MERIDA Custom Mount
• Mudguards: Sunnywheel SW-FA311-70A/ SW-FA311-70E1
• Pedals: VP VPE-891
• Motor: Bosch Performance Line CX
• Battery: Bosch PowerTube 600, 600 Wh
• Display: Bosch Purion 200

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
