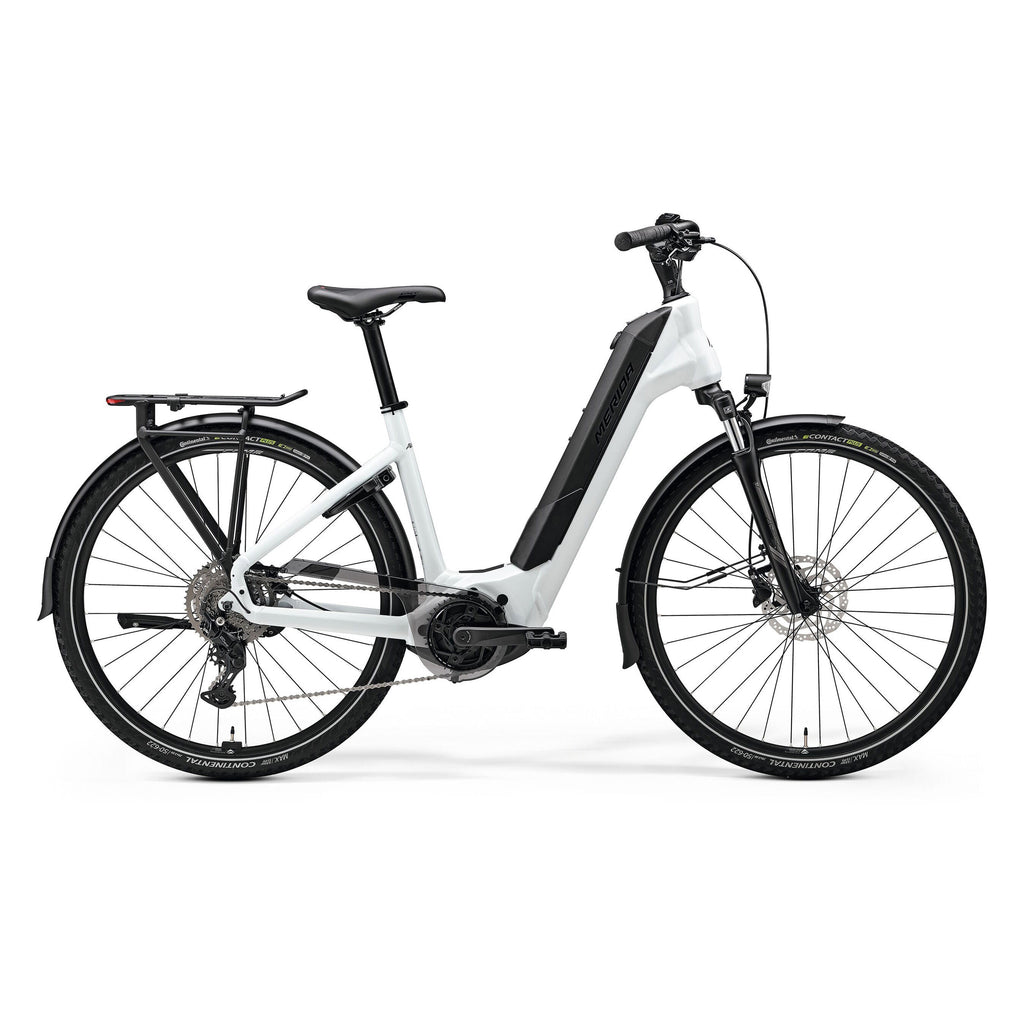

Merida E-Float City 400 EQ 2026

Shopping, daily commutes or simple trips around town — the eFLOAT CITY is ready for anything. Thanks to its low step-through frame, it offers easy access and a comfortable, stable riding position, while the Bosch Performance Line motor provides powerful, smooth assistance, effortlessly tackling even the steepest hills. The eFLOAT CITY 400 is the perfect partner for every occasion: from commuting to work to everyday errands to weekend excursions. It is equipped with an integrated lock, rear rack, mudguards, lights and kickstand, so you can tackle any situation with confidence. You can load up your shopping, park your bike wherever you want and set off again safely even after dark. To ensure smooth and reliable operation at all times, the eFLOAT CITY 400 is equipped with a 9-speed Shimano gear system with Linkglide technology, which ensures precise shifting even under load and integrates perfectly with the Bosch motor assistance.
The eFLOAT CITY range introduces low-step-through electric city bikes with Bosch motors to the Merida family. Based on the proven ENERGY CRADLE design, it offers exceptional stability even when braking or on uneven surfaces — where many step-through frames tend to flex. All models are fully equipped: integrated lock, mudguards, lights, luggage rack and kickstand make every trip around town easy and practical. The suspension forks and adjustable handlebar stem also ensure maximum comfort and a customised riding position, perfect for enjoying every ride in style and serenity.

Features

• Extra low step-through ENERGY CRADLE frame design
• Internally mounted, user removable 620 Wh battery
• Powerful Bosch Performance Line motor with 75 Nm
• Wide-range 9-speed Shimano CUES U4000 drivetrain
• Fully equipped with guards, lights, lock, rack and kickstand
• Fast-rolling 700c wheels and comfy 50 mm tyres with reflective strip

Tech spec

• Frame size: 3XS, XXS, XS, S, M, L, XL
• Fork: MERIDA SCULTURA ENDURANCE CF3 DISC, material: carbon, 700x35C max. wheelsize
• Brakes: Shimano 105, Disc
• Discs: Shimano RT54, 160mm
• Headset: Acros ICR MERIDA external neck w/diecast splitring
• Handlebar: MERIDA EXPERT SL II, material: aluminium, 380mm (4S-3XS-XXS-XS-S), 400mm (M-L), 420mm (XL)
• Stem: MERIDA TEAM CC III, material: aluminium, 31.8mm diameter, -6°° stem angle, 80mm (4S/3S), 90 mm (XXS/XS/S), 100 mm (M), 110 mm (L/XL)
• Grips: MERIDA ROAD EXPERT
• Front derailleur: Shimano 105
• Rear derailleur: Shimano 105, GS
• Shifters: Shimano 105 disc
• Seatpost: MERIDA COMP CC, 27.2mm diameter, 0mm setback, material: aluminium
• Seatpost clamp: MERIDA EXPERT
• Saddle: Merida COMP SL, 25% recycled material, V-mount
• Chain: Shimano M6100-12
• Cassette: Shimano 105 R7101, 11-34 teeth, 12 speed
• Bottom bracket: Shimano SM-BB71-41B, Pressfit 86.5
• Rims: MERIDA EXPERT SL III, 23mm inner width, 26mm height, material: aluminium, Tubeless ready (tubeless tape and valves not included)
• Hubs: Shimano TC500 / Shimano TC500-HL, 100x12mm width front hub, 28 spoke holes, Centre lock, 12x142mm width rear hub, 28 spoke holes, Centre lock
• Axles: MERIDA EXPERT TR / MERIDA EXPERT SL, including removable lever, 6/4mm Allen key
• Spokes: Double Butted Black stainless
• Tyres: Maxxis Detonator, 700x32C, fold

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
