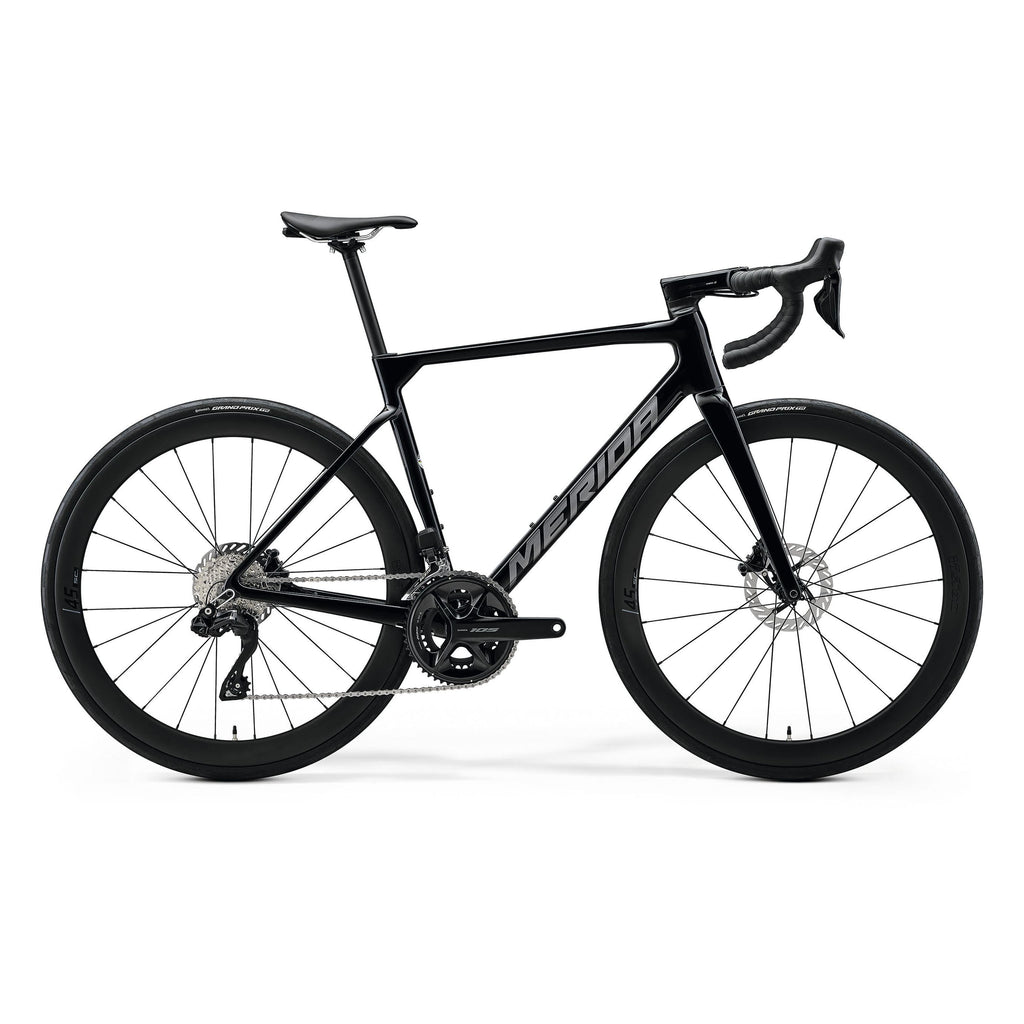

Merida Scultura 6000 2026
Merida Scultura 6000 2026
Are you looking for a lightweight carbon road bike with a super precise electronic groupset, a long list of aerodynamic upgrades, seamless cable integration, a frame with industry-leading flexibility, ample tyre space and high-quality components? Do you participate in races or do you like to stay in the lead on fast laps with the team, or do you prefer undulating trails? The SCULTURA 6000 with Shimano 105 Di2 could be the perfect bike for you. The award-winning SCULTURA stands for ‘aerodynamic race compliance’ and offers exactly that, whatever the challenge.
The fifth generation of the lightweight racing bike combines exceptional handling, increased comfort and an even more aerodynamic frame. Thanks to the integration of aerodynamic details selected by REACTO, the SCULTURA is the most aerodynamic version ever created. However, it remains true to its nature as a light, agile and comfortable bike, so much so that it received the prestigious ‘Best Racing Bike 2024’ award from Cycling Weekly. The SCULPTURE offers exceptional riding comfort, helping to keep the rider cool until the sprint or final climb.
Features
- Lightweight CF3 carbon frame with race-proven geometry
- Shimano 105 Di2 electronic 12-speed groupset
- MERIDA EXPERT SL two-piece cockpit
- Vision SC30 carbon wheelset
- DISC COOLER technology
- MERIDA EXPERT CC carbon seat post
Tech Spec
- Frame: SCULTURA CF3 V, material: carbon, max. wheel size 700x30C, standard axle 100x12/142x12mm, Pressfit 86.5
- Frame size: XXS, XS, S, M, L, XL
- Fork: MERIDA SCULTURA CF3 disc, material: carbon, max. wheel size 700x30C
- Brakes: Shimano 105, disc
- Discs: Shimano CL700, 160 mm
- Series: FSA ACR NO.55R STEERING
- Handlebar: MERIDA EXPERT SL II HANDLEBAR, material: aluminum, 380 mm (3S-XXS-XS-S), 400 mm (M-L), 420 mm (XL)
- Stem: FSA SMR-II, material: aluminum, -10°, 90 mm (3XS/XXS/XS), 100 mm (S), 110 mm (M/L), 120 mm (XL)
- Tape: MERIDA ROAD EXPERT
- Front derailleur: Shimano 105 Di2
- Rear derailleur: Shimano 105 Di2
- Shifters: Shimano 105 disc Di2
- Seatpost: MERIDA EXPERT SL, diameter 27.2 mm, setback 0 mm, carbon
- Seatpost clamp: MERIDA EXPERT
- Saddle: EXPERT SL, 6% recycled material and 23% natural material, V-shaped, incl. MERIDA minitool
- Chain: Shimano M6100-12
- Cassette: Shimano 105 R7101, 11-34 teeth, 12 speeds
- Bottom bracket: Shimano SM-BB71-41B, Pressfit 86.5
- Axles: MERIDA EXPERT SL, incl. removable lever, 6/4 mm Allen key
- Wheels: Vision SC 45 i23 Disc brake, front hub width 100x12mm, rear hub width 142x12mm, internal width 23mm, height 45mm, Centerlock, material: carbon
- Tires: Continental Grand Prix TR, 700x28C, foldable, tubeless ready
Technologies
X-Taper headtube
Steering precision is vital to safe and confident handling, and the X-TAPER HEADTUBE allows us to significantly boost this precision. A larger headset diameter at the bottom paired with a smaller one at the top helps to deal with the strains modern riding and equipment can put on the headtube, all without adding unnecessary weight. It allows tapered forks to be fitted with ease and delivers precise and confidence-inspiring steering.
Internal Cable Routing
On the majority of our frames, we run the gear and brake cables and hoses through the frame. The cables enter and exit the frame through smooth sockets, or we use one of our other systems like SMART ENTRY or WIRE PORT to be routed through. Running the cables inside the frame protects them from the elements, gives a clean and neat look and can offer aerodynamic advantages.
Nano Matrix Carbon
NANO MATRIX CARBON is a special kind of carbon fibre where we add extremely tiny, nano-scale particles to the resin that binds the individual carbon fibres together. These then work on a molecular level to protect them from damage. It’s so effective that it can actually increase the finished carbon fibre’s impact resistance by up to 40%, allowing us to build stronger and lighter composite frames that result in a faster and tougher bike.
AWS
This is a method we use to manufacture our carbon fibre frames. First, the carbon fibre that makes up the frame is laid around special formers. We then use a bladder to compress the layers against the outside of the frame mould, giving a smooth and wrinkle-free internal finish, removing any voids in between the layers of carbon that can cause potential weak points, resulting in a stronger, lighter frame.
Naca Fastback Profile
This is a special kind of tube shape that helps reduce aerodynamic drag while also helping to reduce weight. It’s based around a teardrop profile that was originally developed in the aeronautical industry, but the rearmost portion of the profile is cut short. This reduces the amount of material needed to make the tube, but air still flows around it just as well, giving all the aerodynamic benefits but at a lower weight.
Disc Cooler
Used on our carbon fibre road and gravel bikes, DISC COOLER is a finned piece of forged aluminium that sits between the brake calliper and frame. The aluminium piece helps to draw heat from the braking system and radiates it away quickly. It reduces the temperatures by up to 35% and helps to keep your brakes working at their best for improved control and performance on long descents and under heavy braking.
Internal Clamp
When every second counts, the smallest of details can make the difference between winning and losing, so we look at every aspect of our frames to make them as sleek as possible. By using a seat post clamping mechanism that secures the post with a wedge inside the frame itself, we minimise the turbulence and potential drag while keeping post height adjustment simple, giving a frame that is more aerodynamic and also better looking.
Wire Port
MERIDA designed headsets that enable all control cables from the handlebar to enter the frame through the headset cover, creating a clean and uncluttered look, allowing for a lighter, stronger and more aerodynamic frame structure than with conventional cable ports. Depending on the model, the cables are run completely internally (including the bar and stem) or semi-integrated, where the cables enter the frame underneath the stem.
Producer's note: Technical specifications are subject to change without notice
