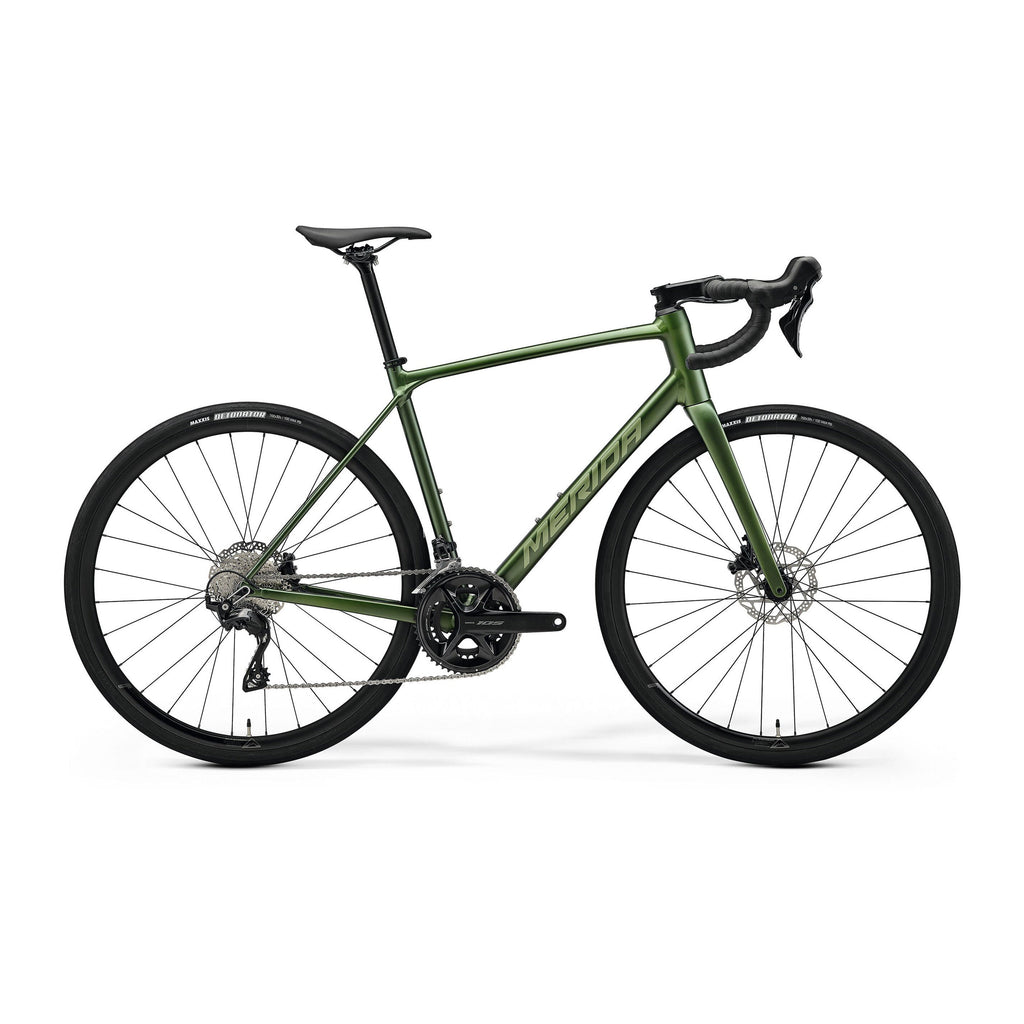

Merida Scultura Endurance 400 2026

The SCULTURA ENDURANCE 400 features a triple-thickness 6066 aluminium frame, designed with the same geometry as the CF3 carbon model, which has won numerous awards in international tests. This frame, which is more affordable but meticulously crafted, allows the popular ENDURANCE range to be extended to a wider audience, without compromising on the elegance and clean lines of the carbon models.
The SCULTURA ENDURANCE is the ideal choice for comfort-oriented cyclists who want to spend many hours in the saddle with a relaxed position and stable handling. The generous tyre clearance ensures comfort even on the roughest roads, while the longer head tube provides a more comfortable and balanced riding position. Praised by the international cycling press, it received the ‘comfort award’ from RennRad and numerous accolades from leading publications such as Gran Fondo, Cyclingnews, Cyclingtips and Road.cc, which highlighted its excellent comfort, feeling of safety and pleasant ride. Compared to the SCULTURA, the ENDURANCE features a comfort-oriented geometry, ample tyre clearance and harmonious integration of the latest technical standards. It fits perfectly between the SCULTURA, which is more geared towards road performance, and the SILEX, which is designed for adventure and gravel riding. Finally, the SCULTURA ENDURANCE GR version expands the range with options dedicated to gravel racing, featuring knobby tyres and a flared handlebar for optimal control even off-road.

Features

• Lightweight, triple-butted, hydroformed 6066 aluminium frame with comfort-oriented geometry for confidence-inspiring handling.
• Shimano 105 12-speed groupset.
• MERIDA EXPERT SL III wheelset.
• Full carbon tapered fork.
• WIRE PORT cable integration.
• Alloy seatpost.

Tech spec

• Frame: SCULTURA ENDURANCE LITE, material: aluminium, 700x35C max./ 700x32C (with fender) max. wheelsize, 100x12/ 142x12mm axle standard, BB86 bottom bracket standard
• Frame size: 3XS, XXS, XS, S, M, L, XL
• Fork: MERIDA SCULTURA ENDURANCE CF3 DISC, material: carbon, 700x35C max. wheelsize
• Brakes: Shimano 105, Disc
• Discs: Shimano RT54, 160mm
• Headset: Acros ICR MERIDA external neck w/diecast splitring
• Handlebar: MERIDA EXPERT SL II, material: aluminium, 380mm (4S-3XS-XXS-XS-S), 400mm (M-L), 420mm (XL)
• Stem: MERIDA TEAM CC III, material: aluminium, 31.8mm diameter, -6°° stem angle, 80mm (4S/3S), 90 mm (XXS/XS/S), 100 mm (M), 110 mm (L/XL)
• Grips: MERIDA ROAD EXPERT
• Front derailleur: Shimano 105
• Rear derailleur: Shimano 105, GS
• Shifters: Shimano 105 disc
• Seatpost: MERIDA COMP CC, 27.2mm diameter, 0mm setback, material: aluminium
• Seatpost clamp: MERIDA EXPERT
• Saddle: Merida COMP SL, 25% recycled material, V-mount
• Chain: Shimano M6100-12
• Cassette: Shimano 105 R7101, 11-34 teeth, 12 speed
• Bottom bracket: Shimano SM-BB71-41B, Pressfit 86.5
• Rims: MERIDA EXPERT SL III, 23mm inner width, 26mm height, material: aluminium, Tubeless ready (tubeless tape and valves not included)
• Hubs: Shimano TC500 / Shimano TC500-HL, 100x12mm width front hub, 28 spoke holes, Centre lock, 12x142mm width rear hub, 28 spoke holes, Centre lock
• Axles: MERIDA EXPERT TR / MERIDA EXPERT SL, including removable lever, 6/4mm Allen key
• Spokes: Double Butted Black stainless
• Tyres: Maxxis Detonator, 700x32C, fold

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
