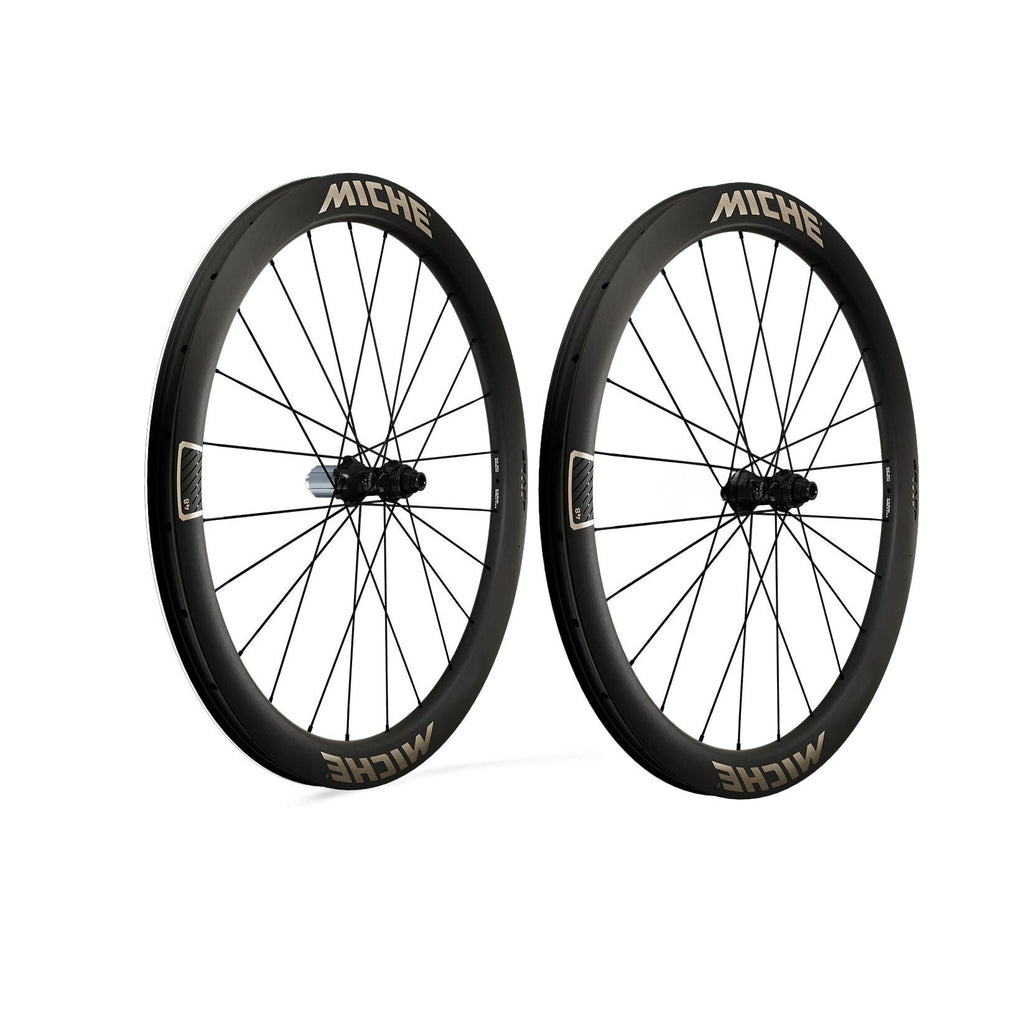

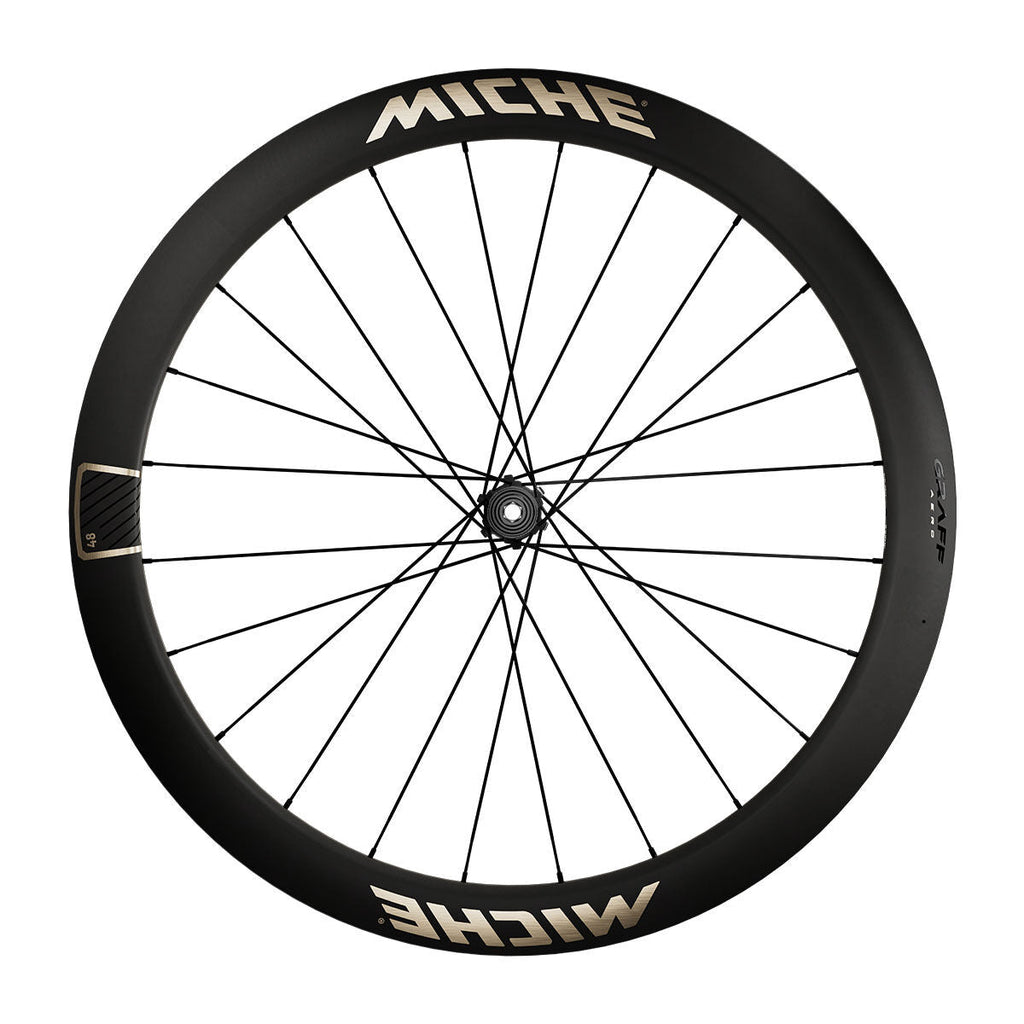

Miche Graff Aero 48 wheels

Precise, easy to handle, and incredibly fast

Miche expands its range of high-performance products with the new Graff Aero 48, carbon wheels designed for top-level gravel racing.
The Graff Aero 48 is the result of rigorous and meticulous development work, conducted side by side with the best gravel specialists. Among them, Ivar Slik—winner of Traka and Unbound—actively contributed to the development process, bringing his experience in the field.
The result? A wheel that pushes performance, reliability, and control to the limit on all types of terrain. Every detail is designed for those who seek the maximum: riders who approach gravel with a racing mentality, for whom every second, every turn, and every watt counts.

Hookless rim
The UD carbon rim with a 48 mm height profile and 27 mm internal TSS hookless channel is compatible with a wide range of tires, only with tubeless ready specification, from 35 to 60 mm section. The wheel profile design and double-thickness spokes with an aerodynamic profile ensure excellent aerodynamic efficiency and stability, even at high speeds and on rough terrain.

Miche hubs
CX-Graff hubs are mounted on high-speed Miche bearings. The 24-spoke 12+12 pattern optimizes tension and load distribution and absorption for the specific use for which the wheels are intended.

Race ready. Gravel proven.
With a total weight of 1525 grams, the new Graff Aero 48 wheels have been tested in the most selective competitions and are ready to become a benchmark for gravel racing enthusiasts.

Tech spec

• ASTM: 2
• Hubs: AL 7075 T6
• Spokes: Black stainless steel / aero / straight head / double thickness
• Nipples: AL 7075 T6 / Black
• Manufacturer's weight: 1525 g
• Spoke pattern: 24 - 24 / Crossed
• Flange: 100 - 142 mm
• Bearings: MICHE® 2RS
• Drive: RES 30 Rapid Engagement System
• Compatibility: Campagnolo® N3W, Shimano® HG - Microspline, SRAM® XDR
• Rim height: F 48 - R 48
• Braking system: Disc Center Lock
• Rim material: UD carbon fiber
• Freewheel body: AL 7075 T6 - Steel
• Rim size: 622x25 TSS
• Tire size: 35 mm ÷ 60 mm
• Tire type: Tubeless
• Front axle diameter: 12 mm
• Rear axle diameter: 12 mm

Included

• Wheel bag
• Instructions
• Brake disc lock ring nut
• IS6 hub adapter

Version HG

Version Microspline

Version N3W

Version XDR
