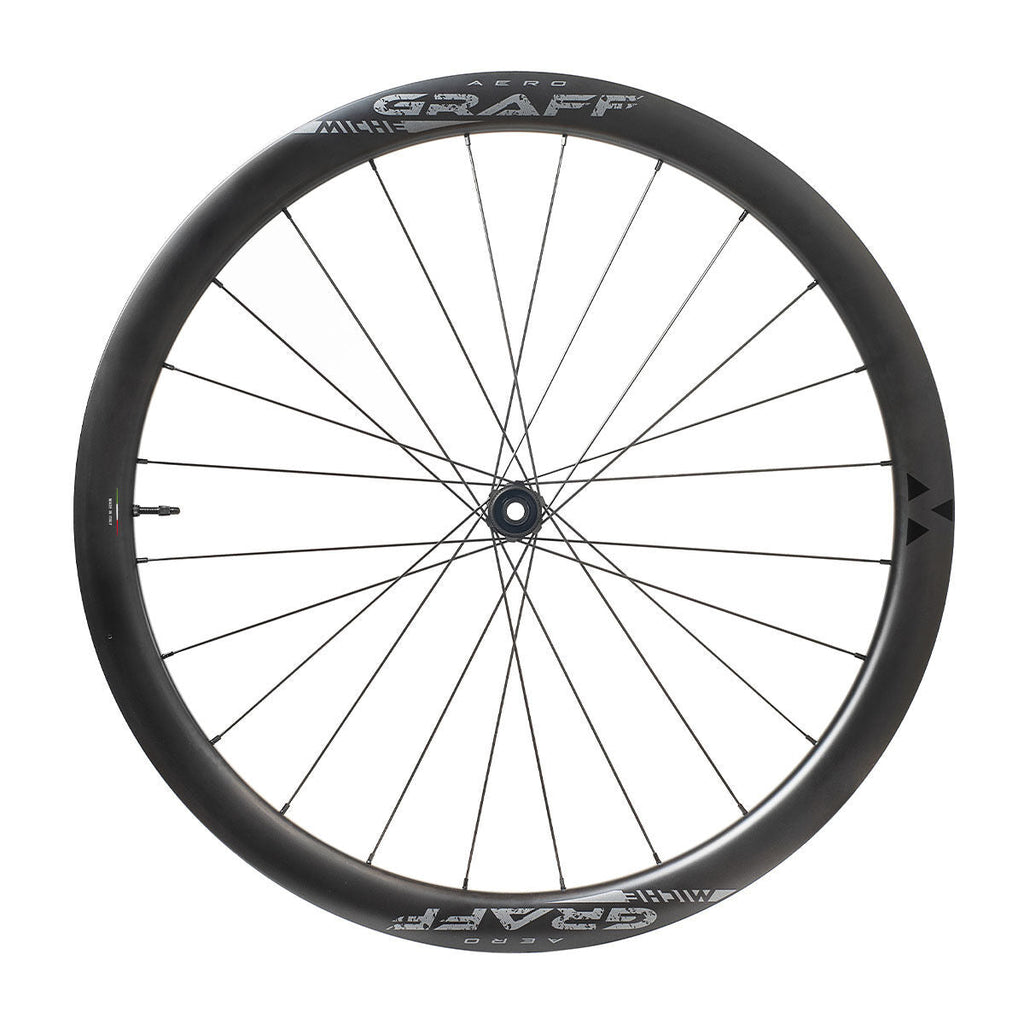

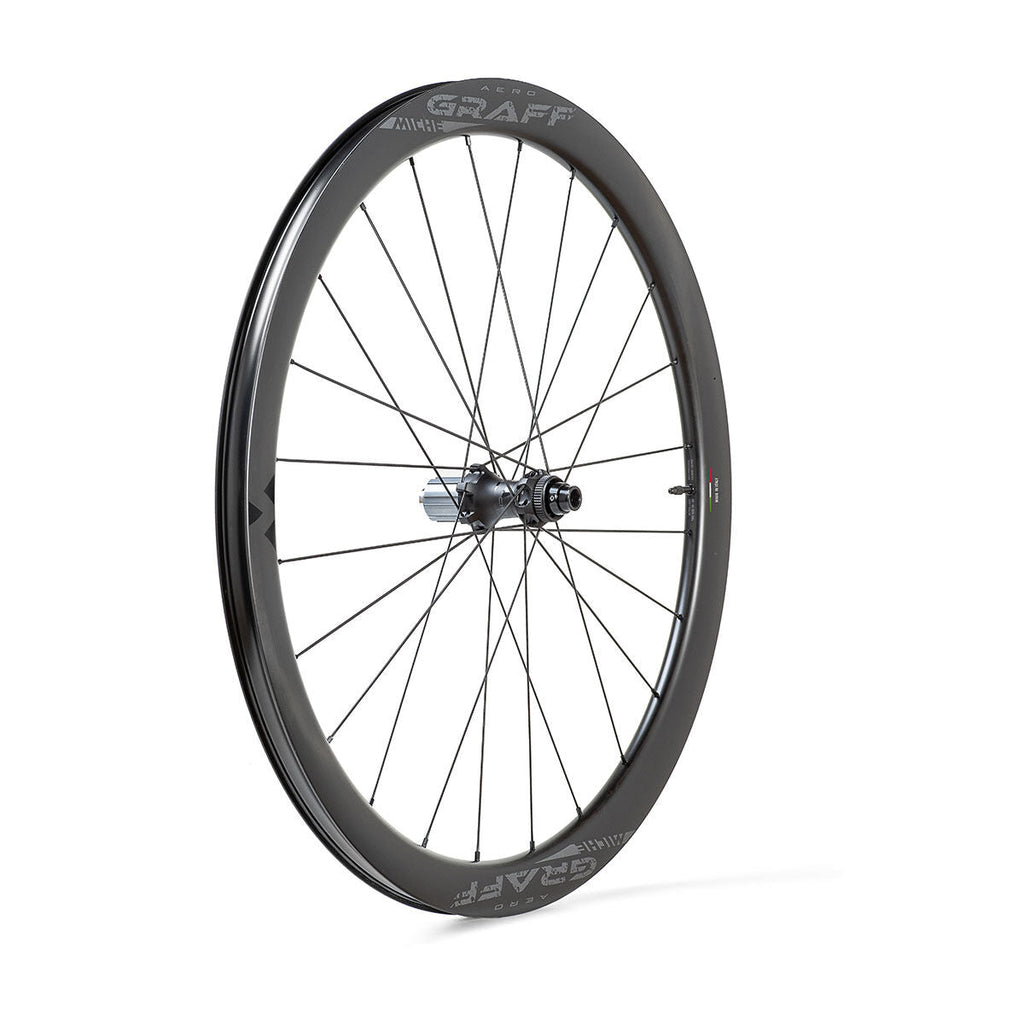

Miche Graff Aero wheels

Tested in official UCI Gravel races, the Graff Aero wheels are made with a T 700 carbon fibre rim with a 42mm symmetrical profile for top-level performance and strength. The 25mm internal width with hockless Tubeless Straight Side technology (ISO 5775-2 / hookless) ensures perfect adaptability to modern tubeless systems. AL 7075 - T6 body with steel hub carrier ensures superior durability and reliability.
The new CR hubs in AL 7075 - T6 support a wide range of compatibility, including SH MicroSpline, HG, XDR and N3W, while Miche steel bearings ensure flawless smoothness. The 12+12 Superlight double-butted aero spokes weigh a total of 1580 grams.

Technical specifications

• Hubs: AL 7075 T6
• Spokes: Black stainless steel / aero / straight head / double-butted
• Nipples: AL 7075 T6 / Black
• Manufacturer weight: 1580 g (+/- 3%)
• Assembly: 24 - 24 / Crossed
• Hubs: 100 - 142
• Bearings: MICHE® 2RS
• Drive train: RES 30 Rapid Engagement System
• Rim height: 42 mm
• Braking system: Disc Center Lock
• Rim material: Carbon fibre UD
• Freewheel body: AL 7075 T6 - Steel
• Rim size: 622x25 TSS
• Tyre size: 30mm ÷ 50mm
• Tyre type: Tubeless
• Stud diameter: 12mm

Version HG

Version Microspline

Version N3W

Version XDR
