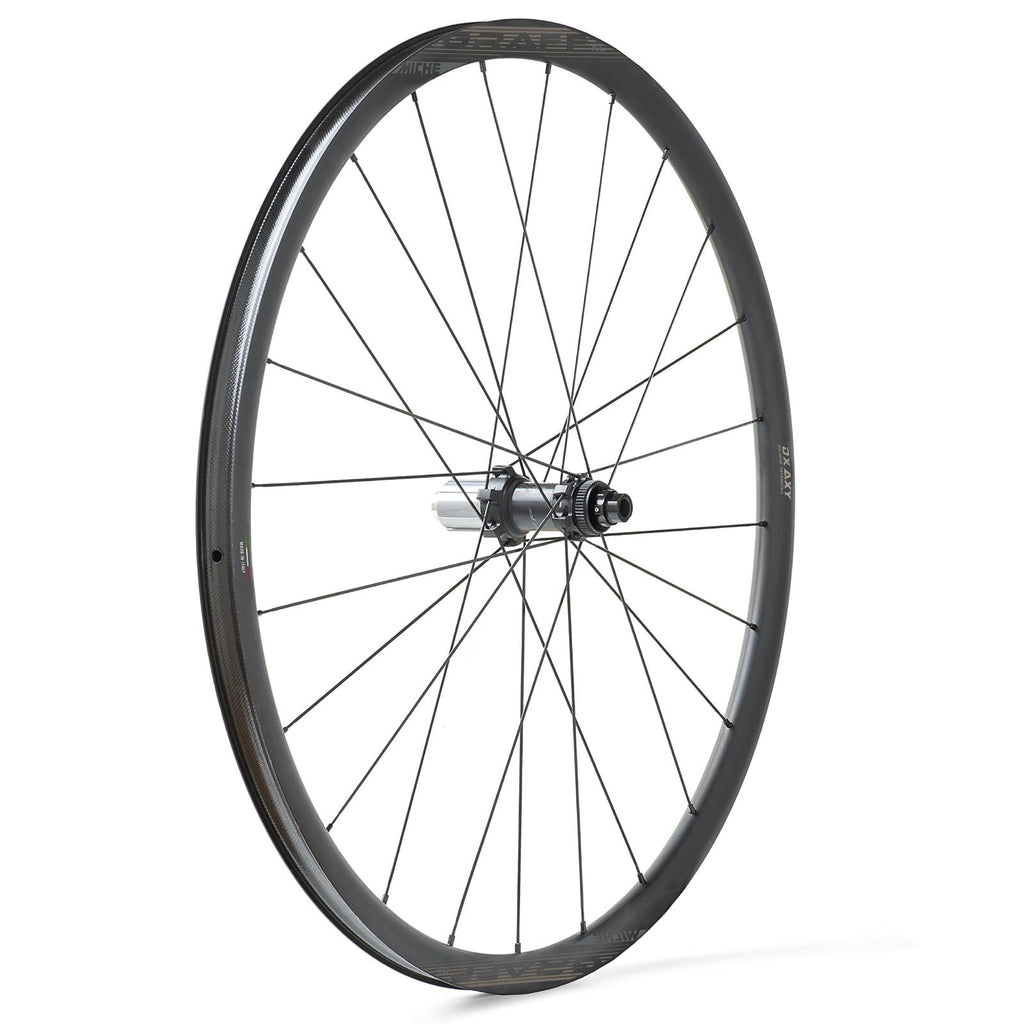

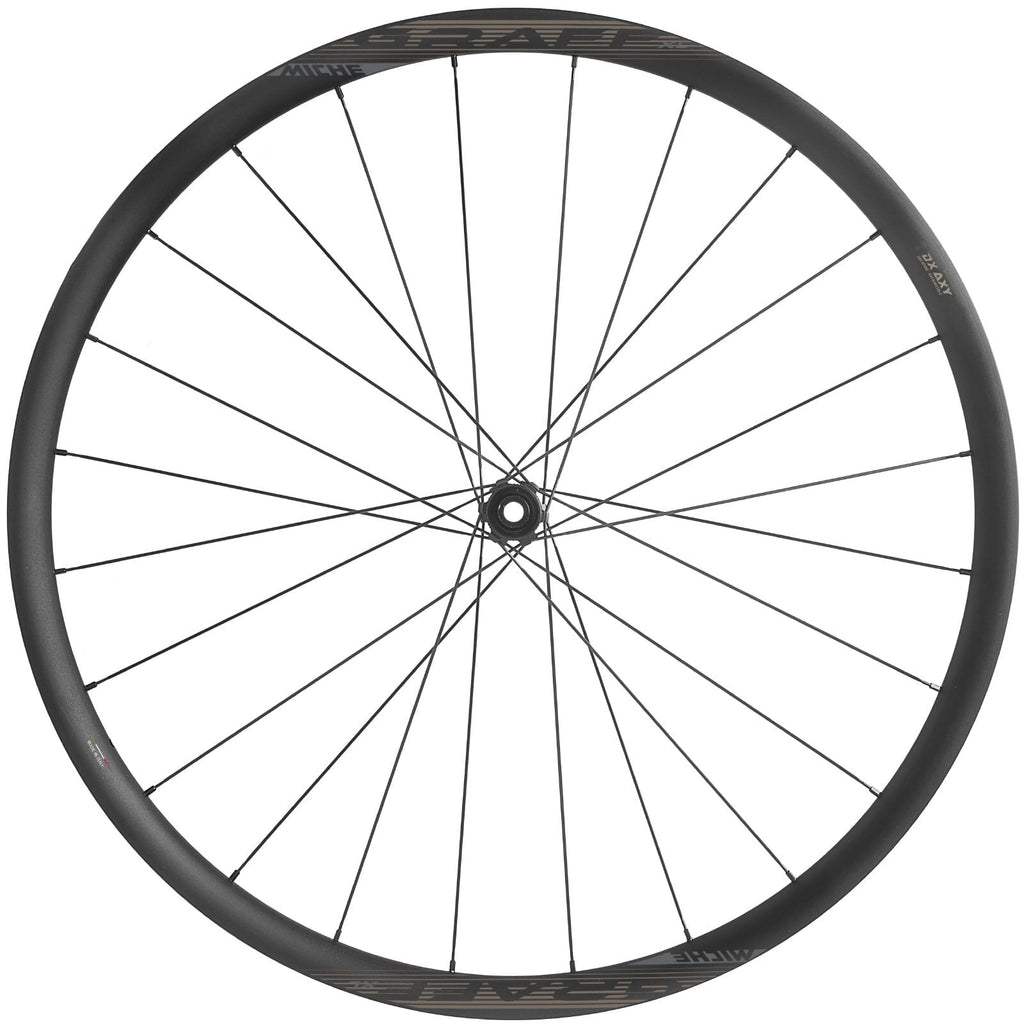

Miche Graff XL Tubeless Ready Axy wheelset

New rim 24C section with asymmetric profile 25mm, Tubeless Ready, with sandblast surface treatment, optimized for the use of tires from 35 mm to 50mm. Available as optional a tubeless kit assembled and guaranteed by QC Miche. The CNC machined AL7075 T6 hubs are designed for a 12+12 spokes pattern and assembled with high-smoothness sealed bearings to guarantee the best performance. Simplified adjustment of the hubs smoothness – also with the wheel mounted – through a special ring nut. To fix the brake disc rotor, use only the original Shimano lock ring for thru axle with 27mm hole.

Tech Specs

• Producer weight: 1735 (+/- 3%) (Tubeless Ready Kit + 20)
• BRAKING SYSTEM: Disc center lock
• Hubs materiaL: AL 7075 T6
• Bearings: MICHE sealed ball bearings
• Compatibility: CA N3W® - SH - XDR
• O.L.D.: 100 - 142 mm
• Front axle: 12 mm
• Rear axle: 12 mm
• Rims: Aluminum - Asymmetrical Axy

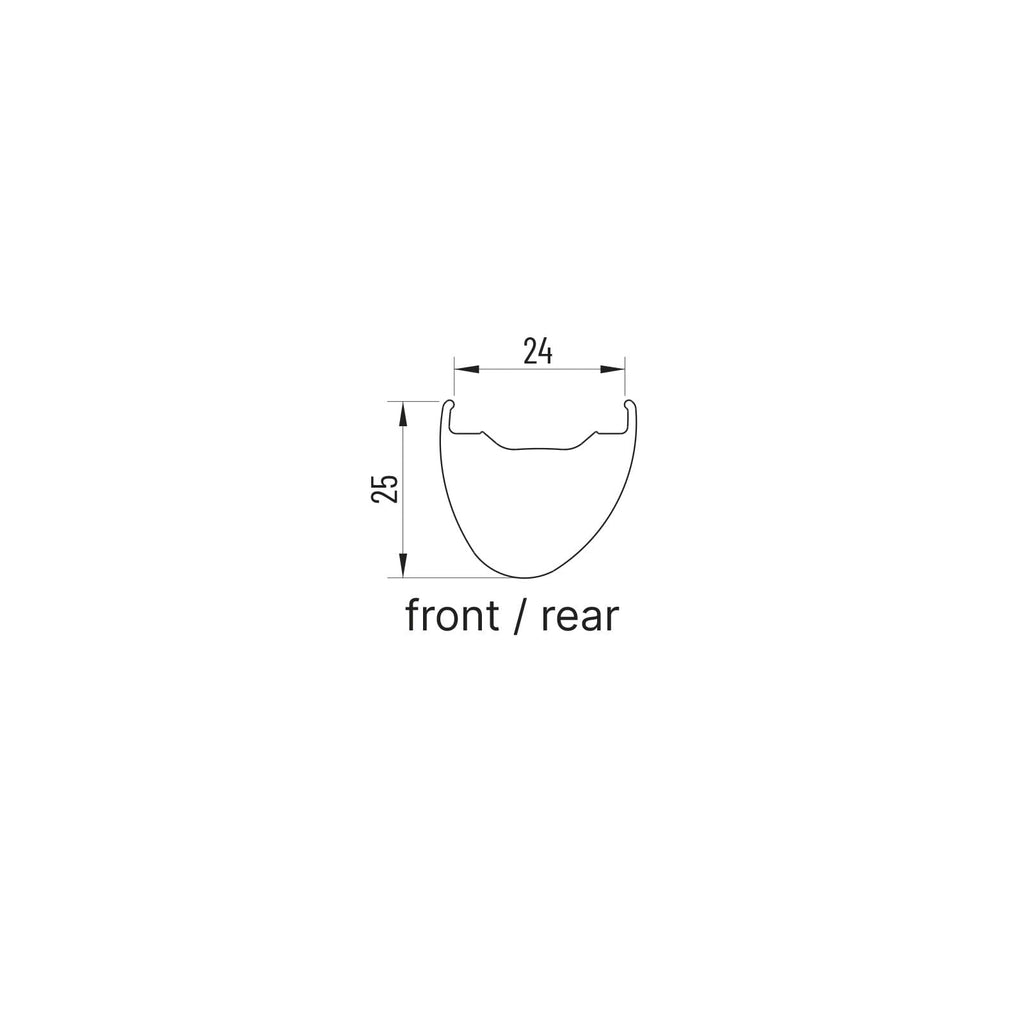

• Rims profile height: F 25 - R 25
• Spokes: Stainless steel black, flat, straight pull, double butted
• Nipples: AL 7075 T6 / Black
• Rim dimension: 622-24C
• Rim inner width: 24
• Tire type: Clincher & Tubeless
• Tire dimensions: 35mm ÷ 50mm
• Spokes assembly pattern: 24 - 24 / Cross
• ASTM classification: 2
• Max weight bike + user: 108 kg
• Compatibility with drivetrain: Clincher
• Wheelset includes: Instructions / Rim tape

Version CA

Version Microspline

Version N3W

Version SH

Version XDR
