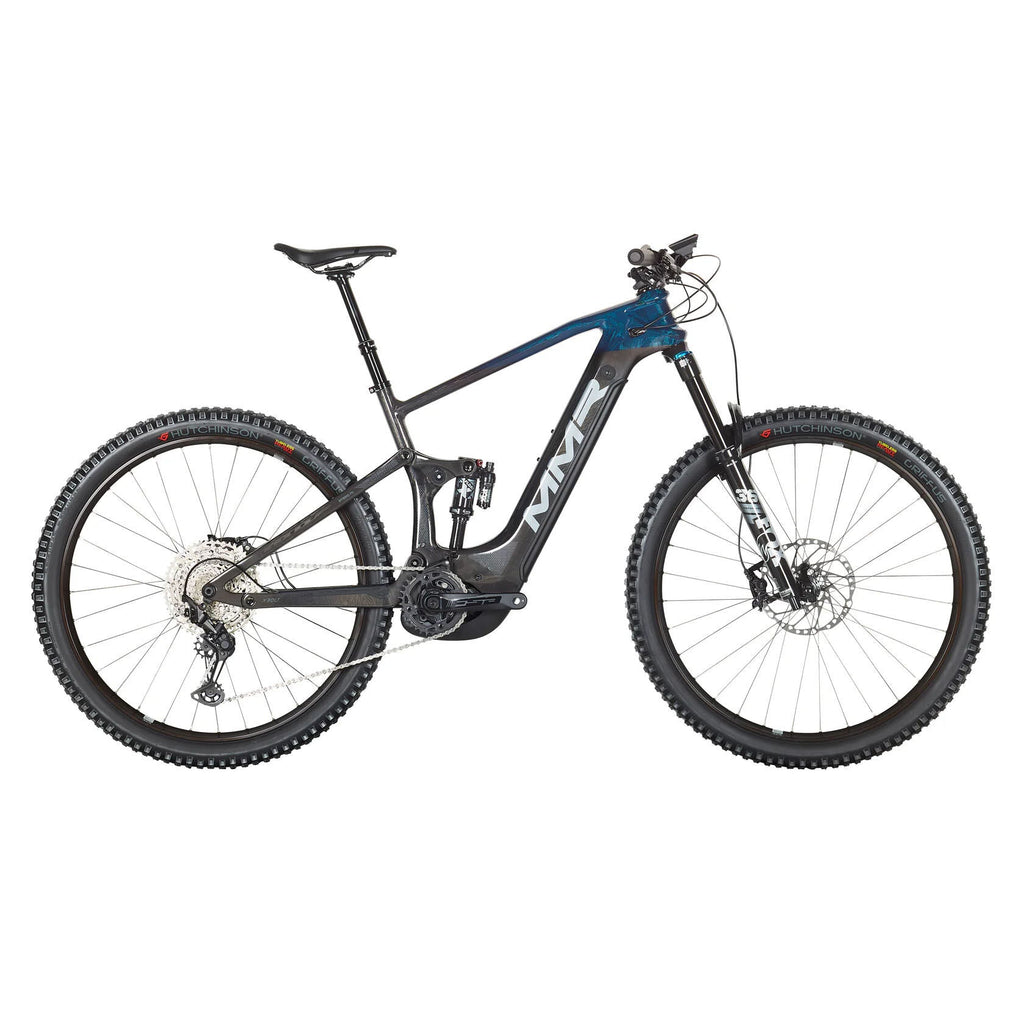

MMR X-bolt 140 30

Limits are there to be broken

The new X-BOLT is more energetic, more capable, and raises the bar even higher to take you places you've never been before. Robust and agile even on the most technical trails. Equipped with 140 mm fork and rear shock travel. The 4-bar rear suspension with a single pivot point in the chainstays ensures great sensitivity and independence of braking and acceleration forces.
Combined with the integrated, compact, and lighter Bosch PowerTube 625Wh battery, which can be integrated as an option with the Bosch 250Wh extender. Internal cable routing with frame entry at the front of the down tube.

Tech spec

• Frame: X-Bolt - G2 Carbon Concept Frame. Intermediate modulus carbon fibre. Several moulds. TA 12mm. Internal cable routing. Boost. Post Mount. Fully integrated battery. Head tube 1.5 Tapered
• Fork: Fox Performance 36 E-Bike 29 140mm
• Rear shock: Fox Float Performance E-Bike 140 Trunnion
• Front derailleur: Shimano XT M8100 SGS 12V
• Shifter: Shimano XT M8100 12V
• Brakes: Shimano XT M8120 203/180
• Crankset: FSA Alloy Forged 34T
• Cassette: Shimano Deore M6100 10/51 12V
• Chain: Shimano Deore M6100 12V
• Wheels: XCR-9800 HYBRID MT400 / MT510B Boost CL MS
• Tyres: Hutchinson Griffus 29 2.50 TL SideSkin
• Stem: Race Face Ride 35
• Handlebar: Race Face Turbine R35 800mm
• Seatpost: Race Face Affect R 125mm
• Saddle: San Marco GND Dynamic
• Motor: Bosch Performance Line CX Smart System
• Battery: Bosch Power Tube 625
• Display: Bosch Kiox 300

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
