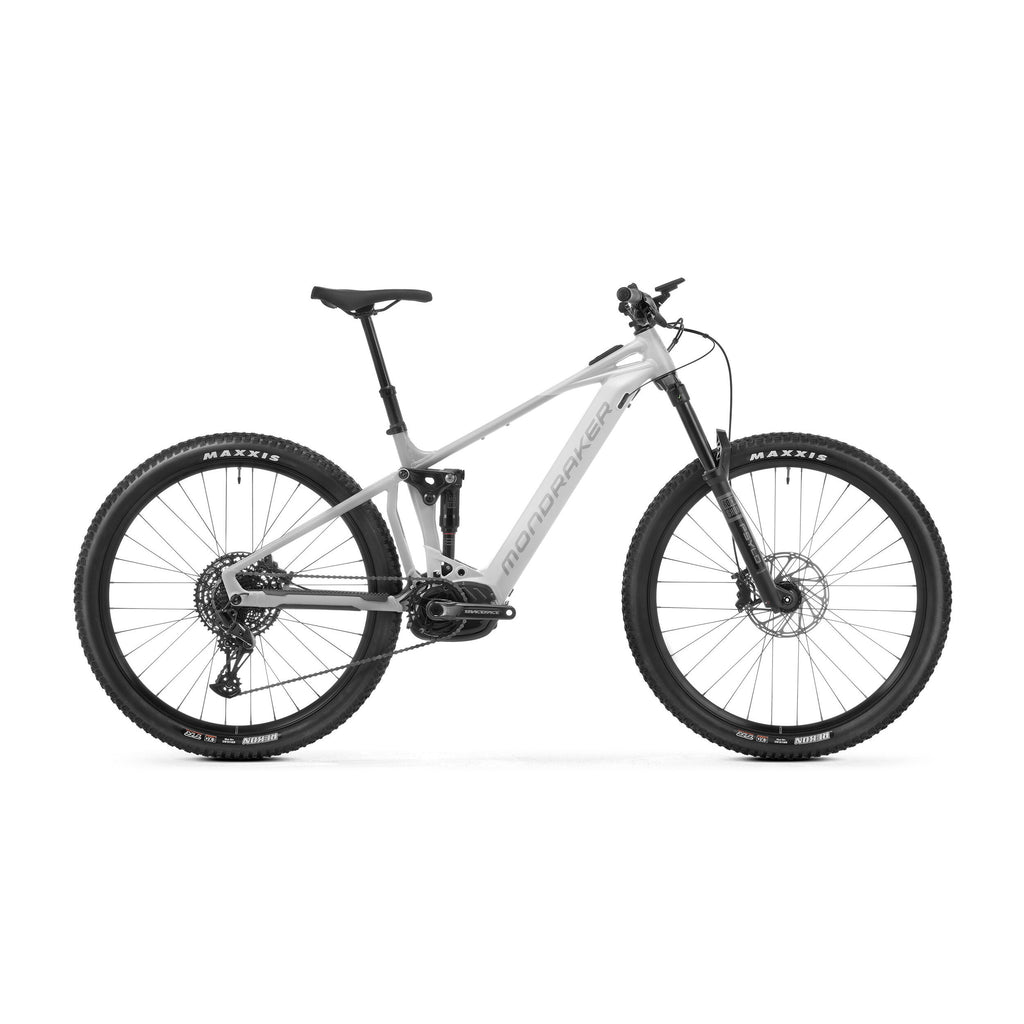

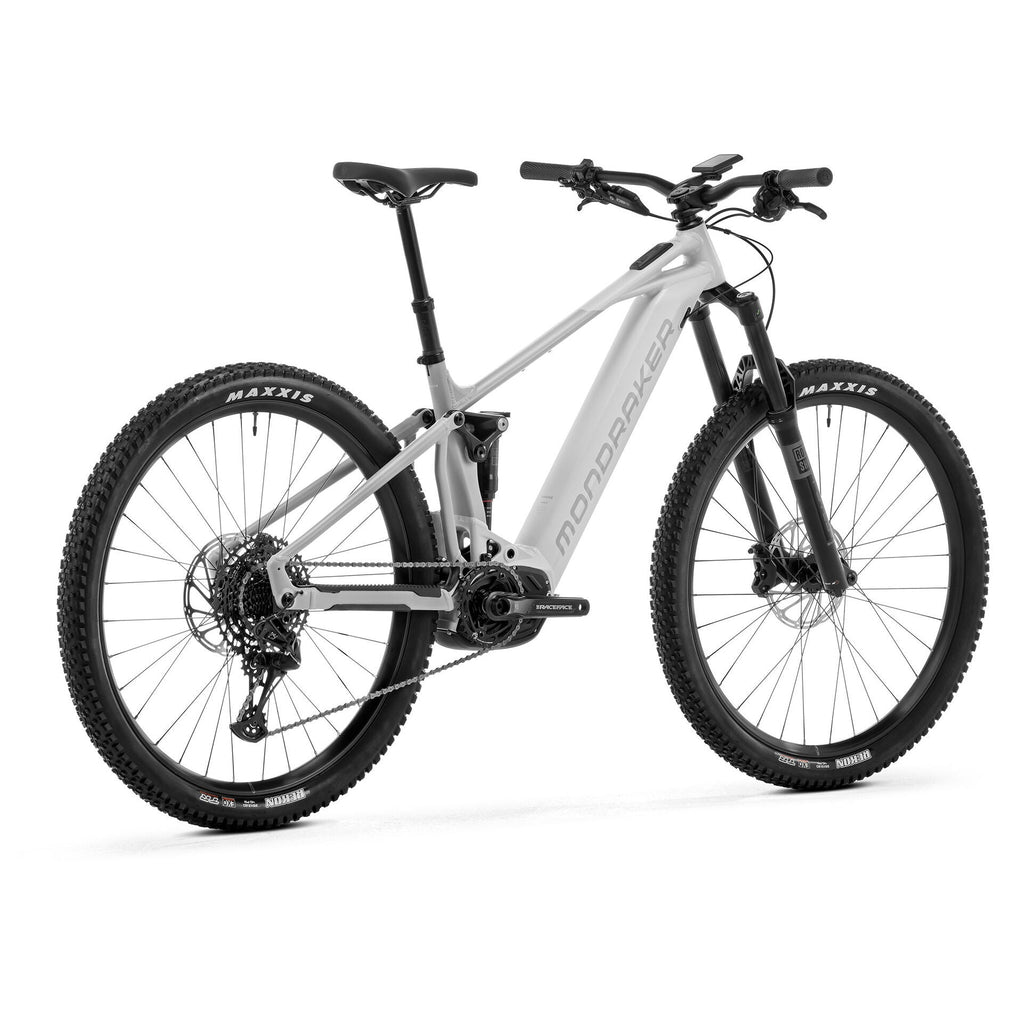

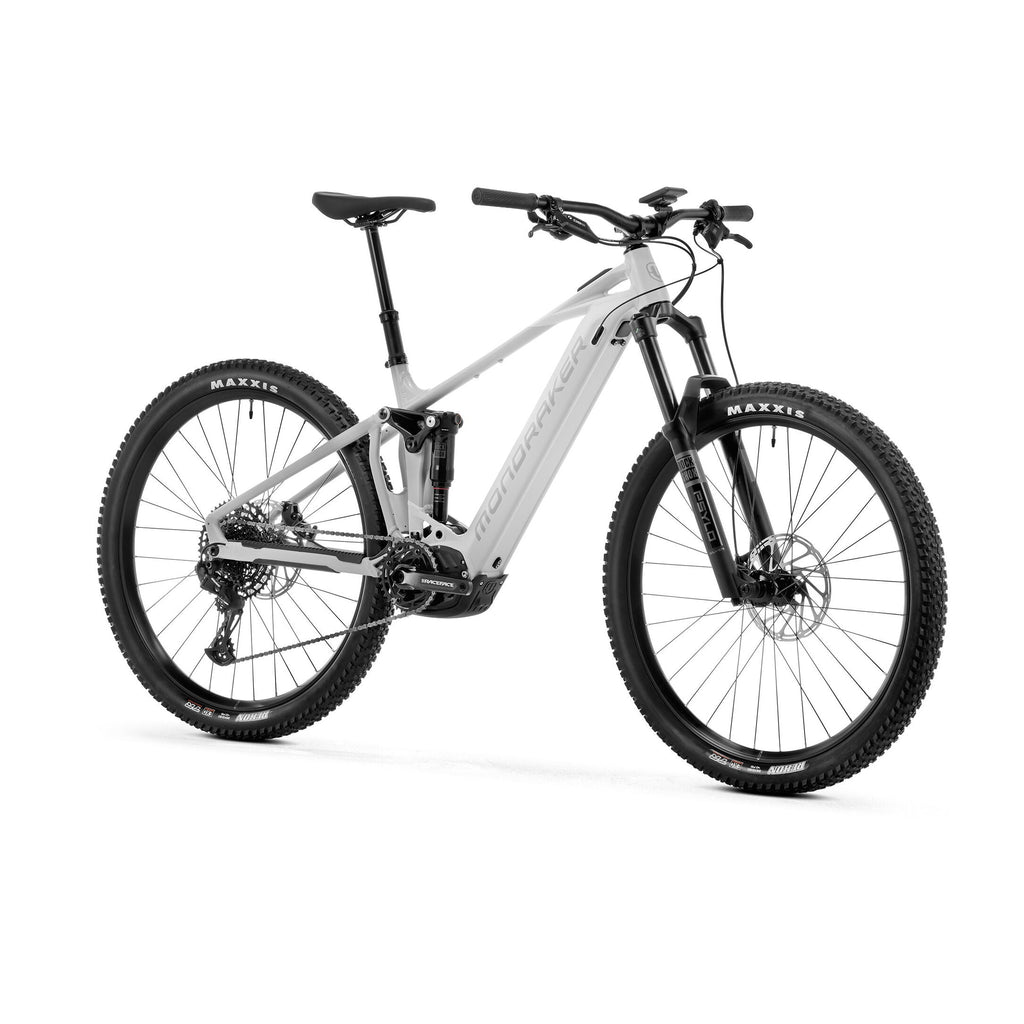

Mondraker Chaser 750

Much more than you imagine

Much, because the Stealth aluminum alloy frame houses a built-in 750Wh battery and the latest version of what is perhaps the most important motor on the market today: the Bosch CX. Much, because the Zero Suspension System offers 150mm of travel (with a 160mm fork). A lot, because you have three models to choose from, in addition to the brand new ONOFF components and Forward Geometry. The Chaser is our best and most accessible full suspension eMTB for anyone who wants to get started in the world of e-bikes.

Tech spec

• Frame: Chaser 6061 Alloy Stealth Evo, Zero Suspension System optimized for e-Bikes, 150 mm travel, Forward Geometry, removable internal battery, Boost 12x148 mm rear axle, tapered head tube, monoblock upper link, HHG internal cable routing, sealed MAX capacity bearings, oversized 17 mm axles, integrated dropout speed sensor, exclusive plastic motor covers, cushioned fender

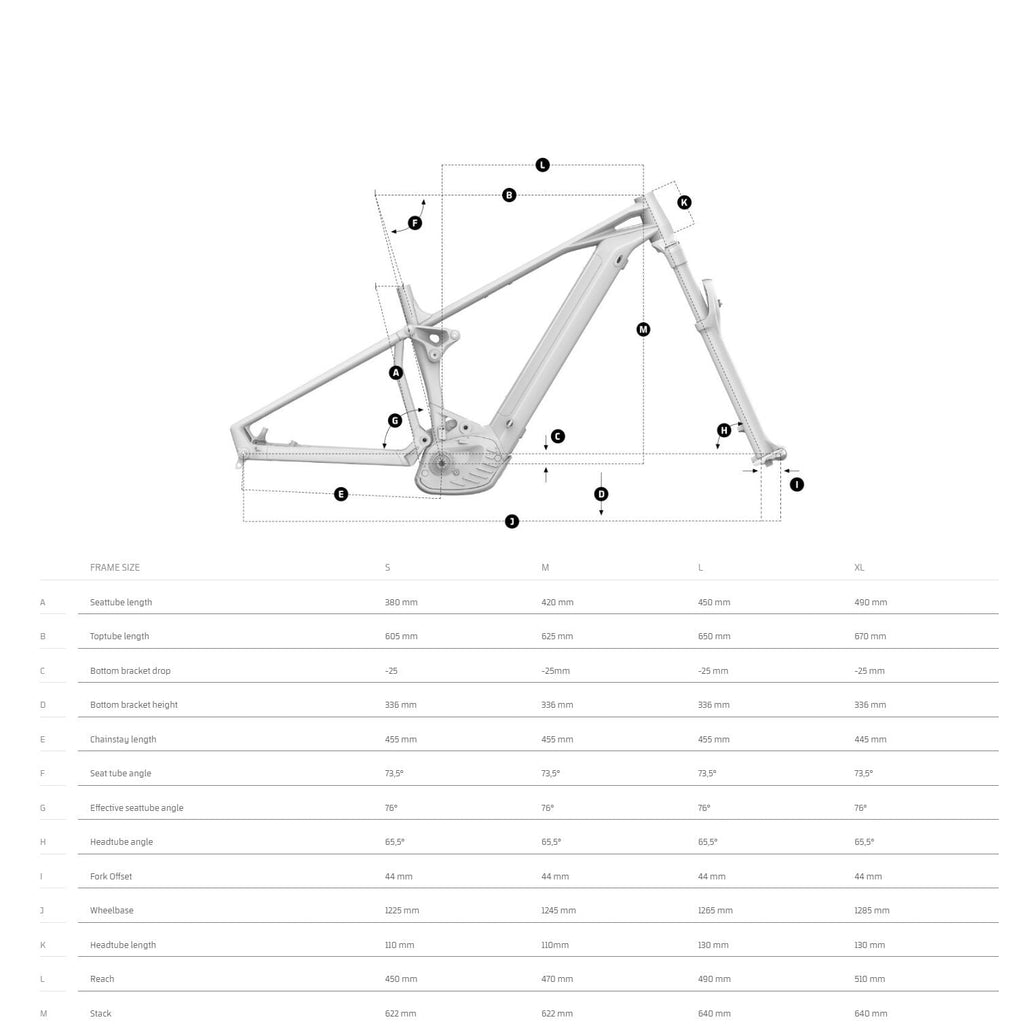

• Sizes: S: 380 mm / M: 420 mm / L: 450 mm / XL: 490 mm
• Shock absorber: RockShox Deluxe Select R Debonair, 205x65 mm. Settings: low speed extension, air preload. Trunnion upper mount, 25x10 mm lower bushings
• Shock absorber adjustment: Light compression, linear rebound, 1 Token
• Fork: RockShox Psylo Silver 29, 160 mm, motion control shock absorber, Solo Air, tapered head tube, Boost 15x110 mm axle, 35 mm steel stays, 44 mm offset. Settings: low-speed compression adjustment to lock, rebound, air preload
• Steering: ONOFF ZS44/ZS56, 1-1/8“, 1.5” head tube, sealed ACB bearings, upper 42x30x7x45ºx45º, lower 52x40x8x45ºx45º
• Stem: ONOFF S3 30 mm 0º, forged 6061 alloy, 31.8 mm bore
• Handlebar: ONOFF S3 1.0 6061 alloy, rise: 25 mm, width: 800 mm, backsweep 8º, upsweep 5º, 31.8 mm bore. Sizes L and XL: rise 1.5.
• Grips: ONOFF Beehive, 1 lock-on, 135 mm
• Seatpost: ONOFF Pija internal dropper, diameter 31.6 mm, 1X remote lever with bearing, size S: 140-115 mm (388-235 mm), size M: 160-135 mm (428-255 mm), size L: 180-155 mm (468-275 mm), size XL: 210-185 mm (528-305 mm)
• Saddle: E-bike MDK black
• Front brake: Sram DB8, 4-piston caliper, Centerline 200 mm one-piece brake disc with 6 IS bolts, organic pads with steel backing
• Rear brake: Sram DB8, 4-piston caliper, Centerline 200 mm one-piece brake disc with 6 IS bolts, organic pads with steel backing
• Brake levers: Sram DB8, reach adjustment with tools, lever pivot bushings
• Rims: Mavic E-CrossRide 29, internal width 30 mm, welded, PFP, tubeless ready, 28 spokes
• Spokes: Mavic J-bend double thickness, contactless lacing
• Front hub axle: Mavic, Boost 15x110 mm, 6 IS bolts
• Rear hub axle: Mavic, Boost 12x148 mm, ID360 ratchet system, 6 IS bolts, XD freehub
• Front tire: Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
• Rear tire: Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
• Cranks: Race Face Aeffect-R e-bike, 160 mm
• Chainring: Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
• Chain: Sram SX Eagle, 12s, Powerlock
• Rear derailleur: Sram SX Eagle, 12s
• Shifters: Sram SX Eagle shifter, 12s, X-Actuation 1:1, single click
• Cassette: Sram PG-1210, 11-50T, 12s
• Dropout: Sram UDH
• Producer's weight: 25.3 kg
• Display: Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller
• Motor: New Bosch Performance Line CX (25 km/h) SMART SYSTEM (BDU 384Y)
• Battery: Bosch Powertube 750 Wh

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
