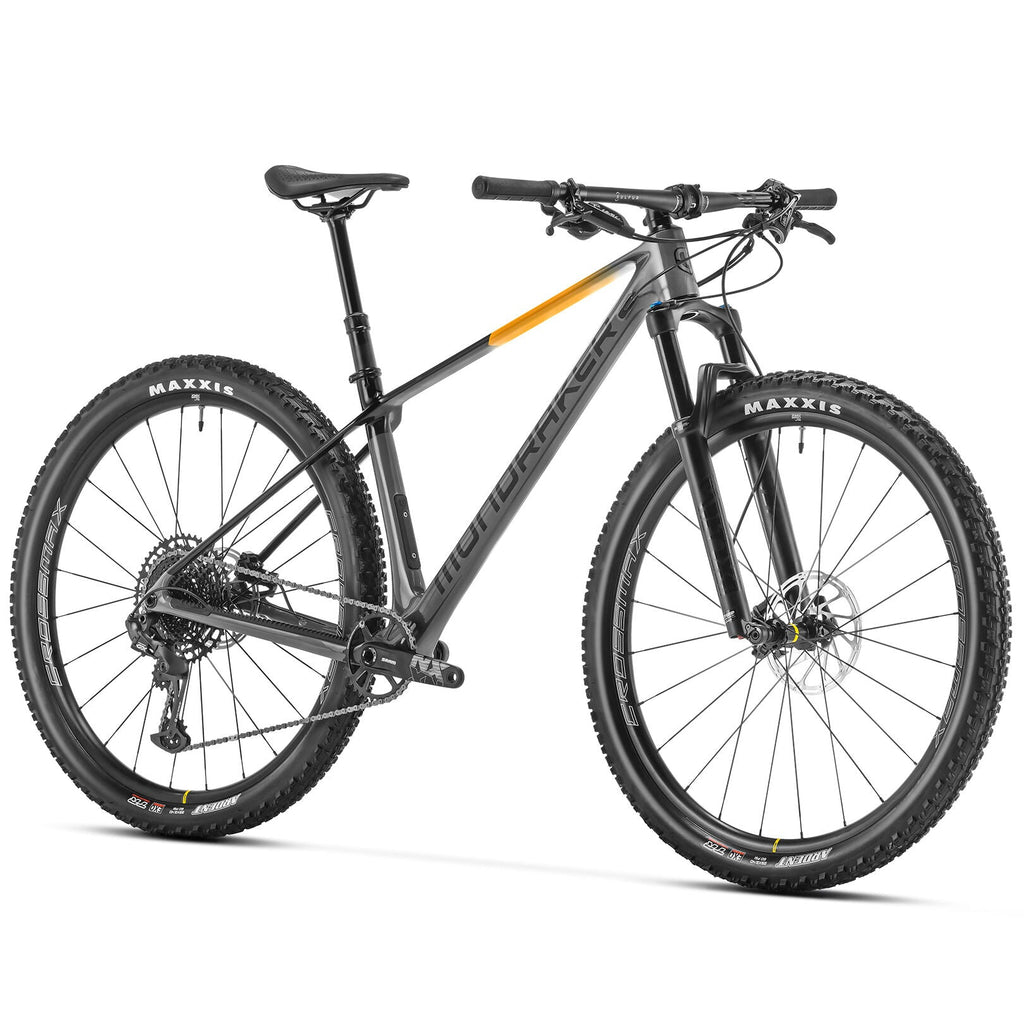

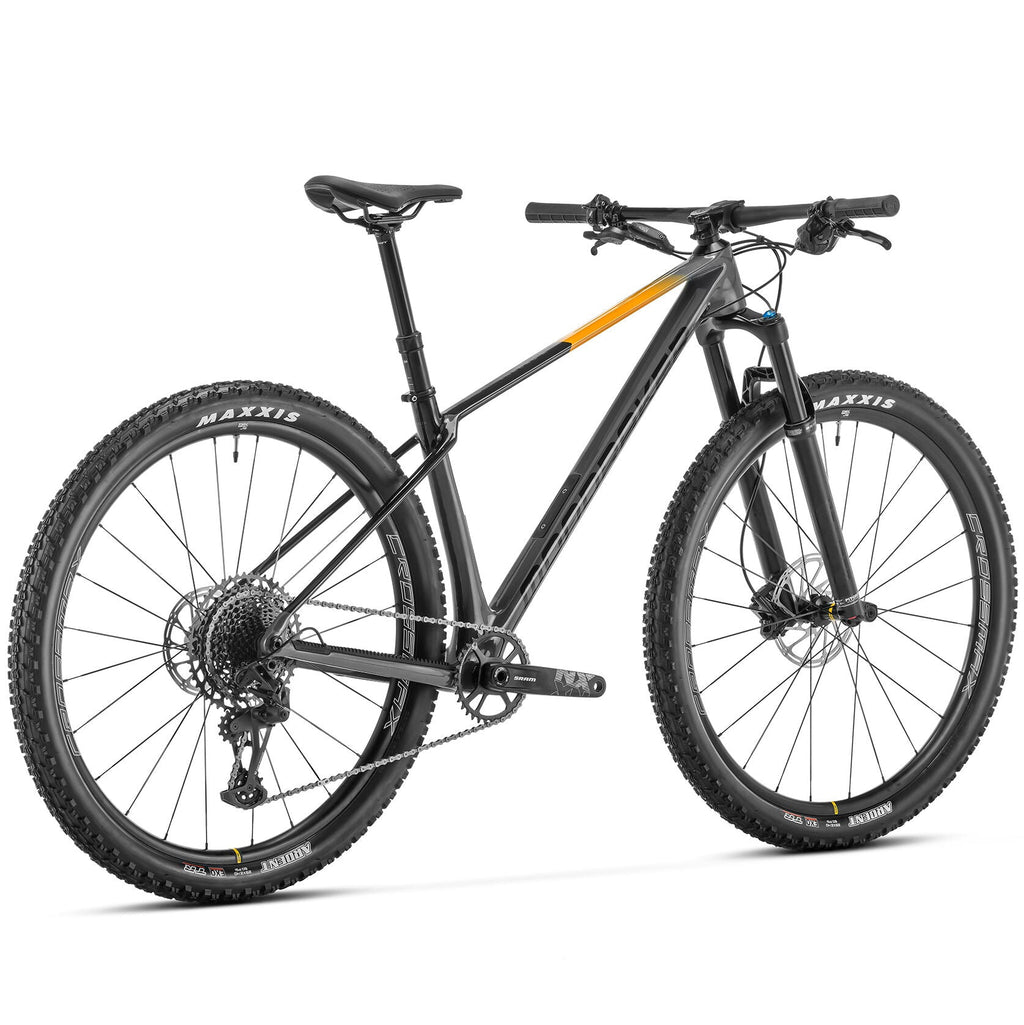

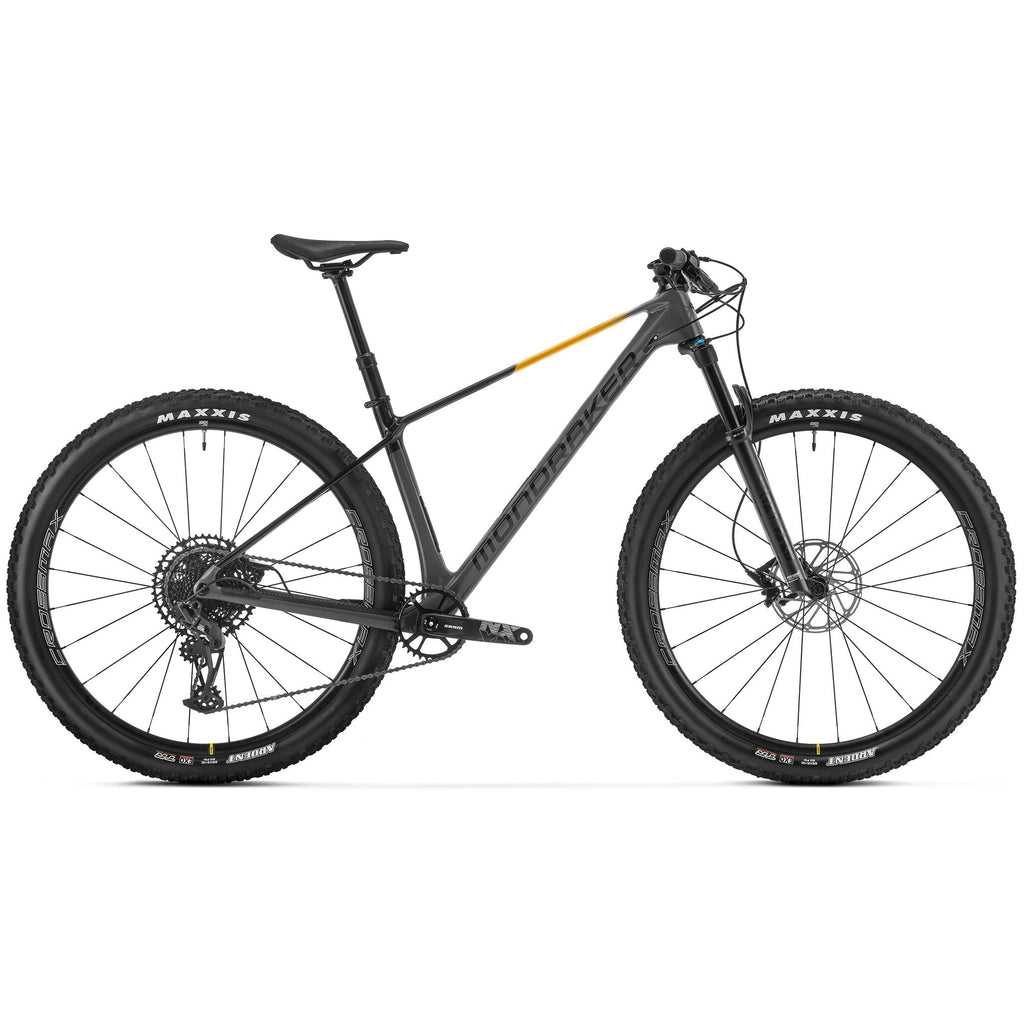

Mondraker Chrono Carbon DC R

The mid-range build comes with a Fox 32 29 Float GRIP EVOL Rhythm fork with remote lock-out, SRAM GX Eagle chainset, SRAM Level T brakes, and ONOFF Pija dropper post (with between 120mm and 170mm of travel depending on frame size) and Maxxis Ardent 29x2.4” EXO tyres.

Tech Specs

• Frame: Chrono 29 Stealth full Carbon, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible,
• Fork: Fox 32 29 Float GRIP EVOL Rhythm, 120mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: remote 2pos Push-to-unlock, low-speed rebound, air preload
• Fork remote: Fox single pull
• Headset: Onoff internal IS52 1-1/2 head tube, ACB sealed bearings, top 52x42x7 45°x45°, bottom 52x42x7 45°x45°
• Stem: MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm
• Handlebar: Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
• Grips: Onoff Twin, 1lock-on, 135mm
• Seatpost: Onoff Pija dropper internal, diameter 31.6mm, Universal lever, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
• Saddle: Mondraker MDK Series, SRX, steel rail
• Front brake: Sram Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad
• Rear brake: Sram Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
• Brake lever: Sram Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings
• Rims: Mavic CrossMax 29, 25mm internal width, welded rim, hookless, tubeless ready, 24 spokes
• Spokes: Mavic straight-pull double butted, contactless lacing
• Front hub: Mavic, Boost 15x110mm, IS 6 bolts
• Rear hub: Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, HG freehub
• Front tire: Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead
• Rear tire: Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead
• Crankset: Sram NX Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 55
• Rings: 34T, steel, X-Sync 2
• Bottom bracket: Sram DUB BSA, sealed bearings, 73mm
• Chain: Sram SX Eagle, 12s, Powerlock
• Rear derrailleur: Sram GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
• Shift levers: Sram Trigger NX Eagle, 12s, X-Actuation 1:1
• Casette: Sram PG-1230, 11-50T, 12s
• Derailleur hanger: Sram UDH
• Producer's weight: 12,1 kg

Producer's weight: Manufacturer's note: Specifications are subject to change without notice based on component availability. Images are for illustrative purposes only.
