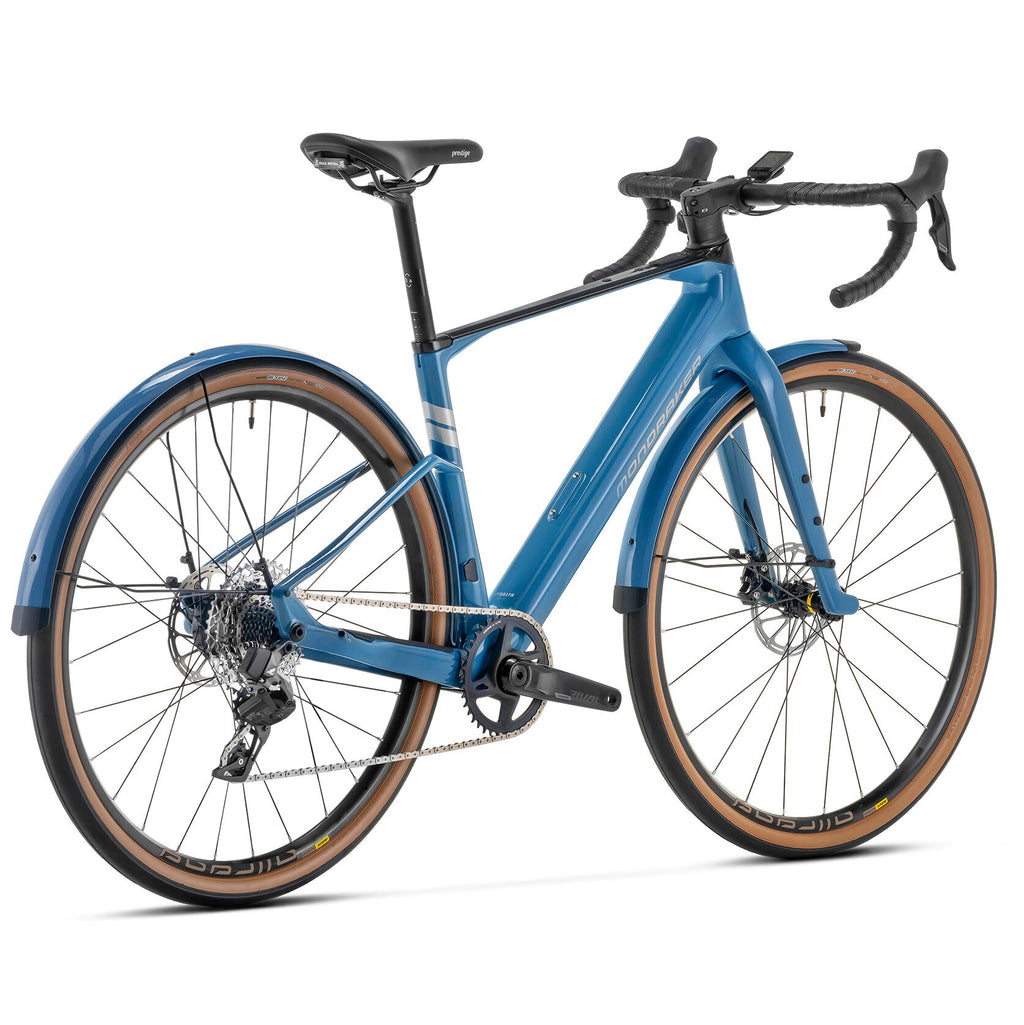

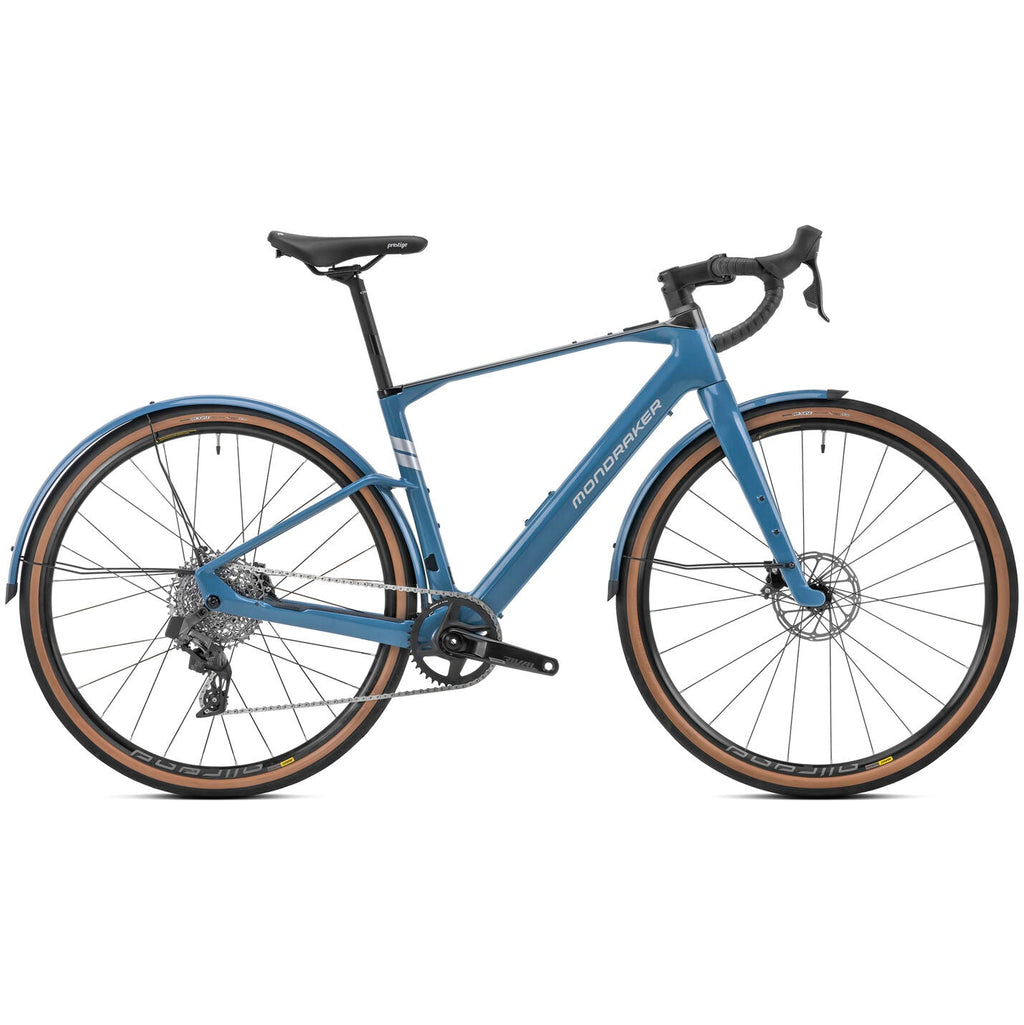

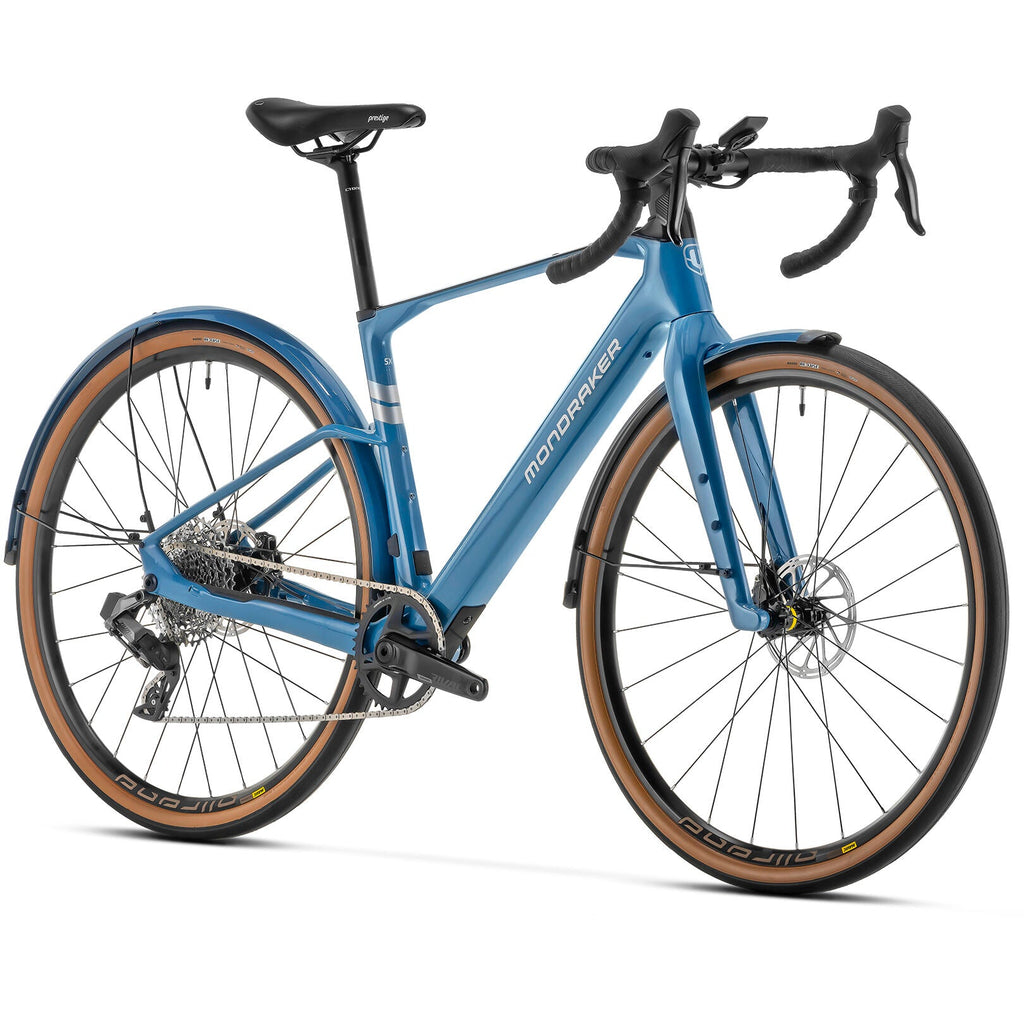

Mondraker Dusty SX RR

The Dusty SX RR is a bike designed for urban use but with a gravel adventure soul, classified as an ‘Urban Cross’: perfect for daily commutes on asphalt, but also for excursions on light dirt roads.

Tech Specs

• Frame: e-Gravel Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor.
• Fork: Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
• Headset: OnOff e-gravel tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
• Stem: OnOff e-gravel 6061 T6 Alloy, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm L size: 80mm, XL size: 90mm
• Handlebar: OnOff gravel 0º bar flare. Width 440mm all sizes
• Grips: Barium gravel dark grey
• Seatpost: OnOff Barium gravel microadjust diameter 27.2mm, length 400mm
• Saddle: Selle Royal Prestige 139mm
• Front brake: SRAM Rival Etap AXS 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
• Rear brake: Sram Rival Etap AXS, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
• Brake lever: Sram Rival, contact point adjustment, tooled reach adjust, plastic shift lever, LFRT brake lever
• Rims: Mavic Allroad Disc, UST, 22mm internal width, hookless, infinity hubs, 24 spokes front, 28 spokers rear
• Spokes: Mavic Steel double butted flat spokes
• Front hub: Mavic, 12x100mm, IS 6 bolts
• Rear hub: Mahle X20 Drive Unit, XDR freehub
• Front tire: Maxxis Re-fuse 700x40, tubeless ready, dual compound, MaxxShield EXO protection, 60 TPI, folding bead, light tan wall
• Rear tire: Maxxis Re-fuse 700x40, tubeless ready, dual compound, MaxxShield EXO protection, 60 TPI, folding bead, light tan wall
• Crankset: SRAM Rival 1 GLS Wide, S: 170mm, M: 172,5mm, L: 172,5mm, XL: 175mm.
• Rings: Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide,
• Bottom bracket: Mahle DUB pressfit, sealed bearings
• Chain: Sram Rival, 12s, Powerlock
• Rear derrailleur: Sram Rival XPLR Etap AXS 12s
• Shift levers: Sram Rival Etap AXS 12s, X-Actuation 1:1, single click
• Casette: Sram XG-1251 10-44T, 12s
• Derailleur hanger: Mondraker M076
• Others: Front and rear custom aluminum e-gravel dedicated fenders. Optional external battery: Mahle e185Wh
• Producer's weight: 13,9 kg
• Display: Pulsar One Wireless
• Motor: Mahle X20 Drive Unit: Battery: Mahle X20 IX350Wh

Manufacturer's note: Specifications are subject to change without notice based on component availability. Images are for illustrative purposes only.
