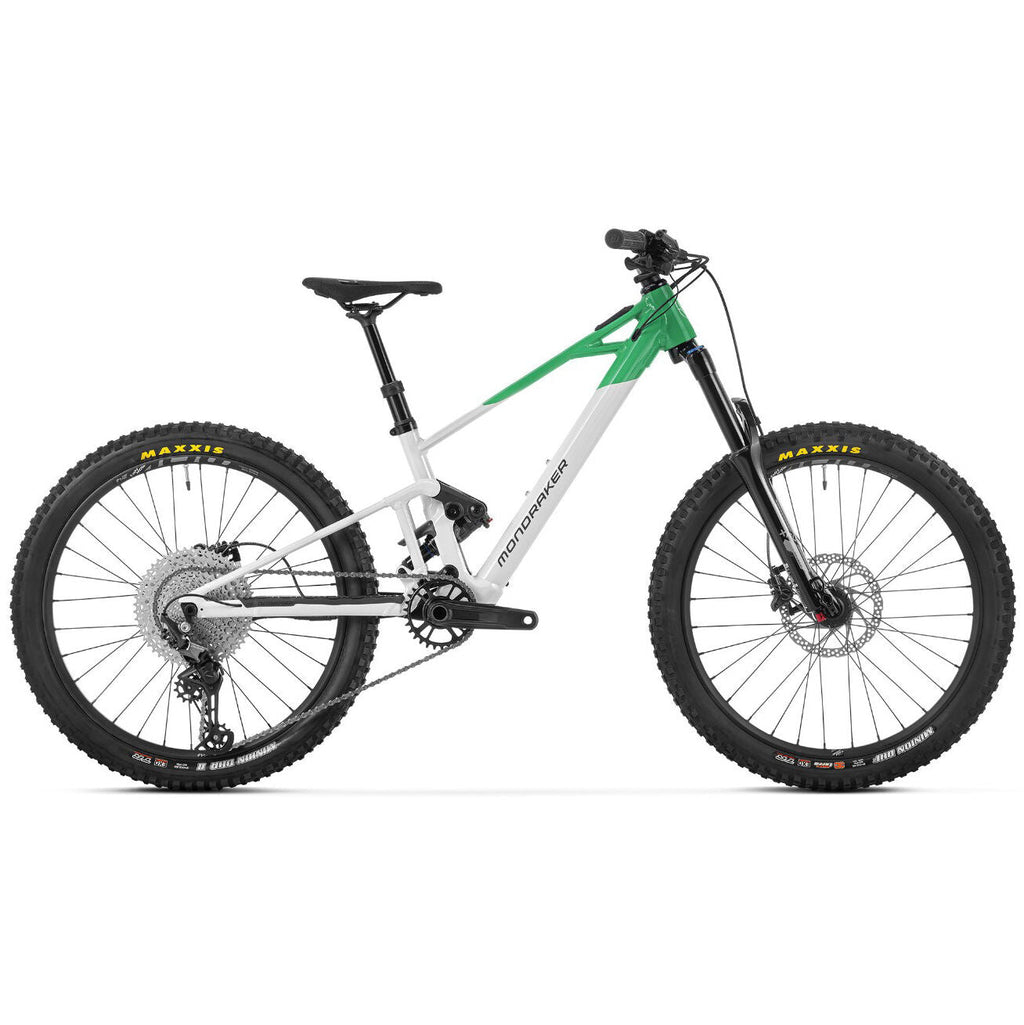

Mondraker F-Play 24 2026

F-Play. ebikes that help you grow

If you want your little-ones to get better at mountain biking you’ll need a bike that helps them do just that. That’s why we’ve completely redesigned our F-Play range, making them unarguably the best two-wheeled investment ever when it comes to smiles per mile. We’ve gone all-in, leveraging adult-bike tech to design the best kids bikes out there.

Ebike power, normal feel
The new F-Play range has been developed in conjunction with the F-Trick range to make them ride as near as possible to a non-ebike: light, agile and responsive. To that end they share the same kinematic, Updated Zero Suspension System, suspension travel and a frame design that make them almost indistinguishable. The F-Play have a minimalist frame design with a stylised downtube which contains the 250Wh battery. The frame design includes the trademark Mondraker ‘window’ where the headtube meets the downtube and top tube, as well as being manufactured from Alloy Stealth Evo throughout.

F-Play also comes with the latest iteration of the zero system
It’s not only the F-Trick that gets the Updated Zero Suspension System. The new F-Play enjoys the same new Zero system as the NEAT and F-PODIUM. This update delivers faster acceleration, more feedback and a faster response to your pedalling input. Simply put, each pedal stroke counts for more. This updated version of the Zero system also offers further benefits such as:

• Improved initial sensitivity and trail compliance.
• A more progressive kinematic.
• A lighter system with improved weight to stiffness ratio.
• More compact with less unsprung weight.
• Greater seatpost insertion depth

For-real mountain biking
The new F-Play range blurs the line between a kids’ bike and a bike for adults. As with the rest of the KIDS ranges, the F-Play comes with 2.4” tyres, an ONOFF Pija dropper post, a 30mm stem complimentary to Forward Geometry and a 1x chainset with a UDH mech hanger. It’s by far the closest thing to an adults’ ebike available in our kids ranges. It uses the same tech, the same technical resources and even the same components so that your little-ones can feel what you feel when out on their bikes.

Tech Specs

• Frame: F-Play 24 6061 Alloy Stealth evo, hydroformed tubing, Zero Suspension System, 120mm travel, one piece bolt-on upper link, integrated internal non-removable battery, Tapered head tube, HHG internal cable
• routing, BSA bottom bracket, 1x drivetrain compatible
• Rear shock: X-Fusion 02PRO R, 165x42.5mm. Settings: low-speed rebound, air preload. Trunnion top, 50x8mm bottom bushings
• Shock settings: A-Tune light compression
• Fork: X-Fusion Slant RC 26, 120mm, air spring, tapered steerer tube, 15x100mm axle, 34mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload
• Headset: Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º
• Stem: Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore
• Handlebar: MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore
• Grips: Onoff Beehive, 1lock-on, 135mm
• Seatpost: X-Fusion Manic LC internal, diameter 31.6mm, 1X Remote lever, 100mm
• Saddle: SDG Fly JR
• Front brake: Shimano MT501, RT56 180mm IS 6 bolts rotor, resin pads
• Rear brake: Shimano MT501, RT56 180mm IS 6 bolts rotor, resin pads
• Brake lever: Shimano MT501, servo wave, alloy lever
• Rims: MDK-HP1 24 TLR, 25mm internal width, tubeless ready, 32 spokes
• Spokes: CN round stainless steel
• Front hub: DA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts
• Rear hub: Mahle-Ebikemotion X-30, HG freehub
• Front tire: Maxxis Minion DHF 24x2.4, Tubeless ready, 3C MAXX TERRA, EXO Protection, 60TPI, folding bead
• Rear tire: Maxxis Minion DHR II 24x2.3, Tubeless ready, EXO Protection, 60TPI, folding bead
• Crankset: Prowheel DMJ-CR094S-TT, Direct mount chainring, 150mm
• Rings: 30T, steel
• Bottom bracket: Prowheel PW-MBB73 73mm
• Pedals: SDG Slater JR
• Chain: Shimano Deore M6100, 12s, Quick-link
• Rear derrailleur: Shimano Deore M6100, SGS, Shadow+, 12s
• Shift levers: Shimano Deore M6100, Rapid Fire Plus, 12s
• Casette: Sunrace CSMZ600, 11-51T
• Derailleur hanger: Mondraker M077
• Producer's weight: 17,2 kg
• Display: iWoc ONE Head Unit
• Motor: Mahle X-30, Drive Unit
• Battery: Mahle IX250Wh

Manufacturer's note: Specifications are subject to change without notice based on component availability. Images are for illustrative purposes only.
