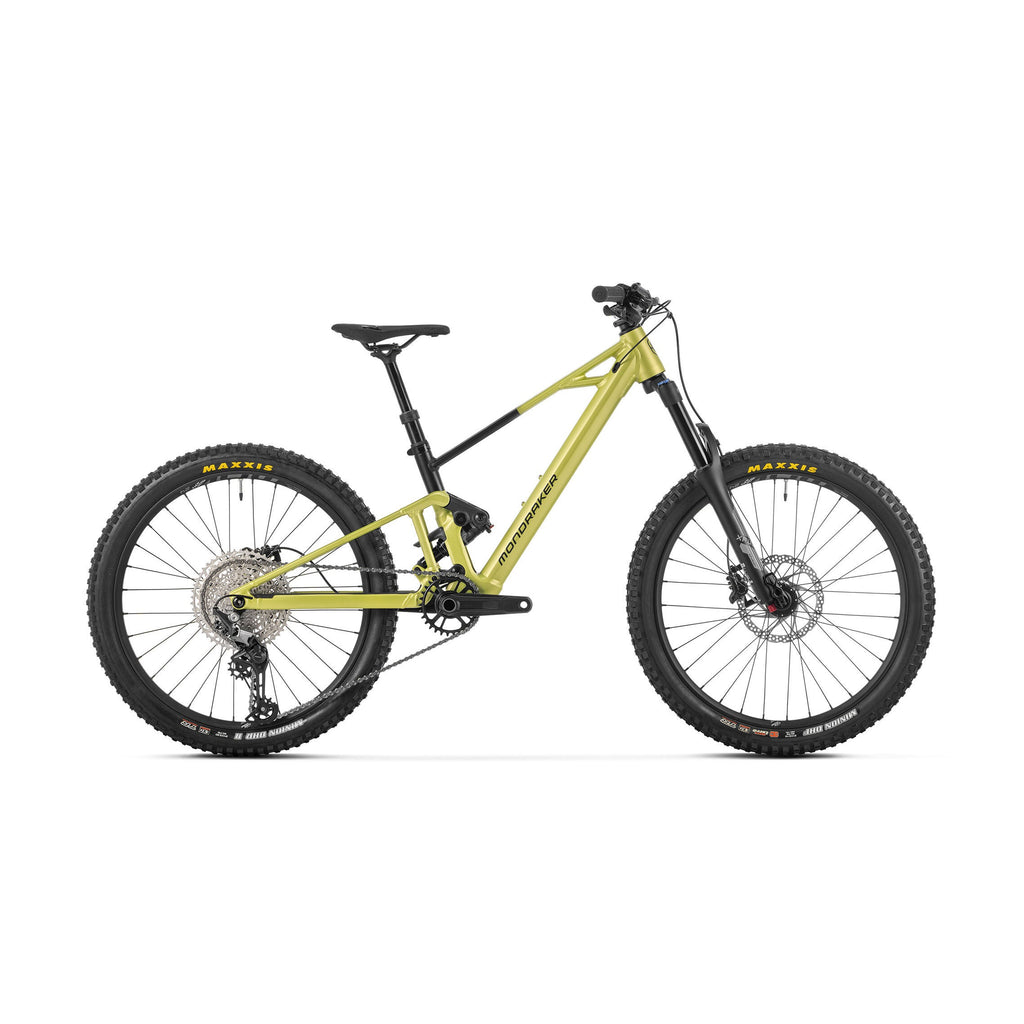

Mondraker F-Trick 24 2026

Double suspension, double fun

The new F-Trick double suspension range has so much in common with high-end adult models that it's hard for us to call it a children's range. Forward Geometry, Zero Suspension System, 120 and 130 mm travel, dropper seatpost, 12x148 axle, 30 mm handlebar stems, 4-piston brakes, and 2.4" tires. Phew, saying it often takes our breath away...

A bike like the big ones
Yes, at first glance you'll have a hard time telling whether the new F-Trick range is a kids' or adult bike. The frame's design language is completely inherited from the latest models such as NEAT or F-PODIUM, with minimalist tubes and straight lines that soften the aesthetics to achieve the Mondraker personality in a compact format. The icing on the cake is that it has the same Forward Geometry as the adult models, but adapted to the needs of children with details such as 30 mm stems.

Updated Zero with more travel than ever
One of the strengths of the new F-Trick range is that both the 24“ and 26” models are equipped with the updated Zero suspension system. An update to the Zero system, making it the third range to adopt it after the recent Neat and F-Podium. This privilege is accompanied by an increase in travel compared to the previous Factor range it replaces, going from 100mm of rear travel to 120mm on the 24“ model and from 120 to 130mm on the 26” model. The Mondrake fork now has 120 mm on the 24“ model (100 mm on the Factor 24”) and 140 mm on the 26“ model (120 mm on the Factor 26”).

Tech spec

• Frame: F-Trick 24 Stealth Evo 6061 alloy, hydroformed tubes, zero suspension system, 130 mm travel, one-piece bolted upper link, 12x148 mm rear axle, UDH, 73 mm BSA bottom bracket, HHG internal cable routing, dedicated 1x drivetrain design.
• Sizes: One size: 300 mm
• Shock: X-Fusion 02PRO R, 165x42.5 mm. Adjustments: low-speed rebound, air preload. Upper trunnion, lower bushings 50x8 mm
• Shock adjustment: A-Tune light compression
• Fork: X-Fusion Slant RC 26, 120 mm, air spring, tapered steerer tube, 15x100 mm axle, 34 mm aluminum stanchions, 41 mm offset. Adjustments: lockout, rebound, air preload
• Steering: Onoff ZS44/ZS56, 1-1/8“, 1.5” head tube, sealed ACB bearings, upper 42x30x7x45ºx45º, lower 52x40x8x45ºx45º
• Stem: Onoff S3 30 mm 0º, forged 6061 alloy, 31.8 mm bore
• Handlebar: MDK XC 1.0, 6061 alloy, rise: 25 mm, width: 680 mm, backsweep angle 9º, upsweep angle 5º, 31.8 mm bore
• Grips: Onoff Beehive, 1 lock-on, 135 mm
• Seatpost: X-Fusion Manic LC internal, diameter 31.6 mm, 1X remote lever, 100 mm
• Saddle: SDG Fly JR
• Front brake: Shimano MT501, 6-bolt IS RT 56 180 mm brake disc, resin bearings
• Rear brake: Shimano MT501, 6 bolts, IS RT 56 180 mm brake disc, resin bearings
• Brake levers: Shimano MT501, servo wave, alloy lever
• Rims: MDK-XP1 24 TLR, internal width 25 mm, tubeless ready, 32 spokesSpokes: Round stainless steel CN
• Front hub axle: DA210FS02, 15x100 mm, cone and cup bearings, 6 IS bolts
• Rear hub axle: DA207R 12x148 mm, cone and cup bearings, 6 IS bolts, HG freehub
• Front tire: Maxxis Minion DHF 24x2.4, Tubeless ready, 3C MAXX TERRA, EXO protection, 60TPI, folding bead
• Rear tire: Maxxis Minion DHR II 24x2.3, Tubeless ready, EXO protection, 60TPI, folding bead
• Cranks: Prowheel DMJ-CR094S-TT, direct mount chainring, 150 mm
• Chainring: 30T, steel
• Bottom bracket: Prowheel PW-MBB73 73 mm
• Pedals: SDG Slater JR
• Chain: Shimano Deore M6100, 12s, Quick-link
• Rear derailleur: Shimano Deore M6100, SGS, Shadow+, 12s
• Shifters: Shimano Deore M6100, Rapid Fire Plus, 12s
• Cassette: Shimano Deore M6100, 10-51T Hyperglide+, 12s
• Dropout: UDH
• Producer's weight: 13.8 kg

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
