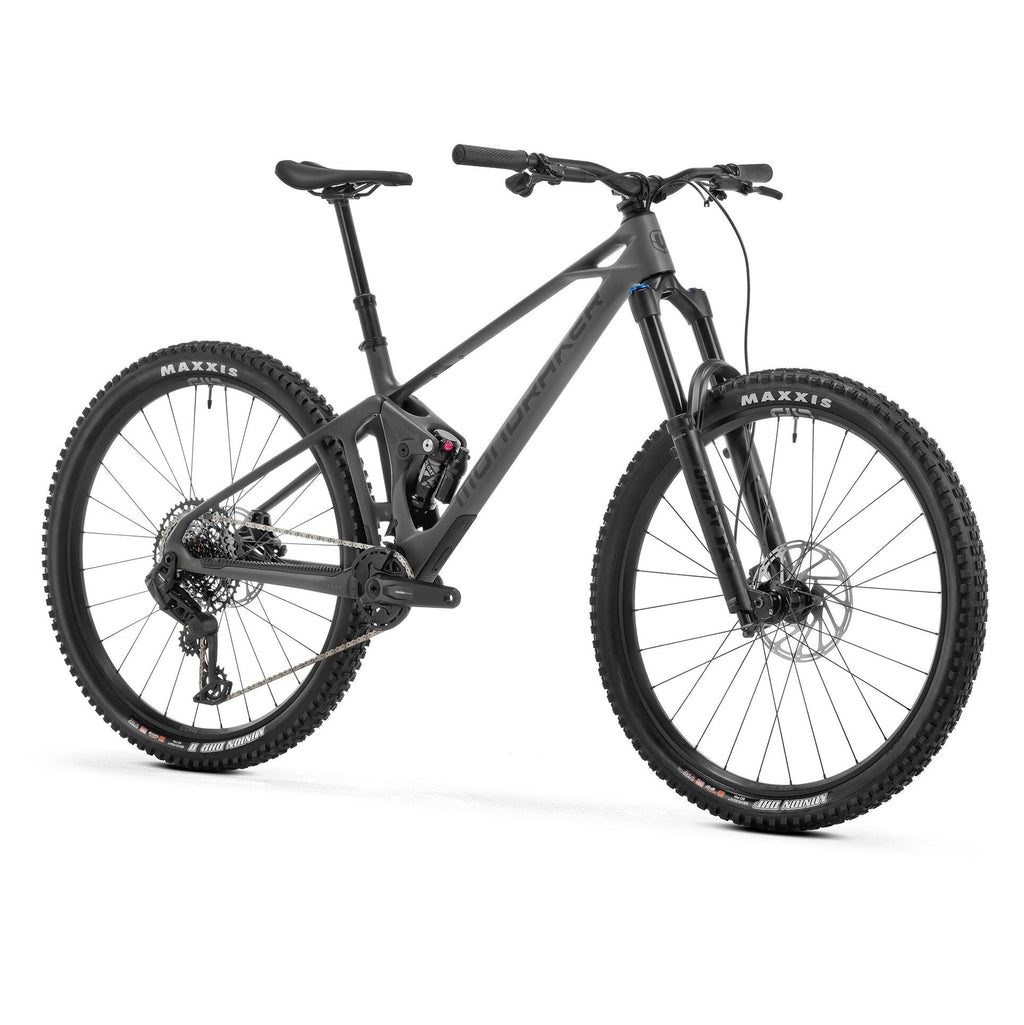

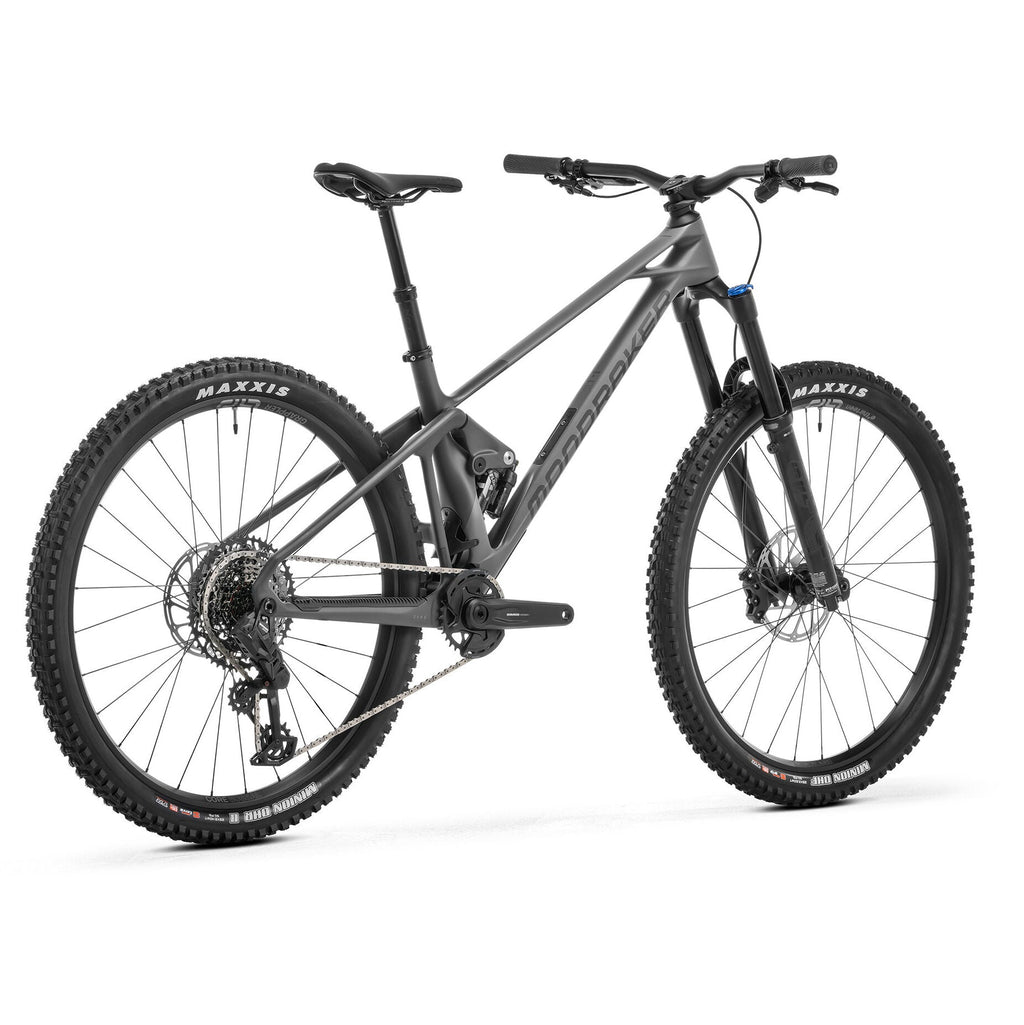

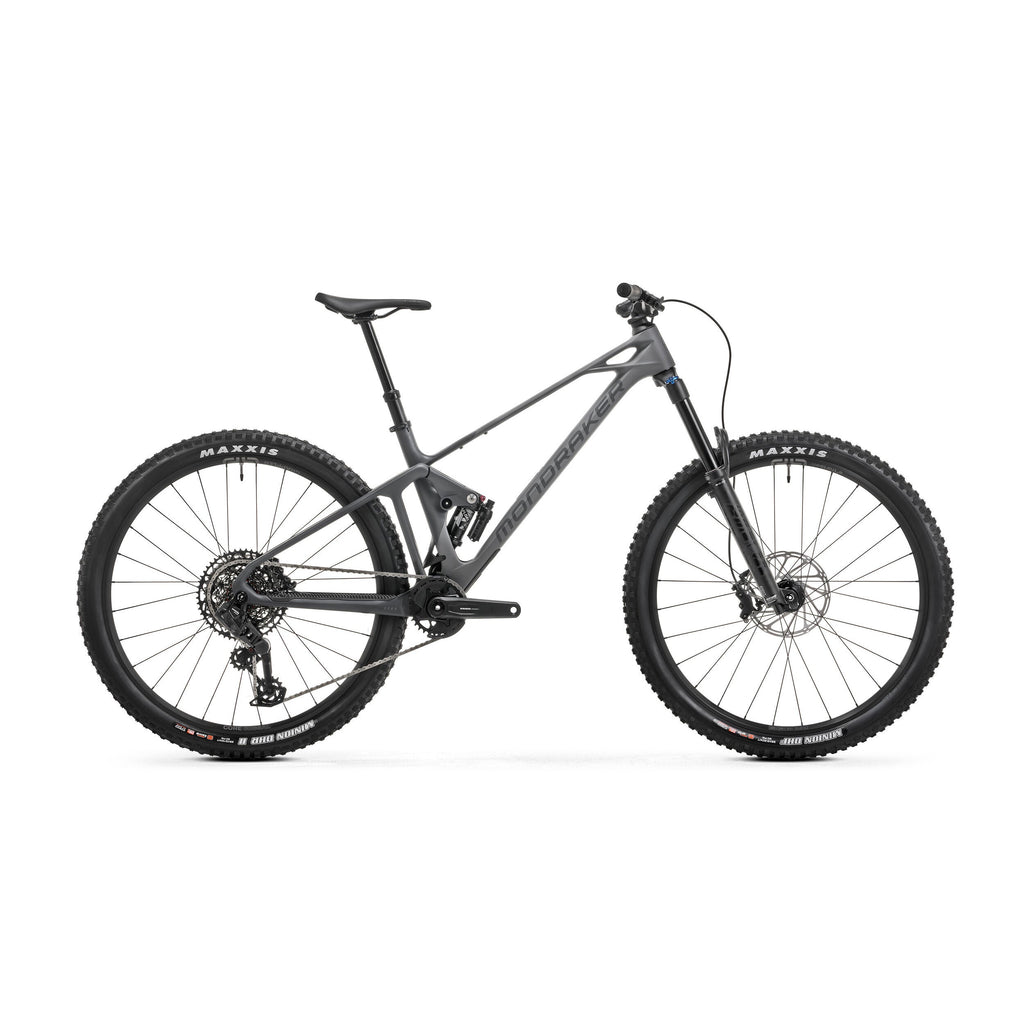

Mondraker Foxy Carbon R 2025

Dominate every trail, without compromise.

The Mondraker Foxy Carbon R is pure adrenaline on two wheels: light, aggressive and ready to push you beyond your limits. Its Stealth Air Full Carbon frame, combined with Mondraker's Forward Geometry, offers surgical precision.

Tech spec

• Frame: Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150 mm travel, Forward Geometry, monobloc carbon upper link, Boost 12x148 mm rear axle, tapered head tube, 73 mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors.

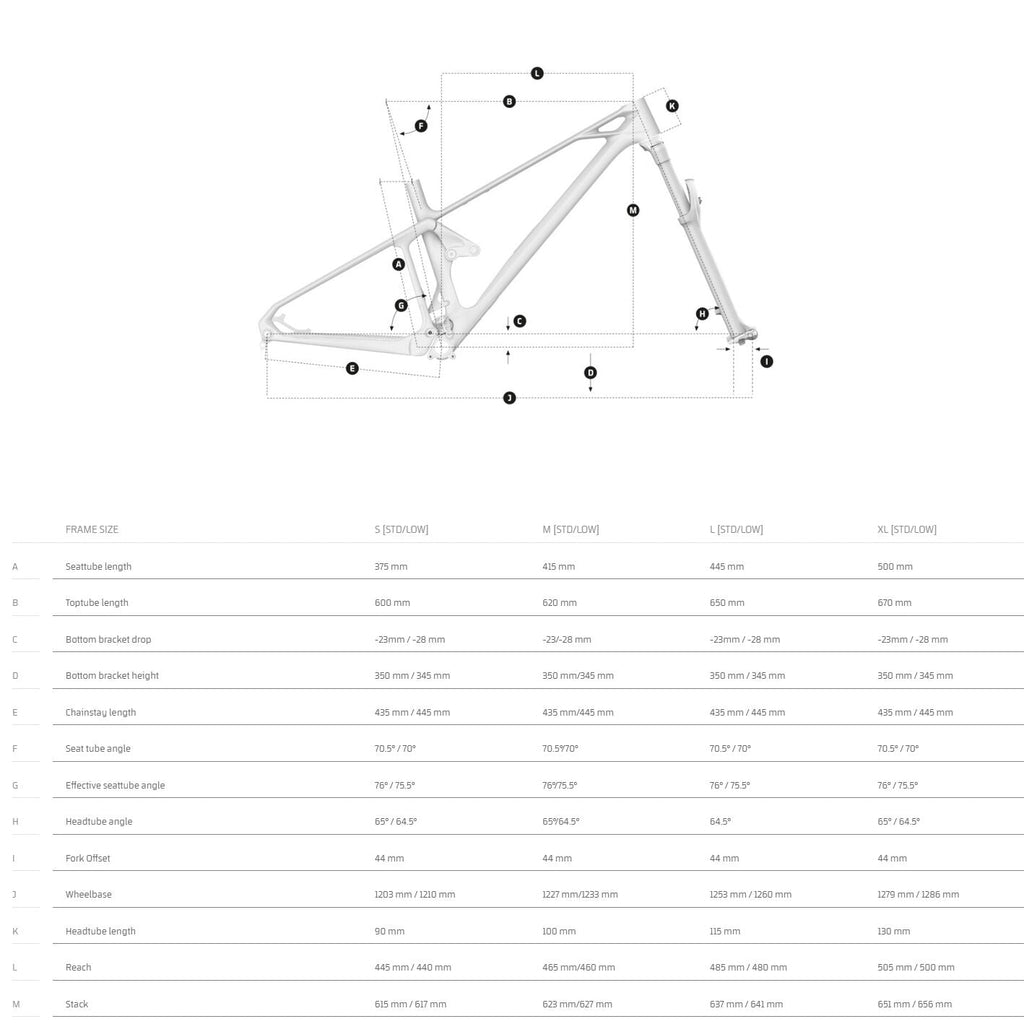

• Sizes: S: 375 mm / M: 415 mm / L: 445 mm / XL: 500 mm
• Shock absorber: Fox Float-X LV Performance, 205x65 mm. Settings: 2-position compression lever, low-speed rebound, air preload. Trunnion top mount, 30x8 mm lower bushings
• Shock adjustment: Light compression, light rebound, 0.6 air spring spacer
• Fork: Fox 36 29 Float Performance GRIP, 160 mm, 3 positions, tapered steerer tube, Boost 15x110 mm axle, 44 mm offset. Settings: compression extension adjustment, low-speed extension, air preload
• Steering: Custom Acros IS52/ZS56, 1-1/8‘ head tube, 1.5’, internal cable routing, blocklock-free seal caps
• Stem: ONOFF S6 30 mm 0º, forged 6061 alloy + CNC, 31.8 mm bore
• Handlebar: ONOFF S6 1.0 alloy 7050, rise: 25 mm, width: 800 mm, backsweep 8º, upsweep 5º, bore 31.8 mm. Sizes L and XL: rise 1.5.
• Grips: ONOFF Forest, CNC lock-on, 135 mm
• Seatpost: ONOFF Pija internal dropper, diameter 31.6 mm, 1X remote lever with bearing, size S: 140-115 mm (388-235 mm), size M: 160-135 mm (428-255 mm), size L: 180-155 mm (468-275 mm), size XL: 210-185 mm (528-305 mm)
• Saddle: SDG BEL-AIR 3.0, LPU foam, steel rails
• Front brake: Sram DB8 stealth, 4-piston caliper, 200 mm Centerline one-piece disc brake with 6 IS bolts, organic pads with steel backing
• Rear brake: Sram DB8 stealth, 4-piston caliper, 180 mm Centerline one-piece brake disc with 6 IS bolts, organic pads with steel backing
• Brake levers: Sram DB8, reach adjustment with tools, lever pivot bushings
• Rims: e*thirteen Grappler Core, IW30 Hookless, 6066 welded aluminium, 30 mm internal width, tubeless ready, 28 spokes
• Spokes: custom e*thirteen Hive triple-thickness black alloy, alloy nipples, nipple washers
• Front hub axle: e*thirteen Boost 15x110 mm, triple seal, finished aluminium, 6 IS bolts
• Rear hub axle: e*thirteen Boost 12x148 mm, triple seal, finished aluminium with 6-degree drive, 6 IS bolts, hub with integrated XD freehub body
• Front tyre: Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX GRIP compound, EXO+ protection, 120TPI, folding bead
• Cranks: Sram 1000 Eagle T-Type, Boost, DUB axle, direct mount chainring, all sizes: 170 mm, CL 55
• Chainring: 32T, CNC machined alloy, T-type
• Bottom bracket: Sram DUB BSA, sealed bearings, 73 mm, wide
• Chain: Sram GX Eagle T-Type, 12s, Powerlock
• Rear derailleur: Sram S1000 Eagle AXS T-Type, 12s
• Shifters: Sram Eagle AXS Pod MMX, 12s
• Cassette: Sram XS-1270, 10-52T, T-Type 12s
• Producer's weight: 14.8 kg

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
