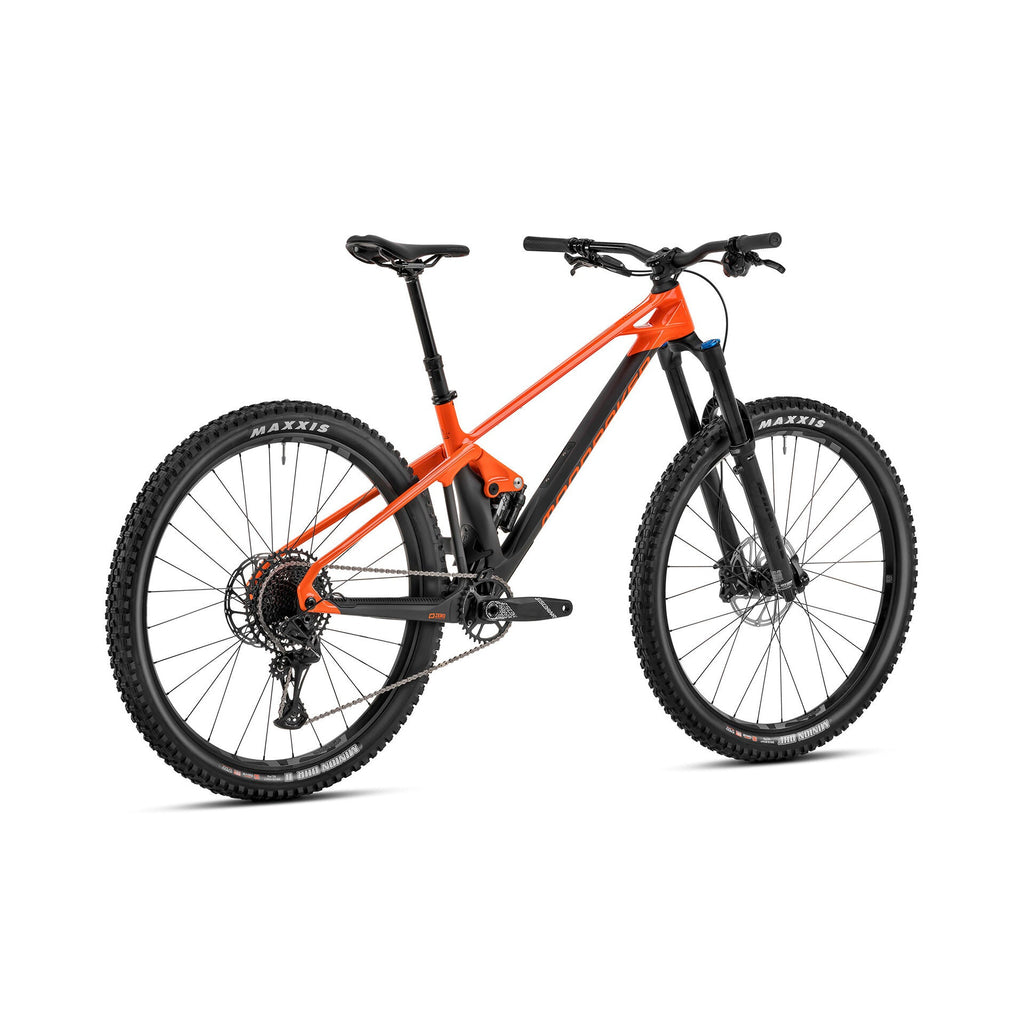

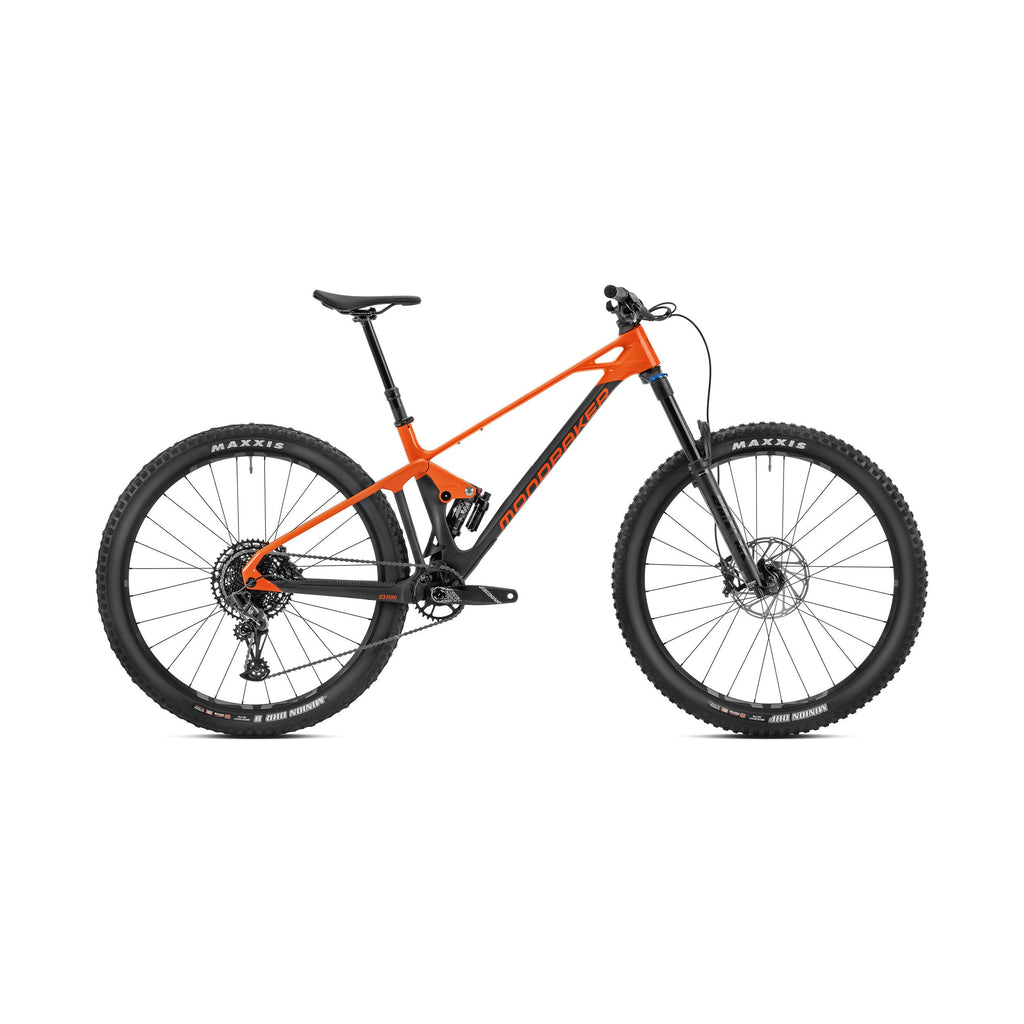

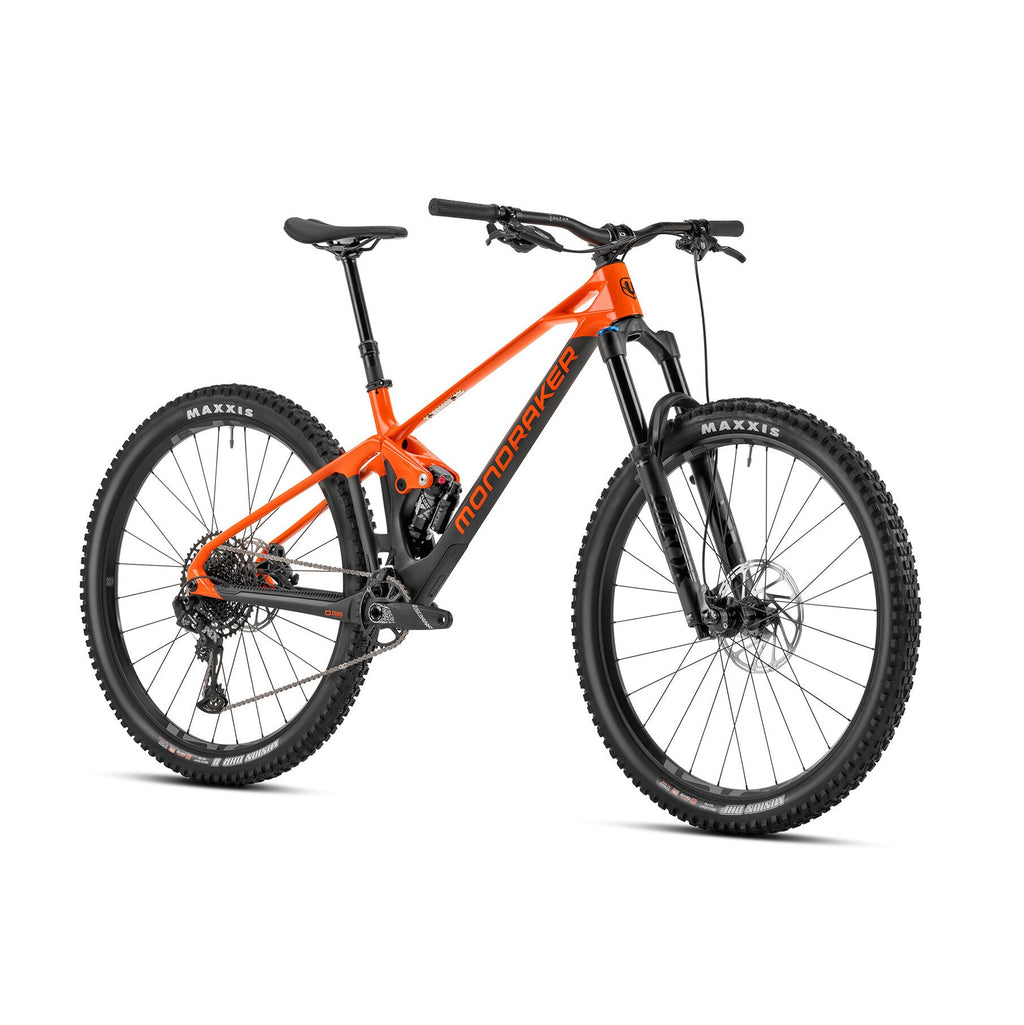

Mondraker Foxy Carbon R

The FOXY CARBON R is the most affordable range with a carbon frame identical to the XR and RR CARBON. It is equipped with Fox suspension with 160 mm of front travel and 150 mm rear travel. It also has a 12-speed SRAM NX Eagle drivetrain, e*thirteen LG1 Plus Enduro wheels, SRAM G2 R 4-piston brakes, and ONOFF components, highlighting the Pija dropper seatpost. The geometry modification kit is optional.

Tech spec

• Frame: Foxy 29 Stealth Air full carbon, Zero Suspension system, 150 mm travel, Forward Geometry, carbon monoblock upper link, Boost 12x148 mm rear axle, tapered head tube, 73 mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors
• Sizes: S: 380 mm / M: 420 mm / L: 450 mm / XL: 500 mm
• Shock: Fox Float-X LV Performance, 205x65 mm. Settings: 2-position compression lever, low-speed rebound, air preload. Trunnion top mount, 30x8 mm lower bushings
• Shock adjustment: Light compression, linear rebound, 1 Token
• Fork: Fox 36 29 Float Performance GRIP, 160mm, 3 positions, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: compression extension adjustment, low-speed extension, air preload
• Steering: Custom Acros for 1-1/2" head tube, 40x52x7 angular contact bearings, internal cable routing
• Stem: ONOFF Sulphur FG 30 mm 0º, forged 6061 alloy, 31.8 mm bore
• Handlebar: ONOFF Sulphur 1.0 double-thickness 6061 alloy, rise: 20 mm, width: 800 mm, backsweep angle 9º, upsweep angle 5º, 31.8 mm bore
• Grips: ONOFF Desert, 1 lock-on, 135 mm
• Seatpost: ONOFF Pija internal dropper seatpost, diameter 31.6 mm, size S: 405x95-125 mm, size M: 458x120-150 mm, size L: 498x140-170 mm, size XL: 498x140-170 mm
• Saddle: SDG BEL-AIR 3.0, LPU foam, steel rails
• Front brake: Sram G2 R, 4-piston caliper, Centerline 200 mm one-piece brake disc with 6 IS bolts, organic pads with steel backing
• Rear brake: Sram G2 R, 4-piston caliper, Centerline 180 mm one-piece brake disc with 6 IS bolts, organic pads with steel backing
• Brake levers: Sram G2 R, tool-free lever reach adjustment
• Rims: e*thirteen LG1 Enduro, IW30 Hookless, 6069 welded aluminum, 30 mm internal width, tubeless ready, 28 spokes
• Spokes: custom e*thirteen Hive triple-thickness black steel, alloy nipples, nipple washers
• Front hub axle: e*thirteen Boost 15x110 mm, triple seal, fully machined aluminum, 6 IS bolts
• Rear hub axle: e*thirteen Boost 12x148 mm, triple seal, fully machined aluminum with 6-degree offset, 6 IS bolts, hub with integrated Shimano freehub body
• Front tire: Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
• Rear tire: Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
• Cranks: Truvativ Descendant 6K Eagle, Boost, DUB axle, direct mount chainring, size S/M: 170 mm, size L/XL: 175 mm
• Chainring: 32T, steel, X-Sync 2
• Bottom bracket: Sram DUB BSA, sealed bearings, 73 mm
• Chain: Sram NX Eagle, 12s, Powerlock
• Rear derailleur: Sram Trigger NX Eagle, 12s, X-Actuation 1:1
• Shifters: Sram Trigger NX Eagle, 12s, X-Actuation 1:1
• Cassette: Sram XG-1230, 11-50T, 12s
• Dropout: Sram UDH
• Producer's weight: 14.9 kg

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
