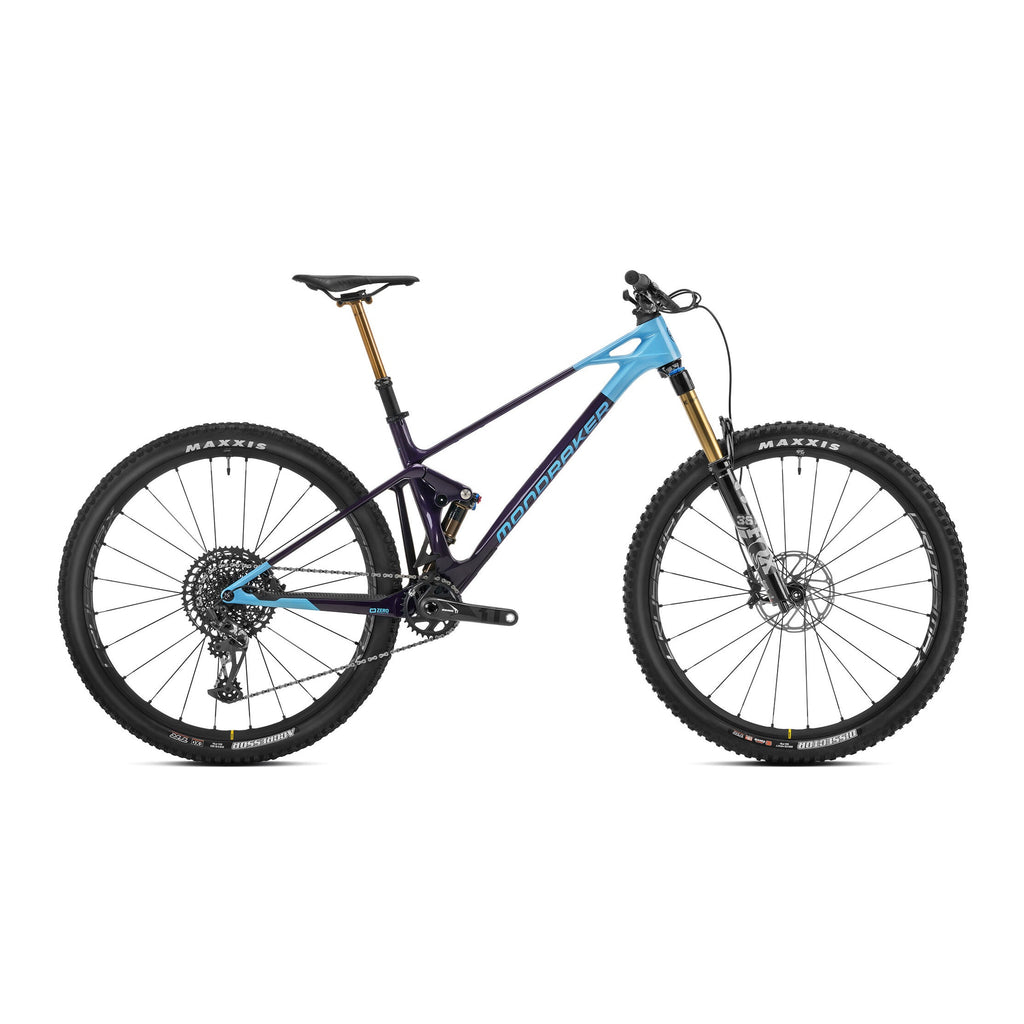

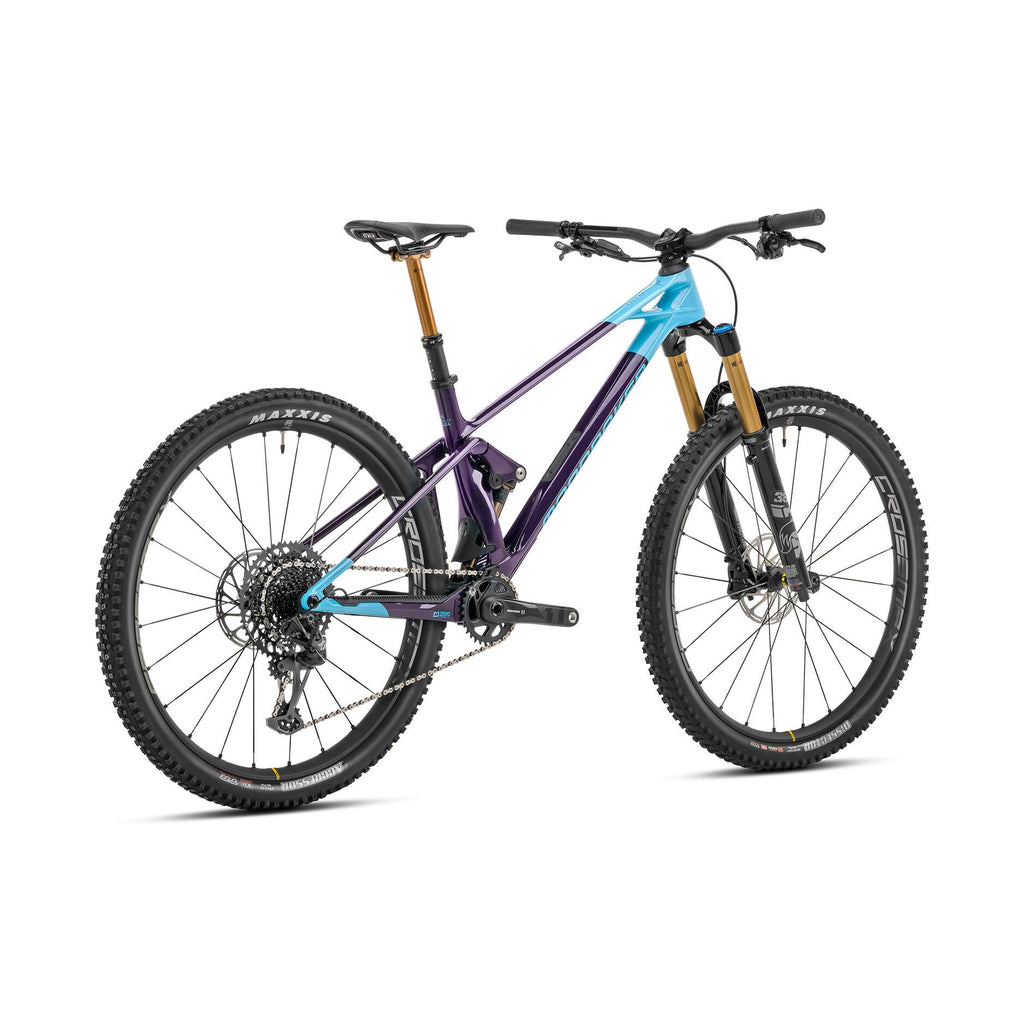

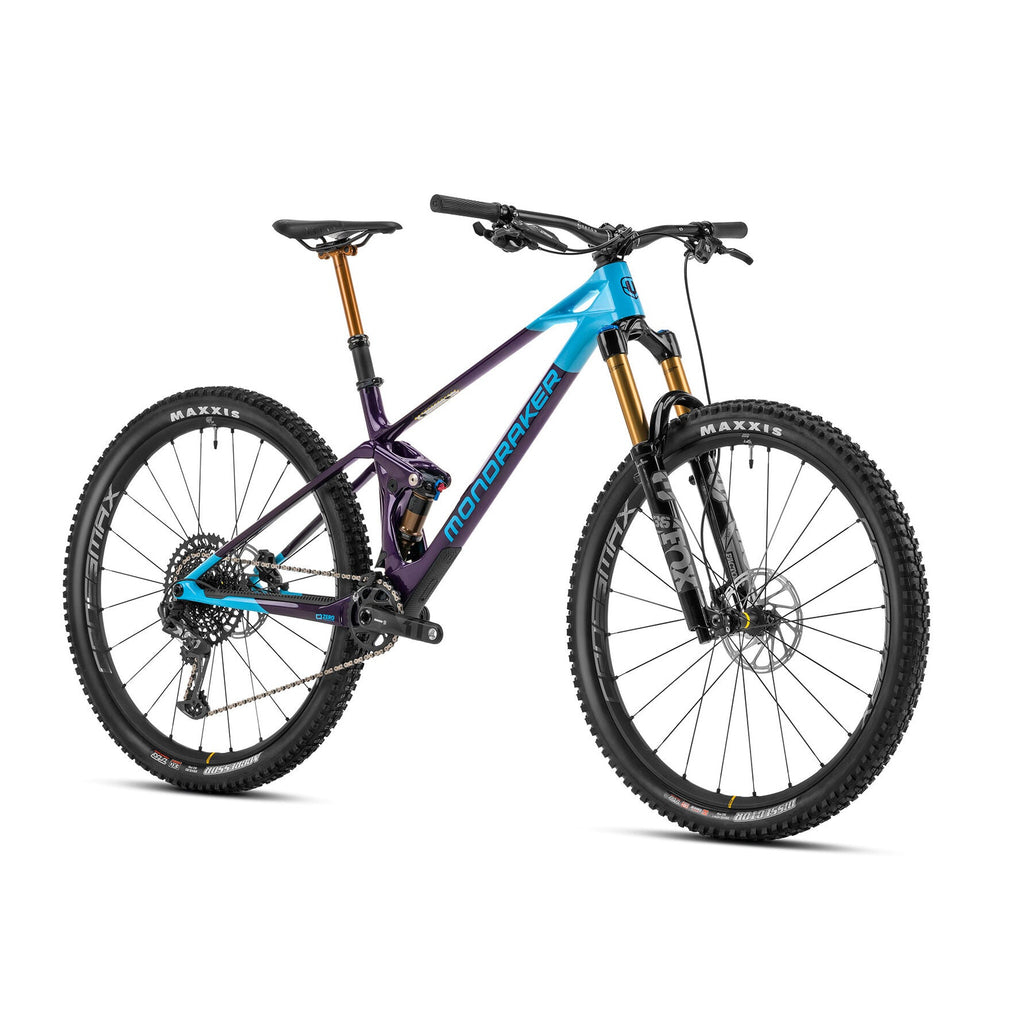

Mondraker Raze Carbon RR

This is no conventional trail bike

With 150 mm of front travel and 130 mm of rear travel, the RAZE is no conventional trail bike. Its kinematics and specific suspension settings give it capabilities never before seen in this discipline. It also features the best technologies from our top bikes: STEALTH AIR FULL CARBON, ZERO SUSPENSION SYSTEM, FORWARD GEOMETRY and MIND. In the carbon frame, the layers are carefully arranged in each area, with a specific purpose and objective geared towards a stylised structure that offers maximum comfort and vibration absorption with an extremely light weight. Last season, it was chosen as the best trail bike of 2022 by the prestigious British magazine MBR.

Tech spec

• Frame: Raze 29 Stealth Air full Carbon, Zero Suspension system, 130 mm travel, Forward Geometry, carbon monobloc top link, Boost 12x148 mm rear axle, tapered head tube, 73 mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock-absorbing mudguard, ISCG 05, custom frame guards.

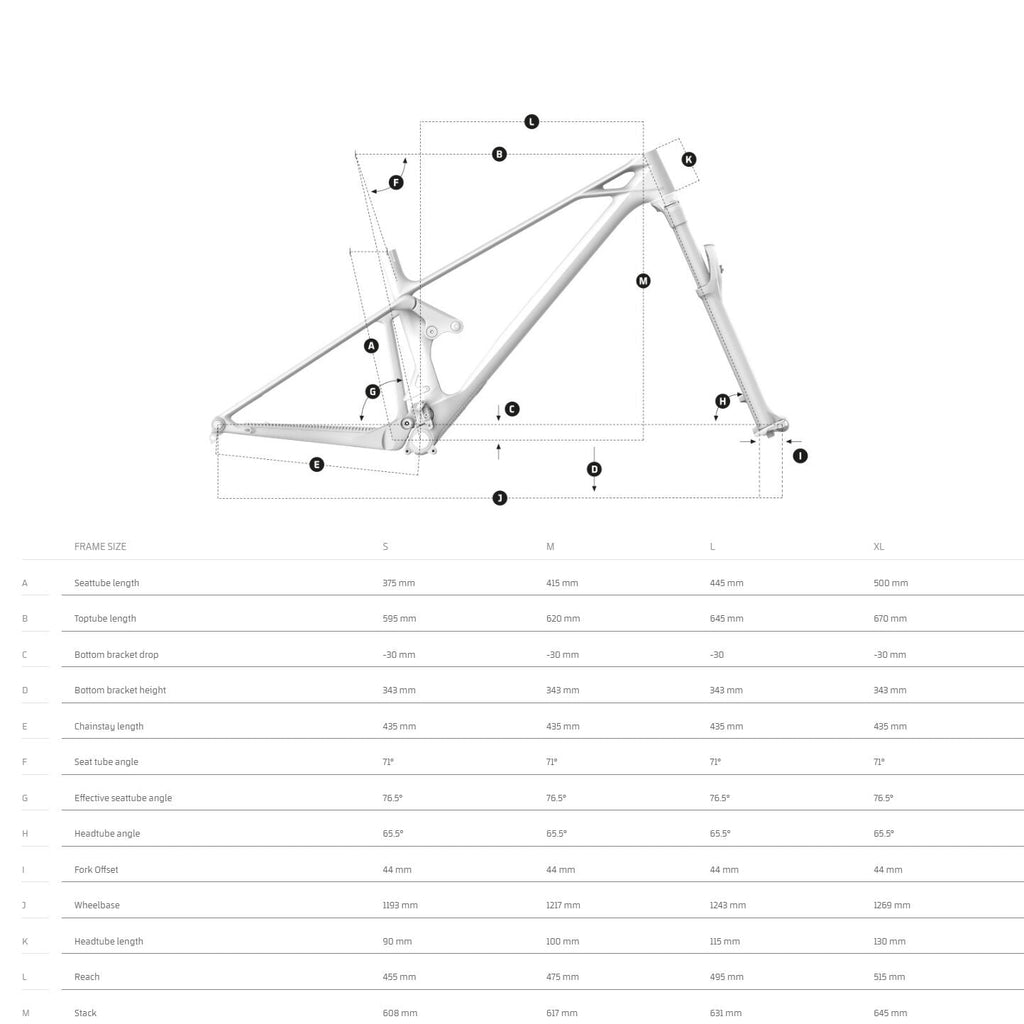

• Sizes: S: 380 mm / M: 420 mm / L: 450 mm / XL: 500 mm
• Shock absorber: Fox Float DPS Factory Kashima EVOL LV, 205x57.5 mm. Settings: 3-position compression lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x lower bushings.
• Shock adjustment: Light compression, light rebound, air flow spacer 0.6
• Fork: Fox 36 29 Float GRIP2 Factory Kashima, 150 mm, tapered head tube, Boost 15x110mm axle, 44 mm offset. Settings: high and low speed compression, high and low speed rebound, air preload
• Headset: Custom Acros for 1-1/2" head tube, 40x52x7 angular contact bearings, internal cable routing
• Stem: ONOFF Krypton FG 30 mm, CNC, 31.8 mm bore
• Handlebar: ONOFF Kripton Carbon 1.0, rise: 25 mm, width: 800 mm, backsweep angle 9º, upsweep angle 5º, 31.8 mm steerer
• Grips: ONOFF Desert, 1 lock-on, 135 mm
• Seatpost: Fox Transfer Factory Kashima internal, diameter 31.6 mm, size S: 363.5x125 mm, size M/L: 418.3x150 mm, size XL: 475.1x175 mm
• Saddle: Fizik Antares R7
• Front brake: Sram G2 RS, 4-piston caliper, 180 mm Centerline one-piece brake disc with 6 IS bolts, organic pads with steel backing
• Rear brake: Sram G2 RS, 4-piston caliper, 180 mm Centerline one-piece brake disc with 6 IS bolts, organic pads with steel backing
• Brake levers: Sram G2 RS, SwingLink, tool-free lever reach adjustment
• Rims: Mavic Crossmax Carbon XL S, 29 Boost internal width 30 mm, hookless, tubeless ready, 24 spokes
• Spokes: 24 double-butted straight-pull spokes
• Front hub axle: Infinity hub, Boost 15x110 mm, 6 IS bolts
• Rear hub axle: Infinity hub, freewheel technology with ID360 sprockets, Boost 12x148 mm, 6 IS bolts
• Front tyre: Maxxis Dissector 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding rim
• Rear tyre: Maxxis Aggressor 29x2.3, tubeless ready, dual compound, Exo protection, 60TPI, folding bead
• Cranks: Sram X1 Carbon Eagle, Boost, DUB axle, direct mount chainring, size S/M: 170 mm, size L/XL: 175 mm
• Chainring: 32T, CNC-machined alloy, X-SYNC 2
• Bottom bracket: Sram DUB BSA, sealed bearings, 73 mm
• Chain: Sram GX Eagle, 12s, Powerlock
• Rear derailleur: Sram X01 Eagle, type 3 roller bearing clutch, cage lockout, 1x12s, X-Actuation 1:1
• Shifters: Sram Trigger GX Eagle, 12s, X-Actuation 1:1
• Cassette: Sram XG-1275, 10-52T, 12s
• Dropout: Sram UDH
• Producer's weight: 13.1 kg

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only.
