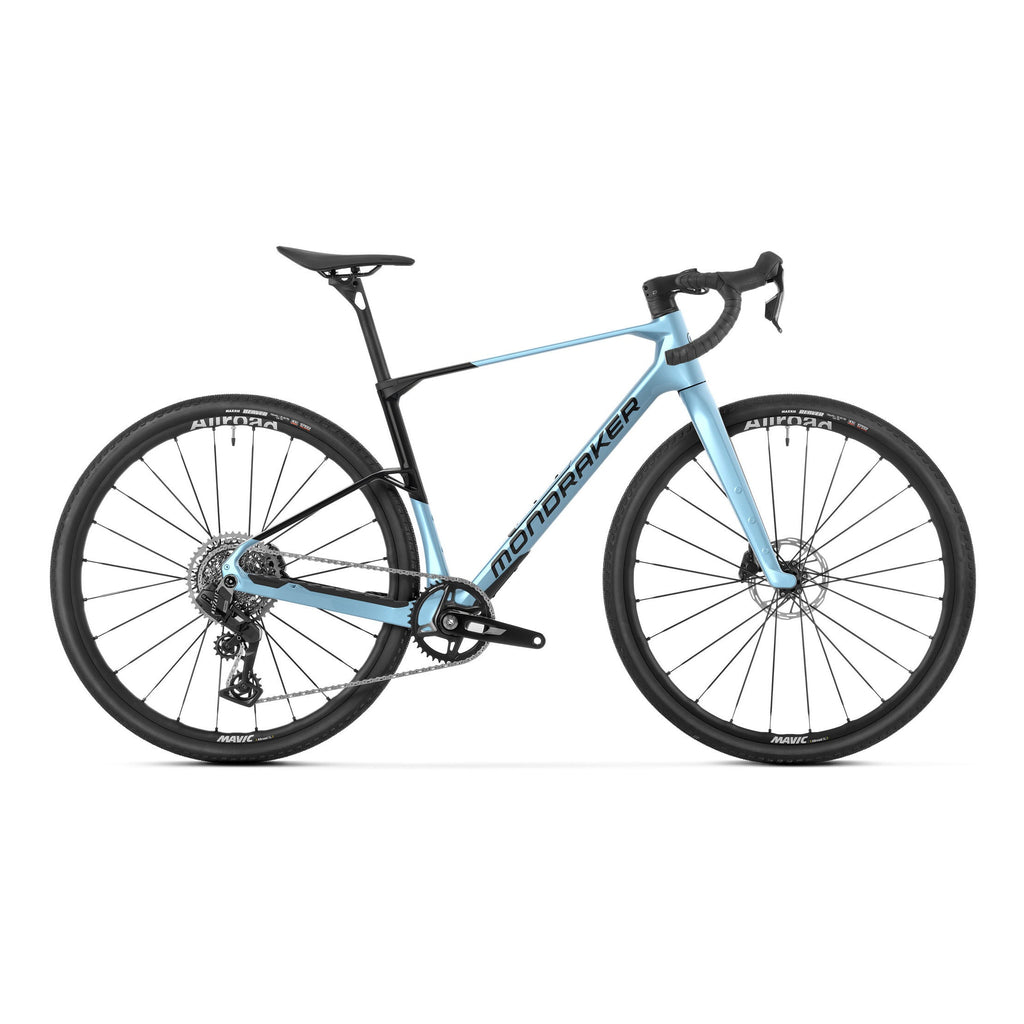

Mondraker Gravel Arid Carbon R 2026

Try something new

Ride solo or catch up with the group ahead of you. If you can't beat them, join them. Take a break from mountain biking. Or maybe not. Mix things up with gravel and finish a 200 km race on your own on endless trails. Or get lost in the woods on the weekend. Build a fire and cook dinner. Live the adventure your way. The Mondraker way.

Tech spec

• Frame: Arid Stealth Air Carbon, tube space, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142 mm rear axle, UDH, 1X drivetrain design, compatible with Flatmount brakes.

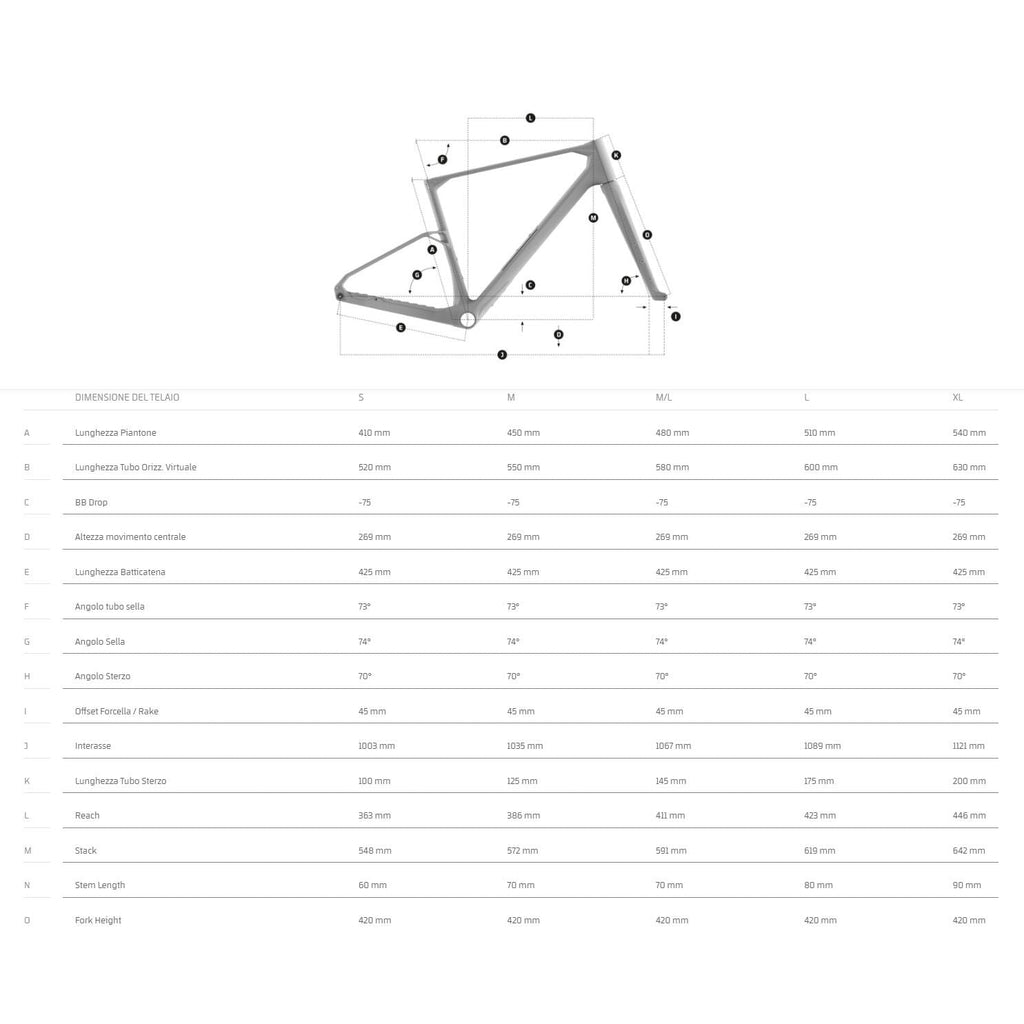

• Sizes: S: 410 mm / M: 450 mm / ML: 480 mm / L: 510 mm / XL: 540 mm
• Fork: Stealth Air Carbon tapered head tube, HHG, integrated Flatmount fork
• Steering: Onoff IS52/IS52, 1-1/8“, 1.5” head tube, sealed bearings, internal cable routing.
• Stem: Onoff Semi-Integrated, 31.8mm bore, rise: -7°, length: size S: 60mm, size M: 70mm, size ML 70mm, size L: 80mm, size XL: 90mm
• Handlebar: Onoff S9 GR CARBON 16º flare. Width sizes size S: 420mm size M: 420mm size ML: 440mm size L: 460mm size XL: 460mm
• Grips: Onoff HEX Bartape
• Seatpost: Onoff S9 Carbon 15-R, diameter 27.2 mm, length: size S: 400 mm, size M: 400 mm, size ML: 400 mm, size L: 450 mm, size XL: 450 mm
• Saddle: Fizik Vento Argo X5 140 mm
• Front brake: Sram Rival AXS HRD, 2-piece caliper, Paceline 160 mm center block rotor, organic bearing with steel support
• Rear brake: Sram Rival AXS HRD, 2-piece caliper, Paceline 160 mm center block rotor, organic bearing with steel support
• Brake levers: Sram Rival, tool-adjustable reach, carbon brake lever
• Rims: Mavic Allroad Disc, UST, 25 mm internal width, hookless, infinity hubs, 24 spokes
• Spokes: Mavic double-thickness flat steel spokes
• Front hub axle: Mavic, 12x100 mm, 6 IS bolts
• Rear hub axle: Mavic Infinity hub, 12x142 mm, XD ID360 ratchet system, 6 IS bolts, XDR freehub
• Front tire: Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
• Rear tire: Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
• Cranks: Sram Rival XPLR AXS, LARGO DUB axle, size S: 165 mm Size M: 165 mm Size ML: 170 mm Size L: 172.5 mm Size XL: 172.5 mm, CL 47.5
• Cranks: Sram Rival XPLR AXS, LARGO DUB axle, size S: 165 mm Size M: 165 mm Size ML: 170 mm Size L: 172.5 mm Size XL: 172.5 mm, CL 47.5
• Chainring: Sram 40T direct mount, alloy, narrow
• Bottom bracket: Sram DUB T47 BSA, sealed bearings, 85.5 mm
• Chain: Sram Rival, Flattop, 13s, Powerlock
• Rear derailleur: Sram Rival XPLR AXS, 13s
• Shifters: Sram Rival AXS HRD, 13s
• Cassette: Sram XG-1351, 10-46T, 13s
• Producer's weight: 8,9 kg

Producer's notes: depending on component availability, specifications are subject to change without notice. Images are for illustrative purposes only
