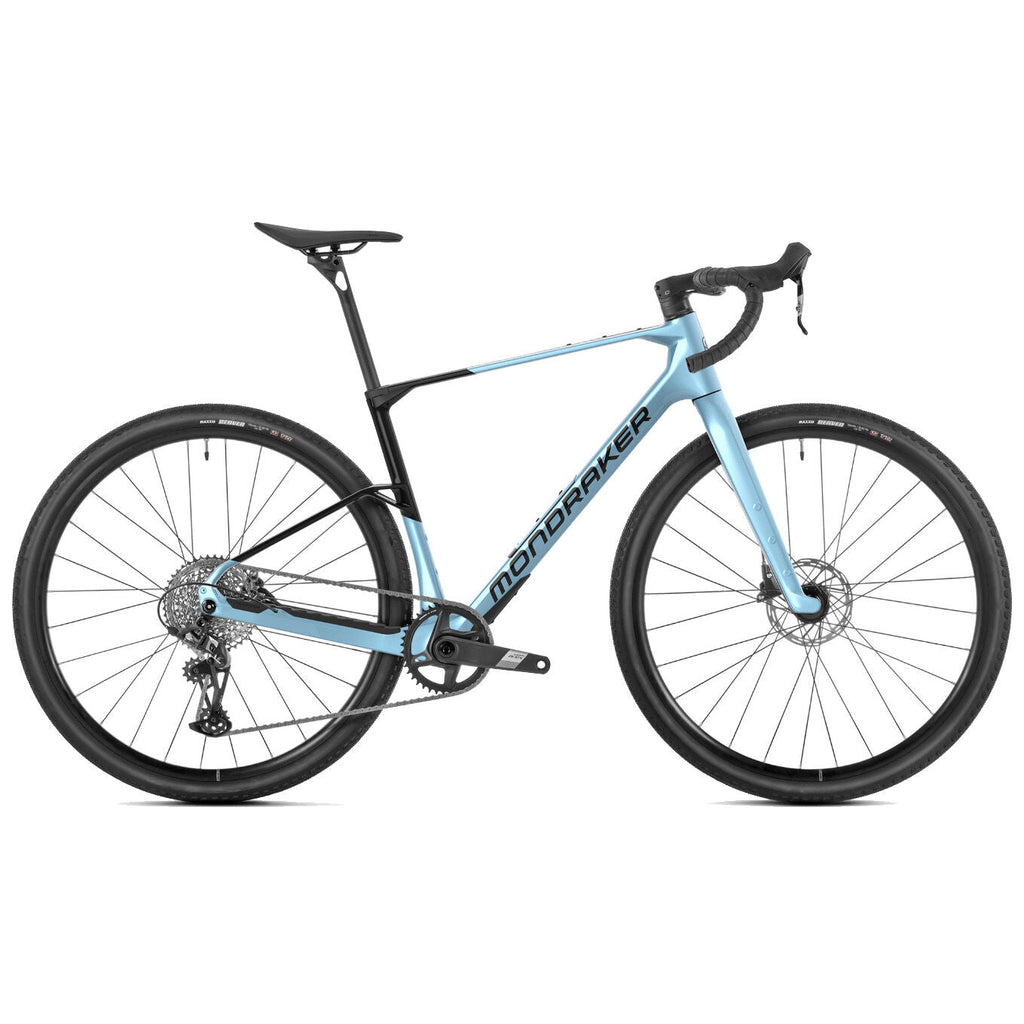

Mondraker Gravel Arid Carbon S 2026

Aura Blue / L

$3,463.89

$3,463.89 $4,105.46

1/5

Mondraker Gravel Arid Carbon S 2026

$3,463.89

$3,463.89 $4,105.46

Colour

Size

The Mondraker Arid Carbon S 2026 represents the evolution of the gravel bike, combining the Spanish brand’s mountain biking expertise with the needs of gravel cyclists. Weighing only 9.7 kg, this bike is designed to deliver high performance on mixed terrains, from paved roads to challenging trails.

Tech Specs

Frame: Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, UDH, 1X drivetrain design, Flatmount brake compatible.
Fork: Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Headset: Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
Stem: Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
Handlebar: Onoff S3 GR 16º bar flare. Width sizes S size: 420mm M size: 420mm ML size: 440mm L size: 460mm XL size: 460mm
Grips: Onoff HEX Bartape
Seatpost: Onoff S9 Carbon 15-R, diameter 27.2mm, length: S size: 400mm, M size: 400mm, ML size 400mm, L size: 450m, XL size: 450mm
Saddle: Fizik Vento Argo X5 140mm
Front brake: Sram Apex 1, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Rear brake: Sram Apex 1, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake lever: Sram Apex, contact point adjustment, tooled reach adjust, aluminum levers
Rims: Mavic Allroad Disc, UST, 25mm internal width, hookless, infinity hubs, 24 spokes front, 28 spokers rear
Spokes: Mavic Steel double butted flat spokes
Front hub: Mavic, 12x100mm, IS 6 bolts
Rear hub: Mavic infinity hub, 12x142mm, XD ID360 Ratchet system, IS 6 bolts, HG Freehub
Front tire: Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Rear tire: Maxxis Reaver 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
Crankset: Sram Apex 1 Wide, S size: 165mm M size: 165mm ML size: 170mm L size: 172,5mm XL size: 172,5mm, CL 47,5
Rings: Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide,
Bottom bracket: Sram DUB T47 BSA, sealed bearings, 85,5mm
Chain: Sram Apex, 12s, Powerlock
Rear derrailleur: Sram Apex XPLR 12s
Shift levers: Sram Apex D1 12s, X-Actuation
Casette: Sram PG-1231 11-44, 12s
Derailleur hanger: Sram UDH
Producer's weight: 9,7 kg

Manufacturer's note: Specifications are subject to change without notice based on component availability. Images are for illustrative purposes only.

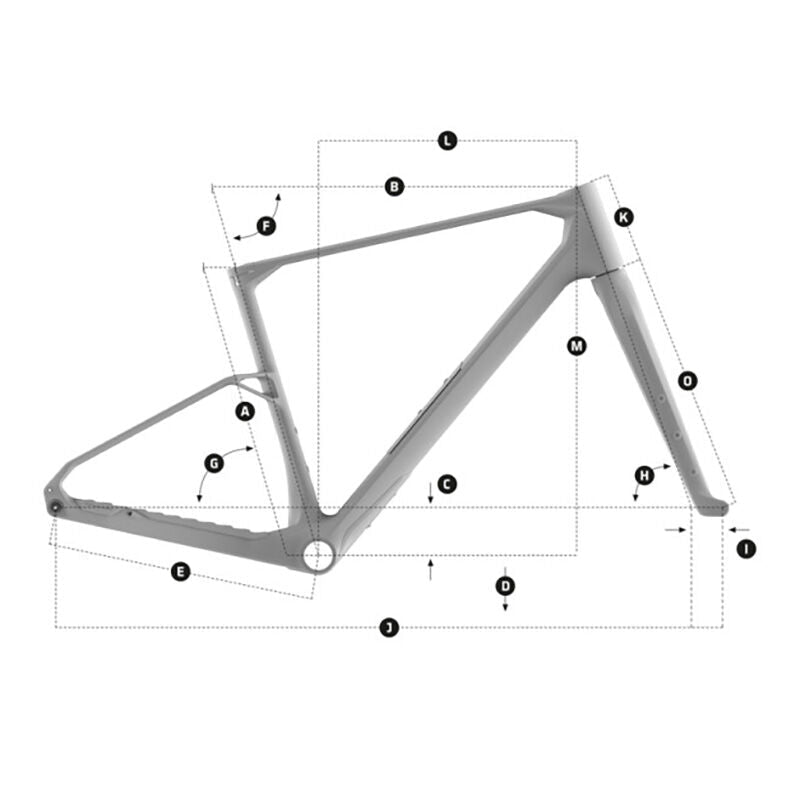

Gravel Arid Carbon S

	Frame size	S	M	M/L	L XL
A	Seattube length	410 mm	450 mm	480 mm	510 mm	540 mm
B	Toptube length	520 mm	550 mm	580 mm	600 mm	630 mm
C	Bottom bracket drop	-75	-75	-75	-75	-75
D	Bottom bracket height	269 mm	269 mm	269 mm	269 mm	269 mm
E	Chainstay length	425 mm	425 mm	425 mm	425 mm	425 mm
F	Seat tube angle	73°	73°	73°	73°	73°
G	Effective seattube angle	74°	74°	74°	74°	74°
H	Headtube angle	70°	70°	70°	70°	70°
I	Fork Offset	45 mm	45 mm	45 mm	45 mm	45 mm
J	Wheelbase	1003 mm	1035 mm	1067 mm	1089 mm	1121 mm
K	Headtube length	100 mm	125 mm	145 mm	175 mm	200 mm
L	Reach	363 mm	386 mm	411 mm	423 mm	446 mm
M	Stack	548 mm	572 mm	591 mm	619 mm	642 mm
N	Stem Length	60 mm	70 mm	70 mm	80 mm	90 mm
O	Fork Height	420 mm	420 mm	420 mm	420 mm	420 mm
