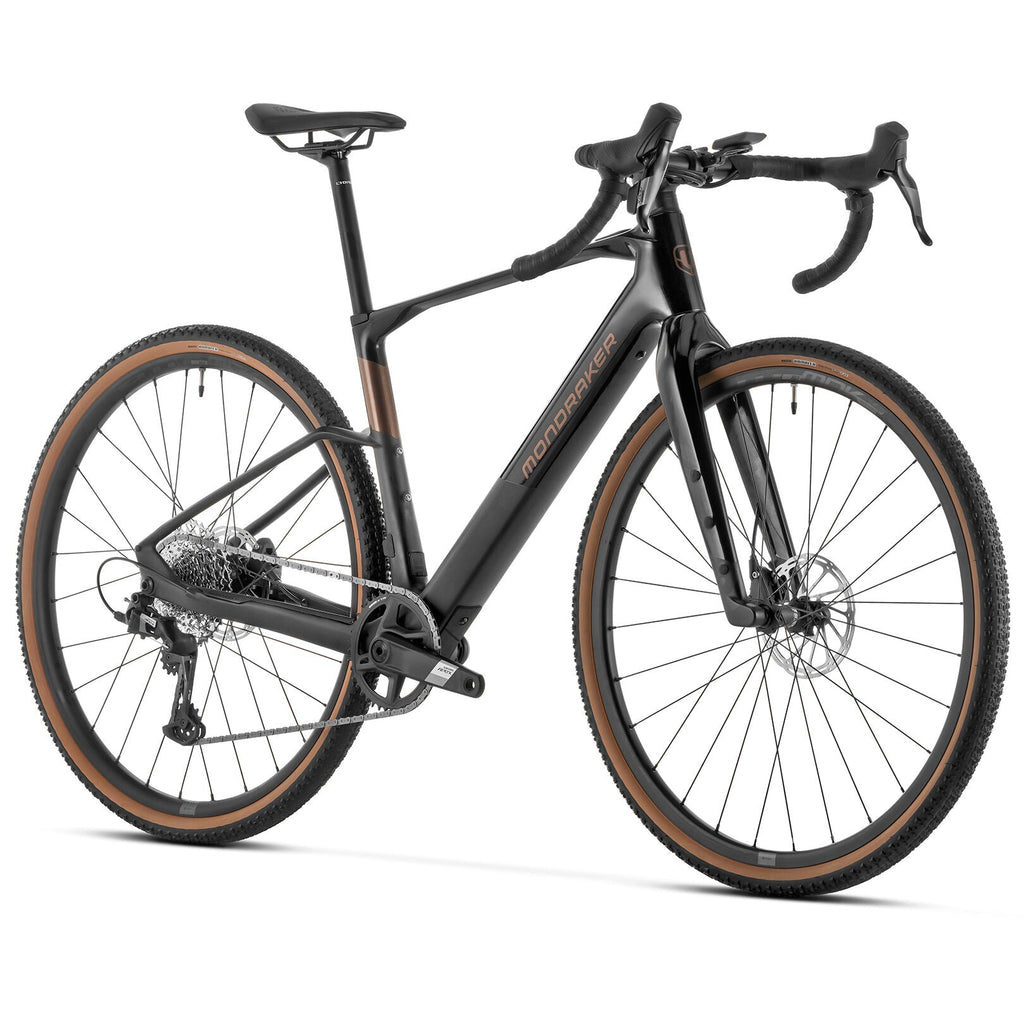

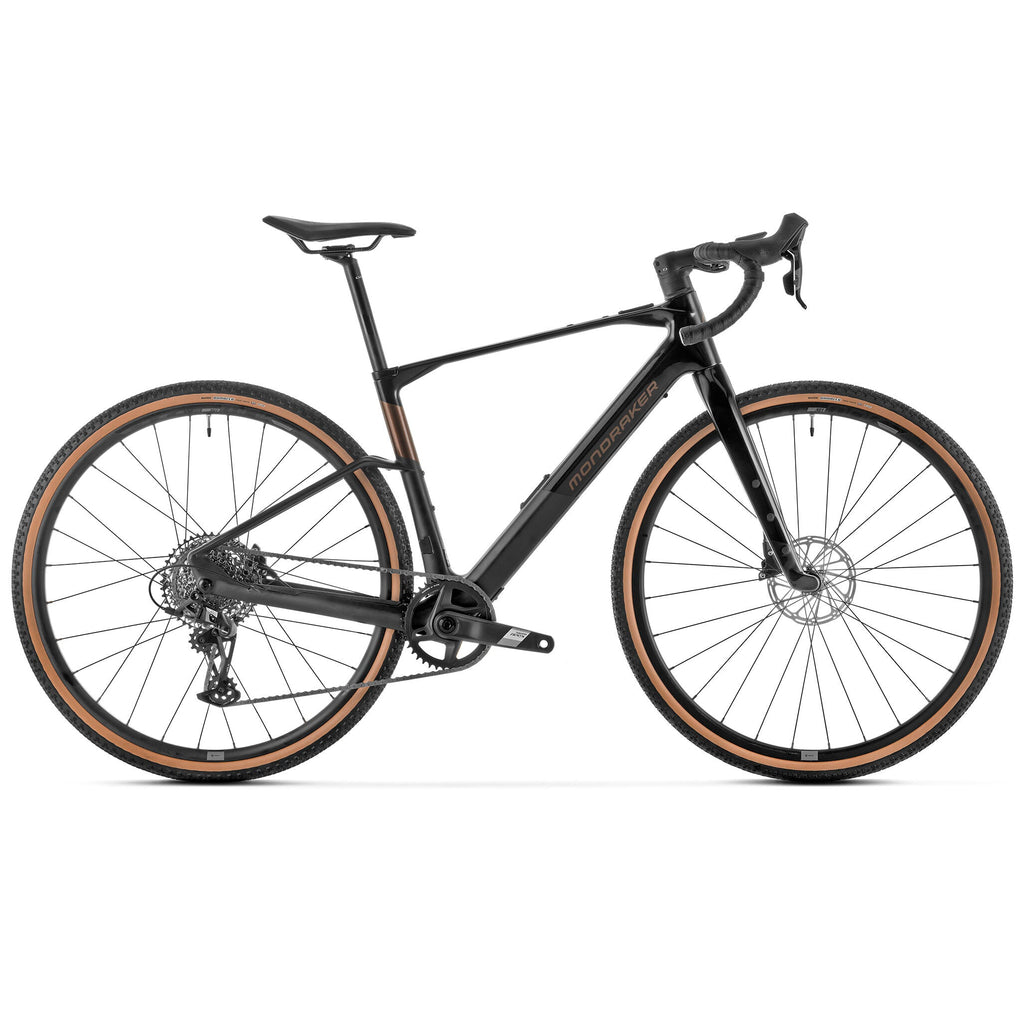

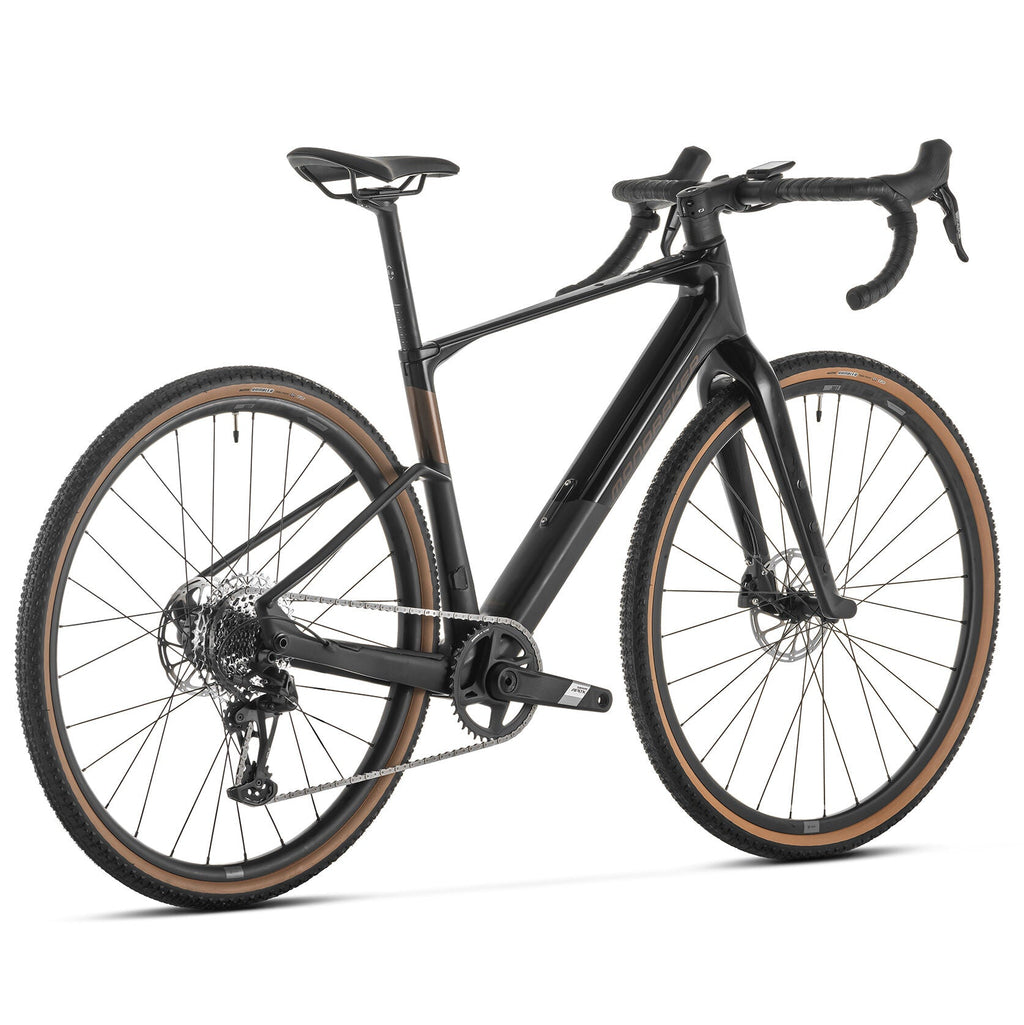

Mondraker Gravel Dusty R

Mondraker Gravel Dusty R electric bike, an e-gravel bike designed for adventures on dirt roads but also for long rides on mixed terrain. It combines the lightness and agility of a gravel bike with a frame and motor designed for assistance.

Tech Specs

• Frame: e-Gravel Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor.
• Fork: Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
• Headset: OnOff e-gravel tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
• Stem: OnOff e-gravel 6061 T6 Alloy, 31.8mm barbore, rise: -7º, length: S size: 60mm, M size: 70mm L size: 80mm, XL size: 90mm
• Handlebar: OnOff gravel 16º bar flare. Width sizes S size: 440mm M size: 440mm L size: 460mm XL size: 460mm
• Grips: Barium gravel dark grey
• Seatpost: OnOff Barium gravel microadjust diameter 27.2mm, length 400mm
• Saddle: FIZIK Terra Argo X7 150mm
• Front brake: SRAM Apex 1, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
• Rear brake: Sram Apex, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
• Brake lever: Sram Apex, contact point adjustment, tooled reach adjust, aluminum levers
• Rims: MDK-XG1, 23mm internal width, tubeless ready, 28 spokes
• Spokes: CN round stainless steel
• Front hub: Novatec D041, Boost 12x100mm, sealed bearings, IS 6 bolts
• Rear hub: Mahle X20 Drive Unit, HG freehub
• Front tire: Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
• Rear tire: Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
• Crankset: SRAM Apex 1 Wide, S: 170mm, M: 172,5mm, L: 172,5mm, XL: 175mm.
• Rings: Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide,
• Bottom bracket: Mahle DUB pressfit, sealed bearings, w/ torque sensor
• Chain: Sram Apex, 12s, Powerlock
• Rear derrailleur: Sram Apex XPLR 12s
• Shift levers: Sram Apex D1 12s, X-Actuation 1:1, single click
• Casette: Sram PG-1231 11-44, 12s
• Derailleur hanger: Mondraker M076
• Others: Optional external battery: Mahle e185Wh
• Producer's weight: 13,5 kg
• Display: Pulsar One Wireless
• Motor: Mahle X20 Drive Unit
• Battery: Mahle X20 IX350Wh

Manufacturer's note: Specifications are subject to change without notice based on component availability. Images are for illustrative purposes only.
