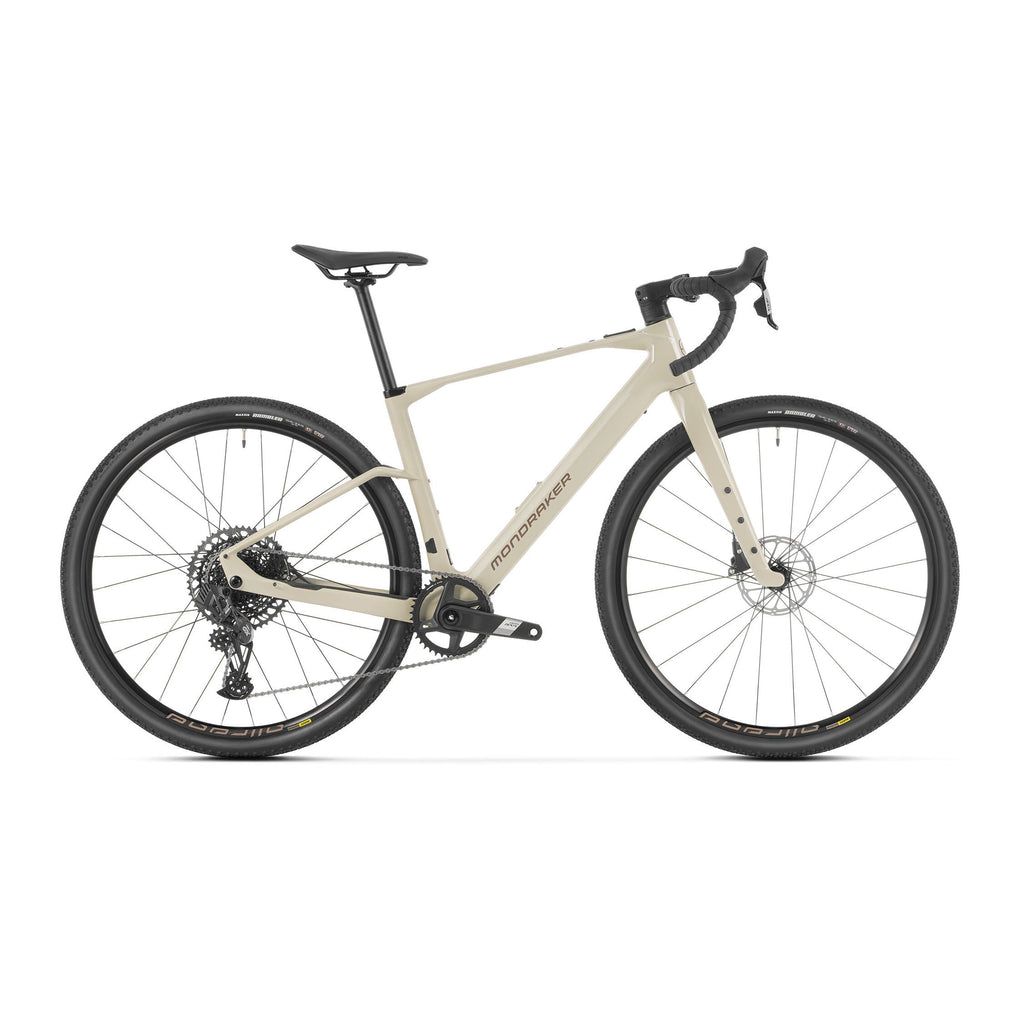

Mondraker Gravel Dusty R 2026

The Mondraker Dusty R is a high-performance e-gravel bike designed to offer power, control, and comfort on any type of terrain. Its Stealth Air carbon frame combines lightness and stiffness, while the integrated battery and premium components ensure a smooth and responsive ride. It is a versatile bike, ideal for any type of ride, always guaranteeing a balanced and dynamic riding experience.

Features

• Rims: Mavic Allroad Disc, UST, internal width 25 mm, hookless, infinity hubs, 24 spokes front, 28 spokes rear
• Rear derailleur: Sram GX Eagle, 12s
• Motor: Mahle X20 drive system
• Battery: Mahle X20 IX350Wh

Tech spec

• Frame: e-Gravel Stealth Air Carbon, 386 EVO Press-fit bottom bracket, tapered head tube, HHG internal cable routing, integrated non-removable internal battery, 12x142 mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor.

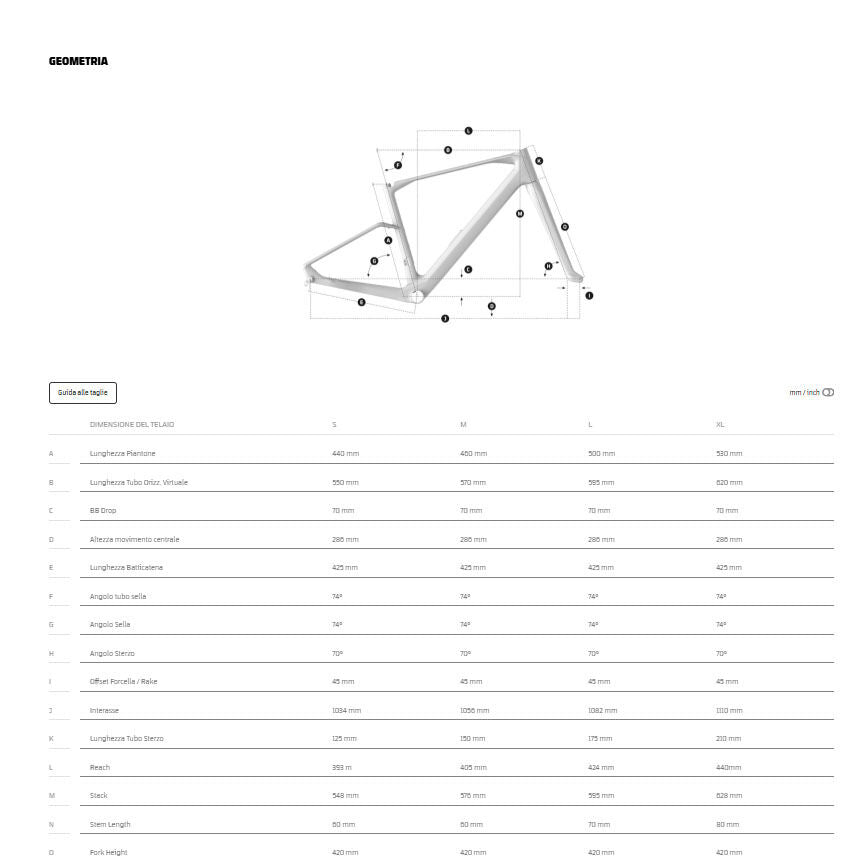

• Sizes S: 440 mm / M: 460 mm / L: 500 mm / XL: 530 mm
• Fork: Stealth Air Carbon tapered head tube, HHG, integrated Flatmount fork
• Steering: Onoff IS52/IS52, 1-1/8“, 1.5” head tube, sealed bearings, internal cable routing.
• Stem: Onoff Semi-Integrated, 31.8mm bore, rise: -7°, length: size S: 60mm, size M: 70mm, size ML 70mm, size L: 80mm, size XL: 90mm
• Handlebar: Onoff S3 GR 16º flare. Width sizes size S: 420mm size M: 420mm size L: 440mm size XL: 460mm
• Grips: Onoff HEX Bartape
• Seatpost: Onoff S3 0-R, diameter 31.6mm, length 400mm
• Saddle: Fizik Terra Argo X7 150mm
• Front brake: Sram Apex AXS, 2-piece caliper, Centerline 160 mm one-piece brake disc with 6 IS bolts, organic pads with steel backing
• Rear brake: Sram Apex AXS, 2-piece caliper, Centerline 160 mm one-piece brake disc with 6 IS bolts, organic pads with steel backing
• Brake levers: Sram Apex, contact point adjustment, reach adjustment with tools, aluminum levers
• Rims: Mavic Allroad Disc, UST, internal width 25 mm, hookless, infinity hubs, 24 spokes front, 28 spokes rear
• Spokes: Mavic double-thickness flat steel spokes
• Front hub axle: Mavic, 12x100 mm, 6 IS bolts
• Rear hub axle: Mahle X20 drive unit, XDR freehub
• Front tire: Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
• Rear tire: Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead
• Cranks: Sram Apex 1 Wide, S size: 165mm M size: 170mm L size: 172.5mm XL size: 175mm, CL 47.5
• Chainring: Sram X-Sync Eagle 40T direct mount, alloy, narrow-wide
• Bottom bracket: Mahle DUB Pressfit, sealed bearings, with torque sensor
• Chain: Sram NX Eagle, 12s, Powerlock
• Rear derailleur: Sram GX Eagle, 12s
• Shifters: Sram Apex AXS D1 12s
• Sprocket cassette: Sram XG-1275, 10-52T, 12s
• Dropout: Mondraker M076
• Producer's weight: 13.4 kg
• Display: Pulsar One Wireless
• Motor: Mahle X20 drive system
• Battery: Mahle X20 IX350Wh

Producer's notes: Specifications are subject to change without notice based on component availability. Images are for illustrative purposes only.
